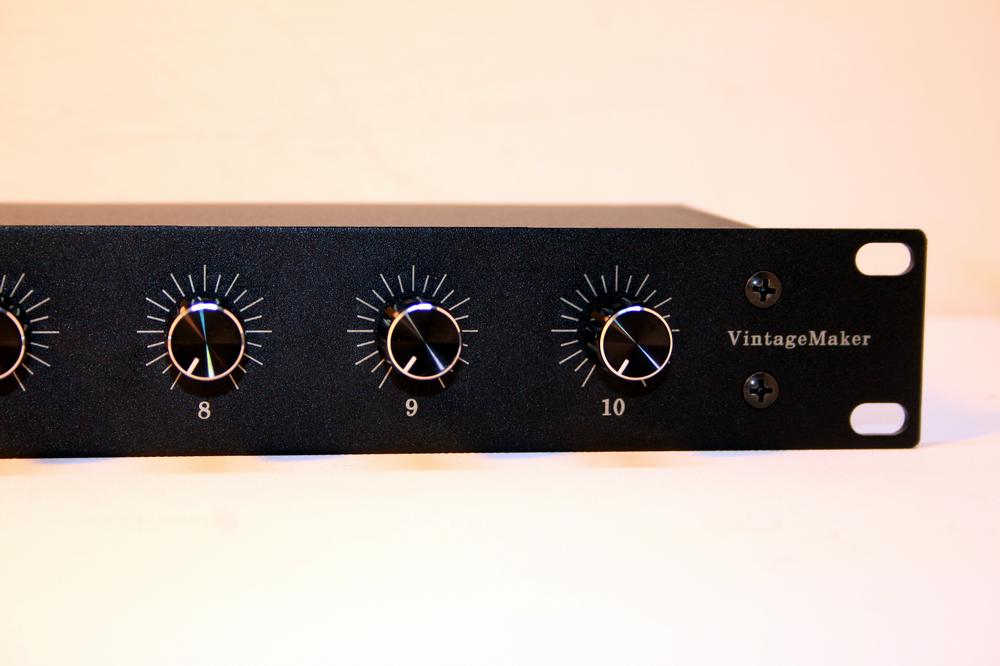

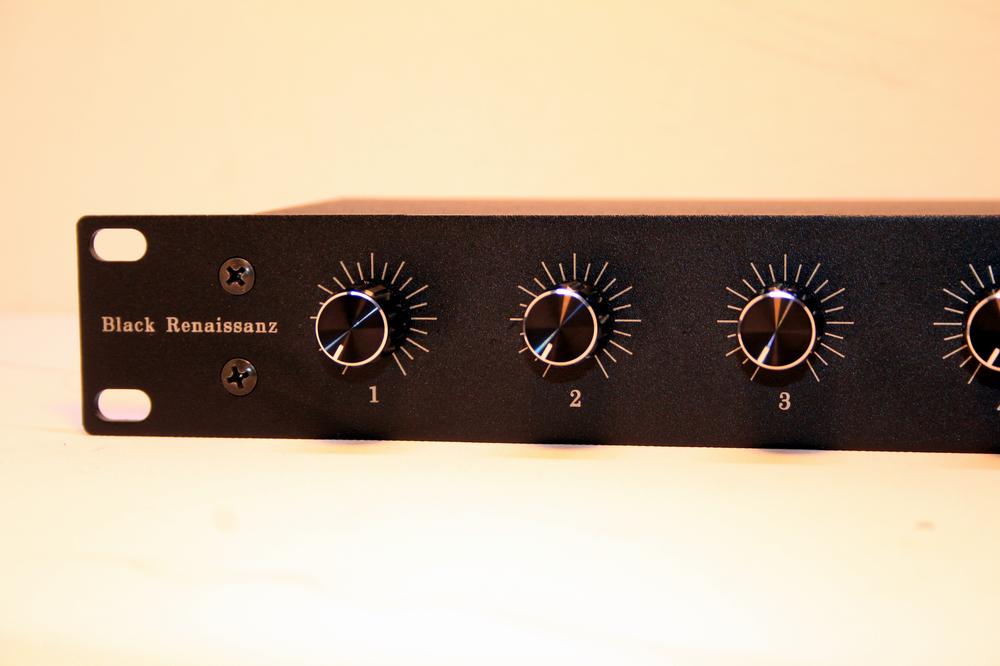

10-Channel Precision Attenuator Studio Line Signal – Volume Control for Neve 5059 Summing

The 10-channel precision attenuator with a floating-ground, independent circuit is a passive, high-accuracy line-level signal control solution designed for professional hybrid studios. Positioned before the summing stage, it provides transparent and repeatable gain staging across any balanced-unbalanced audio chain.

Signal Chain Integration

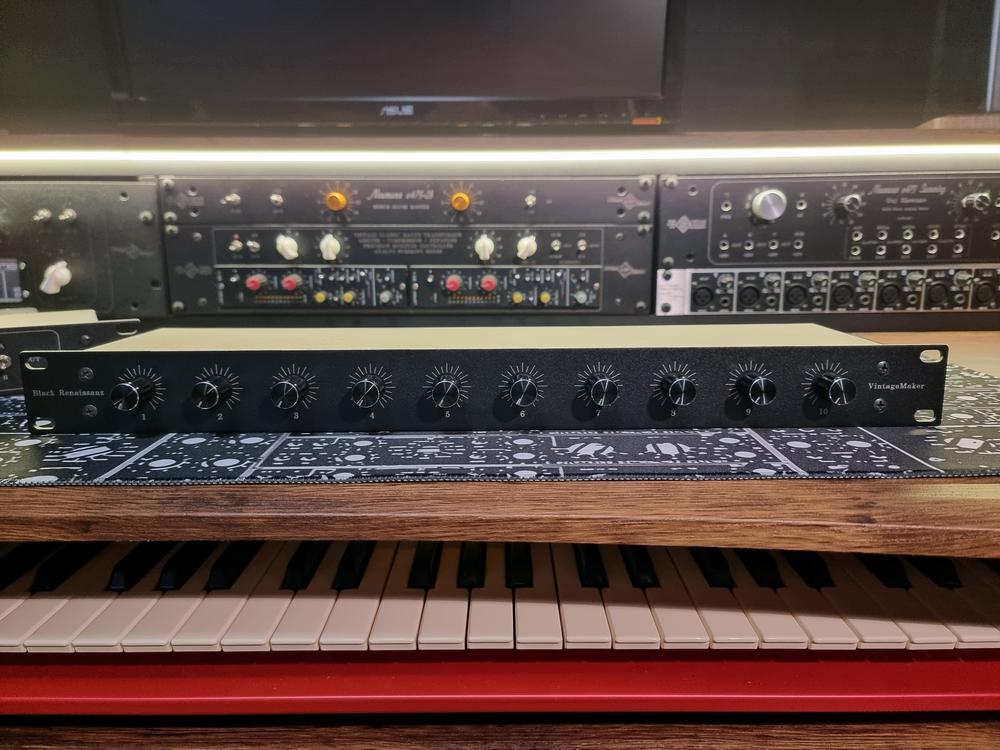

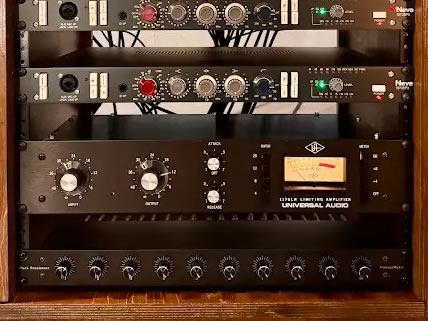

Custom built per customer request, the VintageMaker 10 Channel Passive Attenuator was designed to sit at a critical control point inside a high-end hybrid analog mixing chain – before Rupert Neve Designs 5059 Summing Mixer

Below is the exact placement within the signal path:

---

1️⃣ Phoenix Audio DRS-8

(8 channels of DI + mic pre)
→ Harmonic depth and analog preamp character

---

2️⃣ Handsome Audio Zulu 500 Series

(8 units – analog tape emulator)
→ Saturation, compression, glue

---

3️⃣ Rupert Neve Designs 551 EQ – 500 Series

(8 units)
→ Stem-level tonal shaping

---

4️⃣ VintageMaker 10 Channel Precision Attenuator

🎯 Precision Gain Staging Stage

→ 21-step precision attenuation (0 dB to -70 dB)
→ Balanced TRS Line Inputs & Outputs
→ Controls how hard the summing mixer is driven
→ Ensures optimal analog headroom
→ Provides repeatable recall in hybrid sessions

This stage defines the sweet spot of the entire summing section.

---

5️⃣ Rupert Neve Designs 5059 Summing Mixer

→ Analog summing character and harmonic interaction

---

6️⃣ Mix Bus Processing (Various 19” Units)

→ Bus compression
→ Final tone shaping
→ Stereo control

---

7️⃣ Rupert Neve Designs Master Bus Converter

(AD Converters)
→ Final high-resolution capture back to digital

---

Why This Placement Matters

Positioning the VintageMaker Attenuator directly before the summing mixer allows:

✅ Precise stem level control
✅ Perfect summing drive management
✅ Protection against unwanted saturation
✅ Improved stereo imaging accuracy
✅ Controlled low-end energy before mix bus processing

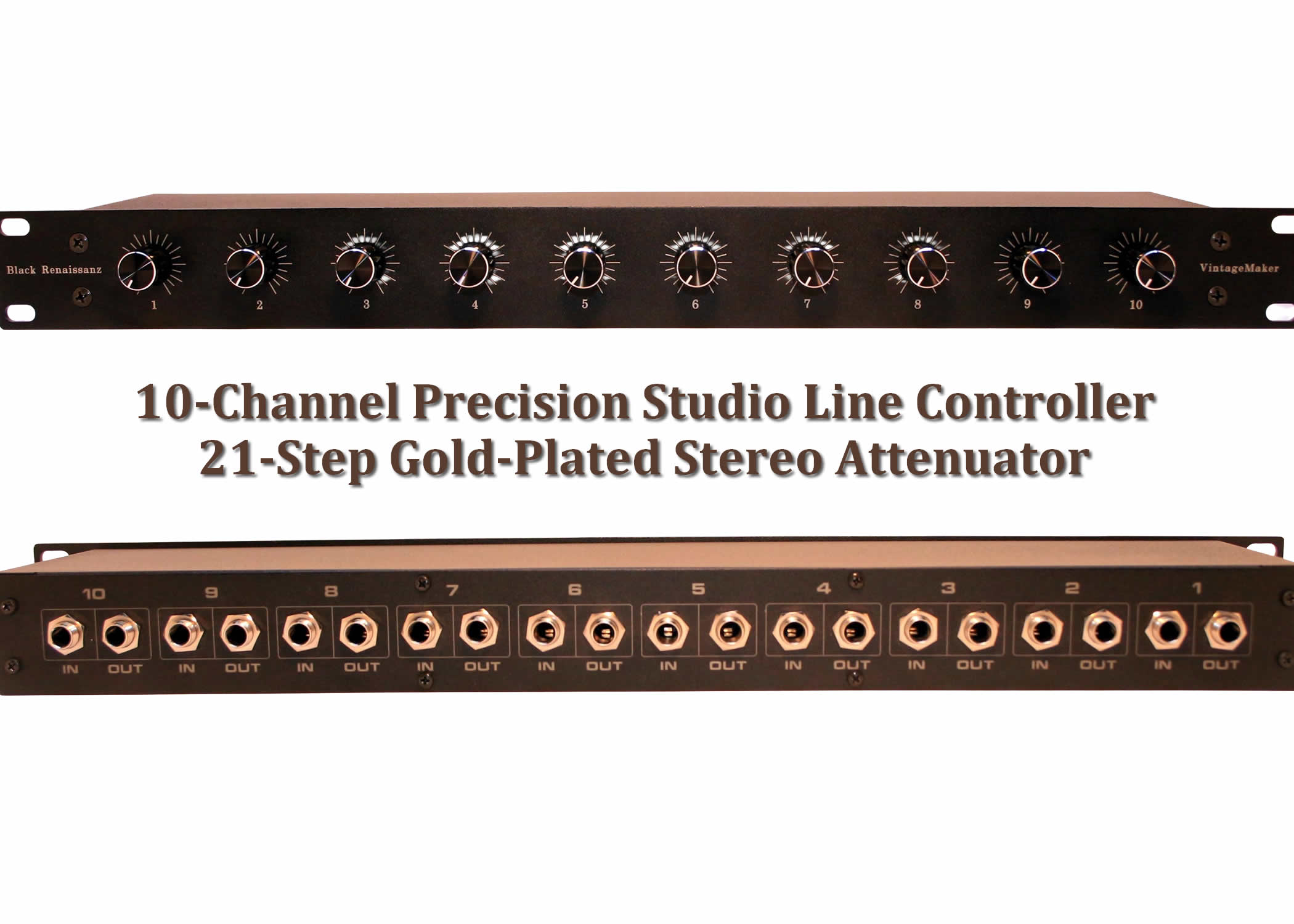

Technical Specifications

• Channels: 10 (mono) Balanced

• Steps per Channel: 21

• Attenuation Range: 0 dB to -70 dB

• Inputs: 10 × Balanced TRS (Line Level)

• Outputs: 10 × Balanced TRS (Line Level)

• Topology: Passive precision laser cut gold shape SMD resistor ladder

• Power: Not required (fully passive)

• Use Case: Studio line control / summing level management

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 12 Working Weekdays after cleared payment
