Studio Line Mastering Insert Bypass Flip Swap Switcher

True Switching Audio Studio Mastering Insert Bypass Switch Box for Outboard

Signal Line Select / Distribution Splitter / Swap-Flip Relay Patchbay / Change Sequence Order
FLIP OR SWAP – ACTIVATE OR BYPASS – YOUR ANALOG PATCHES INSTANTLY
Studio Line Mastering Insert Bypass Flip Swap switch Switcher
Studio Line Mastering Insert Bypass Flip Swap switch Switcher




Mastering Insert Bypass Switch Box studio outboard EMI Compressor Chandler Limited WA 76 Limiting Amplifier Warm Audio for studio Compressor Preamp Effects


4 x Stereo Insert Bypass Switching device TRS IN/OUT – DSUB Insert
insert bypass switch box for Elysa XPressor 500 Waves CLA-2A Universal Audio 6176 Tegeler VTRC Vari Tube
insert bypass mastering wit Elysa XPressor 500 Waves CLA-2A Universal Audio 6176 Tegeler VTRC Vari Tube switch switching box trs

2 In / 2 Out TRS – Quad 4x Stereo ABCD Insert DSUB 4x 2 Send Return Bypass Switches – Switching device

Specs:1U Standard Rack Unit2 in TRS Balanced L/R2 out TRS Balanced L/R4 x Stereo Insert Send via DSUB as ABCD4 x Stereo Insert Return via DSUB as ABCD4 x SND/RET Bypass Switches total 8 stereo switches ABCD (solid state passive)*where A=1/2, B=3/4, C=5/6, D=7/8Custom Name Engraving

  • Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
  • Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
  • THD+N < 0.004% • IMD < 0.004%
  • Crosstalk rejection (Passive Section) > 110dB

Audio Studio insert bypass switching device switch box signal select distribution splitter swap flip relay patchbay. Switch Box unique custom designed by VintageMaker. Easilyswitch between analog outboards, bypass inserts with this unique studio tool.


4 x Stereo Insert Bypass Switching device TRS IN/OUT – TRS Insert

insert bypass switch box for Wes Audio Beta 76 Warm Audio Bus Comp Black Lion Audio Eighteen
insert bypass switch box trs xlr dsub up to 10 insert

2 In / 2 Out TRS – Quad 4x Stereo ABCD Insert TRS 4x 2 Send Return Bypass Switches – Switching device

Specs: 1U Standard Rack Unit2 in TRS Balanced L/R2 out TRS Balanced L/R4 x Stereo Insert Send via TRS as ABCD4 x Stereo Insert Return via TRS as ABCD4 x SND/RET Bypass Switches total 8 stereo switches ABCD (solid state passive)*where A=1/2, B=3/4, C=5/6, D=7/8Custom Name Engraving: Let me knowBuild time 12 working weekdays


4 x Stereo Mastering Insert Bypass Switch Flip Swap sequence Switcher

studio bypass audio swap flip outboard insert device for Compressor Preamp Effects limiter equalizer
for Tierra Audio Black Lion Audio Bluey Limiter Heritage Audio HA-81A Neumann V 402
liaison style studio insert bypass swap switch for Rupert Neve Designs 5254 Dual Diode Bridge Compressor Compressor Preamp Effects limiter equalizer
custom insert bypass switch liaison style for BLACK BOX ANALOG DESIGN HG-2 SATURATION PROCESSOR RUPERT NEVE DESIGNS PORTICO II MASTER BUSS PROCESSOR
analog stereo insert bypass studio API 5500 DUAL EQUALIZER
liaison style studio insert bypass swap switch for SSL FUSION ANALOG MASTER PROCESSOR
liaison style studio insert bypass swap switch patch changer
liaison style studio insert bypass swap switch patch changer
liaison style studio insert bypass swap switch studio Swap-Flip Relay Patchbay
insert bypass switch box trs xlr dsub up to 10 insert
insert bypass mastering wit Elysa XPressor 500 Waves CLA-2A Universal Audio 6176 Tegeler VTRC Vari Tube switch switching box trs

2 In / 2 Out – Quad 4x Stereo ABCD Insert 4x 2 Send Return Bypass Switch – AB/BA Flip-Swap Stereo Relay Circuit – Switching device

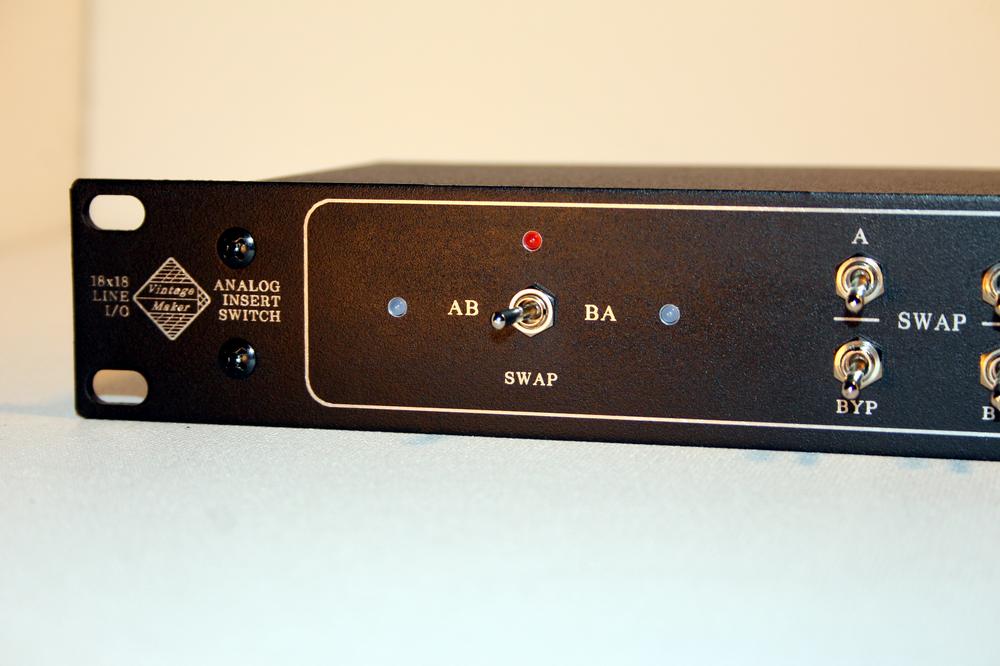

Audiophile studio-grade components are used throughout the VintageMaker’s Flip – Swap sequence order change and bypass switcher, which is 100% passive, with solid-state analog switches. Further development has led to the addition of an analog relay switching-swapping system, in which the outboards order become interchangeable (AB or BA). This system offers a truly transparent signal topology for all your outboard gear. True hard-wire bypass switches effectively remove or add any gear from the signal path, including analog units.

Customer: Hey Paul, I would like to have a flip or swap feature on the AB inserts, similar to what Dangerous Music LIAISON offers. Is it possible to build this?

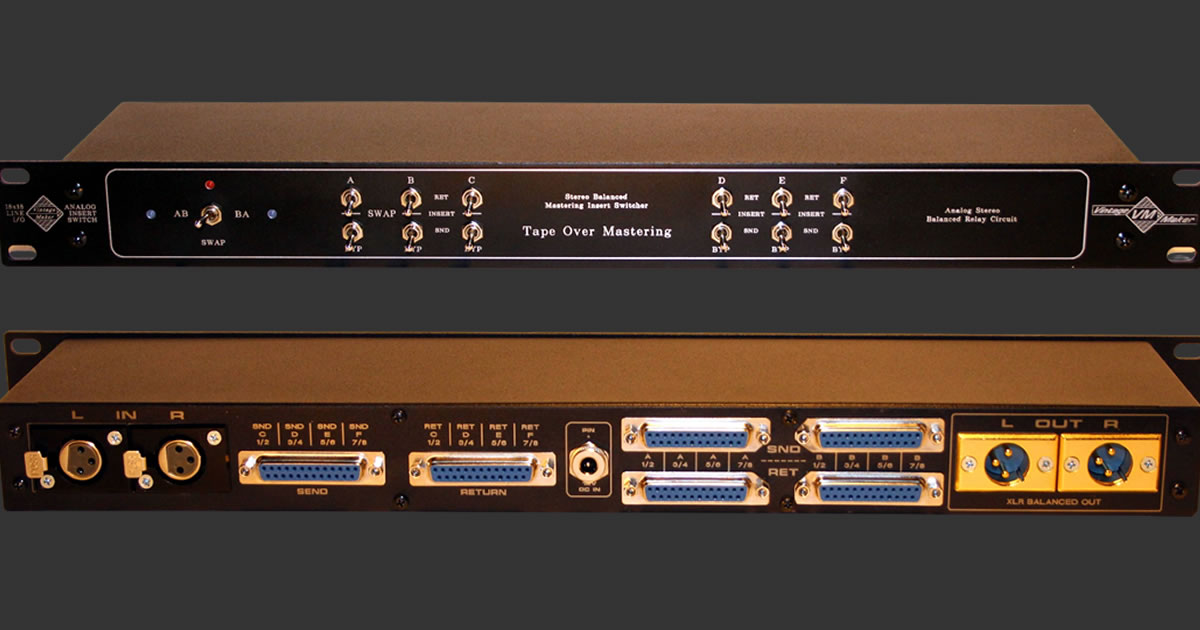

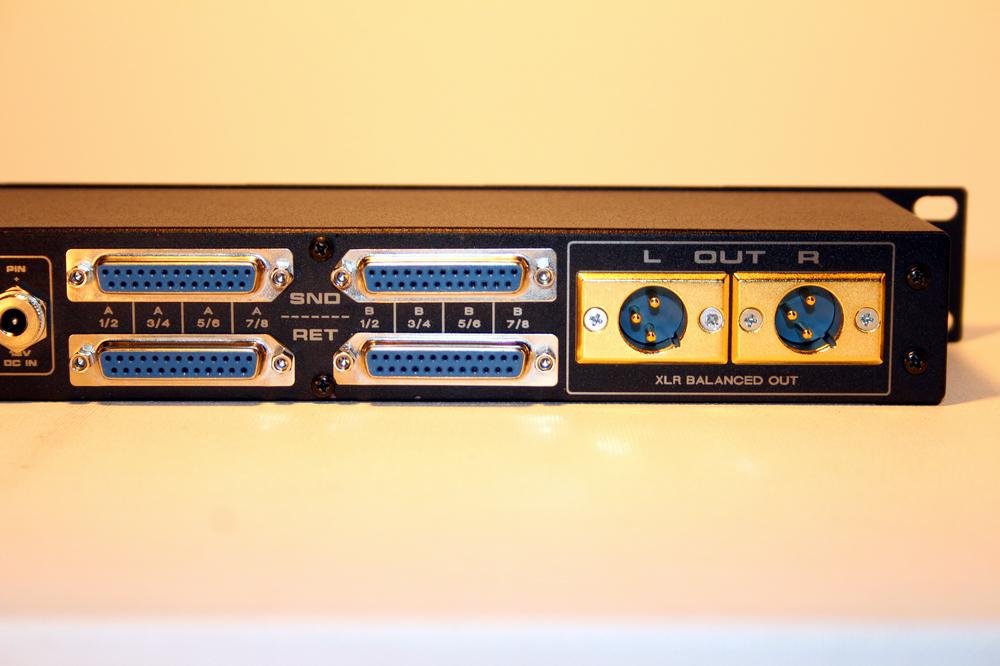

Specs: 1U Standard Rack Unit2 in XLR Balanced L/R2 out XLR Balanced L/R4 x Stereo Insert Send via DSUB as ABCD4 x Stereo Insert Return via DSUB as ABCD4 x SND/RET Bypass Switches ABCD (solid state passive)*where A=1/2, B=3/4, C=5/6, D=7/8AB/BA Flip/Swap by Relay network via 2 position switchAB/BA LED colour: RedExternal Power Supply Eu PlugPower LED colour: GreenCustom Name Engraving: Glen Scott MusicBuild time: 18 working weekdays


Desktop AB/BA Flip-Swap Relay Circuit Switch Box XLR I/O DSUB Insert

mastering insert flip swap switcher switch box for compressor limiter mastering studio effect processor reverb delay choir
mastering insert switcher 2 channel
masterint insert send return switcher
mastering switcher
mastering switcher eq compressor limiter

2 In / 2 Out XLR – Dual 2x Stereo A/B Insert Send Return – AB/BA Flip-Swap Stereo Relay Circuit – Desktop Mastering Insert Bypass

Specs: Desktop unit (width 60mm, height 150mm, depth 100mm)2 in XLR Balanced L/R2 out XLR Balanced L/R2 x Stereo Insert Send via DSUB A and B2 x Stereo Insert Return via DSUB A and BAB/BA Flip/Swap by Relay network via 2 position switchExternal Power Supply Eu PlugPower LED colour: GreenCustom Name Engraving (let me know)Build time: 18 working weekdays

  • Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
  • Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
  • THD+N < 0.004% • IMD < 0.004%
  • Crosstalk rejection (Passive Section) > 110dB

DSUB Quad Insert Bypass Switching device

True Switching Insert Bypass Device
Audio Insert Bypass Switch
rack audio insert bypass switch studio
audio insert bypass switch studio 3
DSUB Insert switch
audio bypass device
Ask for Price 4 In / 4 Out – Dual Input with 4x Insert Bypass

No insert :SND sw OFF (down) = signal stright to outRET sw OFF (down) = signal strigh to outInsertSND sw ON (UP) = signal SEND to external enabledRET sw ON (UP) = signal RETURN from external enabled

Customer: Is there any Switch Box to Bypass Compressors and EQ’s and other processors in a chain?

Answer: Yes, With Line Insert switchers you can free select between various devices such as mic preamps, equalizers, compressors, recording interfaces, or mixing consoles. Add an Insert bypass switch to your outboard desk audio chain, for pre or post unbalanced or balanced signal processing.


Line Signal Distribution Switch Box

studio splitter
studio signal distribution splitter
studio line splitter

studio line splitter
studio signal distribution splitter

studio line splitter

4 In / 6 Out – Stereo Balanced Distribution Box

Customer: This box would be between my audio interface and the monitors themselves.

Only one set of outputs would be active at a time. The Audio interface has its own way of switching and never has A output going at the same time as B output


Audio Relay 20×20 Mic XLR and DAW DSUB Signal Distribution Switcher patchbay

Signal patchbay Select Distribution Switcher

Studio Relay Distribution Switcher
Custom pathfinder Relay Patchbay

Custom pathfinder Relay Patchbay
studio audio relay switch router patchbay 1

studio audio relay switch router patchbay 1
studio audio relay switch router patchbay 6
studio audio relay switch router patchbay 4
studio audio relay switch router patchbay 1

studio audio relay switch router patchbay 1
studio audio relay switch router patchbay 2
16 input relay patchbay

16in/16out passive patchbay
Ask for price – 20×20 Audio Studio Relay Signal Select Distribution Switcher fully analogue audio relay-based patch bay designed for Ableton live sessions dj’s

A or B Mic XLR select to 2 x XLR out
C or D Mic XLR select to 2 x XLR out
8 in DSUB E to 16 DSUB OUT
8 in DSUB F to 16 DSUB OUT
1 x E or F Input select switch
Green Power LED

220VAC to 12VDC External Power Supply


20×20 Mic and DAW Signal Distribution Switch box for ableton live Dj

True Switching Audio Studio Mastering Insert Bypass Switch Box for Outboard

True Switching Audio Studio Mastering Insert Bypass Switch Box for Outboard
Signal Line Select Distribution Splitter

True Switching Audio Studio Mastering Signal Line Select Distribution Splitter
Signal Line Select Distribution Splitter Box

2 x 8 input Ableton Signal Line Select Distribution Splitter
studio merger combiner box

AB and CD MIC select
studio Swap-Flip Relay Patchbay

studio Swap-Flip Relay Patchbay
IMG_0023
Ask for price – 20×20 Signal Distribution analog Switcher

A or B Mic XLR select to 2 x XLR out
C or D Mic XLR select to 2 x XLR out
8 in DSUB E to 16 DSUB OUT
8 in DSUB F to 16 DSUB OUT
4 x E or F Input select switch
Fully Balanced

True analog Mastering Insert Bypass for outboard processor, switching audio studio line mastering, external insert, and flip swap audio box to change sequence order in the recording chain.

Improve your recording workflow with the Audio Insert Switch Box by VintageMaker. Easy switch between analog outboards, bypass inserts with this handy studio tool.

The VintageMaker’s swap flip insert bypass switch incorporates high-quality audiophile studio grade components

and is entirely passive, featuring solid-state Mastering Insert Bypass analog switches. Ongoing development introduced an analog relay switching-swapping system, enabling flexible outboard gear ordering (AB, BA, or any configuration you desire). This system ensures a truly transparent signal flow for all your outboard equipment, with true hard-wire bypass switches effectively removing or adding any gear to the signal path, including analog units.

Analog Studio Insert Bypass Switch and Flip swap audio device Insert Bypass Mastering

If you have a specific work method that you prefer, your patch bay can be configured with “normaled” connections, simplifying your usual setup. This means that you don’t need to use patch cables to operate the system in your typical way. You only have to make connections when you want to change the preferred signal path. For example, you can have your preamp > comp 1 > comp 2 > comp 3 > Limiter 4 and so on up to 10 Inserts configuration as the default setup, and only insert a cable to deviate from this order or bypass the compressors.
