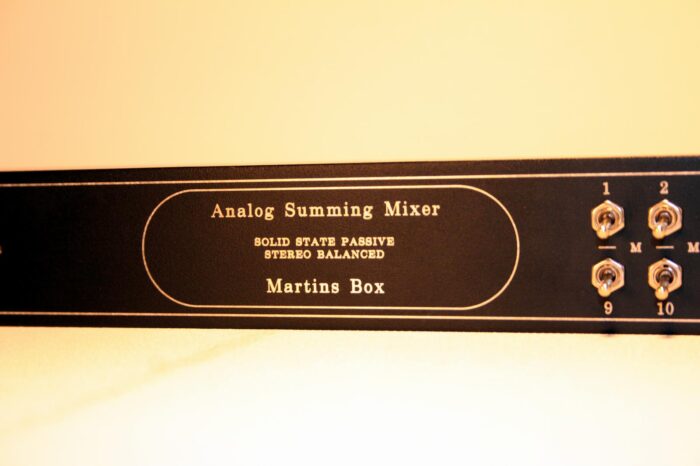

16-Input Analog Summing Mixer with 16 x Per Channel Mono switch

0.00

16-ch Summing Mixer with 16 x Mono switch for MOTU Avid Presonus, Cakewalk by BandLab designed for Lynx Aurora / RME Babyface Pro FS Lynx Studio Aurora E44 and SSL Alpha VHD-Pre, Neve 1073, Focusrite ISA One

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

ASK TO BUILD YOURS!

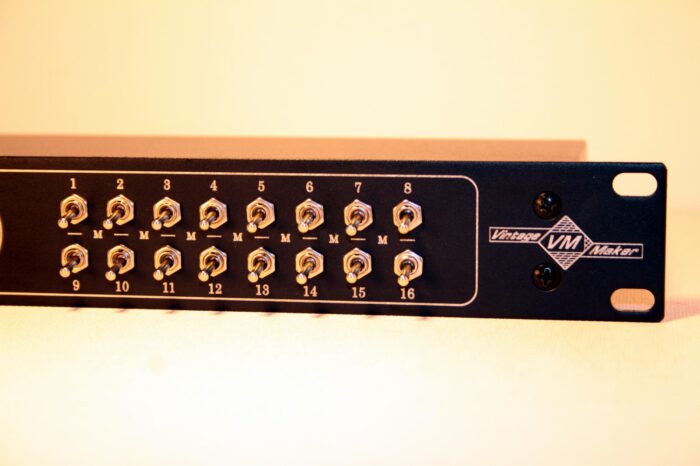

16 Input DSUB / 2 x Stereo XLR out with 16 x Mono switch (per channel)

Variable Headroom gain switch

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box

8-Channel Analog Summing Mixer with insert monitor gain control

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know

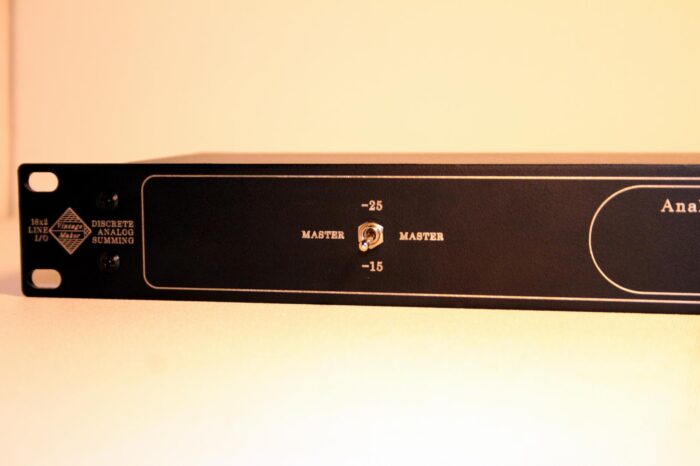

VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB

OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

15 WORKING DAYS
