Rackmount Active Summing Mixer

16×4 Lawo Analog Summing Mixer DSUB Direct Input

0.00 €

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

CONTACT AND ASK TO BUILD YOURS

Categories: ,

Custom Lawo SSL-ish Analog Summing Mixer DSUB with Original Genuine Vintage Legendary Lawo Pikatron Audio Transformers

DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

1U standard rack
Lawo DV975 genuine Gearman transformer
16 in DSUB balanced
2xstereo out by TRS balanced (main/monitor)
Master Active/Passive 2in1 option by switch
Master Send/Return by front panel switch
3x (STM) Stereo to mono option on CH1 strereo input=2 mono

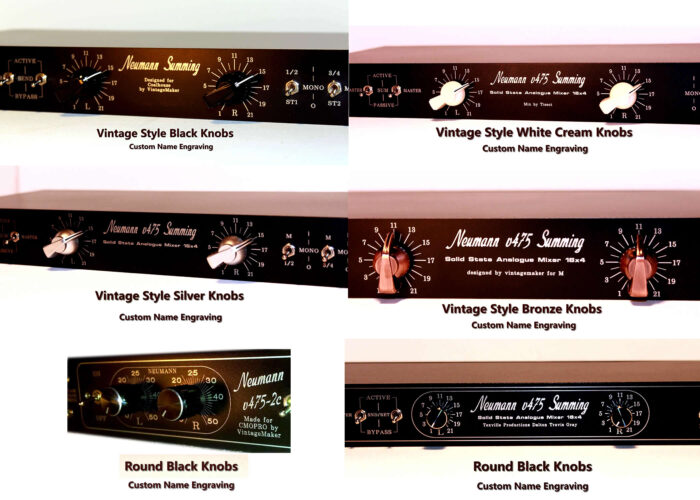

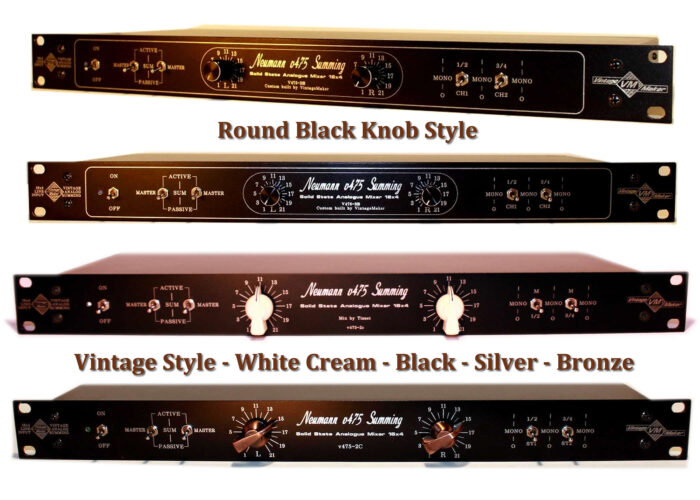

21 step precision Lawo gain pot by black chicken head knobs
15/16 IN = DIRECT INPUT = Slave summing mixer or other line input
Power LED: Red
110-240VAC to 18-24 VDC 0,6-1,5A PSU
Design: minimal

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know
VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB
OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know
CUSTOM NAME?

YES (let me know), NO THANKS
BUILD TIME

15 WORKING DAYS
