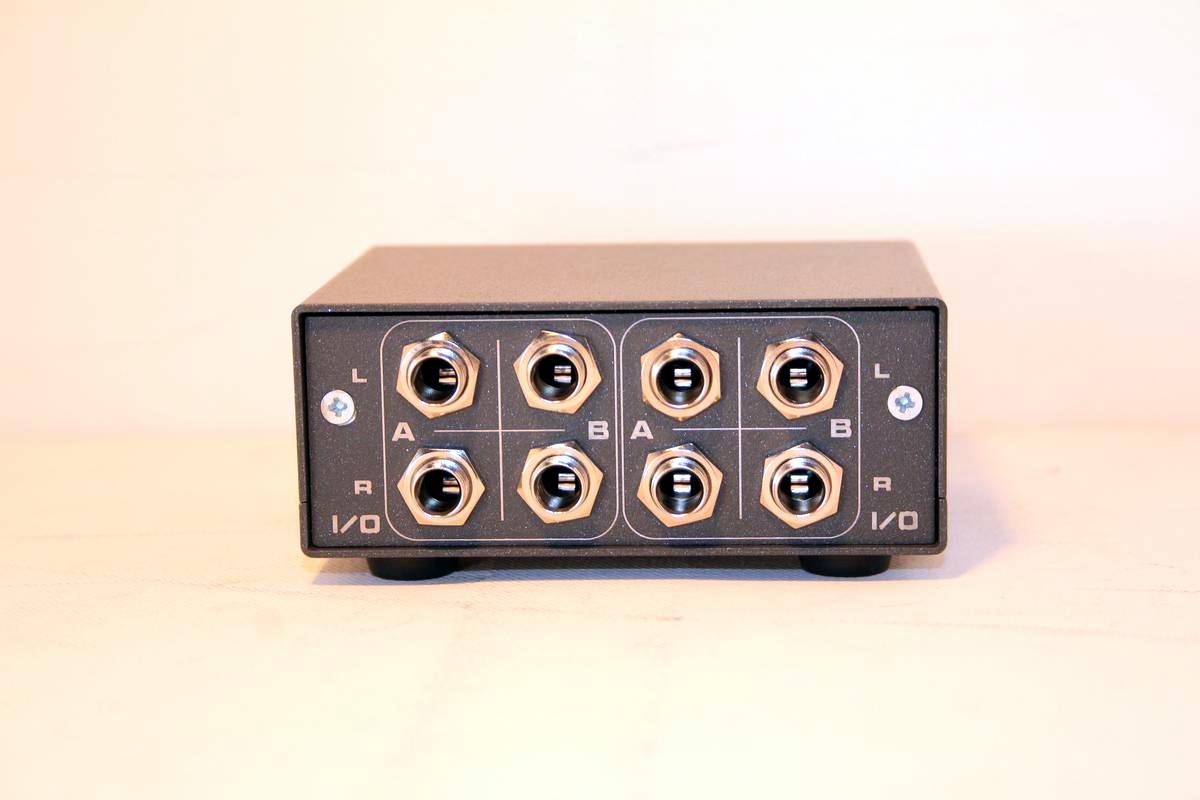

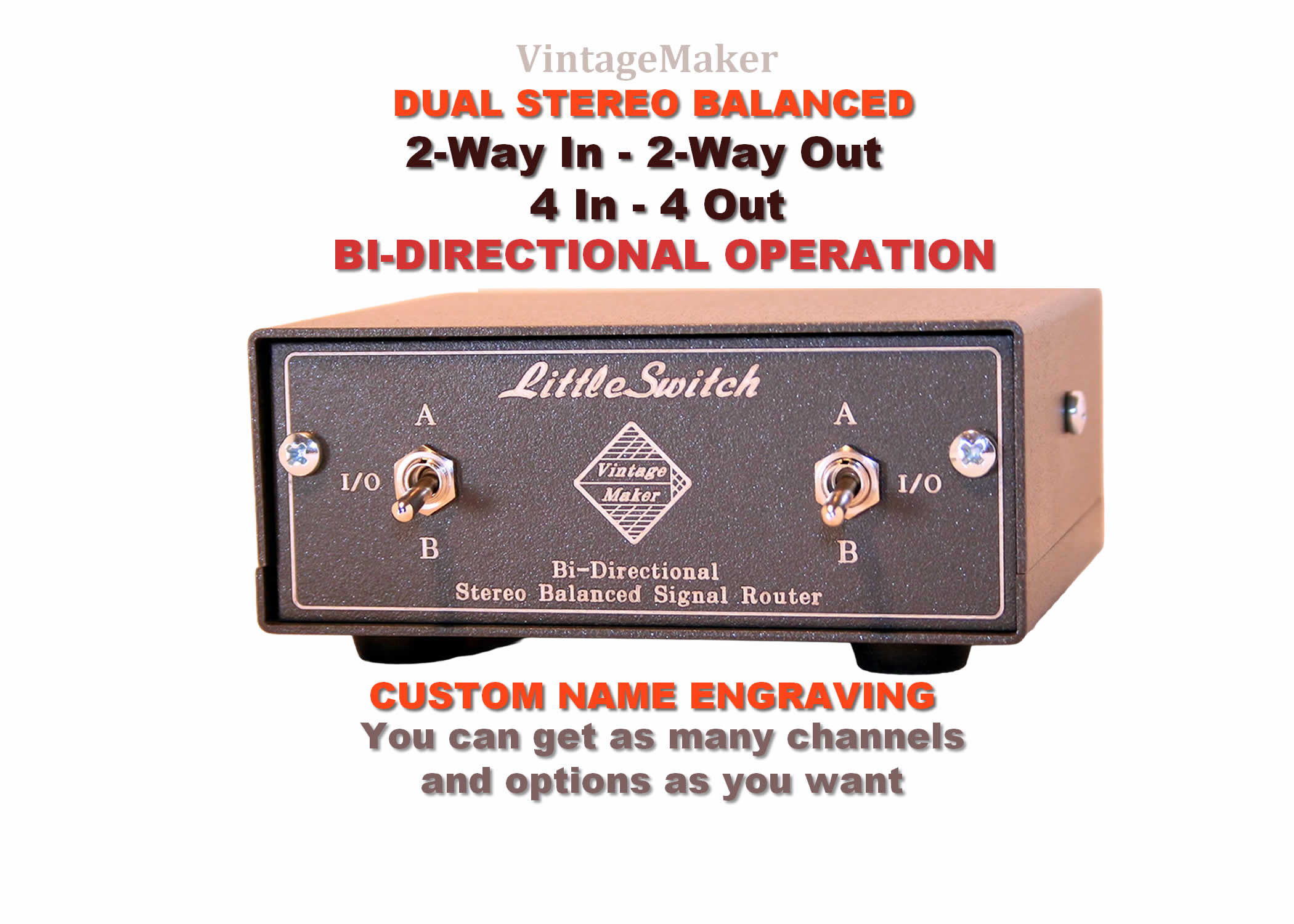

2-Way In / 2-Way Out 4×4 TRS Bi-Directional Analog Studio Switcher

TRS Bi-Directional Analog Studio Switch Box – 2 x Stereo In / 2 x Stereo Out

A compact, passive bi-directional TRS studio switcher designed for flexible routing between two stereo balanced sources and two stereo balanced destinations.

The unit provides:

• 2 × stereo TRS balanced inputs — 4 channels
• 2 × stereo TRS balanced outputs — 4 channels
• Input Select A / B
• Output Select A / B
• Bi-directional operation
• 100% passive analog signal path

The independent input and output selectors allow either input or output to be selected between A and B, making the unit useful for comparing equipment, switching between studio signal paths, or routing balanced sources and destinations without active electronics.

Technical Specifications

Inputs: 2 × stereo TRS balanced — 4 channels
Outputs: 2 × stereo TRS balanced — 4 channels
Input Switching: A / B
Output Switching: A / B
Operation: Bi-directional
Signal Path: 100% passive
Power: None

Designed for both Balanced – or – Unbalanced operation

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your controller or switcher? Tell me what you need and I build for you!
