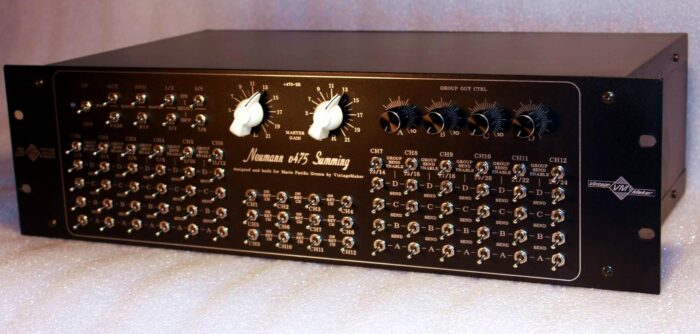

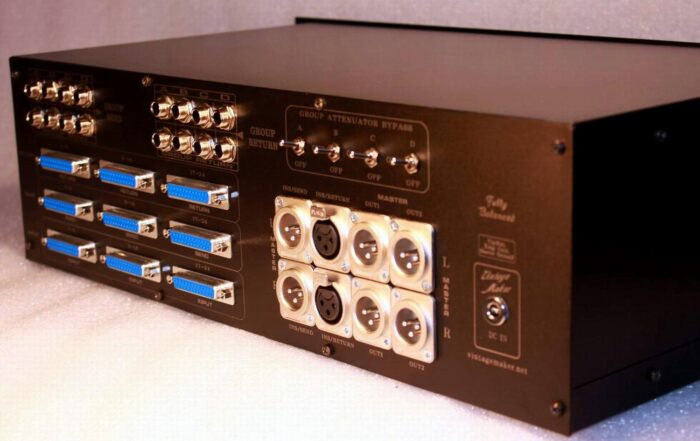

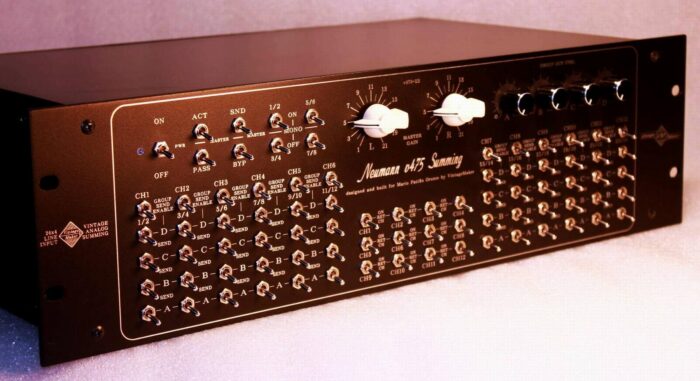

3U-Rack 24×4 Neumann Multi Bus MATRIX Routing Analog Summing Mixer

0.00

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

CONTACT AND ASK TO BUILD YOURS

2in1 Active/Passive Neumann 24×4 DB25 input /XLR out 4xSTM Master SND/RET 48xGROUP MATRIX Routing analog summing mixer

Specifications:

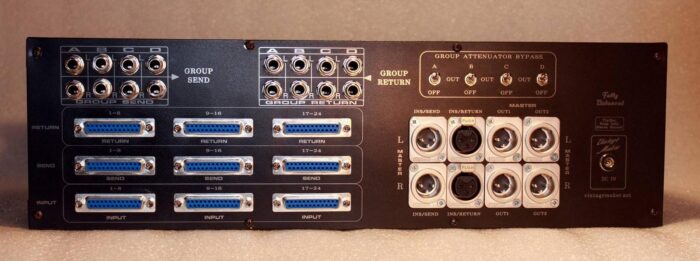

– Input: 24 channels via DB25
– Output: 12 Stereo Channels

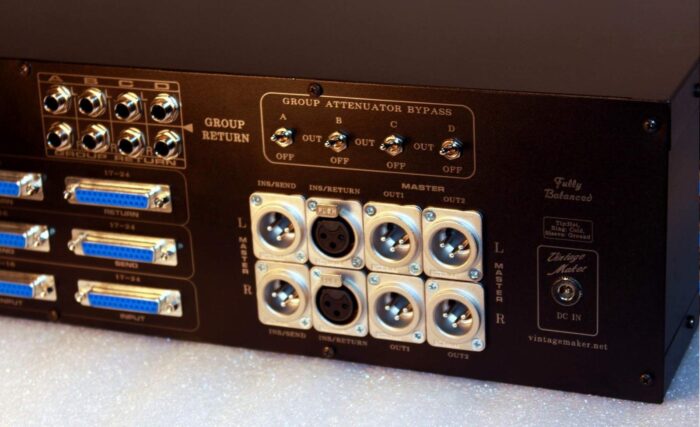

– 2x Stereo Out via XLR balanced as OUT1 and OUT2
– 4x Stereo to Mono (CH1-CH4) = 8 Mono channels with a switch on the master sum bus
– Active/Passive 2-in-1 functionality via front panel switch
– Master Send/Return controlled by front panel switch
– 12x Stereo Insert/Return via front panel switch
– 12x Stereo Insert/Return via 3xDB25 send – 3xDB25 return
– Group ABCD / OR Master sum select switch

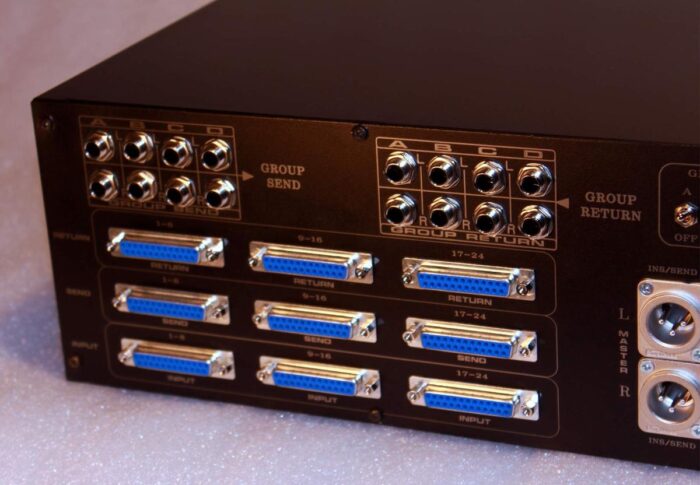

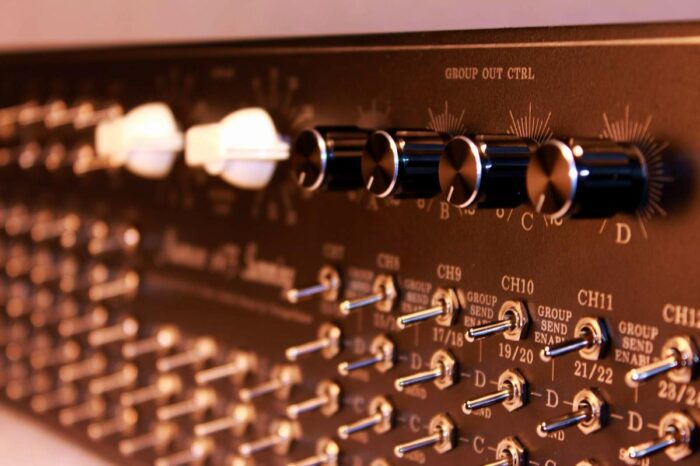

– ABCD subgroup send out controlled by 4x volume control via TRS balanced
– ABCD Send/Return via TRS balanced
– 48 Stereo Routing Switches (A or B or C or D)
– 2x 21-Step Precision Neumann Master Gain Potentiometer
– Designed and Built for Mario Patiño Orozco by VintageMaker
– Power: 110-240VAC to 18-24 VDC, 0.6-1.5A PSU, EU Plug
– Power LED: Blue


DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…


Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know

VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB

OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

15 WORKING DAYS
