3-Way In – 2-Way Out Analog Studio Switch for speaker and mastering chain

ANALOG STUDIO MASTERING CHAIN SWITCH SIGNAL LINE STEREO BALANCED INSTRUMENT SIGNAL ROUTER Dual Stereo Balanced Passive Discrete Circuit – Custom Designed by VintageMaker

Customer request:

This is for use in 2 analog mastering chains so would need to be high spec with enough headroom.
I’m looking for a custom 1 box solution for the following…

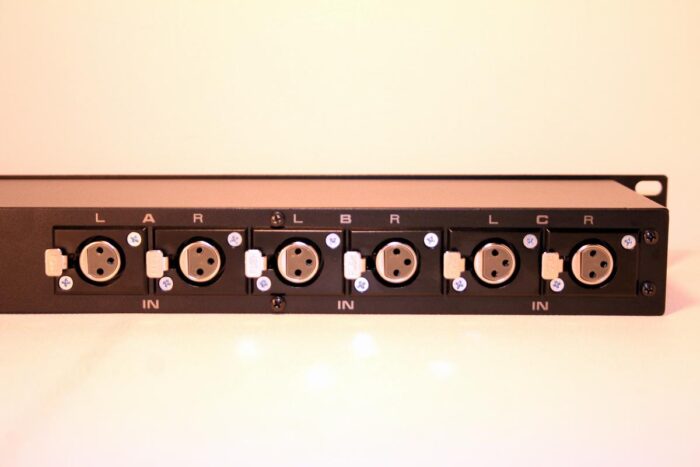

3 stereo line inputs (A,B, & C) on 6 XLR sockets

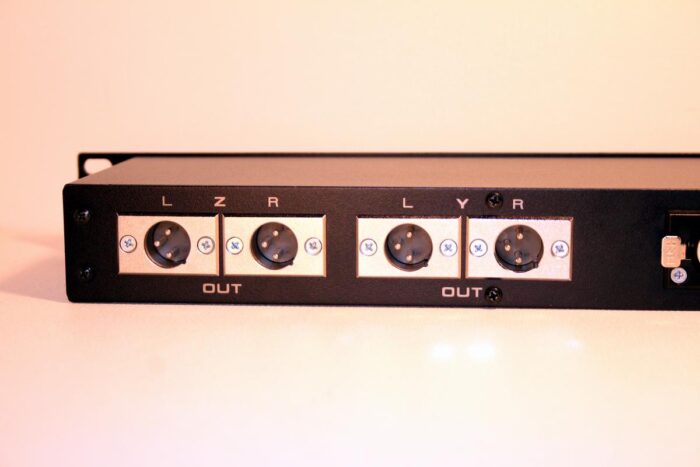

2 stereo line outputs (Y, & Z) on 4x XLR sockets

2 switches to be a able to choose the 4 following configurations…
1. Y = A, Z = B
2. Y = A, Z = C
3. Y = B, Z = B
4. Y = B, Z = C

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 12 Working Weekdays after cleared payment

Introducing our custom-built 1-box solution designed specifically for your analog mastering needs. This meticulously crafted unit offers unparalleled flexibility and high-spec performance to elevate your audio production experience.

Featuring three stereo line inputs labeled A, B, and C, each equipped with six XLR sockets, and two stereo line outputs, Y and Z, boasting four XLR sockets each, this unit ensures seamless connectivity and pristine signal transmission.

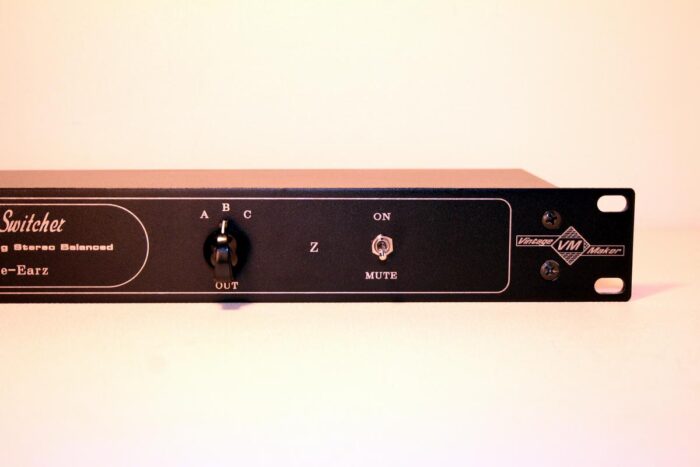

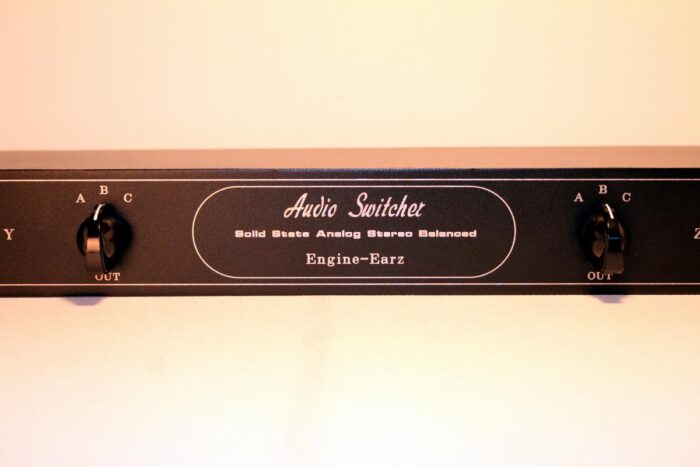

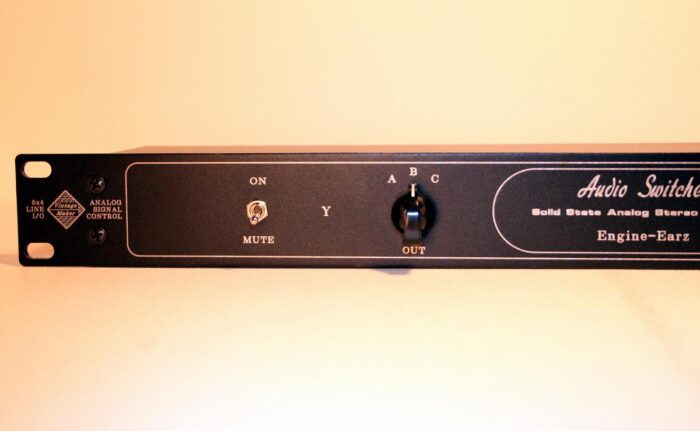

The heart of this solution lies in its innovative switching system, empowering you to effortlessly choose from four distinct configurations to suit your mastering requirements:

1. Route input A to output Y and input B to output Z.
2. Direct input A to output Y and input C to output Z.
3. Channel input B to both outputs Y and Z.
4. Send input B to output Y and input C to output Z simultaneously.

To facilitate these configurations, the unit intelligently incorporates switches while ensuring optimal signal integrity and headroom for your mastering chains. Meticulously engineered with premium components, this solution guarantees exceptional audio quality and reliability, meeting the demands of professional mastering environments. Elevate your mastering workflow with our custom 1-box solution, where versatility meets uncompromising performance.
