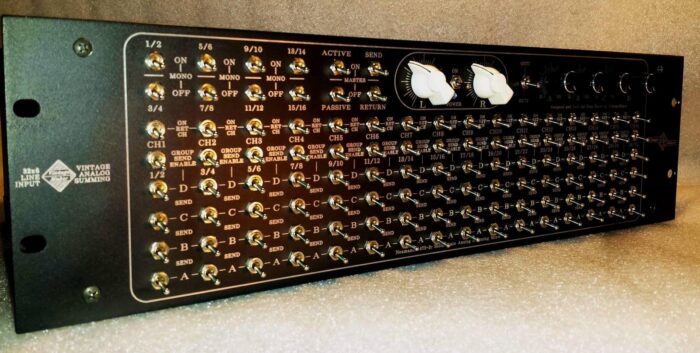

3U-Rack 32×6 Neumann Multi-Bus Matrix Analog Summing Mixer

0.00

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

CONTACT AND ASK TO BUILD YOURS

Specifications:

– 2in1 Active/Passive Neumann v475-2C

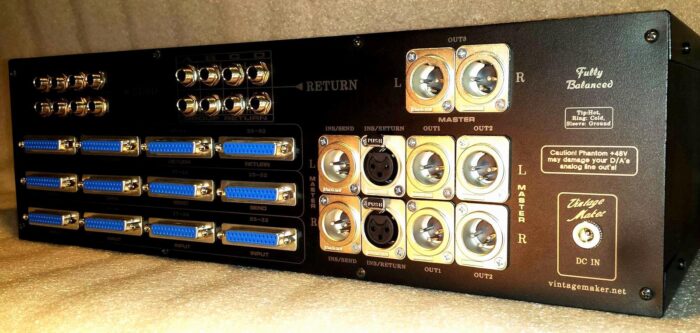

– 32×6 DB25 Input / XLR Output
– 8xSTM Master Send/Return
– 64xGROUP MATRIX Routing
– Price: Available upon order

Hardware Details:

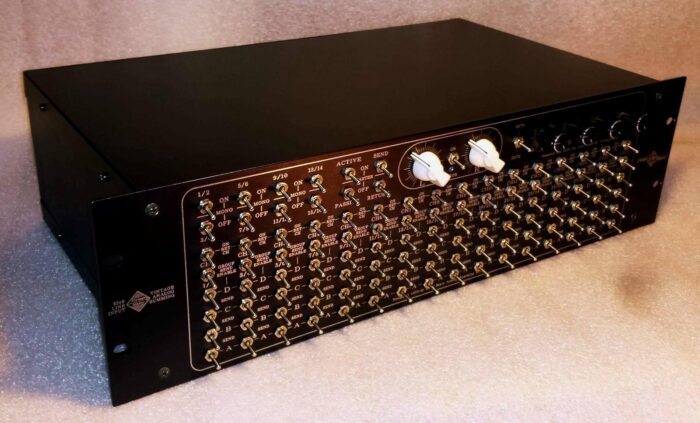

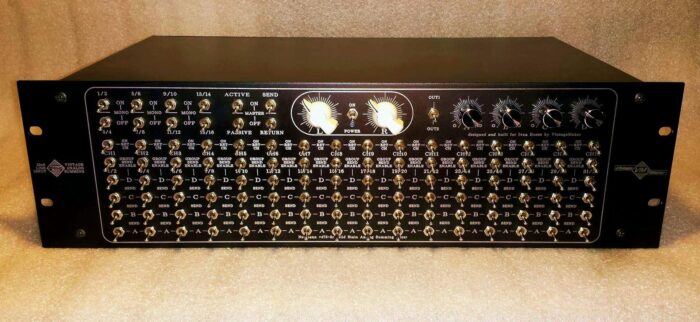

– 3U Standard Rack

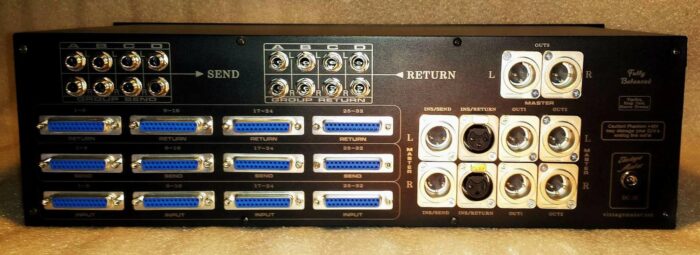

– Input: 32 channels via DB25, yielding 16 Stereo Channels
– Output: 3x Stereo Out via XLR
– 8x Stereo to Mono (CH1-CH8) = 16 Mono on Group A

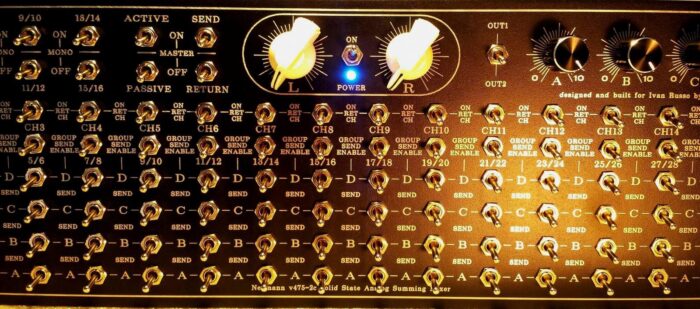

– Active/Passive mode switch on the front panel
– Master Insert/Return switch on the front panel
– 16x Stereo (32 line) Insert/Return via 4xDB25 send – 4xDB25 return, controlled by front panel switch
– ABCD subgroup send out controlled by 4x Volume control
– ABCD Send/Return via TRS balanced
– 64 Routing Switches (16×4)
– Master Sum/Group Select switch
– 2-way Monitor with OUT1/OR/OUT2; third (3) OUT3 remains constantly active
– 21-Step Precision Potentiometer with white cream knobs
– Master Sum Gain Loss: -27dB
– Group Sum Network Loss: -15dB

Customization:

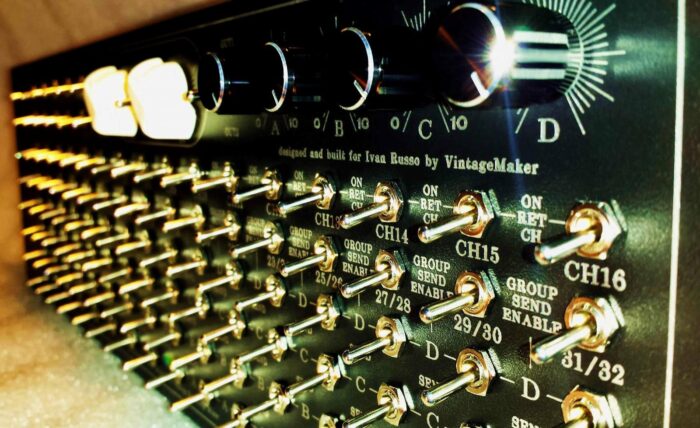

– Designed and Built for Ivan Russo / Atollorecords / by VintageMaker

Power Specifications:

– Power: 110-240VAC to 18-24 VDC, 0.6-1.5A PSU
– Power LED: Blue


DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…


Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know

VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB

OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

15 WORKING DAYS
