32-in 10-Out Built In Monitor Controller and Analog Summing Mixer

Name: 32-in 10-Out Built In Monitor Controller and Analog Summing Mixer
Brand: VintageMaker
Availability: InStock

0.00 €

Selectable Passive Mode comes with a dedicated insert. The Master Insert features an Insert Flip Swap Relay Circuit with Neumann Transformers and three Master Insert Analog Summing Mixers. It also has a built-in monitor controller.

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

CONTACT AND ASK TO BUILD YOURS

Categories: Rackmount Active Summing Mixer, 2U Rack Studio Summing Mixer Tags: 32-Ch 2-Bus Sub Group Lawo Summing Mixer, 32-Ch Analog Stereo Summing Mixer Box - White Neumann, 40-Input Vintage Neumann Analog Summing Box, pre post insert neumann analog studio mixer

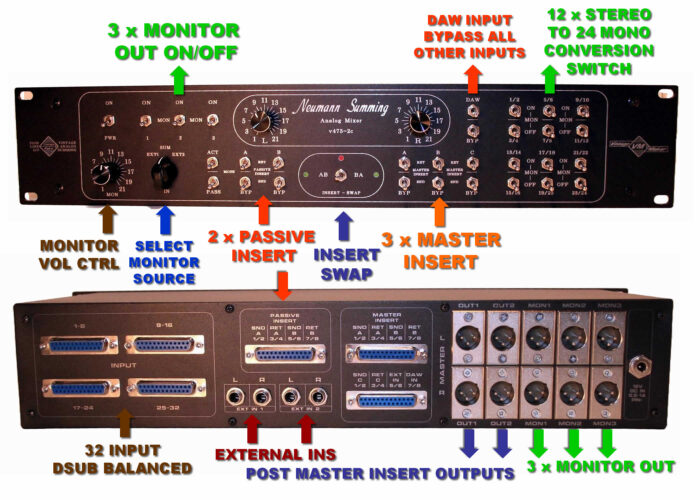

Passive Mode boasts its exclusive insert. This feature permits the integration of any external preamp into the signal flow in Passive Mode, positioned prior to the Master Insert (e.g., an external Tube amp or other color amp). Utilizing the Active/Passive switches, you can seamlessly alternate between the internal amp options (Neumann, Filtek/Lawo) and your external preamps – 32-in 10-Out Built In Monitor Controller and Analog Summing Mixer with Master Insert Swap Sequence switching circuit.

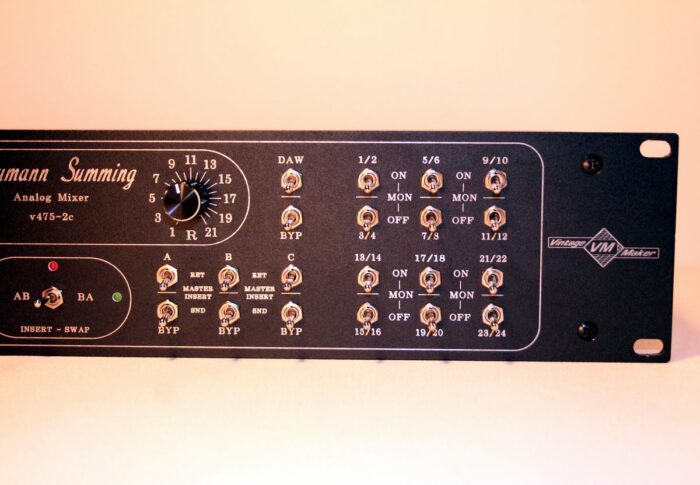

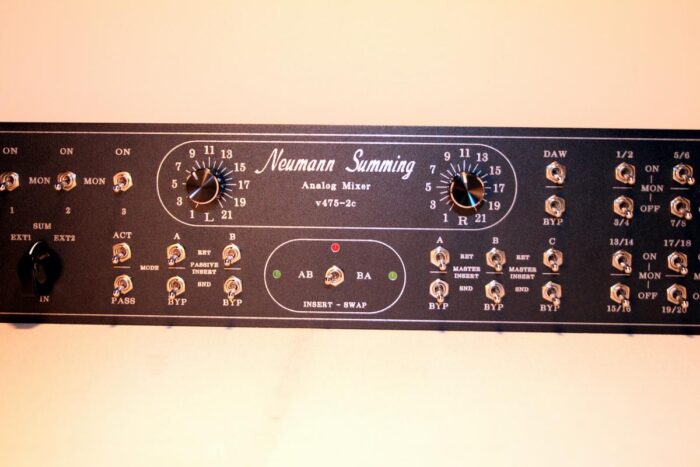

Laser Engraved Massive 2U Rack Unit
Neumann v475-2C NOS

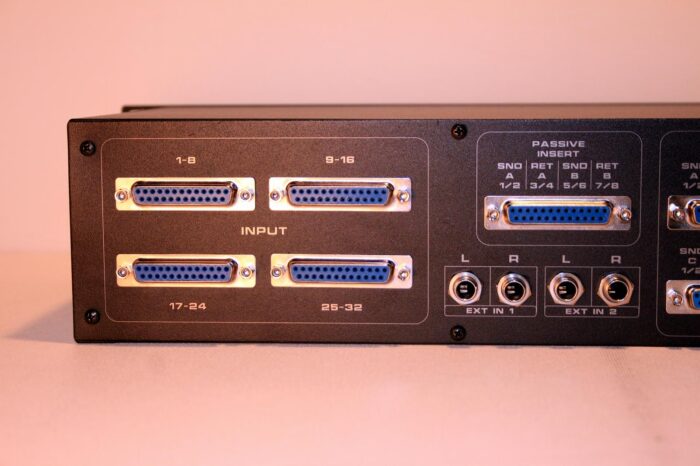

16 Stereo / 32 IN DSUB Balanced
16 Stereo / 32 Direct Outs DSUB Balanced
2 IN DSUB 5/6 Balanced (External)
2 IN DSUB 7/8 Balanced (DAW)
*placed after C Insert (DSUB) see below
DAW DIR+Bypass (mute all other inputs) 2 x Switch

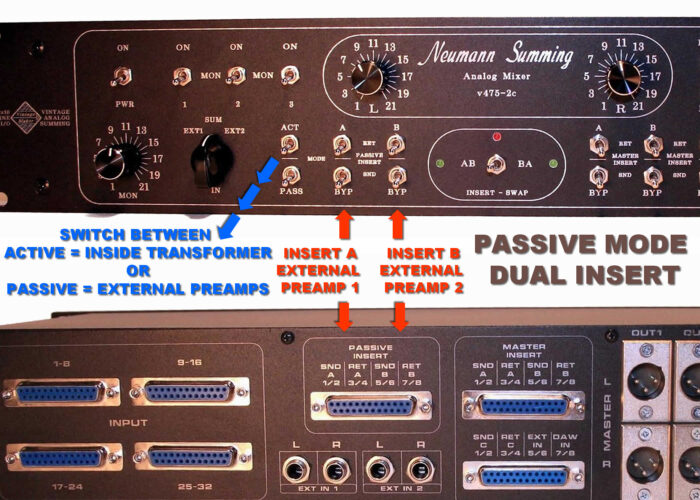

Active/Passive section:
Master Active/Passive 2 x Switch
Both switches Up position = Neumann
Both switches Down position = Passive with 2 x Stereo Inserts
Passive (dedicated) 2 x Stereo A/B Insert via DSUB
4 x Insert Bypass Switches for passive insert (1/2S-3/4R, 5/6S-7/8R)
16 x Stereo to 32 Mono switch

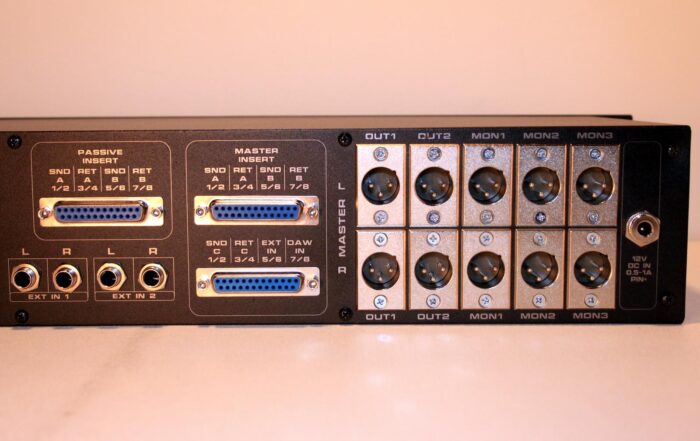

Master Insert Section
3 x Stereo Master Insert DSUB ABC bypass switches
Insert A/B Swap Relay Circuit
*C Insert DSUB: 1/2S-3/4R (5/6EXT, 7/8DAW)
2 x Stereo SUM Master OUT 1 and 2
2 x 21 Step Precision Neumann master gain ctrl L/R

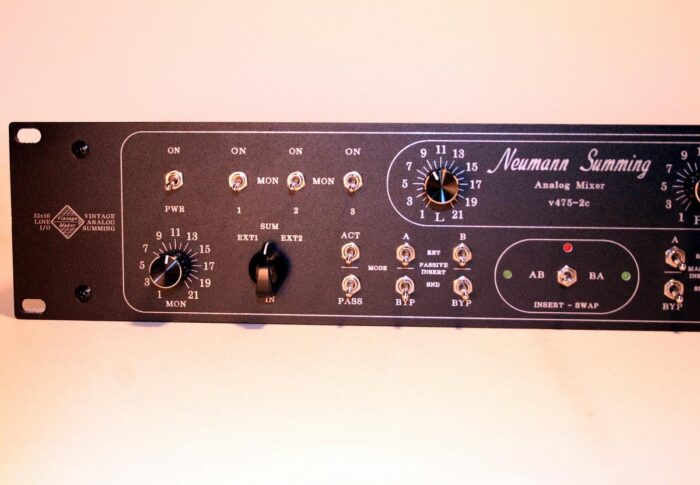

Monitor section:
2 x Stereo EXT IN 1 and 2
3 Position Rotary Input Select Switch EXT1/EXT2/SUM
Monitor Out Level control 21 step prec -6 to -50dB range
3 x Stereo Monitor OUT MON1/MON2/MON3
2 x ON/OFF Switch for MON1/MON2/MON3
External Power Supply Eu Plug

DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…

Do not find your desired gear? Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

SOUND CARD?	UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know
VARIABLE HEADROOM GAIN SWITCH	-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB
OUTBOARD HARDWARE INSERT	PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know
CUSTOM NAME?	YES (let me know), NO THANKS
BUILD TIME	15 WORKING DAYS
