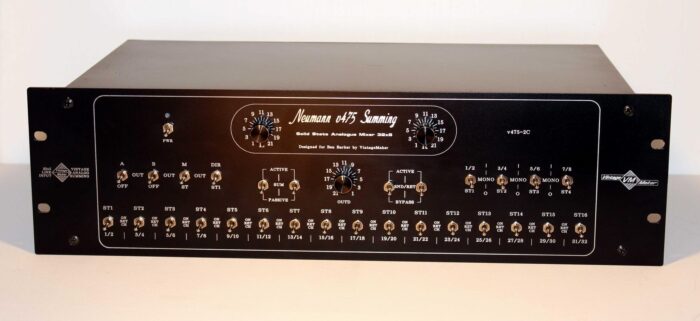

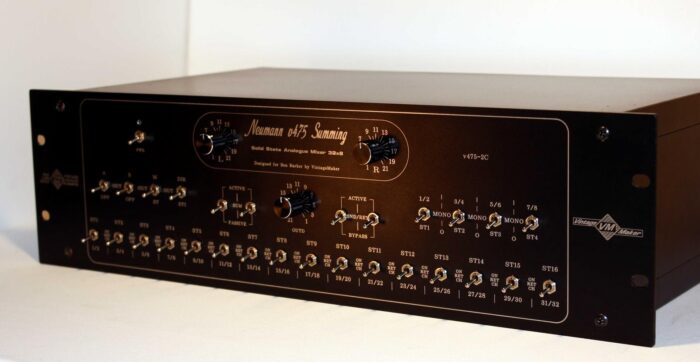

32-In 8-Out Neumann Analog Summing Mixer

0.00

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

CONTACT AND ASK TO BUILD YOURS

2in1 Active/Passive Neumann 32×8 TRS input /TRS out 4xSTM Master SND/RET, 32xChannel insert send, 4xOut control, Master Mono Analog Summing Mixer – built in monitor controller

Specifications:

– 2in1 Active/Passive Neumann 2C NOS All Style
– 32×8 TRS Input / TRS Output
– 4x Stereo Master Send/Return
– 32x Channel Insert Send
– 4x Output Control
– Master Mono

Hardware Details:

– 3U Standard Rack Unit
– Neumann 2C NOS All Style

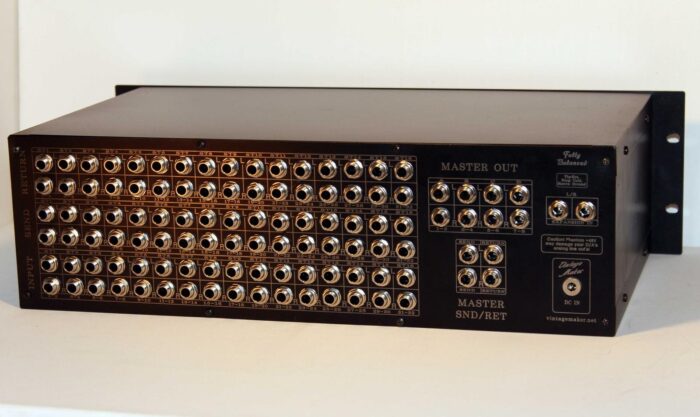

– 32 TRS Balanced Inputs
– Expansion Stereo Input L/R

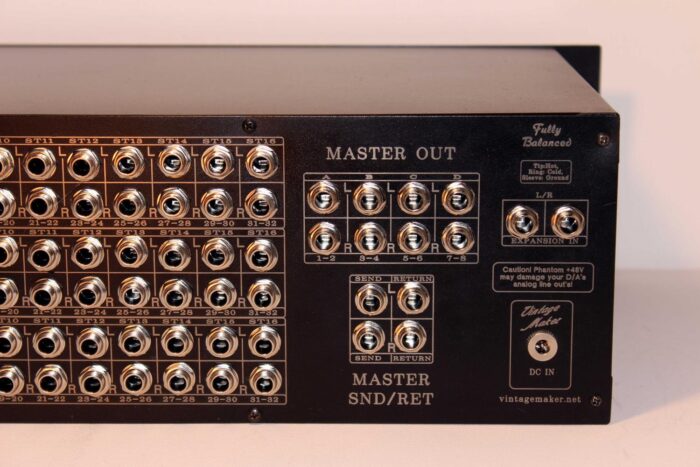

– 4x Stereo Outputs by TRS Balanced (OUTA / OUT B / OUT C / OUT D)

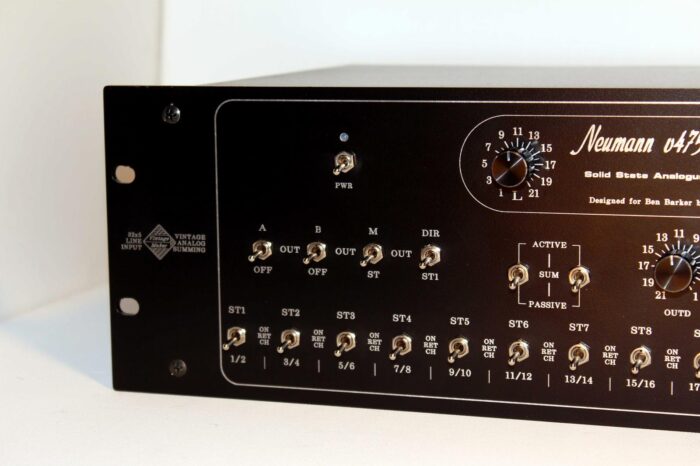

– 2x ON/OFF Switch for OUTA / OUT B (Monitors)

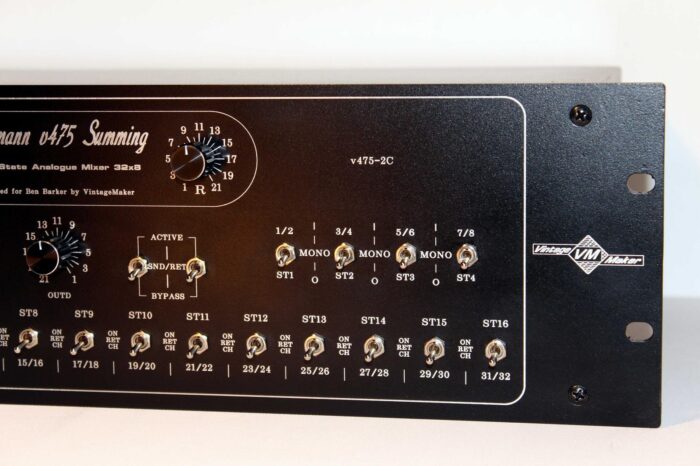

– 4x Stereo to Mono Input Switch Conversion (1/2, 3/4, 5/6, 7/8) = 8 Mono
– 32 CH 16 Stereo Insert by Return Enable (16 Stereo) Switch
– 32 CH 16 Stereo SEND by TRS Balanced

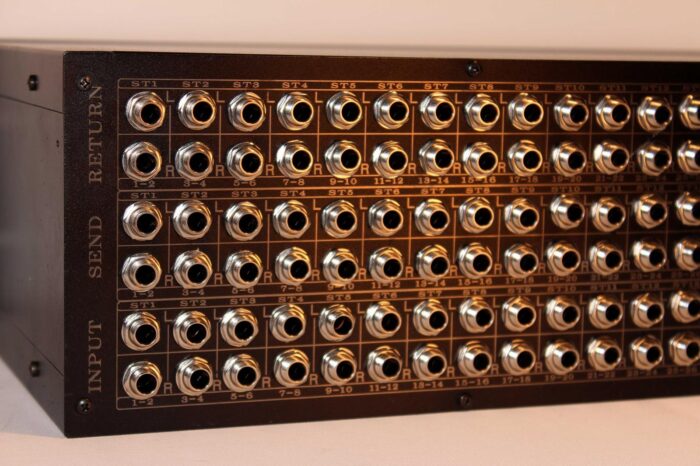

– 32 CH 16 Stereo RETURN TRS Balanced
– Master Active/Passive Switch
– Master Send/Return Switch via TRS Balanced
– Master Stereo to Mono Switch

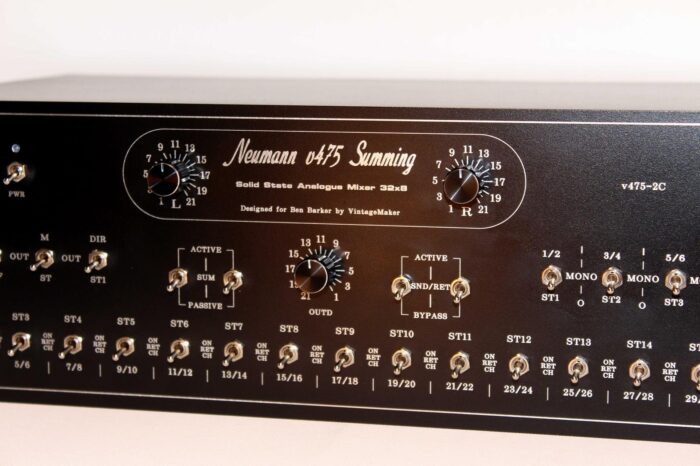

– 2x 21-Step Precision Neumann Master Gain Control Pot (L/R) with regular round black knobs
– 1x 21-Step Precision Attenuator on OUT D with regular round black knobs
– Direct Monitoring Switch on ST 1/2
– Power LED: Blue
– 110-240VAC to 18VDC PSU with EU/UK/US Plug

Customization:

– Designed for Ben Barker by Vintage Maker


DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…


Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know

VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB

OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

15 WORKING DAYS
