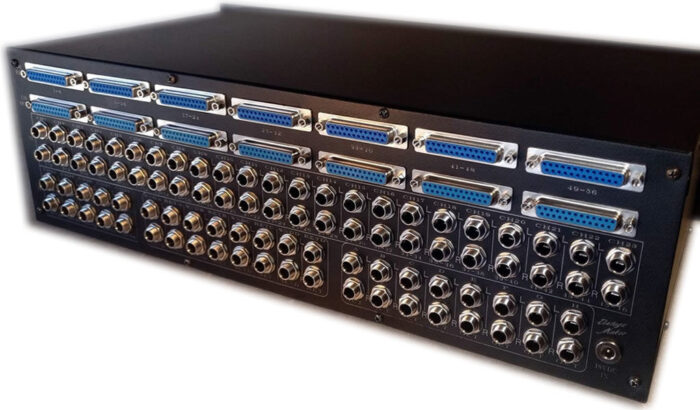

Rackmount Active Summing Mixer

56-In 16-Out 56-Ch Insert 4-Master Insert Neumann Analog Summing Mixer

0.00 €

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

CONTACT AND ASK TO BUILD YOURS

Categories: , Tags: , ,

2in1 Active/Passive Neumann 56×16 TRS input /TRS out 4xSTM 4xMaster SND/RET, 24xChannel insert send, 8xOut control, Master Mono

Specifications:

3U Standard Rack unit
Neumann 475-2C NOS

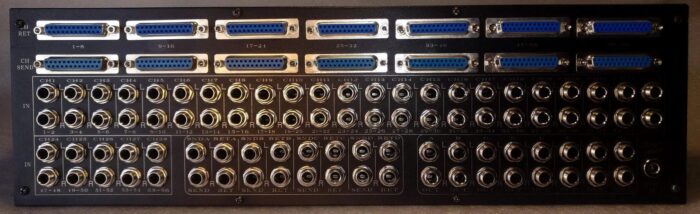

56input by TRS balanced

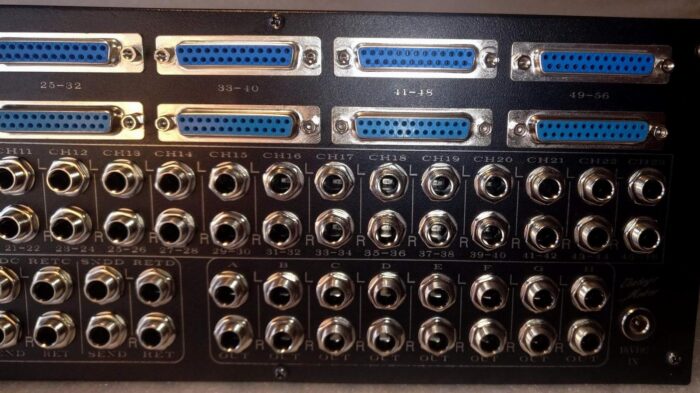

8xStereo Master out by TRS balanced ABCDEFGH

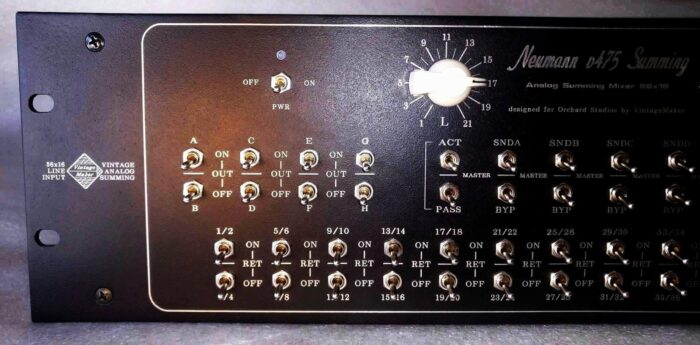

Master out ON/OFF ABCDEFGH (8x switch) control
Master Active/Passive by switch
Master Send/Return by switch via TRS as:
SNDA/SNDB/SNDC/SNDD send/return

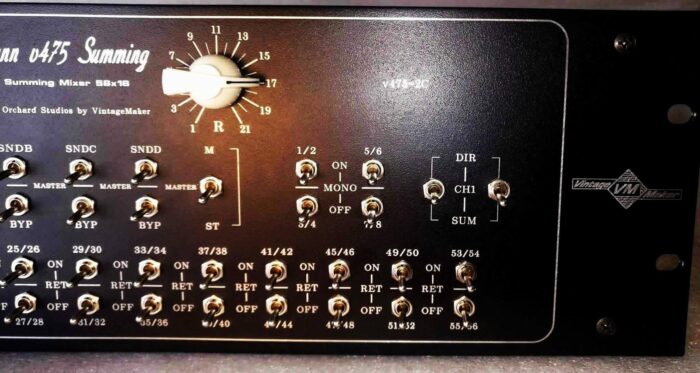

4xStereo to Mono by switch = 8 mono
Master out Stereo to mono by switch

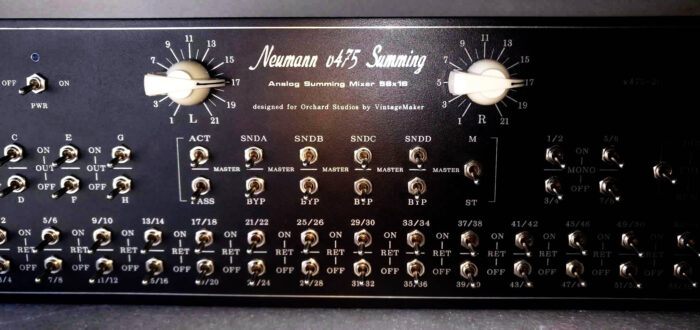

2×21 step precision Neumann master gain potentiometer L/R
vintage style white cream knobs

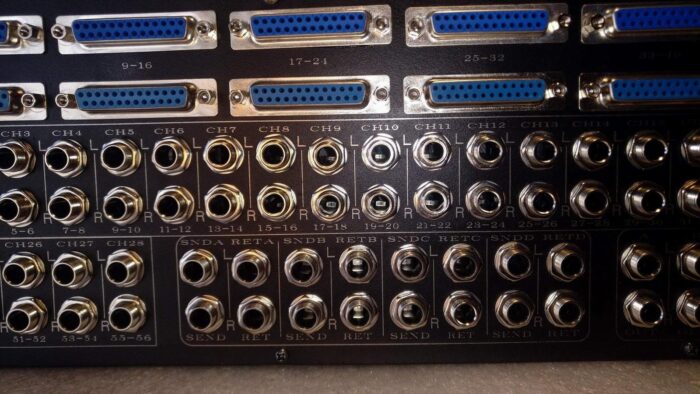

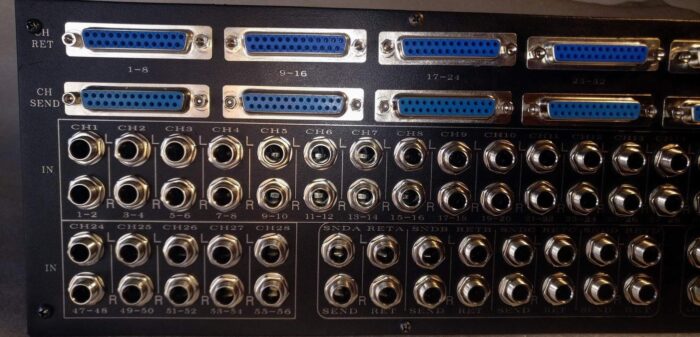

28xSend/Return on each stereo channel by DB25 Tascam Analog
Total SUM Bypass option on Stereo Ch1 (1/2) via 2xSwitch option
110-240VAC to 18-24 VDC 0,6-1,5A PSU
Power Led: Blue

Customization:

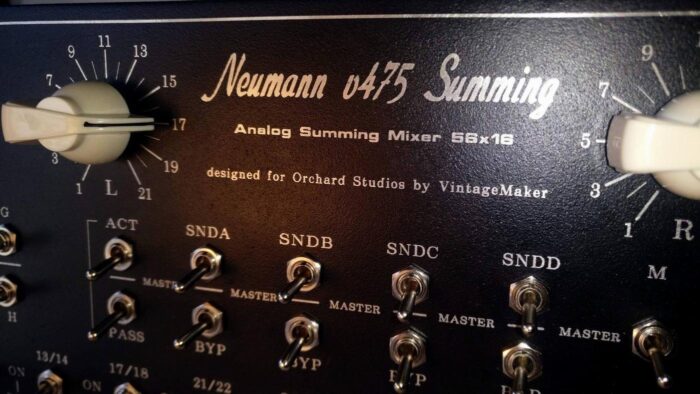

Unique name engraving: “designed for Orchard Studios by VintageMaker”

DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know
VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB
OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know
CUSTOM NAME?

YES (let me know), NO THANKS
BUILD TIME

15 WORKING DAYS
