2U-Rack 32×4 Neumann Analog Summing Mixer- Out Trim Control

2U Rack Unit
Neumann v475-2B NOS
32 In DSUB Tascam Analog balanced
4 Out 2 x Stereo XLR Balanced
Master Active/Passive switches
Master Insert XLR balanced w bypass switches
2 x 21 Step Out Trim control 0 to -70dB range
2 x 21 Step Precision Neumann master gain ctrl
External Power Supply EU Plug
Power LED: White
Custom Name Engraving

DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

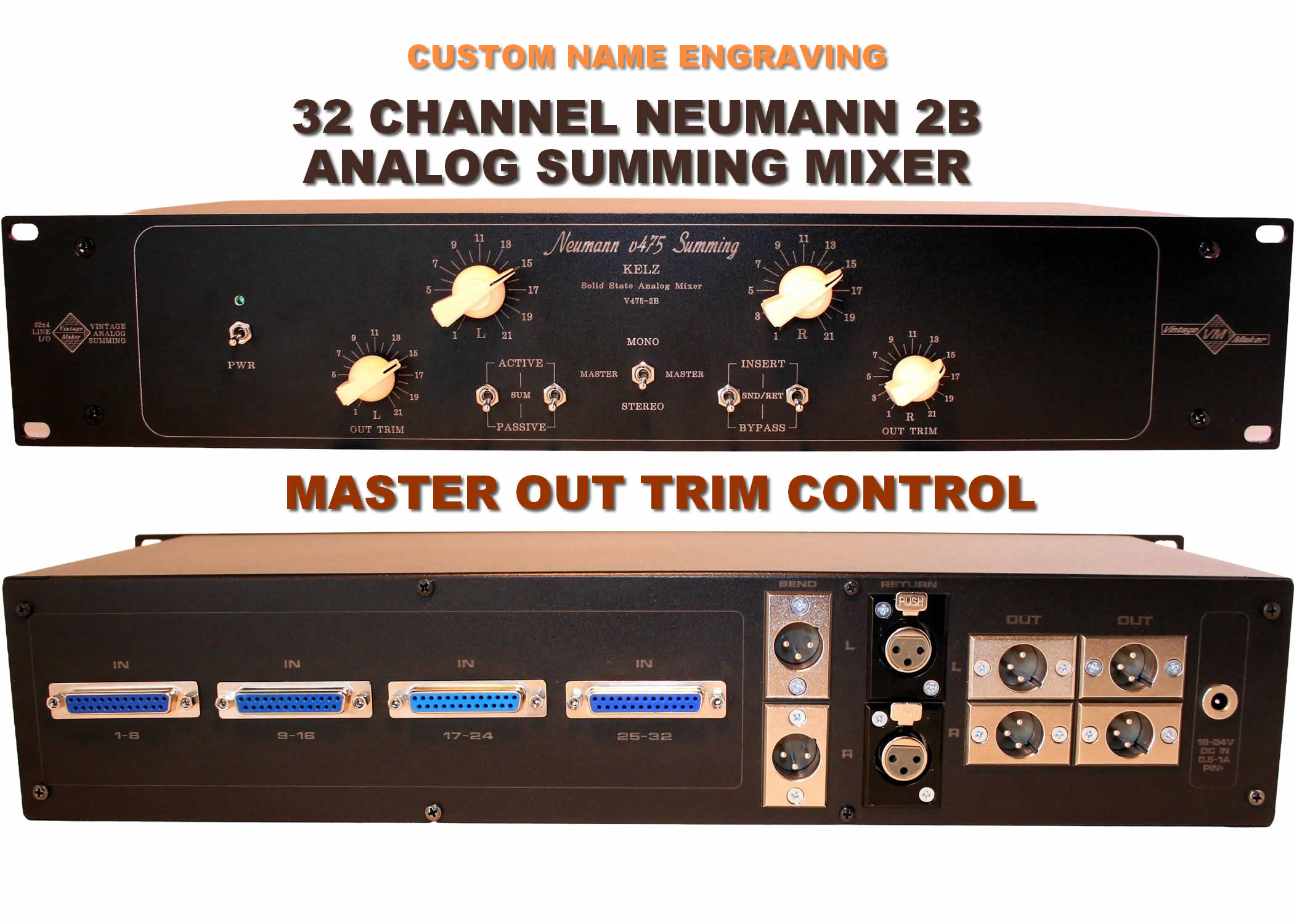

2U Neumann V475-2B Summing / Mastering Rack

This custom 2U rack houses a pristine Neumann V475-2B NOS summing amplifier, delivering legendary German broadcast sound in a modern studio format. It provides 32 balanced analog inputs on Tascam-standard D-Sub connectors, feeding a powerful summing stage with exceptional headroom and musical harmonic detail.

The output section features four balanced XLR connectors arranged as two independent stereo pairs, giving flexible routing for mix and mastering chains. A Master Insert loop on balanced XLR includes dedicated bypass switches for effortless integration of external processing.

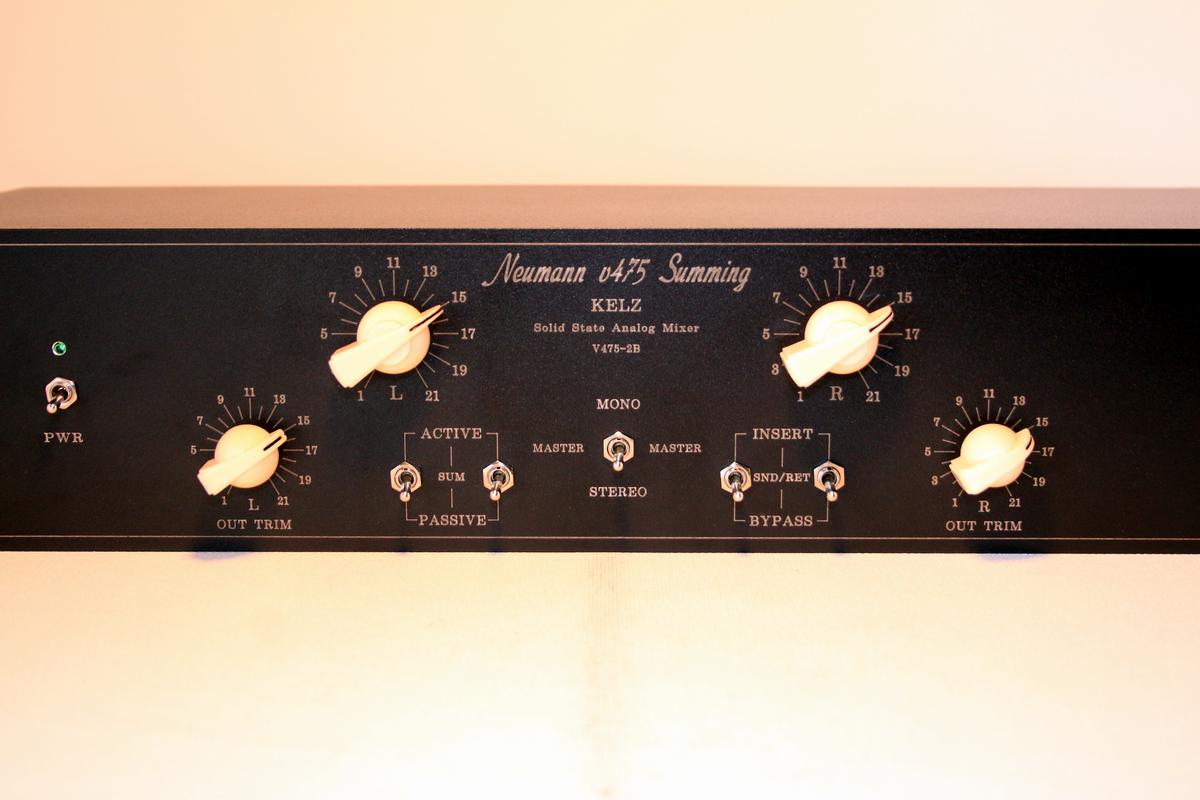

Front-panel control is precise and repeatable. You’ll find dual 21-step output trim controls offering a wide 0 to –70 dB range, plus dual 21-step Neumann precision master gain controls for ultra-accurate level matching between stereo channels.

For maximum versatility, Master Active/Passive switches allow you to choose classic passive summing or active Neumann amplification on the fly. A bright white power LED provides clear status at a glance.

An external power supply with EU plug keeps noise away from critical audio paths, and the front panel can be finished with custom name engraving for a personal, professional touch.

This unit combines vintage Neumann tone with modern workflow—ideal for discerning mix and mastering engineers.
