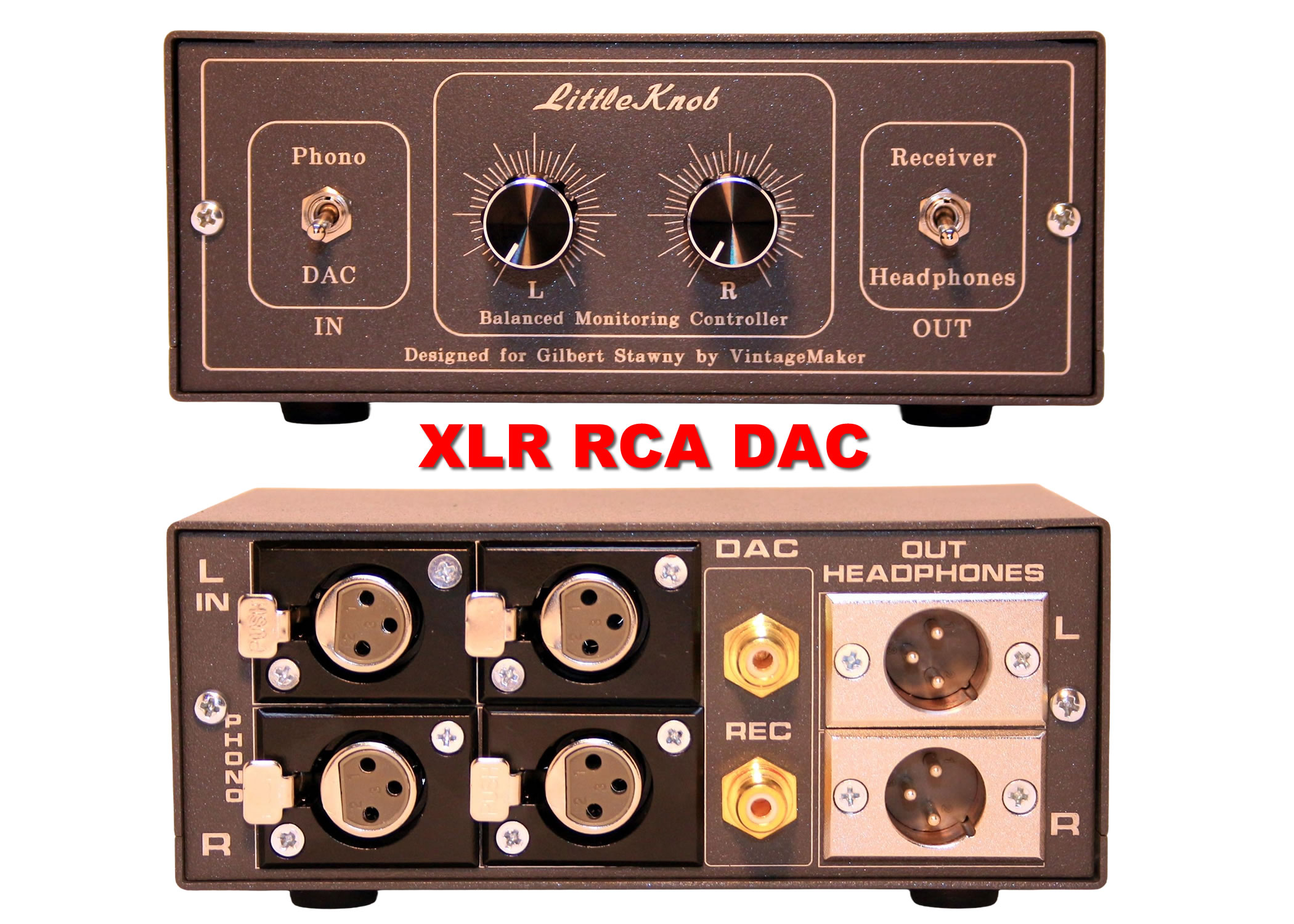

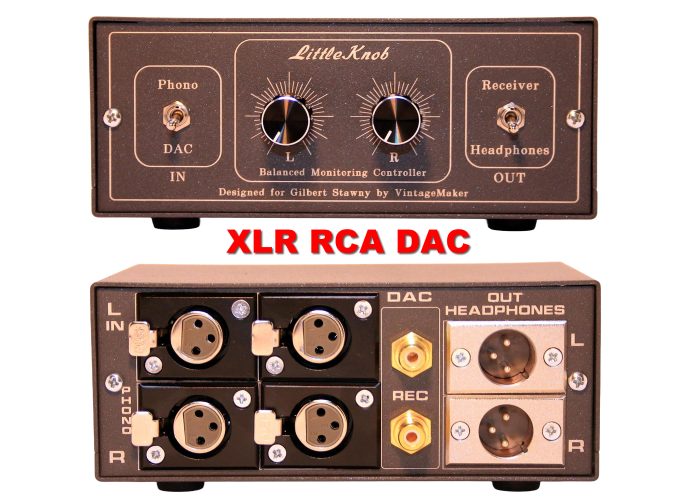

Hi-Fi Studio Monitor Controller – 4×4 Balanced Audio Switcher for DAC Phono Preamp (XLR/RCA)

Hi-Fi Studio monitor controller for precise level control and source/speaker selection. High-quality passive – Stereo inputs and outputs, dual stepped precision attenuation, High-quality passive 4×4 audio switcher for balanced DAC and phono preamp systems. Select between two XLR input sources and route the signal to either balanced XLR or unbalanced RCA outputs for DAC Phono Preamp, with transparent signal handling and studio-grade build quality.

This custom-built 4×4 balanced audio switcher is designed for high-end vinyl and digital playback systems where clean signal routing, reliability, and simplicity are essential.
It allows seamless selection between two balanced XLR input sources and routing to either balanced XLR or unbalanced RCA outputs, making it ideal for hybrid headphone and stereo receiver setups.

Typical Use Case

• Input A: Phono preamp (XLR, balanced)

• Input B: DAC (XLR, balanced)

• Output A: Headphone amplifier (XLR, balanced)

• Output B: Stereo receiver or integrated amp (RCA, unbalanced)

Balanced operation is fully preserved on XLR-to-XLR paths. When routing to RCA, the signal is properly converted to unbalanced after the switch.

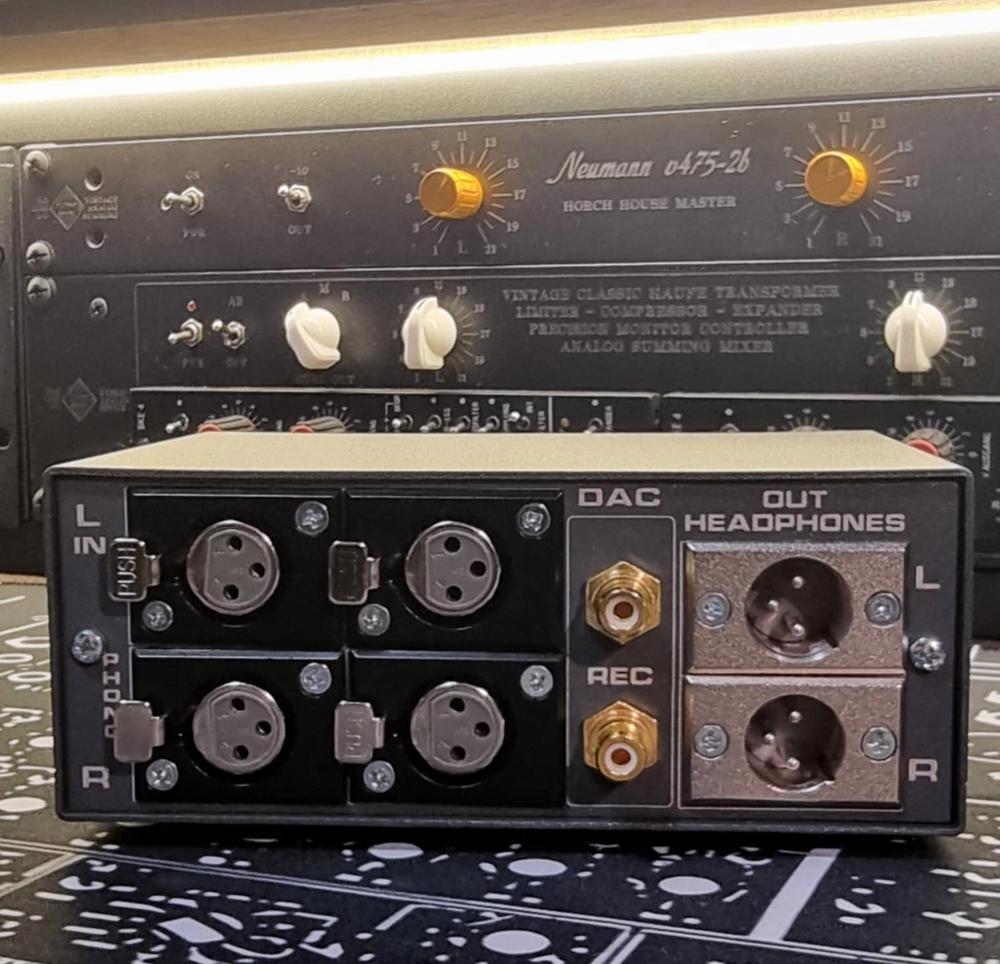

I/O Configuration

Inputs:

• 4 × XLR Balanced (A/B selectable)

Outputs:

• 2 × XLR (Output A – balanced)

• 2 × RCA (Output B – unbalanced)

Controls & Design

• Passive Discrete signal path (no active electronics in the audio path)

• High-quality selector switches

• Dual 21-Step Differential Attenuator with Floating Shunt Reference, 0 dB to -70 dB

• Classic volume knob

• No front-panel engraving (clean, minimalist aesthetic)

Audio Integrity

• Transparent signal routing

• No coloration or gain alteration

• Maintains balanced topology where applicable

• Ideal for short to medium cable runs in desktop and rack setups

Build Quality

• Studio-grade internal wiring

• Hand-assembled and tested

• Solid metal enclosure for shielding and durability

• Designed for long-term professional and audiophile use

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your controller or switcher? Tell me what you need and I build for you!
