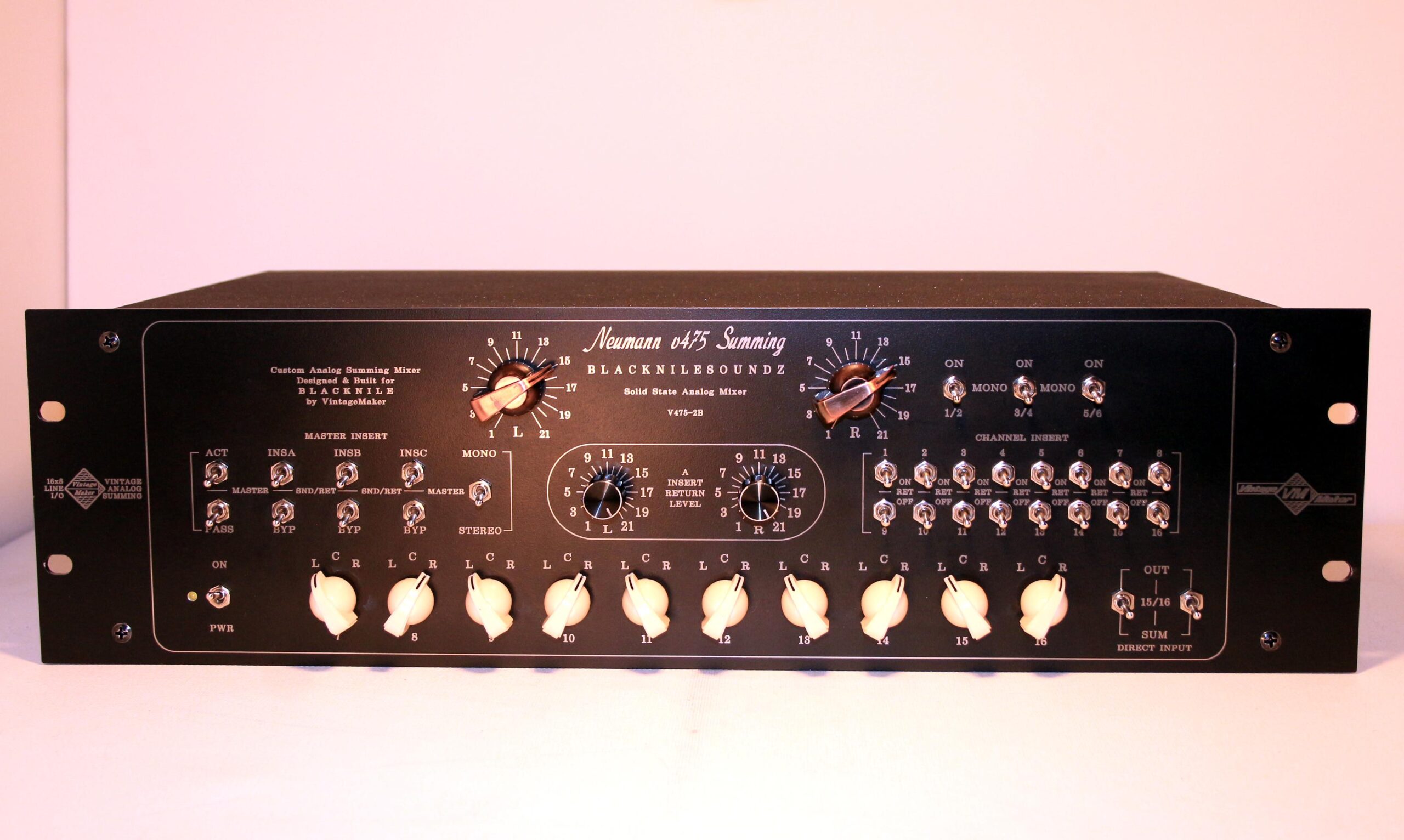

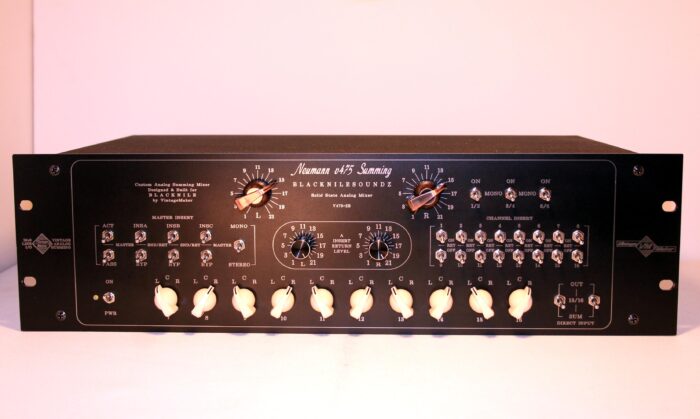

Neumann 2B – 16-In / 8-Out Analog Summing Mixer, LCR Pan, Channel & Master Inserts, 3U Rack
2.350.00 €
ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION
CONTACT AND ASK TO BUILD YOURS

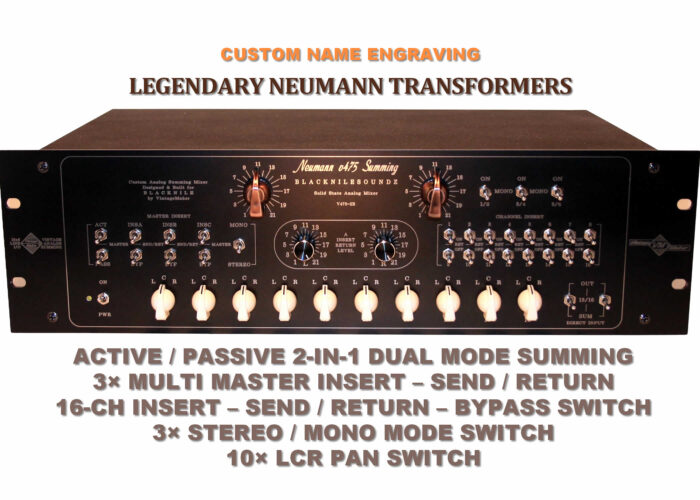

High-end Neumann 2B – 16×8 Analog Summing Mixer, LCR Pan, Inserts, 3U Rack & routing system with Haufe transformers, active/passive mode, precision gain control, and full XLR/DSUB integration.
📦 Setup – 3U Rack Neumann 2B Four (4× Haufe 2-In / 2-Out Transformers)

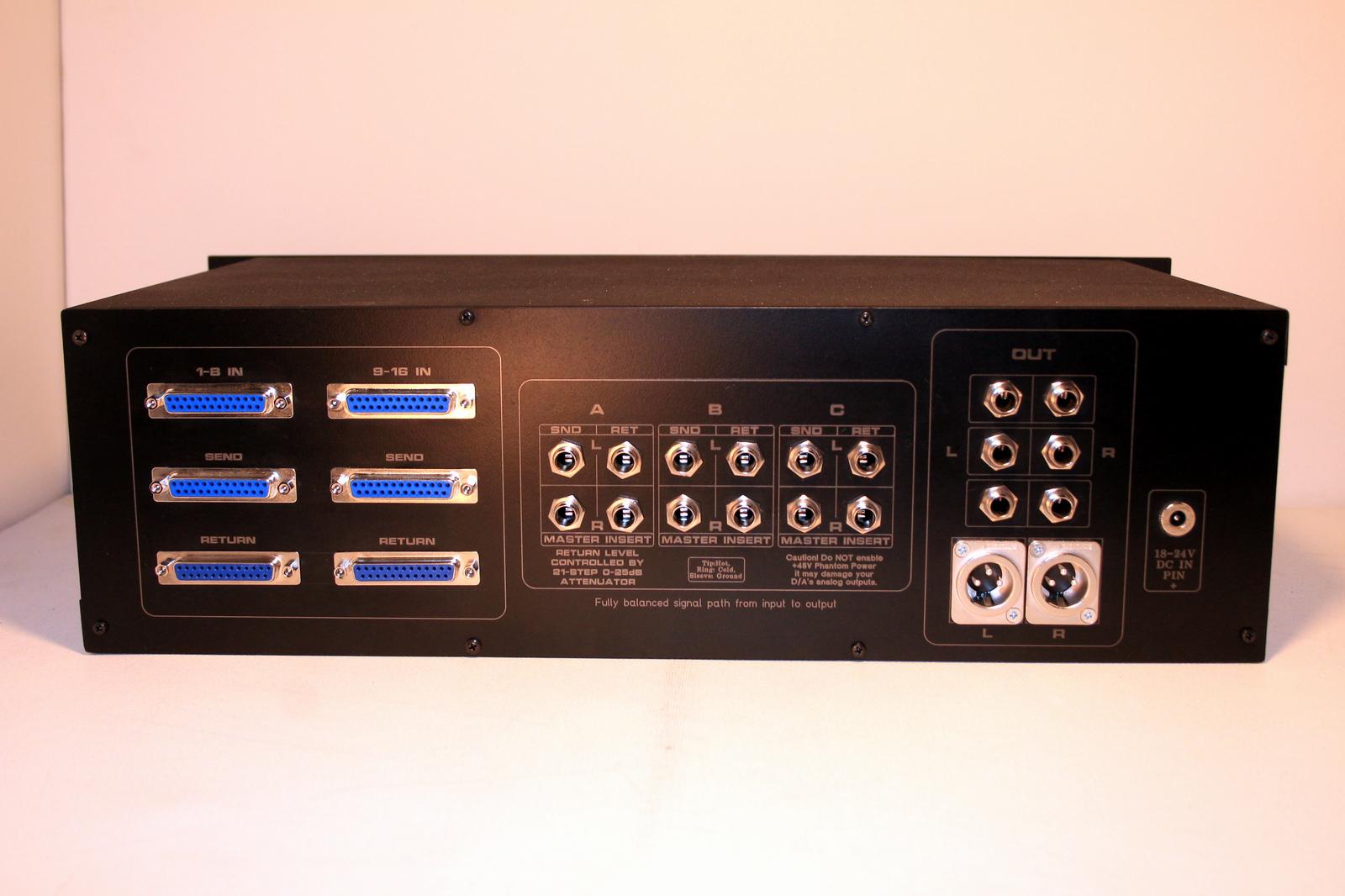

I/O & Routing
-
16× DSUB balanced inputs
-
16× DSUB sends
-
16× DSUB returns
-
16× Return bypass switches
-
4× Stereo outputs: 2× XLR + 6× TRS (Main / Monitor etc)
-

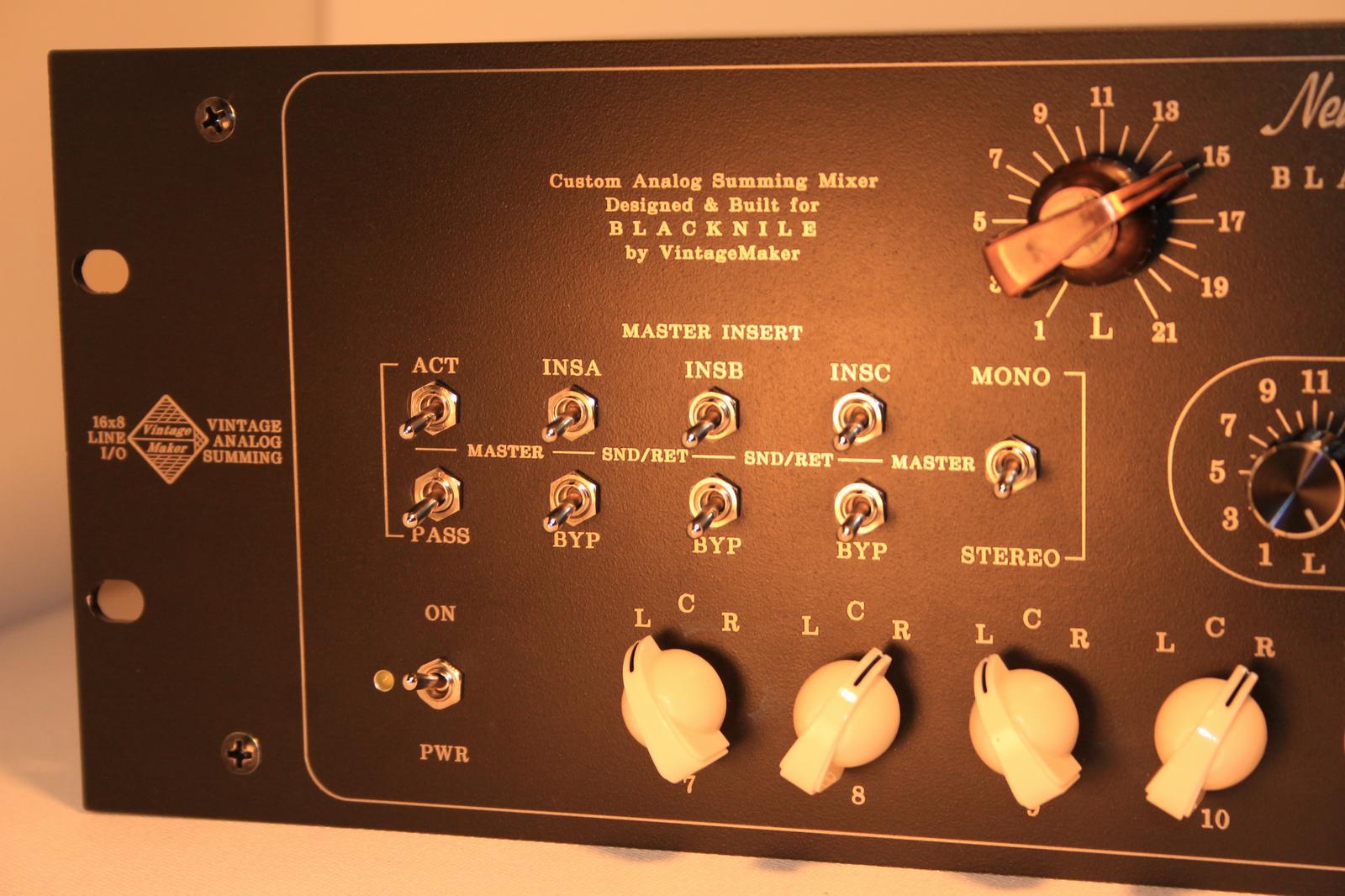

Master Active/Passive 2-in-1 option via switch

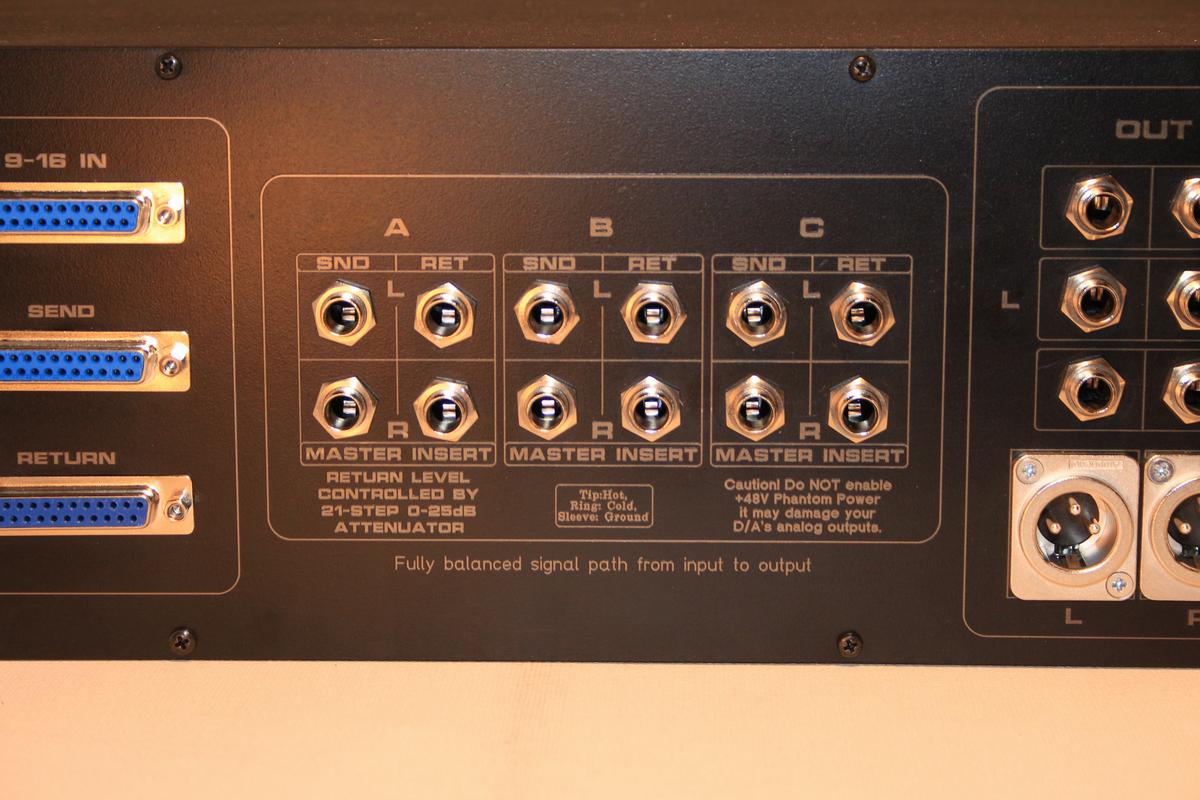

Master Send/Return
-
3× Multi Master Send/Return TRS, each with front panel switch ×2
Input Features
-

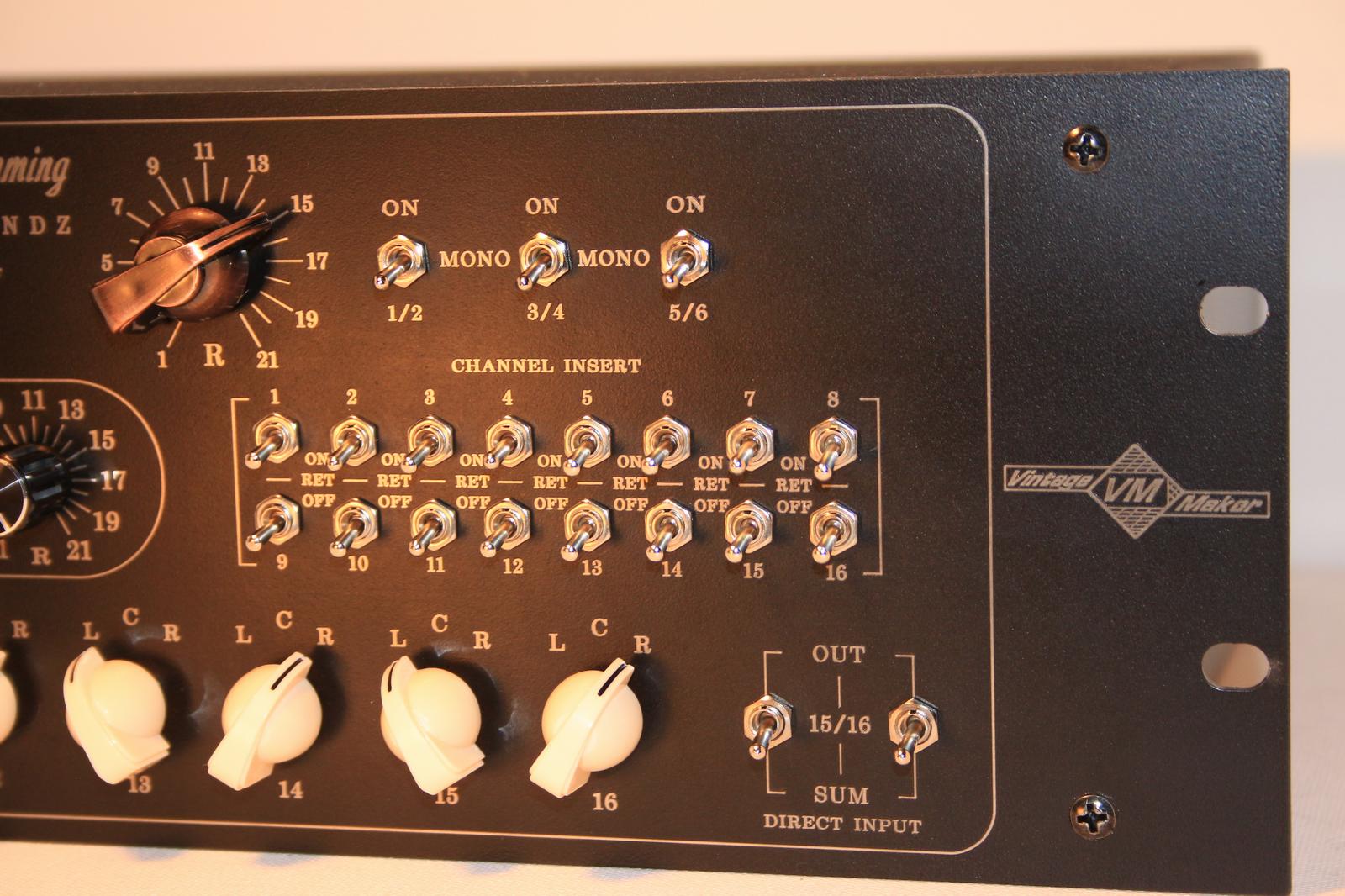

3× STM (Stereo to Mono) on inputs 1/2, 3/4, 5/6
-

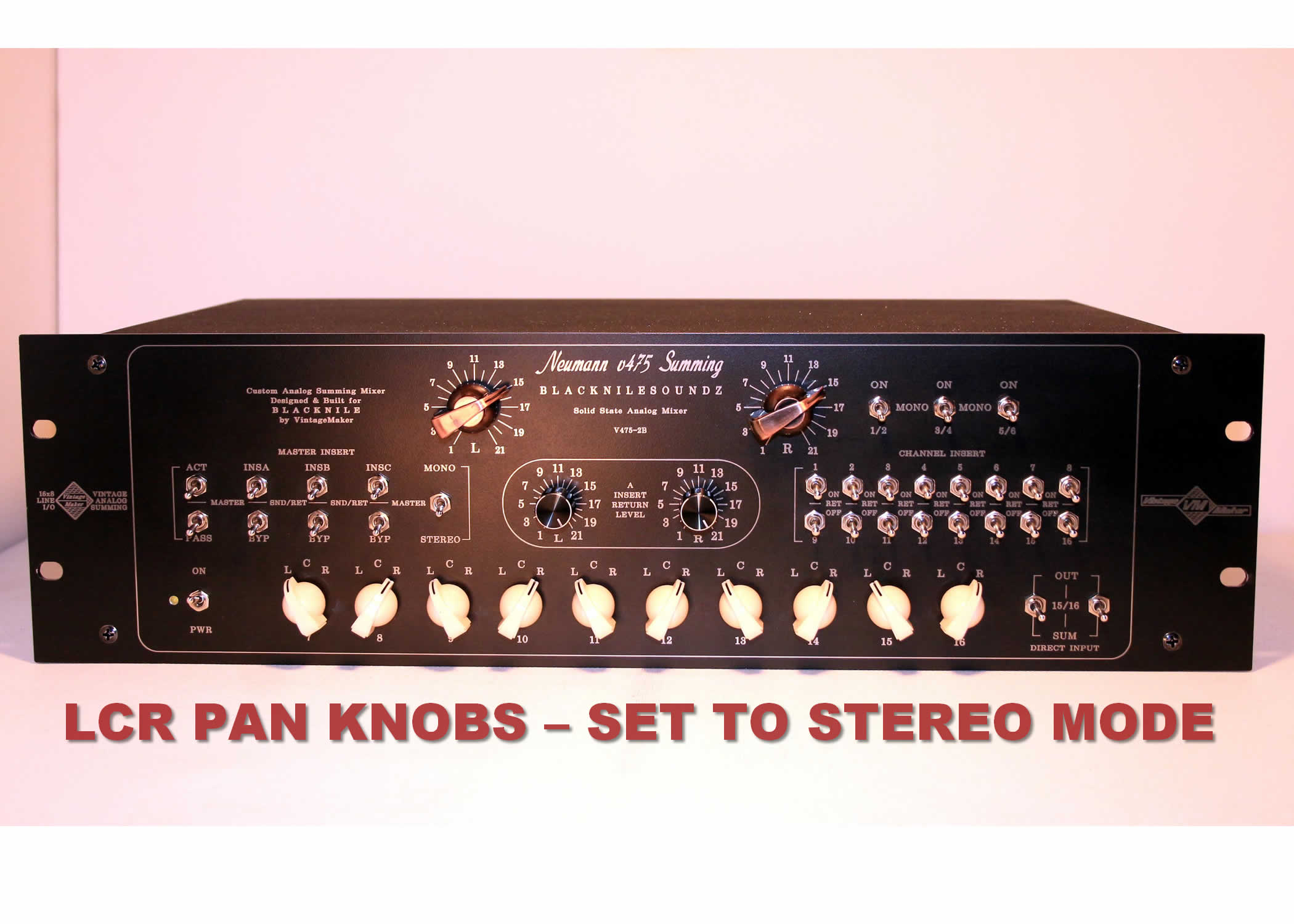

10× LCR rotary switches on inputs 7–16
Gain Control
-

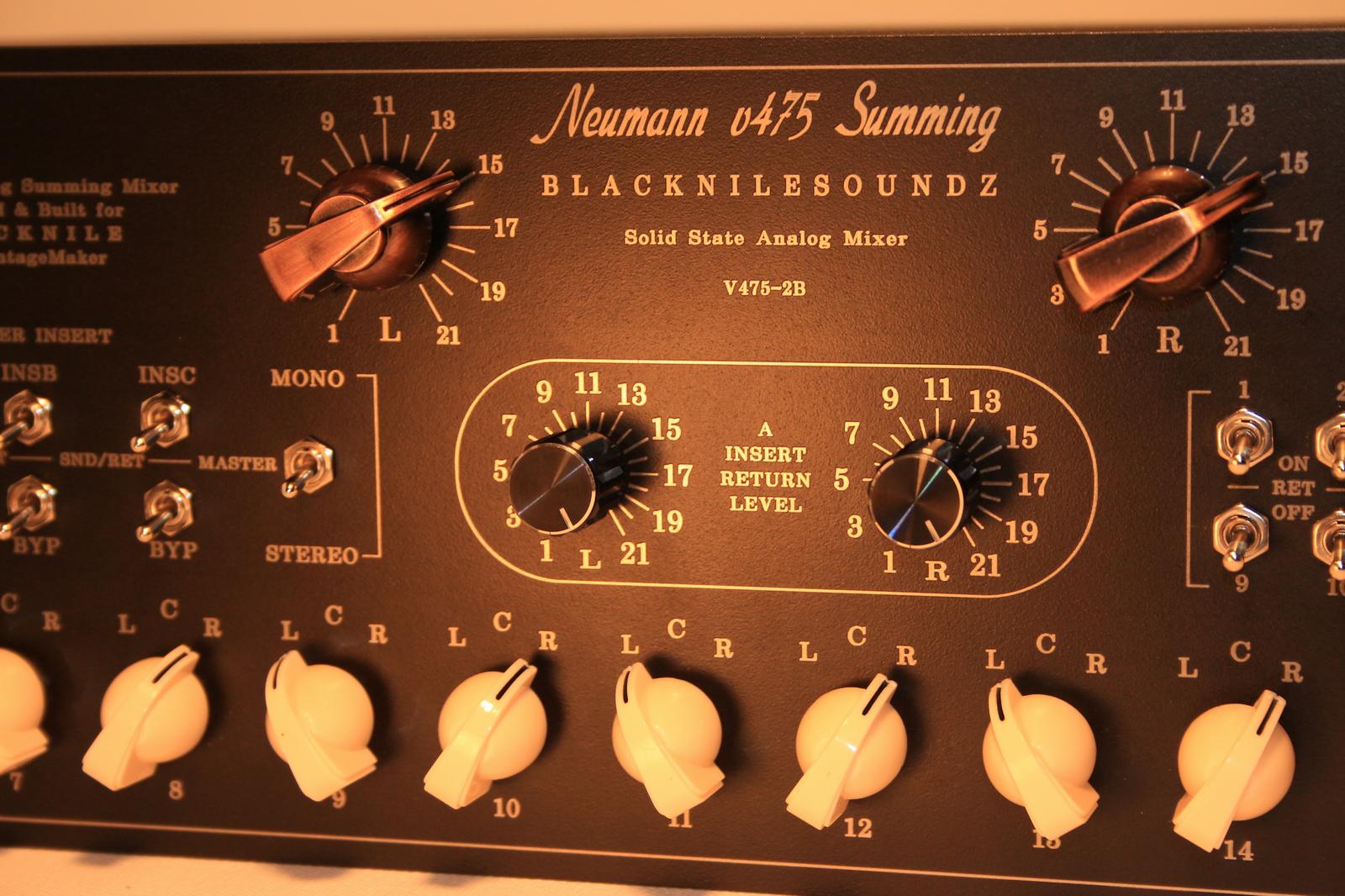

2× 21-step precision Neumann gain controls (Bronze knob)
-
2× 21-step precision return gain controls (0 dB to –25 dB, round black knobs)
Master Functions
-
1× Master Mono/Stereo switch
-
DIR (Direct) Input + Bypass Summing Switch – Full Bypass for channels 15/16
Customization:
– Designed for Lawrence Shaw by Vintage Maker
DIFFERENCES BETWEEN TRANSOFRMERS read more…
SPECS – DOCUMENTATION read more…
Do not find your desired gear? Ask to build Yours!
You can get as many channels and options as you want, so let’s build your gear!
Build time: 22 Working Weekdays after cleared payment
| SOUND CARD? | UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know |
|---|---|
| VARIABLE HEADROOM GAIN SWITCH | -6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB |
| OUTBOARD HARDWARE INSERT | PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know |
| CUSTOM NAME? | YES (let me know), NO THANKS |
| BUILD TIME | 15 WORKING DAYS |
