Passive 4×4 XLR Switcher for Home Theater Systems

The VintageMaker 4×4 Passive XLR Switcher is a professional balanced audio router designed for home theater systems equipped with balanced XLR connections.

If your theater includes displays on opposite walls or multiple listening positions, changing speaker assignments normally requires disconnecting and reconnecting cables. This switcher eliminates that problem by allowing instant routing between front and surround channels with a simple switch movement.

Unlike powered switchers, the VintageMaker design is completely passive. No power supply is required, no electronics are placed in the signal path, and there is virtually zero added noise, distortion, latency, or coloration.

Every unit is individually hand-built and tested in Europe using premium connectors, high-quality switches, and precision internal wiring.

Designed for Dual-Screen Home Theater Systems

Customer Request:

“Hi, I need a desktop XLR switcher that I can use to route 4 XLR inputs to 4 XLR outputs. I am trying to swap the L/R signals between two front and two surround speakers in a home theater where there will be two displays on opposite walls. The unit will receive the signal from a McIntosh MX100 processor and output it to a multichannel amplifier. Thanks.”

Many dedicated home theaters use two viewing positions or projection screens located on opposite walls. When changing the viewing direction, the front speakers become the surrounds and the surrounds become the front speakers. The listener also needs the left and right channels correctly reassigned.



The VintageMaker 4×4 Switcher performs this routing instantly without touching a single XLR cable.

Switch between:

• Normal Theater Position
• Reversed Theater Position

while maintaining correct Left and Right channel orientation.

Channel Routing – Passive 4×4 XLR Switcher for Dual-Screen Home Theater – Front & Surround Channel Swapper

Normal Mode

• Front Left → Front Left
• Front Right → Front Right
• Surround Left → Surround Left
• Surround Right → Surround Right

Swapped Mode

• Front Left → Surround Right
• Front Right → Surround Left
• Surround Left → Front Right
• Surround Right → Front Left

Result: Perfectly aligned speaker positioning and consistent soundstage orientation in any listening direction.

Why ON-OFF-ON Switching Matters

Safe Signal Switching Design

Most XLR switch boxes use simple two-position switches, which can briefly connect two active outputs during switching. This may cause output cross-connection and potentially damage sensitive balanced output stages.

VintageMaker uses professional ON-OFF-ON 3-Position BBM (Break-Before-Make) switches.

The center OFF position fully disconnects the signal before changing routing, preventing output-to-output connection and providing additional protection for valuable equipment, including:

• McIntosh
• Anthem
• Marantz
• Denon
• Emotiva
• Rotel
• Lyngdorf
• Trinnov
• StormAudio

and virtually any processor with balanced XLR outputs.

Why Choose a Passive XLR Switcher?

Because there are no active electronics inside, the switcher provides:

• No power supply required
• No digital processing
• No amplifiers
• No relays
• No software
• No latency
• No signal compression
• Virtually zero added distortion
• Full balanced signal integrity

Your audio remains exactly as your processor intended.

Key Features

• Professional 4×4 balanced XLR switcher
• Passive audio routing with no power required
• Front and surround channel switching
• Automatic Left/Right cross-routing
• Premium ON-OFF-ON safety switches
• Protects expensive balanced processors
• Fully balanced signal path
• Zero signal loss
• Zero added noise or coloration
• Boutique hand-built construction
• Precision point-to-point internal wiring
• Premium XLR connectors
• Custom front panel engraving available
• Manufactured in Europe

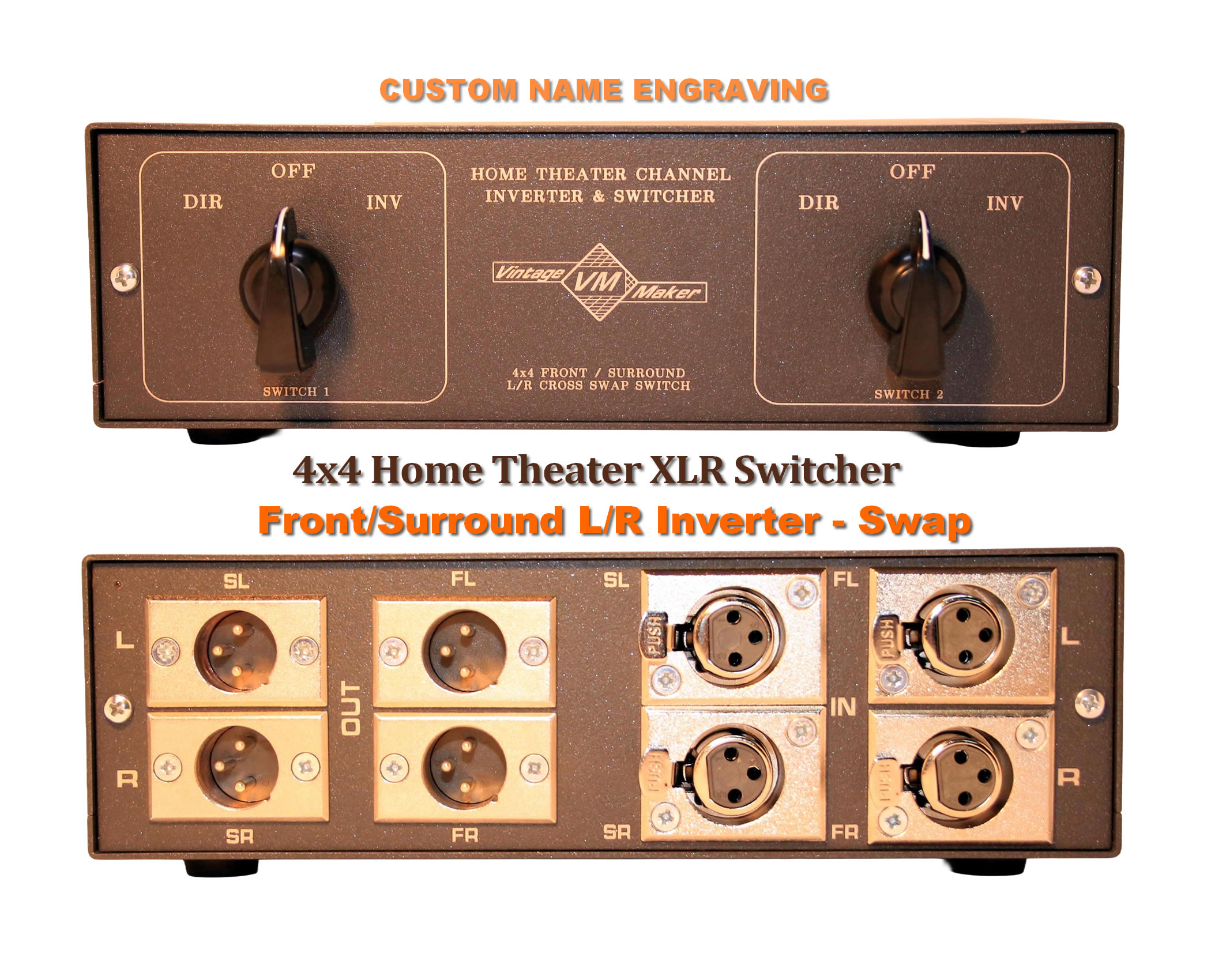

Technical Specifications

• I/O: 4 × Female XLR Inputs / 4 × Male XLR Outputs
• Circuit: Passive Balanced Audio Routing
• Power: No power required

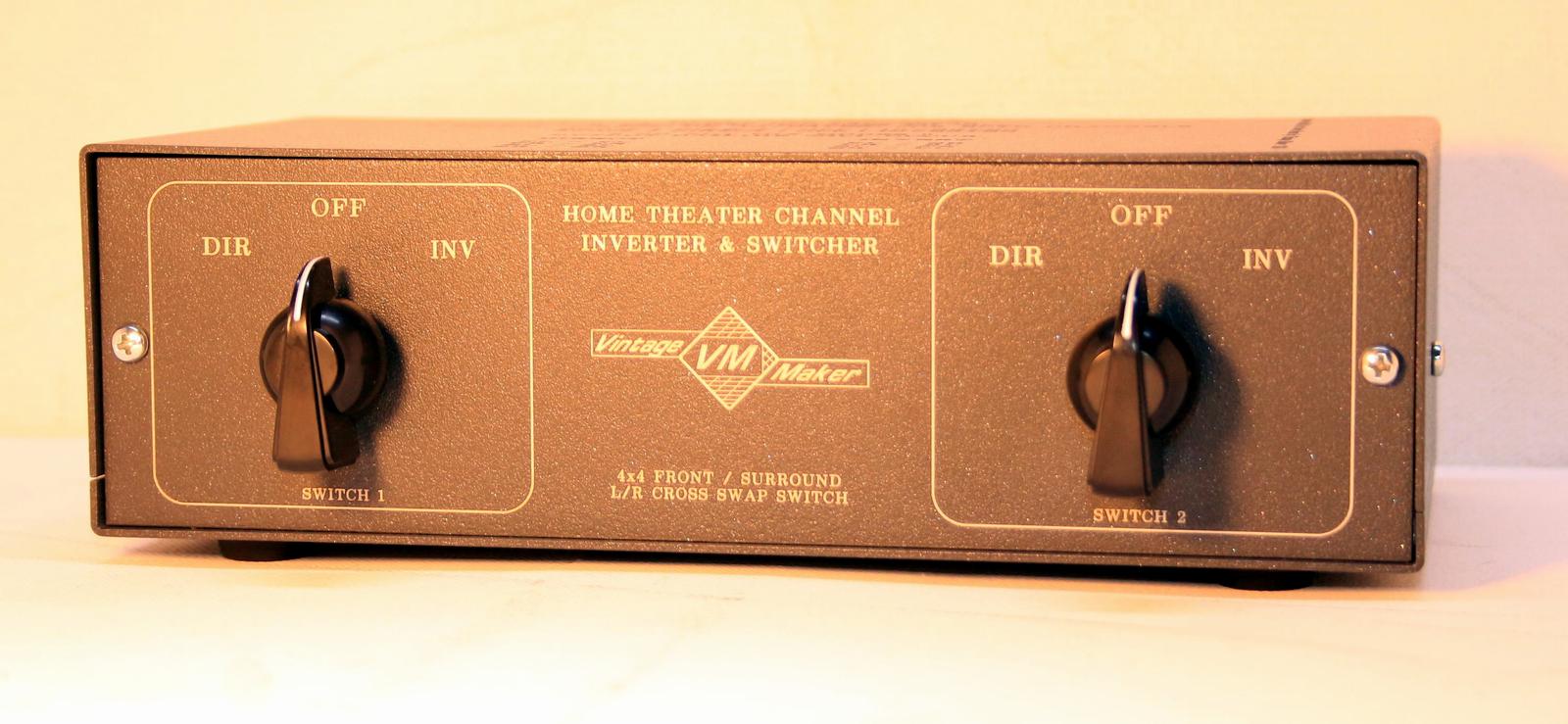

• Switching: 2 × Professional ON-OFF-ON Toggle Switches
• Channels: 4 Input / 4 Output Balanced Signal Paths
• Construction: Hand-assembled, premium internal wiring, heavy-duty aluminum enclosure, custom engraved front panel



Ideal Applications

Perfect for:

• Home Theater Systems
• Dual-Screen Home Theaters
• McIntosh MX100 Systems
• Balanced AV Processors
• Professional Audio Routing
• Recording Studios
• Monitor Switching
• Audio Demonstration Rooms
• Custom Installation Projects

Custom Options

Every VintageMaker switcher can be customized with:

• Custom engraved front panel
• Grey Mica enclosure
• Vintage white knobs
• Black knobs
• Personalized labeling
• Custom logo engraving upon request

Handmade by VintageMaker

Each VintageMaker switcher is individually assembled, wired, engraved, and tested before shipping.

No mass production.
No generic OEM electronics.

Only precision-built passive audio equipment designed for audiophiles, home theater enthusiasts, and professionals who demand maximum reliability.

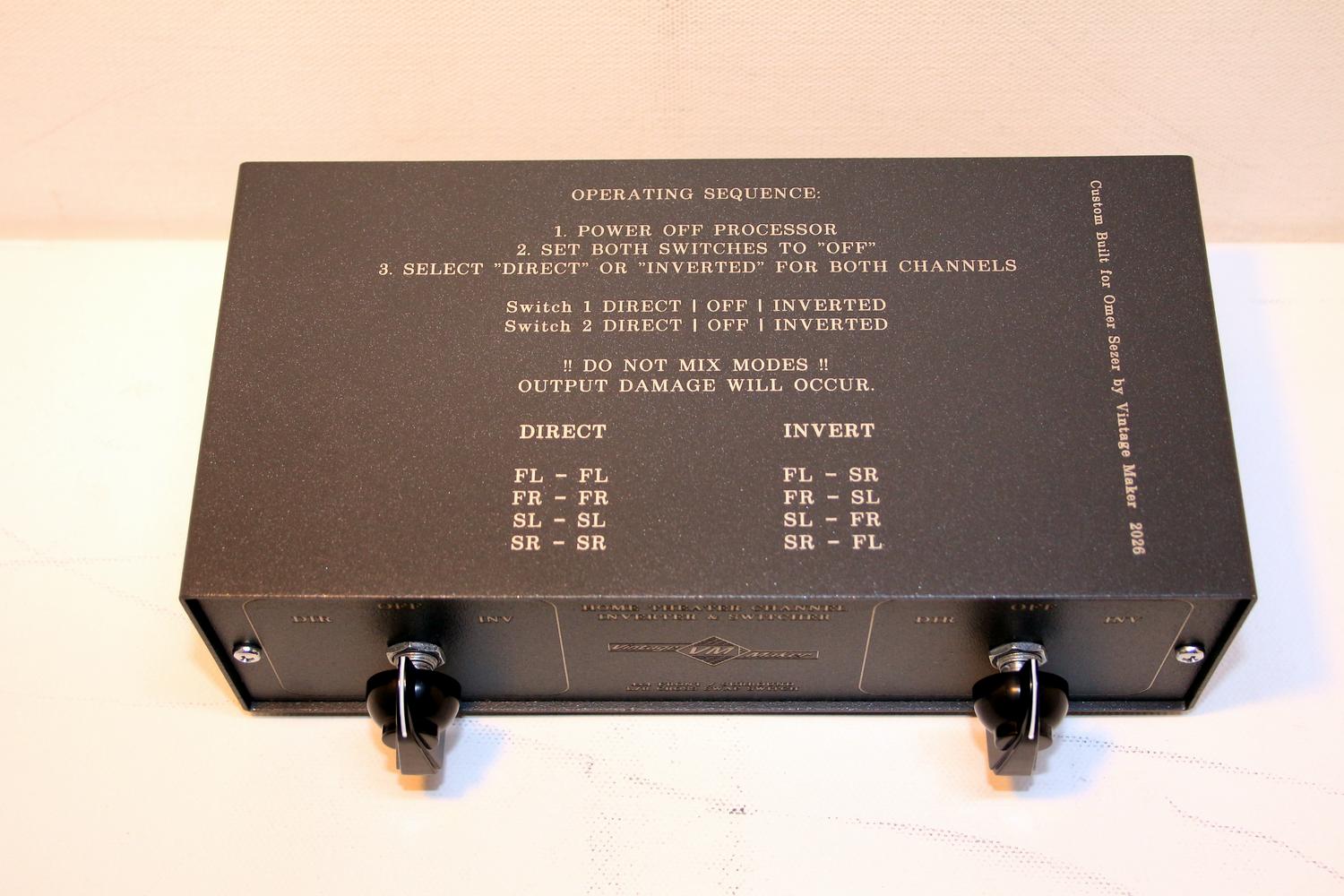

Safety & Operating Instructions

1. Set both switches to OFF before changing modes.
2. Select the same mode on both switches: DIRECT or INVERTED.
3. Do not mix switch modes — incorrect settings may cause output cross-connection and damage connected equipment.

Switch Modes

DIRECT Mode
FL → FL
FR → FR
SL → SL
SR → SR

INVERTED Mode
FL → SR
FR → SL
SL → FR
SR → FL

Recommended: Power off the processor before switching modes.

Frequently Asked Questions

Is this an active or passive XLR switcher?

It is completely passive and requires no external power supply.

Will it affect sound quality?

No. There are no active electronic components in the signal path, resulting in virtually zero added noise, distortion, or coloration.

Why does it use ON-OFF-ON (BBM) Break-Before-Make switches?

The center OFF position prevents outputs from briefly shorting together during switching, protecting expensive balanced processors.

Which processors are compatible?

Any processor or preamplifier equipped with balanced XLR outputs, including McIntosh, Anthem, Marantz, Denon, Rotel, Trinnov, StormAudio, Emotiva, and many others.

Can I order a custom engraved version?

Yes. Every VintageMaker switcher can be personalized with custom engraving.

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your controller or switcher? Tell me what you need and I build for you!
