10-Channel Analog Summing Mixer for Antelope Zen Tour

Summing Mixer for UAD – Upgrade your DAW Interface’s Sound Card with an Analog Summing Mixer and get the warm analog-console-like sound. Stereo Balanced studio grade high quality warm signal path.

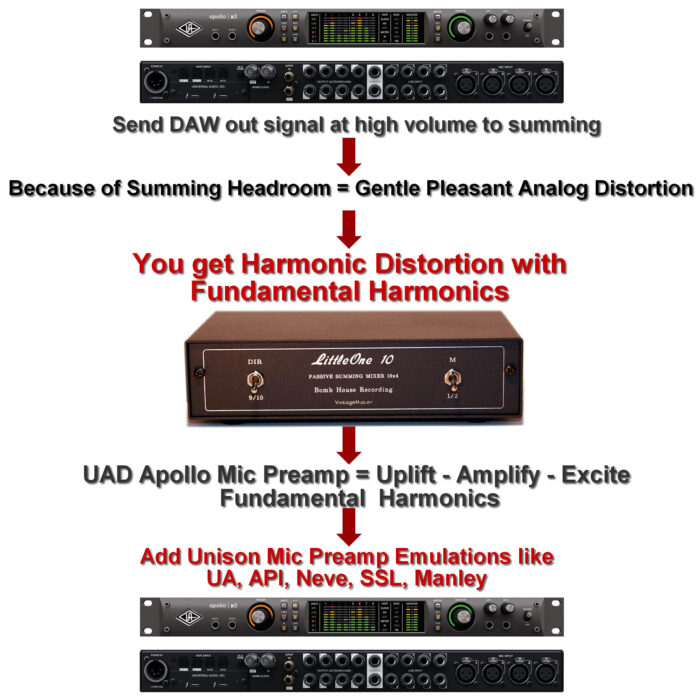

Important Tip: Keep pushing the instruments into the summing mixer until you start hearing a subtle harmonic distortion. This will add warmth, depth, and better separation to your mix, giving it a more professional, polished sound, just like a finished record.

Build time: 10 Working Weekdays after cleared payment

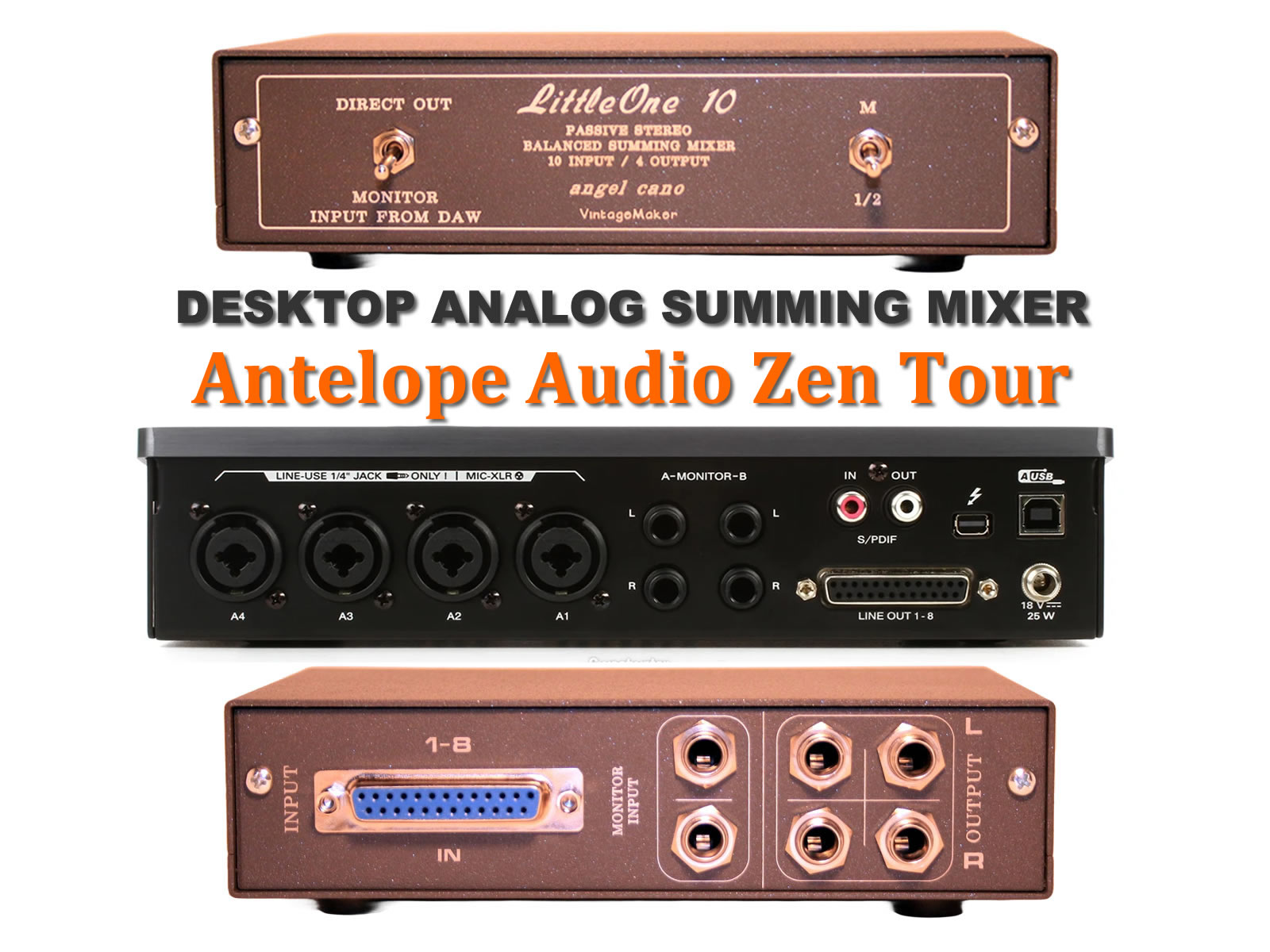

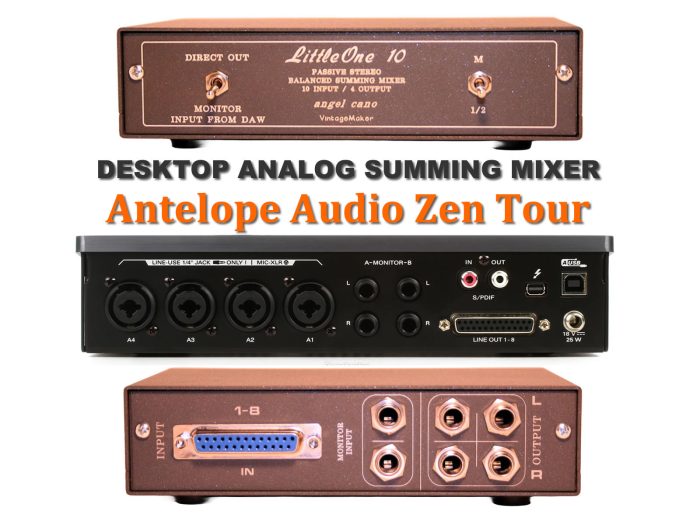

LittleOne Wide 10×4 – 8 DSUB + 2TRS /4 TRS out summing mixer designed for Antelope Audio Zen Tour Preamps as well as Motu, Focusrite, Presonus, Prism, Roland, Tascam US, RME Firewire, and  Antelope Orion interfaces. Feel free to request your summing for different interface type, more inputs/outputs, or connectors like DSUB or XLR!

Stereo to Mono: It gives an extra stable analog mono base for your mix (Kick / Bass) then a superior separation and 3D depth for additional stereos.

10×4 – 8 DSUB + 2TRS /4 TRS out summing mixer with 1 x Stereo to 2 – Mono with Direct Monitoring (OUT or SUM) switch designed for Universal Audio UAD Apollo x8 interface Unison Preamps, (or Focusrite /Motu / Presonus / or other sound card, let me know)

Specs:

• 8 Ch Input: DSUB Tascam Analog Balanced
• 2 Ch Monitor Input: TRS 1/4″ Balanced (switching for regular summing input or monitor input)
• Output: 2x Stereo / 4x TRS Balanced L/R Main/Monitor (common)
• 1 x Stereo to 2 Mono on 1/2 stereo input (mono kick/bass)
• Monitor OUT SWITCH: Signal straight to Master Outputs – Direct Monitoring – Input to Output – Monitor switch.
• *DIR Switch lets you switch between regular Summing mode and direct monitoring without unplugging anything.

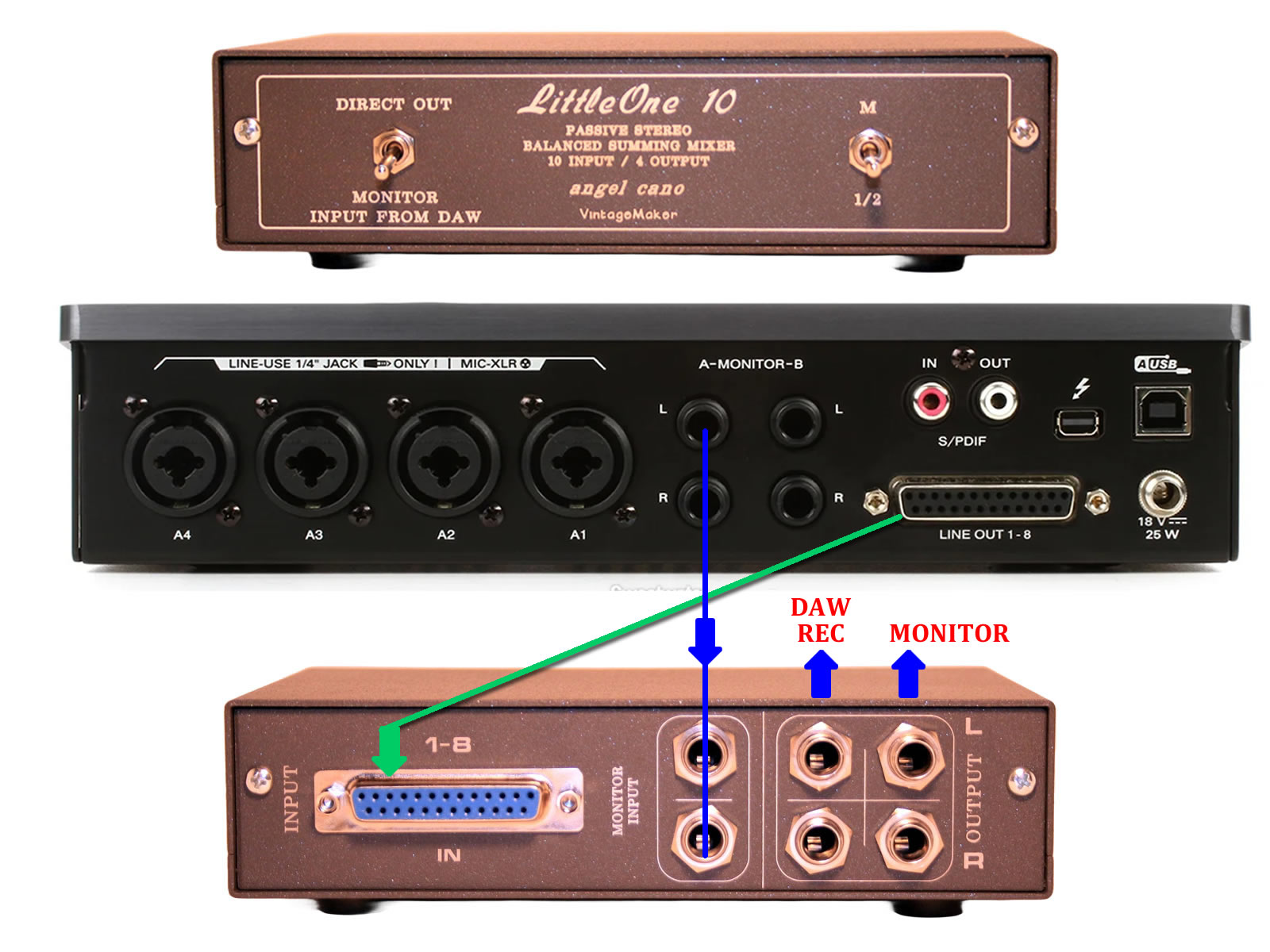

You don’t have to unplug: In “everyday” work, Antelope Audio Zen Tour monitor out is routed directly to the summing mixer (pre-production, programming, editing, etc.). Switch Monitor OUT to DIRECT OUT mode, and you’ll have straight monitoring from the Apollo interface through the summing mixer.

At the same time, you can use the monitor input/output as an instrument input for the summing mixer, allowing you to send more valuable analog channels to the analog mixer to achieve a more detailed, deep, and wide-resolution sound.

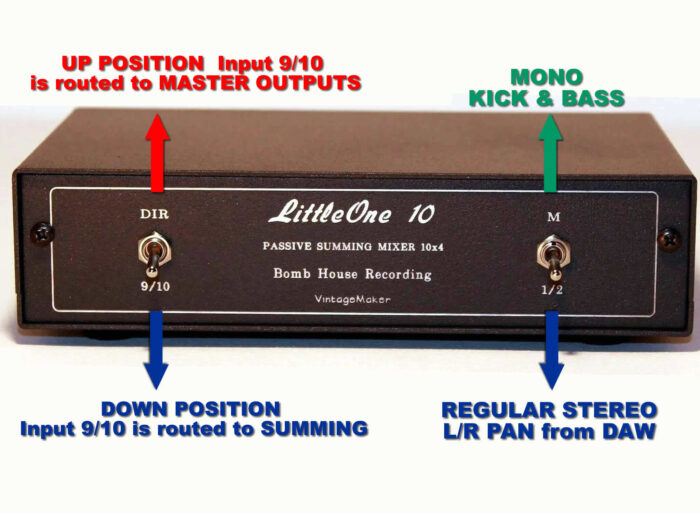

• • Monitor Switch DOWN: Normal mode – Use Antelope monitor outputs for general tasks (e.g., assign instrument tracks).
  • Monitor Switch UP (OUT): Direct mode – Antelope monitor outputs are sent straight to the summing mixer 2 x Stereo master outputs.

*Summing 1-8 inputs are still active (mute from DAW).
*Equivalent signal on both stereo outputs.

If you need exclusive 1-8 mute with DIRECT MONITOR OUT active monitoring, please ask for the Total Bypass feature. read more: https://vintagemaker.net/documentation/#dir-direct-input-to-output-switch

In 1: Mono Kick
In 2: Mono Bass
3/4 In: Snare, hats, some percs > stereo
5/6 In: Toms, synth blips, etc. > stereo
7/8 In: Synths, Pads, Guitars, Piano, Vocals, etc. > stereo
9/10 In: Stereo Effects etc. > stereo

New to analog summing? Read more: https://vintagemaker.net/analogsummingmixer/

Do not find your summing mixer? Tell me your DAW Interface Type! Do not find your Gear? Don’t worry! Just inform me about your requirements!
