2U Rack 24-Channel Analog Summing Mixer – Filtek / Neumann Transformer Amp w/ Mute Switches (TRS–XLR)
Original price was: 1.575.00 €.1.410.00 €Current price is: 1.410.00 €.
A precision-built 24-channel analog summing mixer featuring a Filtek–Neumann transformer amplifier and 24 dedicated mute switches for fast, tactile control. Designed for hybrid mixing workflows with clean headroom, musical summing, and flexible monitoring for DAW-Synth-Keyboards
Learn more about Headroom: https://vintagemaker.net/analog-headroom-why-you-should-use-it/
CONTACT AND ASK TO BUILD YOURS
Precision Analog Summing with Instant Control

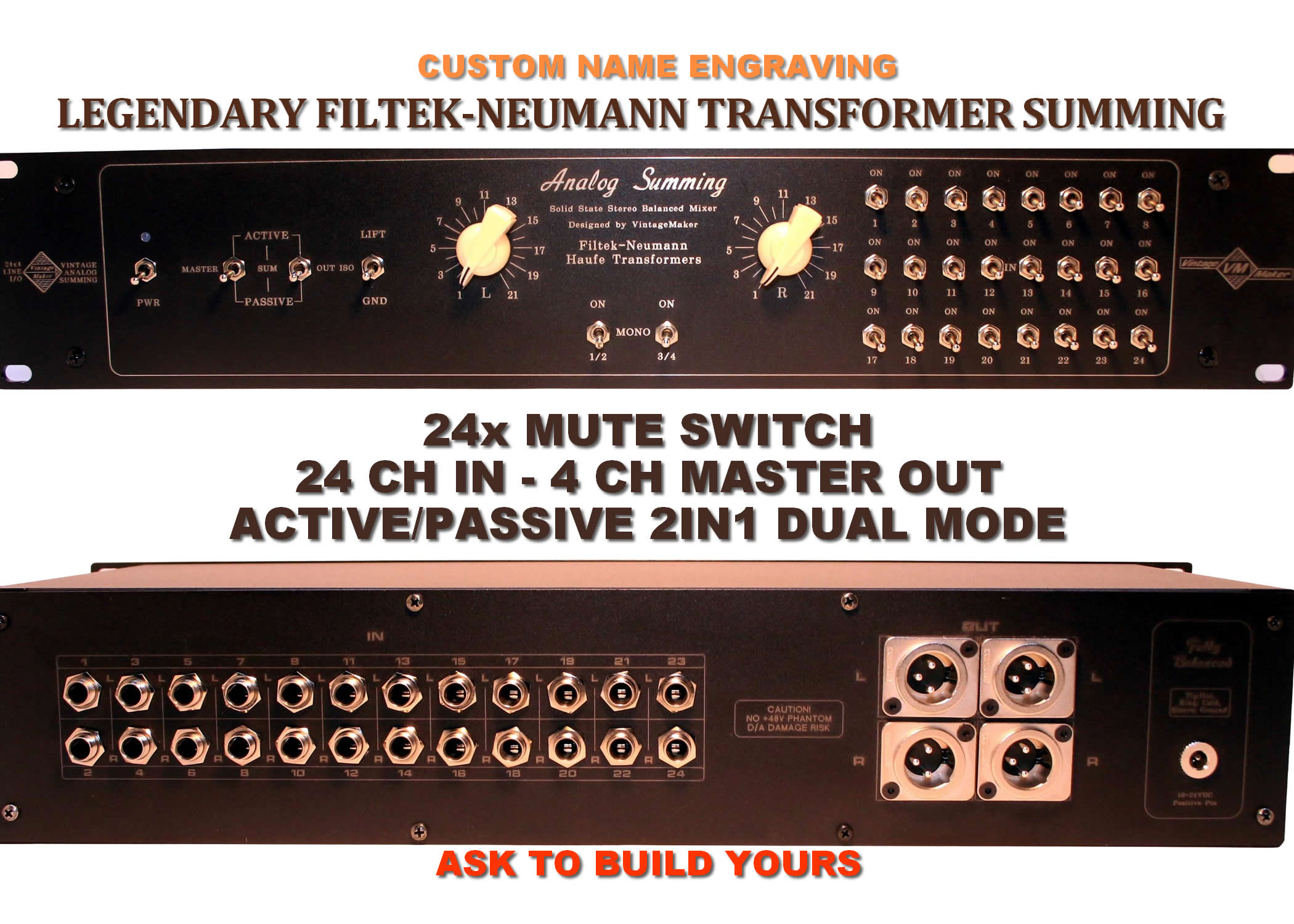

This 2U rack-mounted 24-channel analog summing mixer is built around a classic Filtek–Neumann transformer amplifier stage, delivering punchy, open, and musical summing with excellent headroom.
What sets this unit apart is its dedicated per-channel mute switching, allowing you to instantly remove channels from the mix without repatching or altering your DAW session.
Key Features
- 24-channel analog summing mixer (2U rack)
- Filtek–Neumann transformer amplifier stage
- 24 × balanced TRS inputs

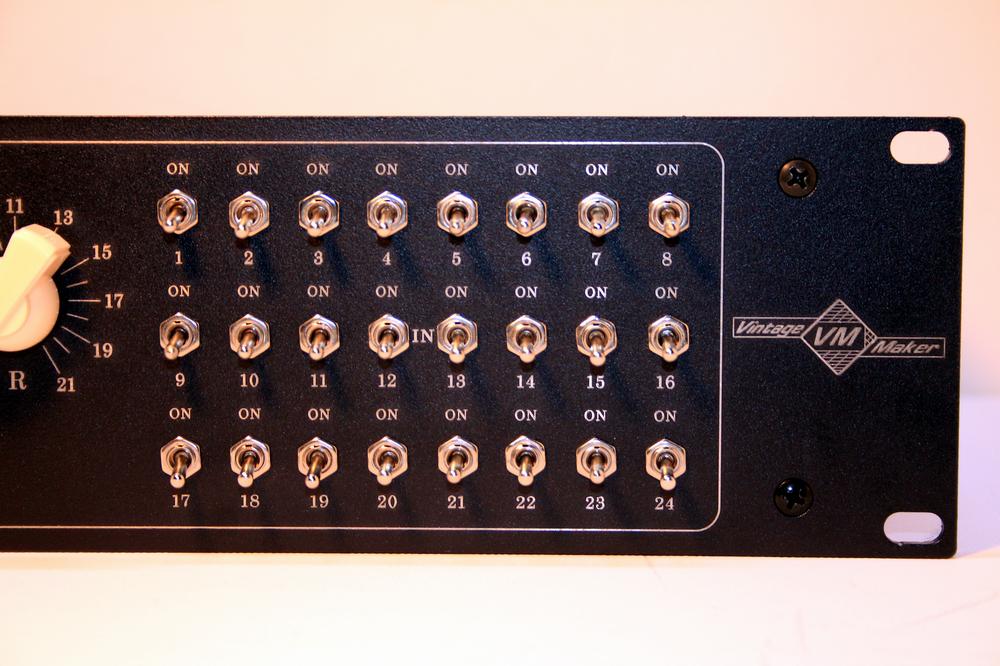

- Dedicated mute switches per channel (fast, hands-on control)
- 2 × Stereo-to-Mono (STM) switches (channels 1–2 and 3–4 )
- Main output: 1× stereo XLR (balanced L/R)
- Monitor output: 1× stereo XLR (balanced L/R)

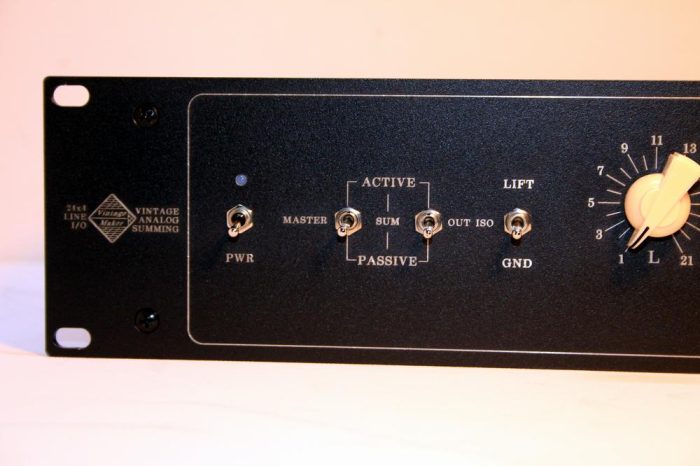

- Master Active/Passive switching

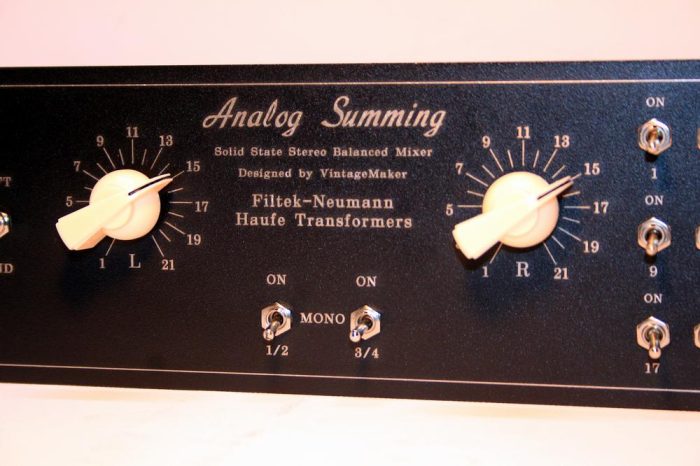

- 21-step precision level control (transformer amp stage)
Build & Customization
- Knob options:
- Round black
- Vintage-style white
- Vintage-style black
- Power LED color options:
- Red / Green / Yellow / Blue
- External power supply (low-noise design)
- Free custom name engraving (front panel)
Designed for Hybrid Studios
This unit integrates seamlessly with modern Synth-Keyboard and DAW-based workflows while providing the sonic depth and tactile control of classic analog summing systems. The mute switches alone transform your workflow—giving you immediate, physical control over your mix decisions.
Learn More
-
How to Connect a Summing Mixer
Step-by-step guide to setting up a summing mixer in a hybrid analog studio workflow.
👉 https://vintagemaker.net/how-to-connect-summing-mixer-setting-up/ -
Analog Headroom Explained
Learn why analog headroom matters, how it affects punch, depth, and clarity, and why it’s essential in analog summing.
👉 https://vintagemaker.net/analog-headroom-why-you-should-use-it/
DIFFERENCES BETWEEN TRANSOFRMERS read more…
SPECS – DOCUMENTATION read more…
Do not find your desired gear? Ask to build Yours!
You can get as many channels and options as you want, so let’s build your gear!
Build time: 18 Working Weekdays after cleared payment
| SOUND CARD? | UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know |
|---|---|
| VARIABLE HEADROOM GAIN SWITCH | -6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB |
| OUTBOARD HARDWARE INSERT | PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know |
| CUSTOM NAME? | YES (let me know), NO THANKS |
| BUILD TIME | 15 WORKING DAYS |
