2U-Rack 16×4 Neumann Analog Studio Summing Mixer

16-Channel Analog Summing Mixer with Vintage Neumann-Haufe Transformer, Channel Insert and 2in1 – powered and passive mode, DSUB Tascam Connectors for balanced audio excellence.

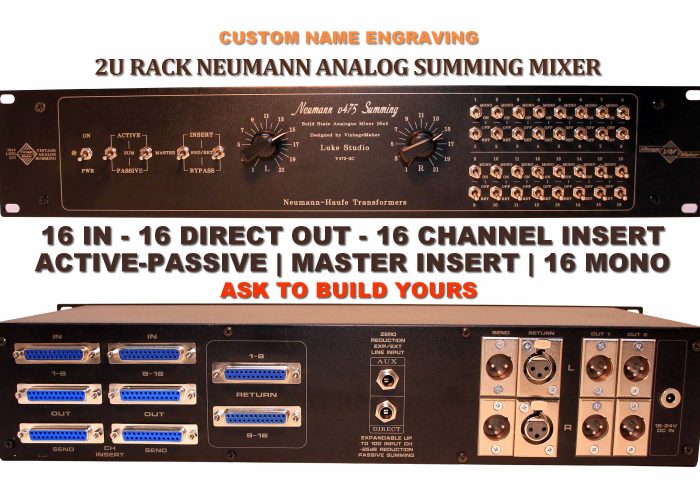

2U RACK – NEUMANN V475-2C NOS ANALOG SUMMING MIXER

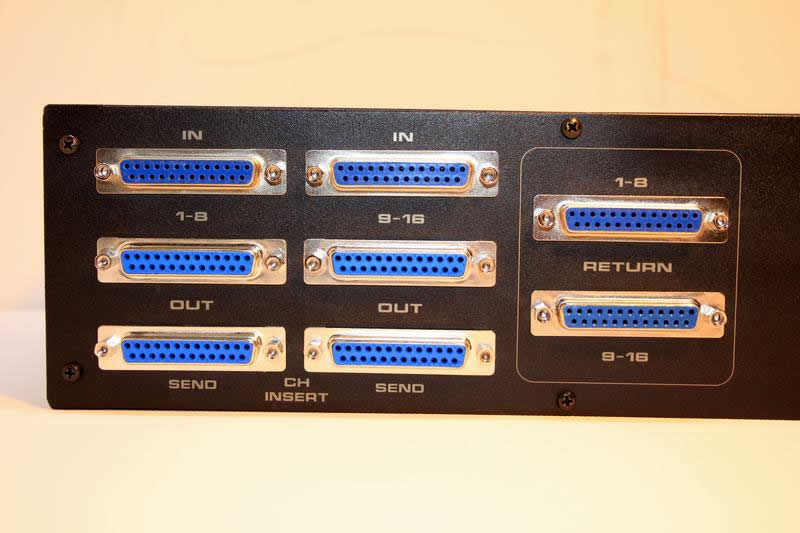

• 16 Channel Input – DSUB (Tascam Analog Standard, Balanced)

• 16 Channel Direct Out (Input Copy) – DSUB Balanced

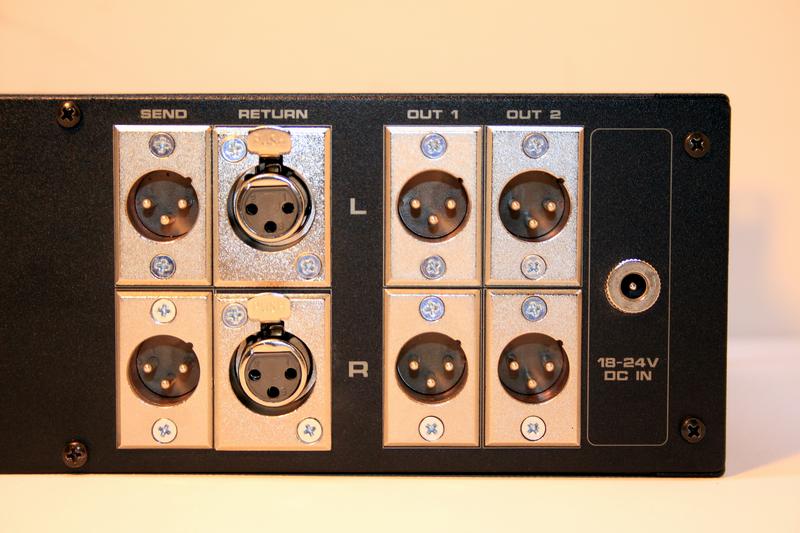

• 4 XLR Outputs (2 × Stereo) – Main / Monitor

• 16 Channel Insert Send – DSUB Balanced

• 16 Channel Insert Return – DSUB Balanced

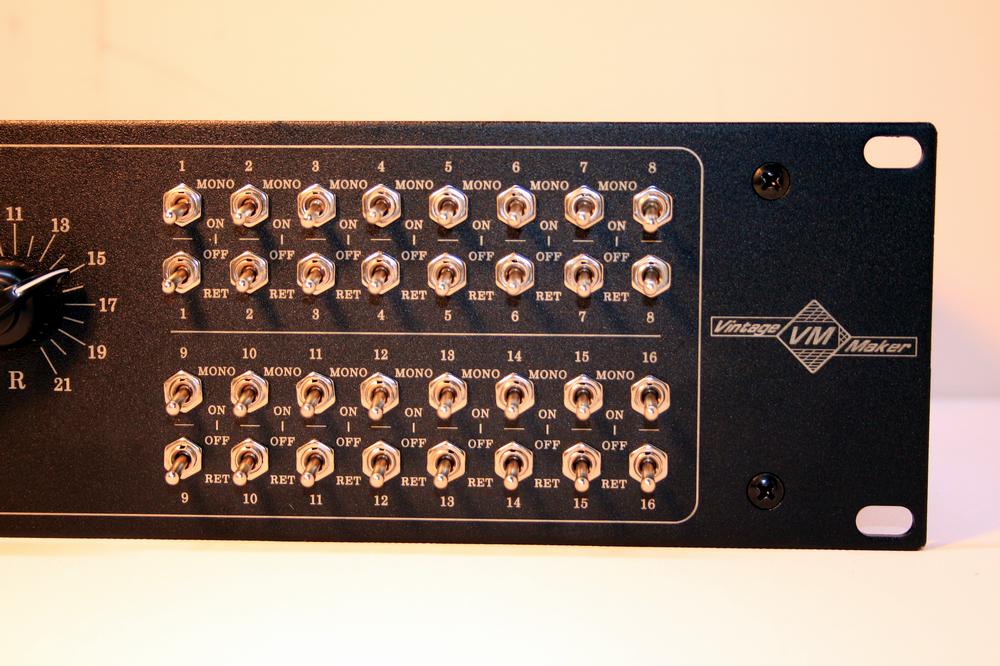

• 16 Insert Return Bypass Switches

• 16 Per-Channel Mono Switches (Center placement from single input)

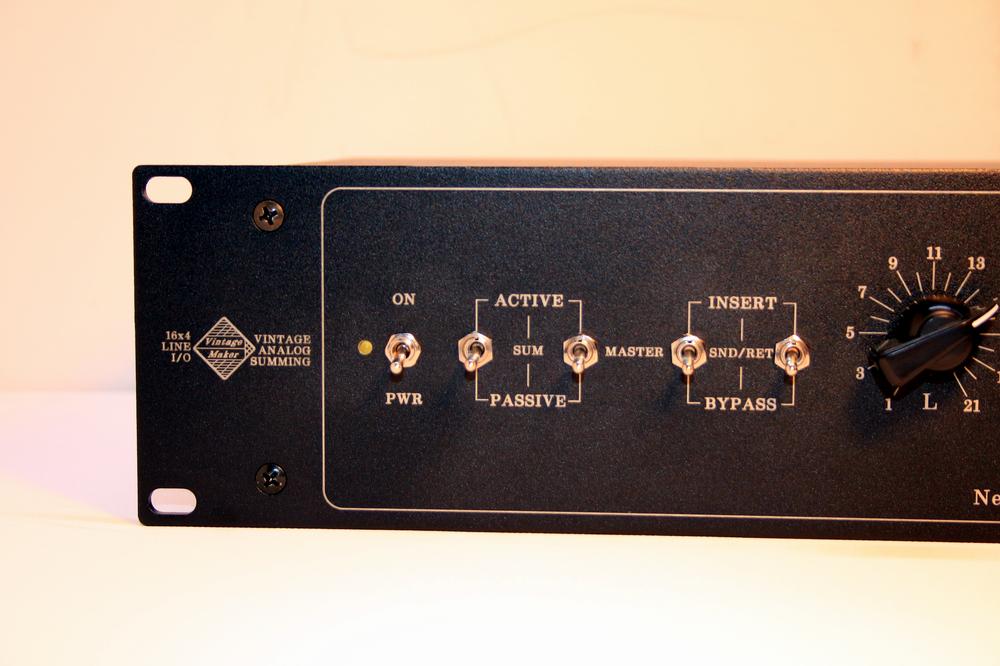

• Master 2-in-1 Active / Passive Switch

• Master Insert Send / Return – XLR Balanced

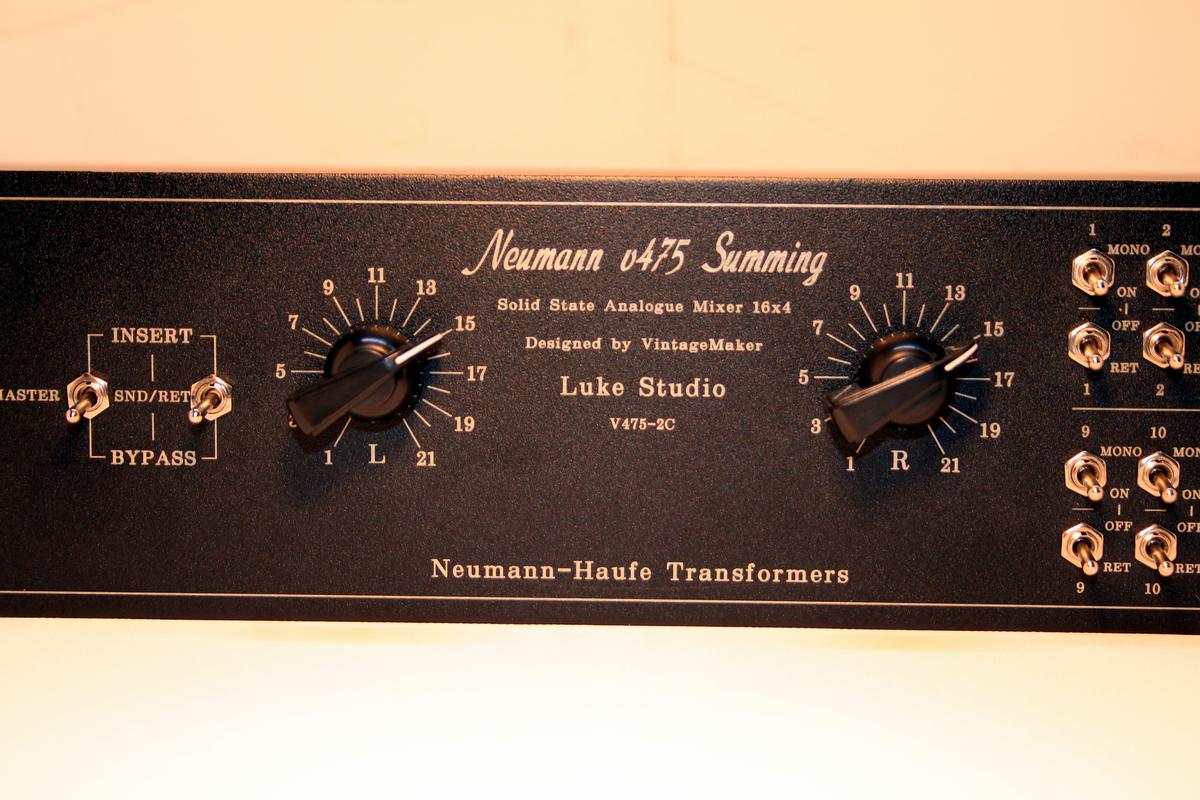

• 2 × 21-Step Precision Neumann Master Gain Controls (L/R)

• Vintage-Style Black Knobs

• Power Supply: 110–240 VAC → 18–24 VDC, 0.6–1.5 A (Worldwide) – EU Plug

• Power LED: Yellow

• Custom Name Engraving Available (please specify when ordering)

Learn More

• How to Connect a Summing Mixer
  Step-by-step guide to setting up a summing mixer in a hybrid analog studio workflow.
  👉 https://vintagemaker.net/how-to-connect-summing-mixer-setting-up/

• Analog Headroom Explained
  Learn why analog headroom matters, how it affects punch, depth, and clarity, and why it’s essential in analog summing.
  👉 https://vintagemaker.net/analog-headroom-why-you-should-use-it/

DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

Bring true Neumann sound to your mix.
Handcrafted around the legendary Neumann V475-2C summing amplifier, this 2U rack delivers authentic analog depth, warmth, and precision. Designed for hybrid studios seeking real transformer tone and pristine headroom, with full insert flexibility, per-channel mono switches, and master active/passive operation.
