2×2 Rackmount Filtek-Neumann BFE DV1175 – Four (4) Transformer – Color Amp – Line Summing Amp – XLR

Ideal for diverse signal processing applications or enhancing passive summing mixers. Upgrade your Digital Audio Workstation (DAW) mixes using 1U Rack Mount Analog Neumann Transformer Color Amp, achieving fat 3D analog-console-like sound.

Inputs

• 2 Line Inputs: Selectable TRS 1/4″ or XLR Balanced (L/R)

Outputs

• 2 Outputs: Selectable TRS 1/4″ or XLR Balanced (L/R)

Input Signal Processing

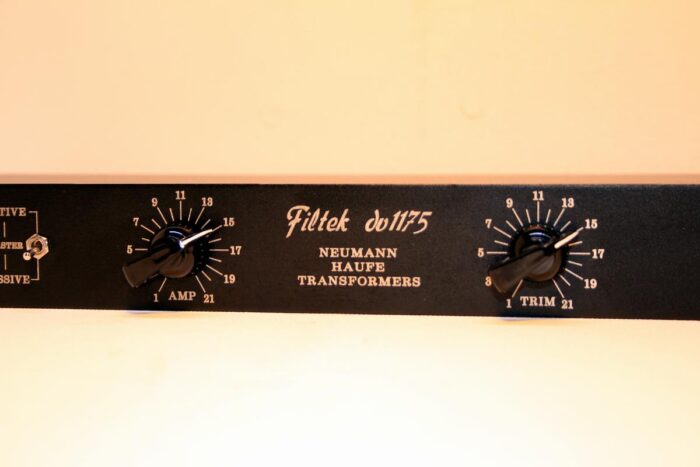

• 21-Step High-Precision Analog Vol-Gain Transformer Amp Control (L/R)
  • Adjust amp gain levels between In/Out Haufe transformers with high precision.
  • Powered by Neumann-Haufe transformers for exceptional tonal quality.

Output Signal Processing

• 21-Step Precision Trim Gain Control Attenuator
• Dual isolated amplifiers utilizing 2 x Haufe output transformers.

Signal process selection:

• Master Active/Passive Switch: 2-in-2 dual-function control for flexible operation.

Applications

• Signal Stereo Color transformer Processing: Add analog character and tonal richness.
• Ideal for:
  • Passive Summing Output Signal Enhancement
  • Master Bus Color Saturation
  • Summing Amplifier: Perfect for passive mixers.
  • Tracking: Operates as a stereo unit or 2x mono channels for recording.

Technical Features

• Equipped with 4 x Haufe Input/Output Transformers for premium audio fidelity.
• Amp gain range of +25dB, divided into 21 precision steps (L/R).
• Designed for high-performance analog processing in demanding studio environments.

Power Supply

• External power supply included (EU plug).
• Note: Requires a low-cost EU to UK/US/AU travel plug adapter for use in other regions.

This unit is a versatile tool for engineers seeking analog warmth and high-fidelity processing in their audio workflow.

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 12 Working Weekdays after cleared payment

1U Rack Dual Channel Analog Summing Transformer Amp – Designed with precision and versatility in mind, this mixer offers a seamless integration of analog inputs and outputs to elevate your audio experience.

Equipped with 2 Line input TRS 1/4″ or XLR Balanced options, and 2 out TRS 1/4″ or XLR Balanced selections, this mixer ensures compatibility with a wide range of devices. The Dual 21 Step High Precision Analog Vol-Gain control provides meticulous control over your audio levels, guaranteeing pristine sound quality every time.

Featuring dual separated amps with 2 x Haufe output transformers, this mixer delivers unparalleled performance and clarity. The Master Active/Passive 2in2 function offers flexibility in sound manipulation, with a -15/-25dB variable headroom gain control for customized audio processing.

Ideal for Signal Stereo Color processing and Passive Summing output signal enhancement, this mixer is equipped to handle all your audio needs. Whether you’re mastering tracks or mixing live performances, our Dual Channel Analog Summing Mixer provides the tools you need for professional-grade results.

With a compact design and included External Power Supply (EU Plug), this mixer is ready to accompany you wherever your creativity takes you. Transform your sound with the Dual Channel Analog Summing Mixer and experience audio excellence like never before.
