3-Way IN / 1-Way OUT Audio RCA Hi-Fi Studio Switch Box – BBM Switching & Ground Isolated

3-Way Stereo (6-Channel) IN / 1-Way Stereo (2-Channel) OUT – Passive RCA Source Selector | Break-Before-Make Architecture

Technical Configuration & Grounding Logic
Designed for high-end audio routing, this unit prioritizes signal integrity and ground isolation. Unlike typical switchers that share a common ground, this build ensures unused outputs remain completely disconnected.

• Ground Isolation: Each input audio signal and audio ground is fully independent. The audio ground connection exists only between the input and the currently selected output. Non-selected outputs are fully isolated — both signal and ground — preventing signal leakage, cross-talk, and ground loops within the switcher itself.
• Chassis Grounding: The aluminum enclosure is connected to the output RCA ground for RFI (Radio Frequency Interference) shielding. This does not create a common audio-ground connection between the inputs.
• Isolated 3-Way Switching: The switch simultaneously disconnects both Signal (L/R) and Ground (L/R) of each non-selected output, providing electrical isolation between the connected audio chains within the switcher.
• BBM Switching (Break-Before-Make): The rotary switch disconnects the current output before connecting the next one, preventing any momentary connection between output devices and minimizing switching pops.
• Pure Passive Signal Path: No active electronics, buffering, or circuitry is placed in the audio signal path, providing direct, uncolored signal transmission.

• System Note: The switcher eliminates unwanted signal leakage and ground-loop paths caused by the switcher itself. Ground loops, noise, or crosstalk caused by other equipment or additional connections elsewhere in the audio system are outside the switcher’s control.

Specifications:

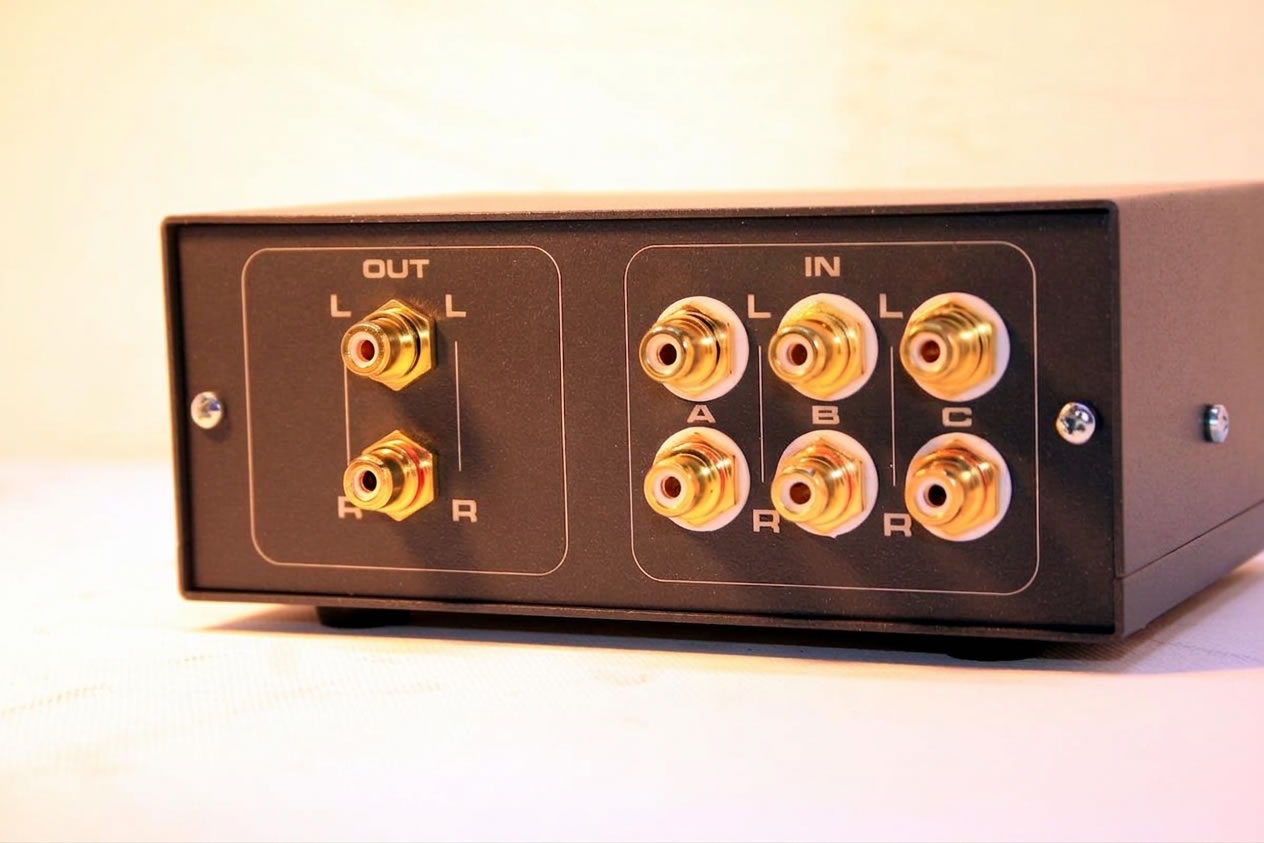

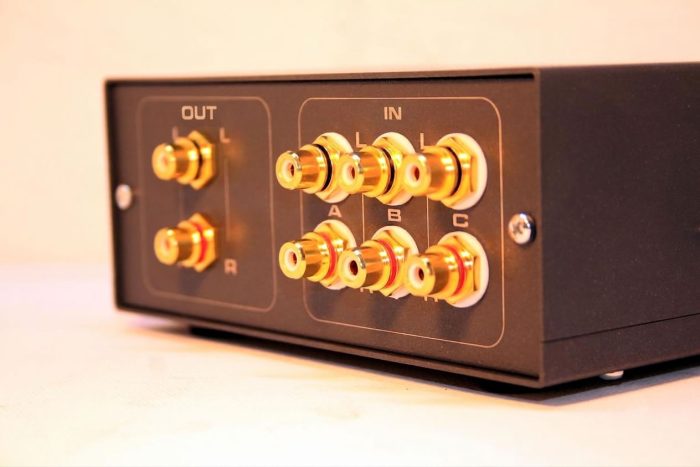

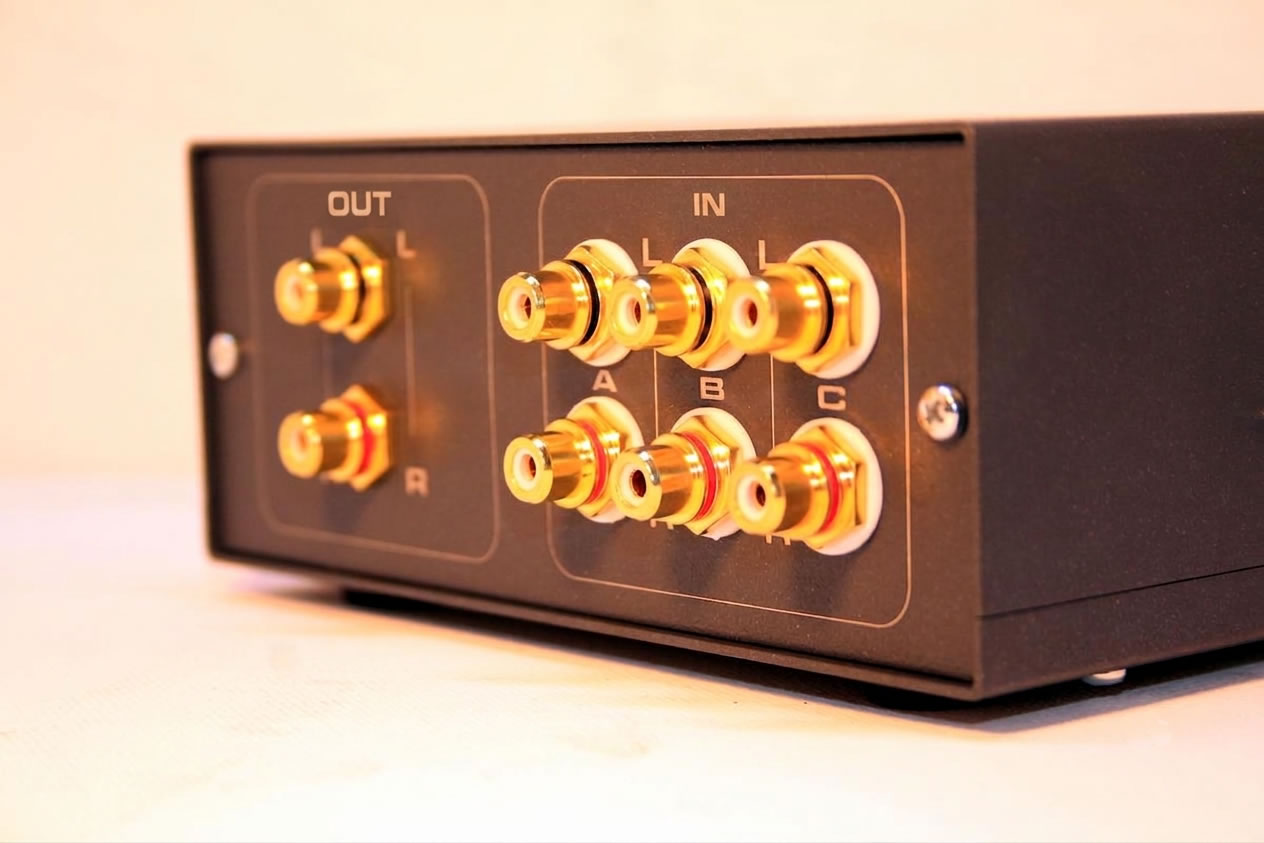

• Input: 6 x RCA (3x Stereo L/R – A, B, C)
• Outputs: 2 x RCA (1 x Stereo L/R)

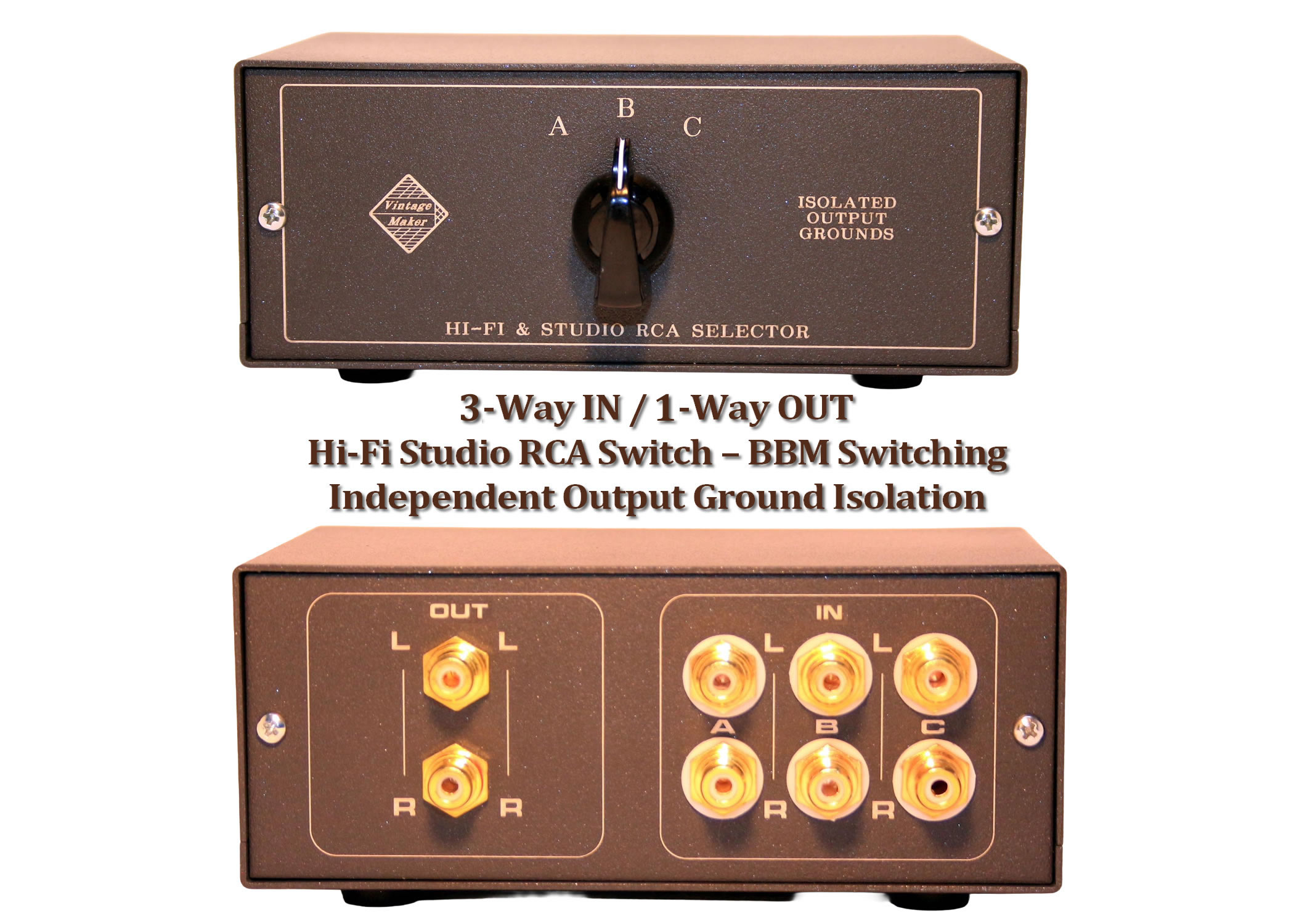

• Switch Type: 3-Position Stereo Balanced Precision Rotary (BBM)
• Enclosure: Shielded desktop mini box (Aluminum)
• Operation: 100% Passive (No power required)
• Labels: Custom output engraving available (A/B/C or custom names)

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your controller or switcher? Tell me what you need and I build for you!
