4 In – 4 Out – Rack Monitor Controller – Mute – Phase InvR + Mono – DSUB-TRS-XLR (select connection)
Price range: 331.00 € through 379.00 €
Crystal clear sound – dual stereo balanced signal path – no stereo crosstalk or stereo image collapse – custom hand built
2 way In – 2 way Out
Premium, 100% passive studio monitor controller and line switcher featuring a 21-step gold-plated precision attenuator, Phase Reverse, and Mono summing capabilities.
Engineered specifically for critical listening and seamless A/B switching between high-end studio monitors, such as the Genelec 8030 CP and Avantone CLA-10A, delivering absolute transparency without any sonic coloration.
- 100% Passive Audio Path: No power supply required. Zero added noise, zero distortion, and zero coloration.
- 4-In / 4-Out Matrix: Switch between 2 independent balanced stereo inputs and 2 balanced stereo outputs.
- 21-Step Precision Attenuator: Gold-plated S-shape stepped control (-6dB to -58dB) ensures flawless L/R stereo matching.
- Mix Utilities: Dedicated Phase Inverse (Right Channel) and Mono mix switches for professional compatibility testing.
- Bespoke Rack Design: Standard 1U rackmount chassis featuring a unique, laser-engraved professional interface.
SELECT ALL OPTIONS!

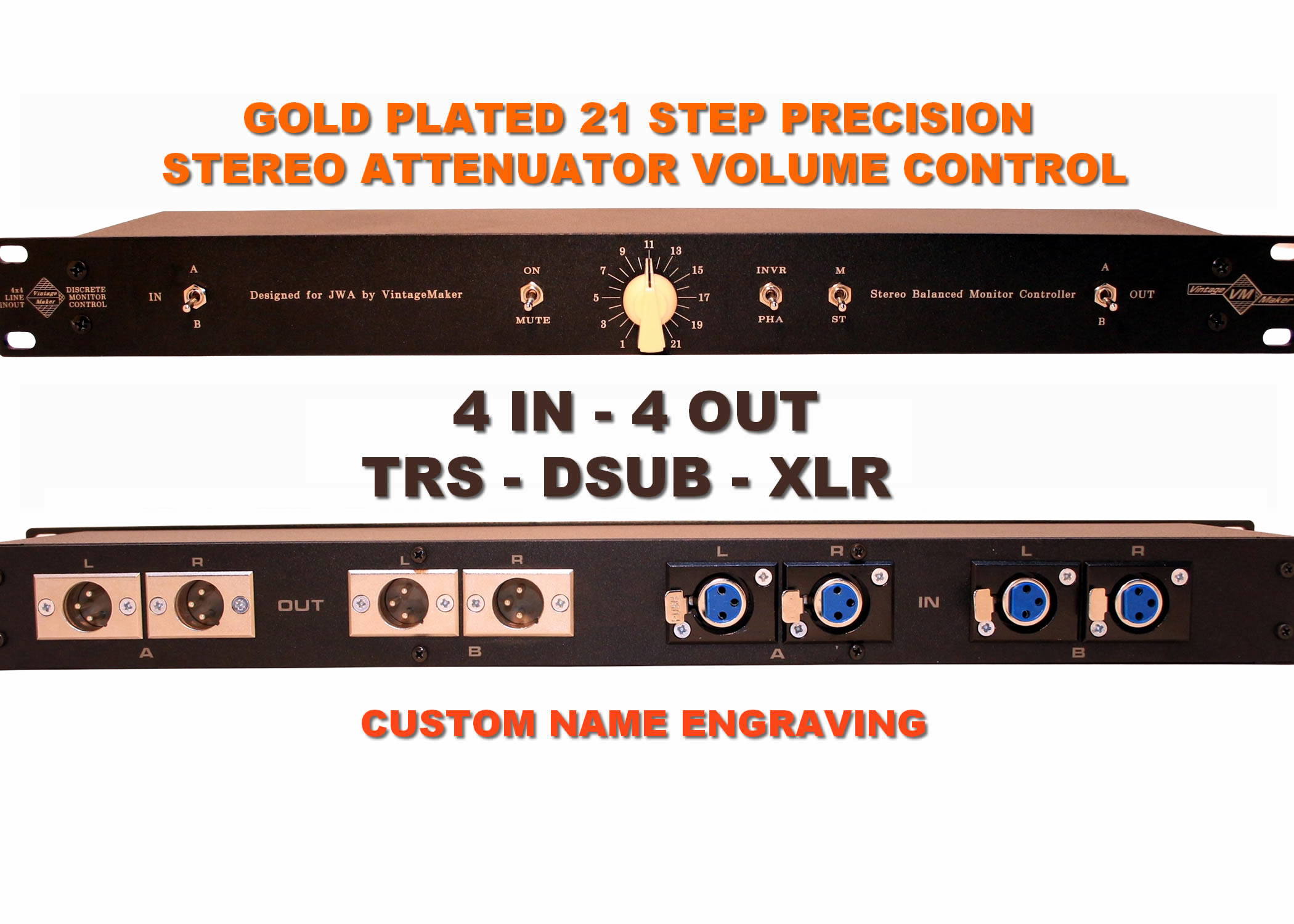

4×4 Dual Stereo Balanced Passive Discrete Monitor Controller & Speaker Selector (1U Rack)
Premium, 100% passive studio monitor controller and line switcher featuring a 21-step gold-plated precision attenuator, Phase Reverse, and Mono summing capabilities.
Engineered specifically for critical listening and seamless A/B switching between high-end studio monitors, such as the Genelec 8030 CP and Avantone CLA-10A, delivering absolute transparency without any sonic coloration.
- 100% Passive Audio Path: No power supply required. Zero added noise, zero distortion, and zero coloration for pure signal integrity.
- 4-In / 4-Out Matrix: Seamlessly switch between 2 independent balanced stereo inputs and 2 balanced stereo outputs.
- 21-Step Precision Attenuator: Gold-plated S-shape stepped control (-6dB to -58dB) ensures flawless left/right stereo matching at any volume level.
- Advanced Mix Compatibility Utilities: Dedicated Phase Inverse (Right Channel) and Mono mix switches for professional phase and mono compatibility testing.
- Bespoke Rack Design: Standard 1U rackmount chassis featuring a unique, laser-engraved professional interface.
🛠 Technical Specifications
| Feature | Specification Details |
|---|---|
| Form Factor | 1U Standard Rackmount (Heavy-duty enclosure) |
| Circuitry Type | Fully passive, discrete balanced architecture |
| Inputs (INPUT) | 2x Stereo L/R Balanced Channels (Selectable: TRS / XLR / D-SUB) |
| Outputs (OUTPUT) | 2x Stereo L/R Balanced Channels (Selectable: TRS / XLR / D-SUB) |
| Volume Control | 21-Step precision stereo attenuator (Gold-plated, S-shape curve) |
| Attenuation Range | -6 dB up to -58 dB |
| Input Selection | A / B robust 2-position toggle switch |
| Output Selection | A / B robust 2-position toggle switch |
| Utility Functions | Mute Switch, Phase Inverse R (Right channel), Mono Mix Switch |
| Aesthetics | Laser-engraved unique design front panel |
| Build Time | 12 business / working weekdays |
Why Choose This Monitor Controller?
Perfect Stereo Imaging –Unlike standard potentiometers that suffer from left/right channel drift at lower volumes, the 21-step gold-plated attenuator guarantees matching stereo tracking across every single step. Your center image stays locked exactly where it belongs.
Critical Phase & Mono Testing
The integrated Mono and Phase Inv R switches let you audition your stereo field like a high-end console. Instantly check your mix for phase cancellation and mono sum compatibility—crucial for optimizing tracks for modern streaming platforms.
Seamless Dual-Monitor Integration
Toggle between your primary nearfields (Genelec 8030 CP) and your mid-forward reference monitors (Avantone CLA-10A) instantly. Pop-free switching ensures your ears and your speakers are protected during transitions.
📦 Ordering & Shipping Information
- Handcrafted Quality: Each unit is custom-built to order. Please allow a build time of 12 business/working weekdays before dispatch.
Do not find your desired gear? Ask to build Yours!
You can get as many channels and options as you want, so let’s build your gear!
Build time: 12 Working Weekdays after cleared payment
Phase Invert R + Master Mono Switch: https://vintagemaker.net/documentation/#phase-invert-r-master-mono-mode
Rack Monitor Controller – Reversing the phase of the right channel and mono-ing it with the left and sending the result to both speakers is particularly useful for assessing the width content of your mix and distortion characteristic by effectively replacing the ‘centre image’ with the out-of-phase information. This provides an excellent way to check mono compatibility and to also learn spatial tricks from your favourite reference material. *they perform a test-type function (since you only use this function periodically) and because of the passive attenuator nature recommended to use at 75 -100% attenuator volume (or max the volume) *the efficiency of the phase decreases proportionally as the volume decreases.
| CONNECTION TYPE | DSUB – IN/OUT, TRS – IN/OUT, XLR – IN/OUT |
|---|---|
| KNOB STYLE | VINTAGE BLACK, VINTAGE WHITE, ROUND BLACK |
| CUSTOM NAME? | YES (let me know), NO THANKS |
| BUILD TIME | 12 DAYS |
