4 x Stereo TRS Swap Sequence Insert Bypass Studio Mastering switch – TRS or XLR I/O (select)

739.00 759.00

True Analog AB/BA Flip-Swap Stereo Sequence Switcher – Analog Relay Circuit Switching Device – QUAD Stereo Balanced Studio Mastering Insert Bypass Switch Box for Outboards

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

SELECT ALL OPTIONS!

FLIP OR SWAP – ACTIVATE OR BYPASS – YOUR ANALOG PATCHES INSTANTLY with Insert Bypass Studio Mastering switch

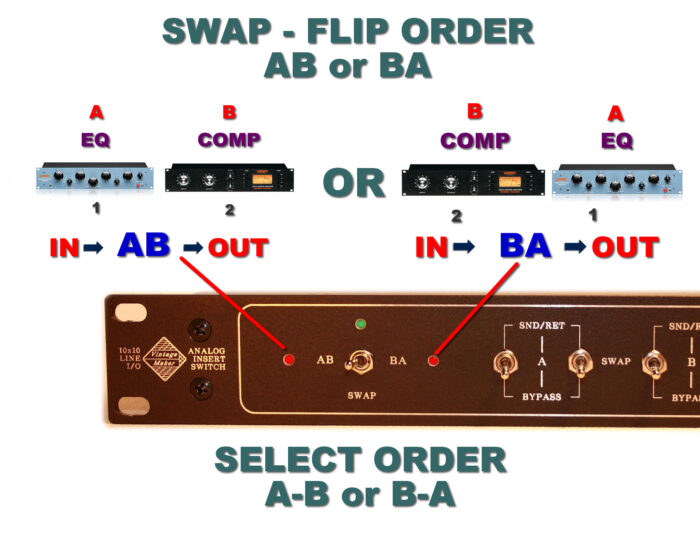

The order of the outboards can be swapped AB / or BA or any other variation (let me know)

Specs:
1U Standard Rack Unit
2 in TRS or XLR Balanced L/R (select)
2 out TRS or XLR Balanced L/R (select)

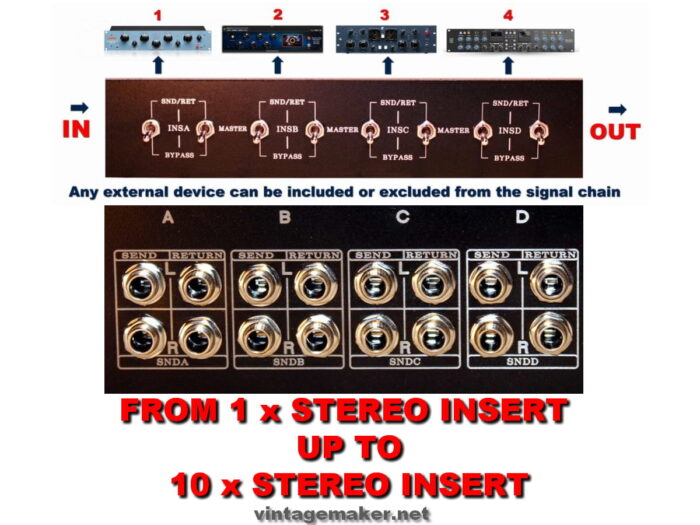

4 x Stereo Insert Send via TRS Balanced ABCD
2 x Stereo Insert Return via TRS Balanced ABCD
4 x SND/RET Bypass Switches total 8 stereo switches ABCD (solid state passive)
Custom Name Engraving: Let me know

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Audio Studio insert bypass switching device switch box signal select distribution splitter swap flip relay patchbay.

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

AB/BA Flip-Swap Stereo Mastering Studio Relay Circuit Switching Device Patchbay Quad 4x Stereo ABCD Insert with 4x 2 (eight) Send Return Bypass Switch sets for outboard effect processors

IN-OUT CONNECTION TYPE

TRS IN – TRS OUT, XLR IN – XLR OUT, XLR IN – TRS OUT, TRS IN – XLR OUT

SWAP SEQUENCE ORDER

AB/BA, BC/CB, CD/DC, OTHER – let me know

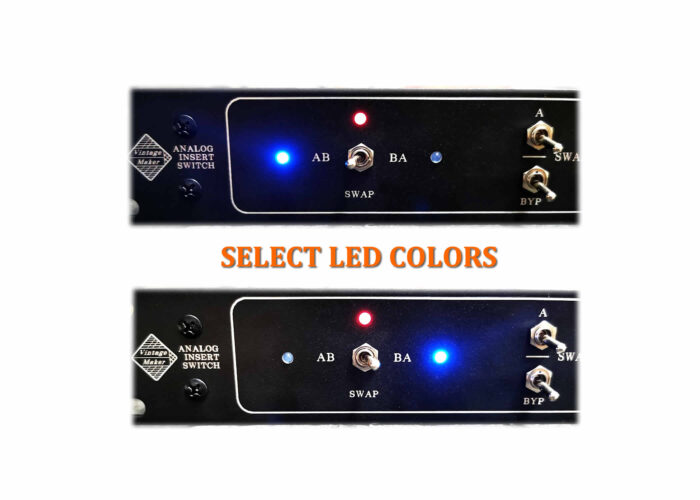

POWER LED COLOR

WHITE, RED, GREEN, YELLOW, BLUE

SWAP LED COLOR

WHITE, RED, GREEN, YELLOW, BLUE

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

15 WORKING DAYS
