2U-Rack 16×6 Neumann 8 Ch Insert 4-Bus Analog Summing Mixer

0.00

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

CONTACT AND ASK TO BUILD YOURS

The 2U 16×6 Neumann summing mixer features a “4 x 4 group 16 input summing mixer” designed by customer Gianluca Pighi. This unique feature allows for the integration of up to 16 input channels and 4 stereo subgroups, providing exceptional flexibility and control over the mix. Ideal for high end professional audio applications.

2U Rack Unit Group SUM Mixer
Neumann v475-2B NOS
24 Input TRS balanced as:

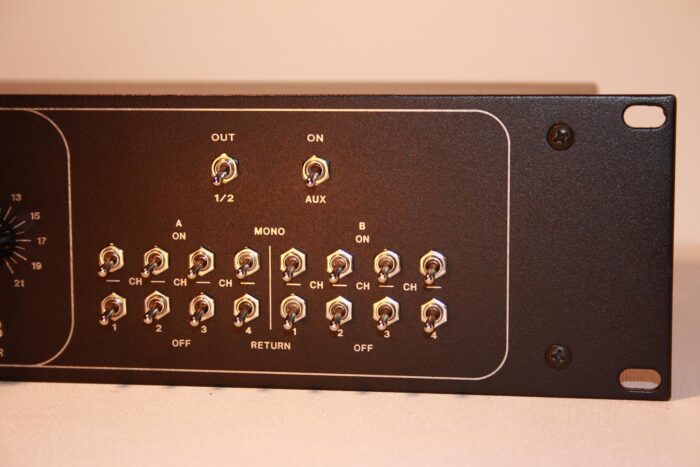

Insert bus (A) TRS ch 1.2.3.4
4 x STM switch (per channel)
4 x Insert Bypass switch (per channel)

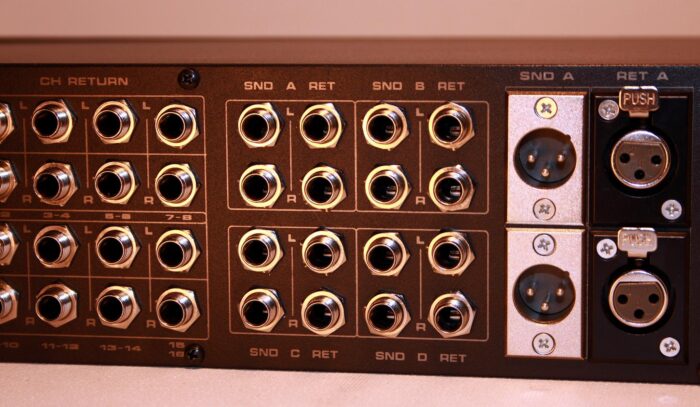

4 x TRS SND/ 4 x TRS RET
Insert BUS TRS SND/RET by switch

Insert bus (B) TRS ch 5.6.7.8

4 x STM switch (per channel)
4 x Insert Bypass switch (per channel)
4 x TRS SND/ 4 x TRS RET
Insert Stereo BUS TRS SND/RET by 2 x switch

Insert bus (C) TRS ch 9.10.11.12
Insert Stereo BUS TRS SND/RET by 2 x switch

Insert bus (D) TRS ch 13.14.15.16
Insert Stereo BUS TRS SND/RET by 2 x switch

Master Active/Passive switch
Neumann gain make up +25dB
Passive -10dB Insert sum bus reduction
Passive -10dB Master sum bus reduction

2 x Master Insert SND/RET XLR via switches INSA/INSB
3 x Stereo Master output XLR balanced
AUX Input TRS balanced L/R
AUX ON/OFF switch


DIFFERENCES BETWEEN TRANSOFRMERS read more…

SPECS – DOCUMENTATION read more…


Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 18 Working Weekdays after cleared payment

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know

VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB

OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

15 WORKING DAYS
