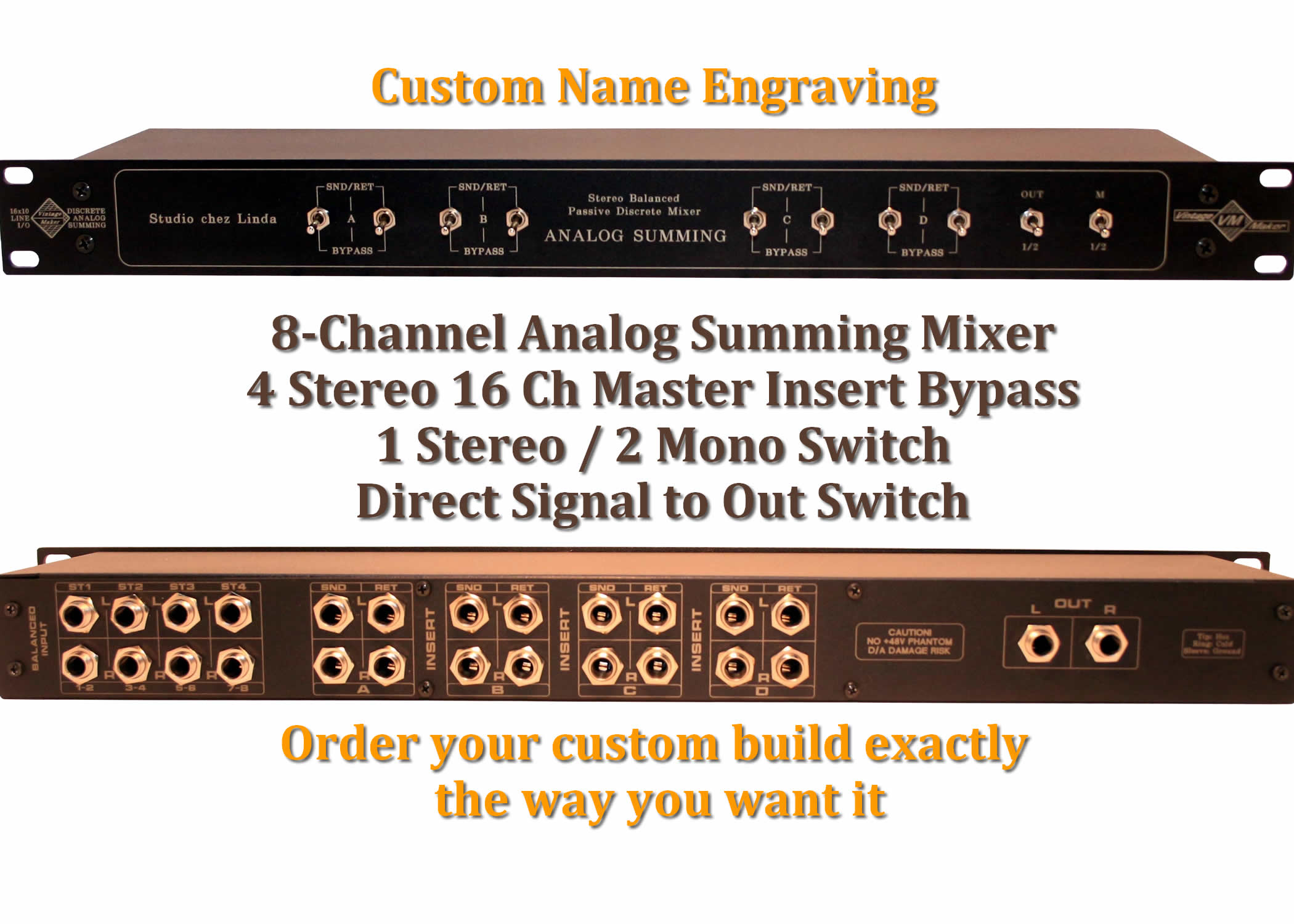

8 Ch Summing with 4 x Stereo TRS Mastering Insert Bypass

Specs:
1U Standard Rack Unit
8 in TRS or  Balanced L/R
2 out TRS  Balanced L/R
DIR Swith for stright line routing
4 x Stereo Insert Send via TRS ABCD
4 x Stereo Insert Return via TRS ABCD
4 x SND/RET Bypass Switches total 8 stereo switches ABCD (solid state passive)
1 x Stereo/ 2 Mono switch for kick and bass
Custom Name Engraving: Let me know

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Audio Studio insert bypass switching device switch box signal select distribution splitter swap flip relay patchbay.

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 12 Working Weekdays after cleared payment

Mastering Insert Bypass studio switch Quad Stereo Balanced Studio Mastering Insert Bypass Switch Box for Analog Outboard effect processor eq compressor limiter channel strip effects switching like LIAISON style
