18×8 Hybrid Summing Mixer and Monitor Controller

5.00 out of 5 based on 1 customer rating
(1 customer review )

0.00

2 BUS SUMMING MIXER with 3 POSITION ROTARY + SPEAKER CONTROLLER

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

ASK TO BUILD YOURS!

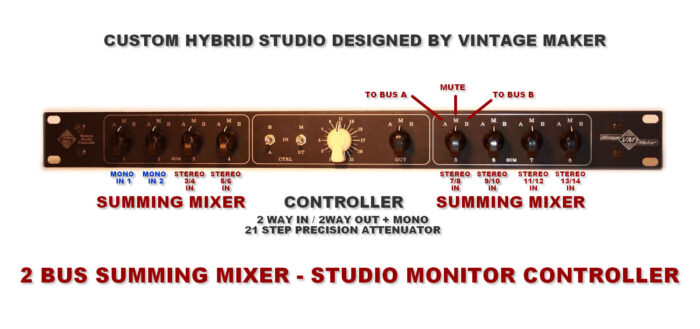

Hybrid Summing Mixer with dual 2-in-1 function – mixer and controller in one box.

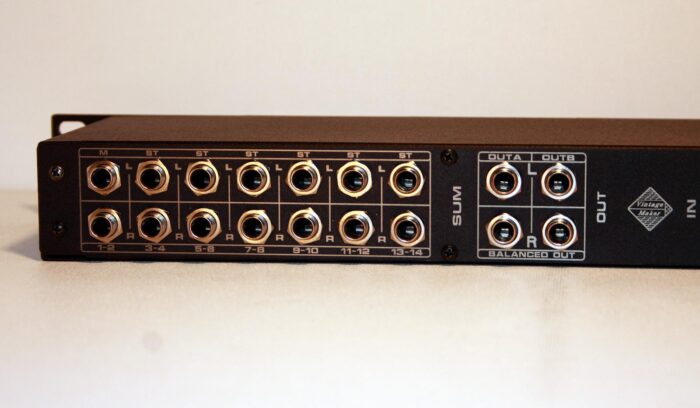

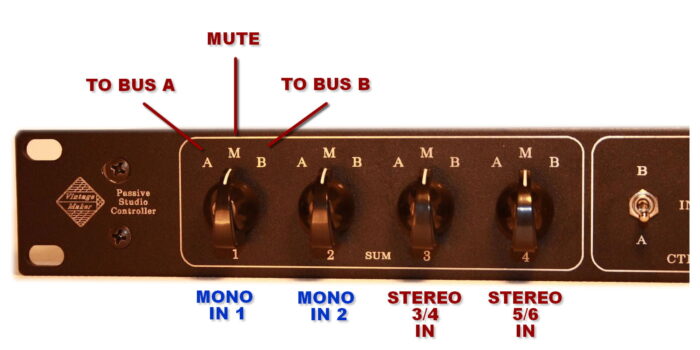

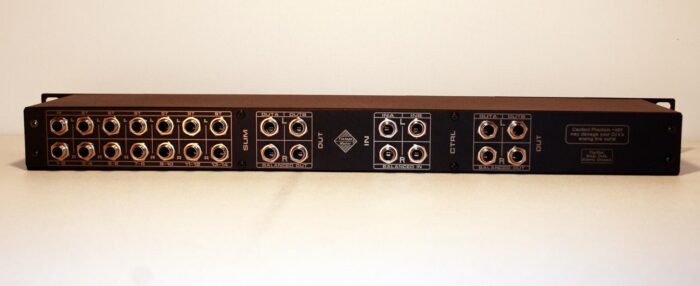

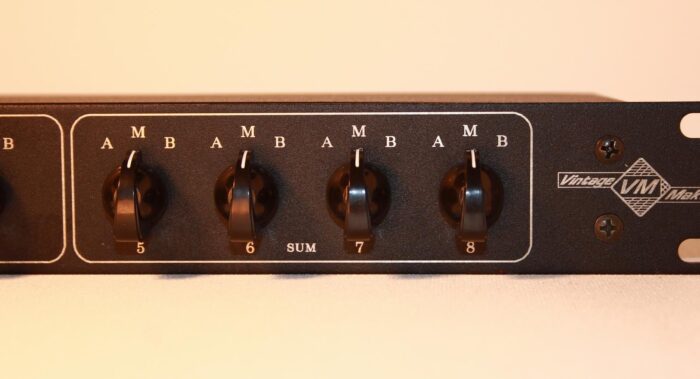

Summing Side: 14 TRS balanced inputs (2 mono + 6 stereo in) summing mixer with 2 x Mono inputs Rotary BUS A/MUTE/BUS B on 1 and 2 Mono inputs.

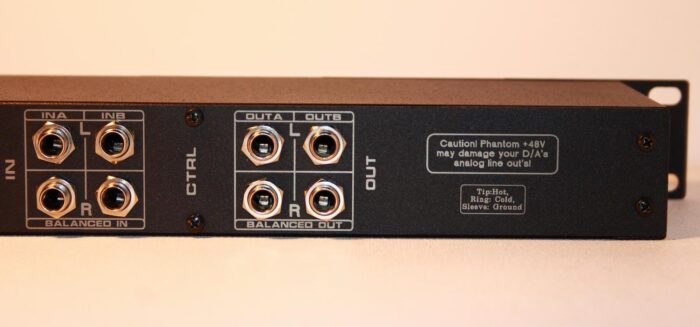

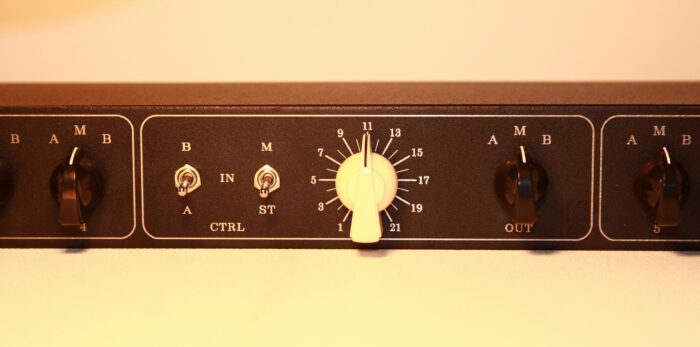

Controller side: 2 x Stereo L/R TRS balanced input, 2 x Stereo TRS balanced out A/B, 2 position input routing switch A/B, Master mono switch, 3 position rotary switch A/MUTE/B out select switch, 21 Step Precision attenuator -6 to -58dB.

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box



SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know

VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB

OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

15 WORKING DAYS

1 review for 18×8 Hybrid Summing Mixer and Monitor Controller

5.00 out of 5 stars

5
1
4
0
3
0
2
0
1
0
  1. Reviewer profile image
    5 out of 5

    norbert.ziegler

    I am very impressed!

    By chance (and much too late) I discovered this company and commissioned Vitagemaker to build me a passive routing and monitor controller.
    When the part arrived I was impressed by the look as well as the build quality. It looks really good and makes an extremely high quality impression.

    When I first listened to it, I immediately noticed the wonderful sound.
    It is a very high quality device with an extremely charming sound character. I didn’t expect that at this price range.

    Paul from Vintagemaker took a lot of time to show me all the options.
    All I can say is that everything is possible here!

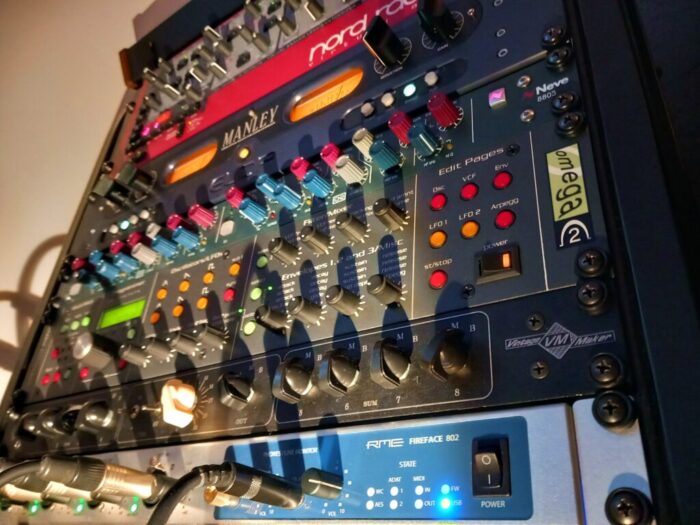

    Originally I just wanted a monitor controller, but then I realized the fantastic possibilities. The goal was a device that could route various synthesizers to two stereo buses that are connected to DIs. A combination with a high-quality monitor controller was then the perfect solution.

    With this Hybrid Summing Mixer and Monitor Controller 2-bus mixer I can now route the connected synths directly into the DI’s without having to use a patchbay. The synth signals can also be mixed to create sound combinations.

    And what a sound it all has, it’s really, really good!
    I can recommend this company without reservation. Advice, construction time and construction quality leave nothing to be desired. Vintagemaker
    is one of the best companies I have encountered in 25 years of music production. I will get more devices here.
    Thank you Paul for this wonderful work!
