16 In – 2 or 4 Out Analog Passive Studio Summing Mixer DSUB -TRS or XLR I/O (select connection type)

5.00 out of 5 based on 2 customer ratings
(2 customer reviews )

419.00 489.00

16 Channel Analog Passive Studio Summing Mixer Dual Stereo Balanced

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

SELECT ALL OPTIONS!

Dual Stereo Noise Free Discrete signal path, fully balanced from input to output!
16 input Rackmount Custom Analog Passive Studio Summing Mixer designed for DAW – Synth – Keyboard – soundcard Interface digital – analog mixing

Specs:

1U Standard Rack 19″ unit

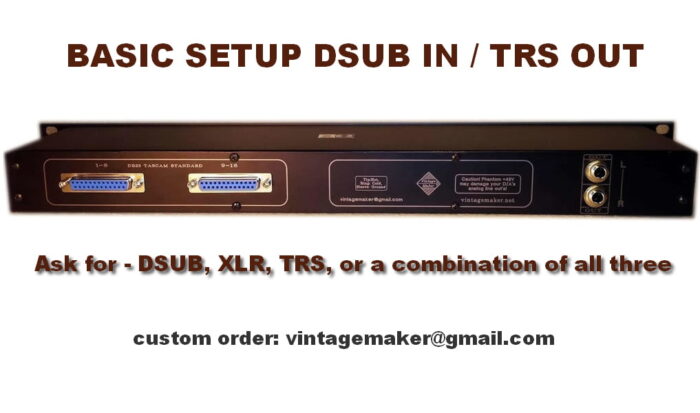

16 input DSUB or TRS or XLR (select) balanced L/R
2 Out or 4 Out – Main/Monitor TRS or XLR (select) balanced L/R
2 x Stereo to 4 Mono Input conversion switch

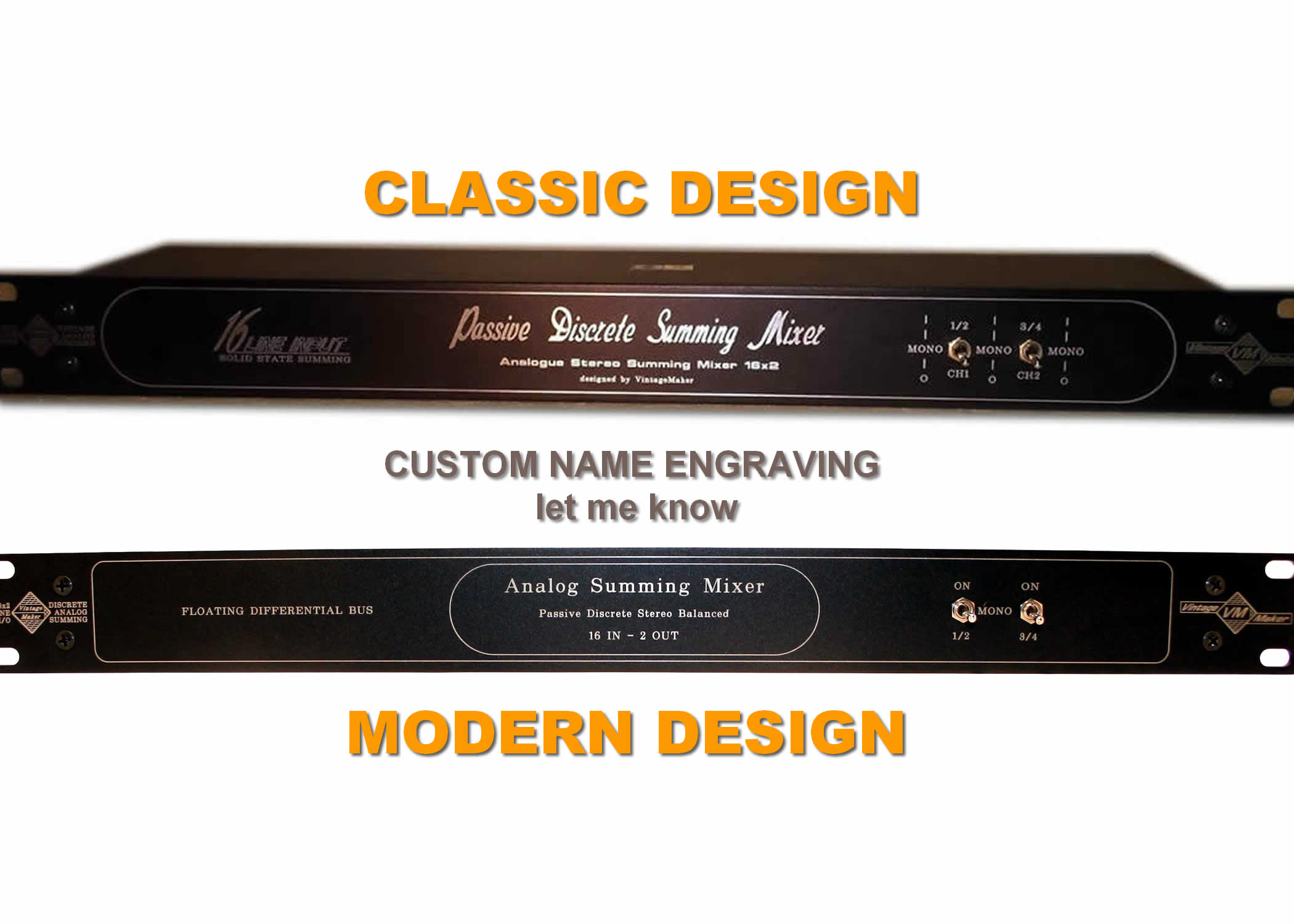

Laser engraved – Unique Name and Design (let me know)

STM – Stereo to Mono Switch: It provides an extra stable Real Analog Mono Base for your mix (on monos like Kick/Bass/MainVox/Snare and so on), saving precious digital-to-analog (DA) channels (so you don’t waste stereo L/R for a mono instrument), and offers superior separation and 3D depth for the rest of your stereo instruments. This feature turns L/R inputs ‘COMBINED’ (two hard-panned L/R inputs) into an absolutely centered mono signal (1 x stereo to 2 mono). For example, ‘SNARE’ on channel 1 (left), ‘KICK’ on channel 2 (right). Mono instruments in the DAW sequencer (Steinberg cubase, pro tools, flstudio, reaper, logic pro, Ableton etc.) should place the kick hard left, the bass hard on the right, and so on. Stereo instruments: If you don’t use mono channels in your mix, simply turn down all the mono switches, and you’ll have a fully stereo analog summing mixer with panning options available from the DAW.

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

Enhance your digital ITB mixes with a touch of analog warmth! Uncover the hidden analog potential of your DAW interface and boost your mixes with depth and vibe. Experience a console-like sound with Passive Studio Summing Mixer that brings a new level of richness to your music. Warm up your mixes and explore the analog dimension in your digital workspace

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box

IN - OUT CHANNEL CONFIG

16 DSUB IN – 2 TRS OUT, 16 DSUB IN – 4 TRS OUT, 16 DSUB IN – 2 XLR OUT, 16 DSUB IN – 4 XLR OUT, 16 TRS IN – 2 TRS OUT, 16 TRS IN – 4 TRS OUT, 16 TRS IN – 2 XLR OUT, 16 TRS IN – 4 XLR OUT, OTHER – like – 8 DSUB IN + 8 TRS IN (let me know)

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

15 WORKING DAYS

2 reviews for 16 In – 2 or 4 Out Analog Passive Studio Summing Mixer DSUB -TRS or XLR I/O (select connection type)

5.00 out of 5 stars

5
2
4
0
3
0
2
0
1
0
  1. Reviewer profile image
    5 out of 5

    vintagem

    I am a happy studio owner with this summing box

    I was thinking about getting a Rolls 16 channel passive summing mixer, but then I found Paul Taylor's Vintagemaker products on eBay. I emailed Paul with some questions and he replied quickly and positively. I asked him to build me a 24 channel passive summing mixer with an insert feature and 8 channels that could switch between mono and stereo. He built and delivered the unit in 2 weeks, with most of the time being held up in customs in New York.

    Paul sent pictures and regular updates throughout the process.

    Once I set it up in my studio and connected it to Pro Tools, I found that the Neve 1272 preamps sounded best for the 2-bus on my mixes. The TubeTech MP1A was also great, the Focusrite was nice, and the APIs were okay. My review: it provides clarity and cohesion. It definitely sounds better than in-the-box summing and even outperformed the AMEK console I used previously. I had sold the console and needed a replacement, and this unit exceeded my expectations. I'm very happy with it and highly recommend Paul Taylor's custom-built products. He was easy to work with, communicated well, and delivered a great sounding box that integrates perfectly with my preamps. It's a serious upgrade at a reasonable price. I'd love to try his other active summing mixers, but for now, I'm a satisfied studio owner. Thanks, Paul!

  2. Reviewer profile image
    5 out of 5

    Belovsky Jr.

    I am a happy studio owner with this summing box

    I was thinking about getting a Rolls 16 channel passive summing mixer, but then I found Paul Taylor's Vintagemaker products on eBay. I emailed Paul with some questions and he replied quickly and positively. I asked him to build me a 24 channel passive summing mixer with an insert feature and 8 channels that could switch between mono and stereo. He built and delivered the unit in 2 weeks, with most of the time being held up in customs in New York.

    Paul sent pictures and regular updates throughout the process.

    Once I set it up in my studio and connected it to Pro Tools, I found that the Neve 1272 preamps sounded best for the 2-bus on my mixes. The TubeTech MP1A was also great, the Focusrite was nice, and the APIs were okay. My review: it provides clarity and cohesion. It definitely sounds better than in-the-box summing and even outperformed the AMEK console I used previously. I had sold the console and needed a replacement, and this unit exceeded my expectations. I'm very happy with it and highly recommend Paul Taylor's custom-built products. He was easy to work with, communicated well, and delivered a great sounding box that integrates perfectly with my preamps. It's a serious upgrade at a reasonable price. I'd love to try his other active summing mixers, but for now, I'm a satisfied studio owner. Thanks, Paul!
