4 In – 4 Out – Rack Monitor Controller – Phase InvR + Mono – DSUB-TRS-XLR (select connection)

315.00 363.00

Crystal clear sound – dual stereo balanced signal path – no stereo crosstalk or stereo image collapse – custom hand built –

2 way In – 2 way Out

SELECT ALL OPTIONS!

SKU: N/A Category:

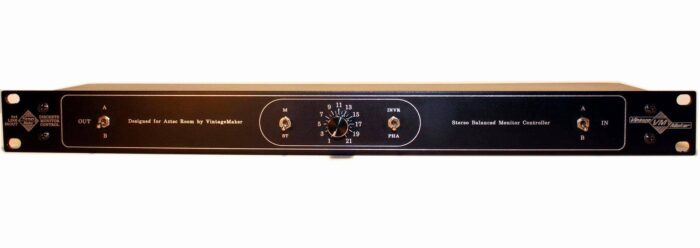

4×4 Dual Stereo Balanced Passive Discrete Monitor Volume Controller Speaker Selector 2 Way in 2 way out Stereo Line Switcher Phase + Mono – Gold Plated Step Precision Volume Control – XLR for Genelec 8030 CP + Avantone CLA-10A

4 in – 4 out
2 x Stereo in – 2 x Stereo out L/R

1U Standard Rack

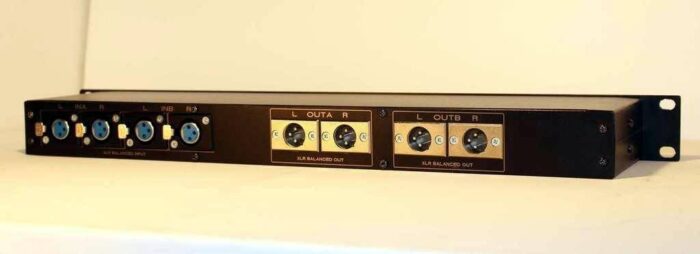

2xStereo L/R INPUT TRS/XLR/DSUB (select) balanced (4 input)
2xStereo L/R OUTPUT TRS/XLR/DSUB (select) balanced (4 output)
21 step precision stereo attenuator -6dB to -58dB (gold plated S hape)
INPUT select A/B by 2 position switch
OUT select A/B by 2 position switch
Phase InvR + Mono switch (mix compatibility test)
Build time 12 business/working weekdays
Laser engraved Unique desig

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 12 Working Weekdays after cleared payment

Phase Invert R + Master Mono Switch:

Rack Monitor Controller – Reversing the phase of the right channel and mono-ing it with the left and sending the result to both speakers is particularly useful for assessing the width content of your mix and distortion characteristic by effectively replacing the ‘centre image’ with the out-of-phase information. This provides an excellent way to check mono compatibility and to also learn spatial tricks from your favourite reference material. *they perform a test-type function (since you only use this function periodically) and because of the passive attenuator nature recommended to use at 75 -100% attenuator volume (or max the volume) *the efficiency of the phase decreases proportionally as the volume decreases.

CONNECTION TYPE

DSUB – IN/OUT, TRS – IN/OUT, XLR – IN/OUT

KNOB STYLE

VINTAGE BLACK, VINTAGE WHITE, ROUND BLACK

CUSTOM NAME?

YES (let me know), NO THANKS

BUILD TIME

12 DAYS
