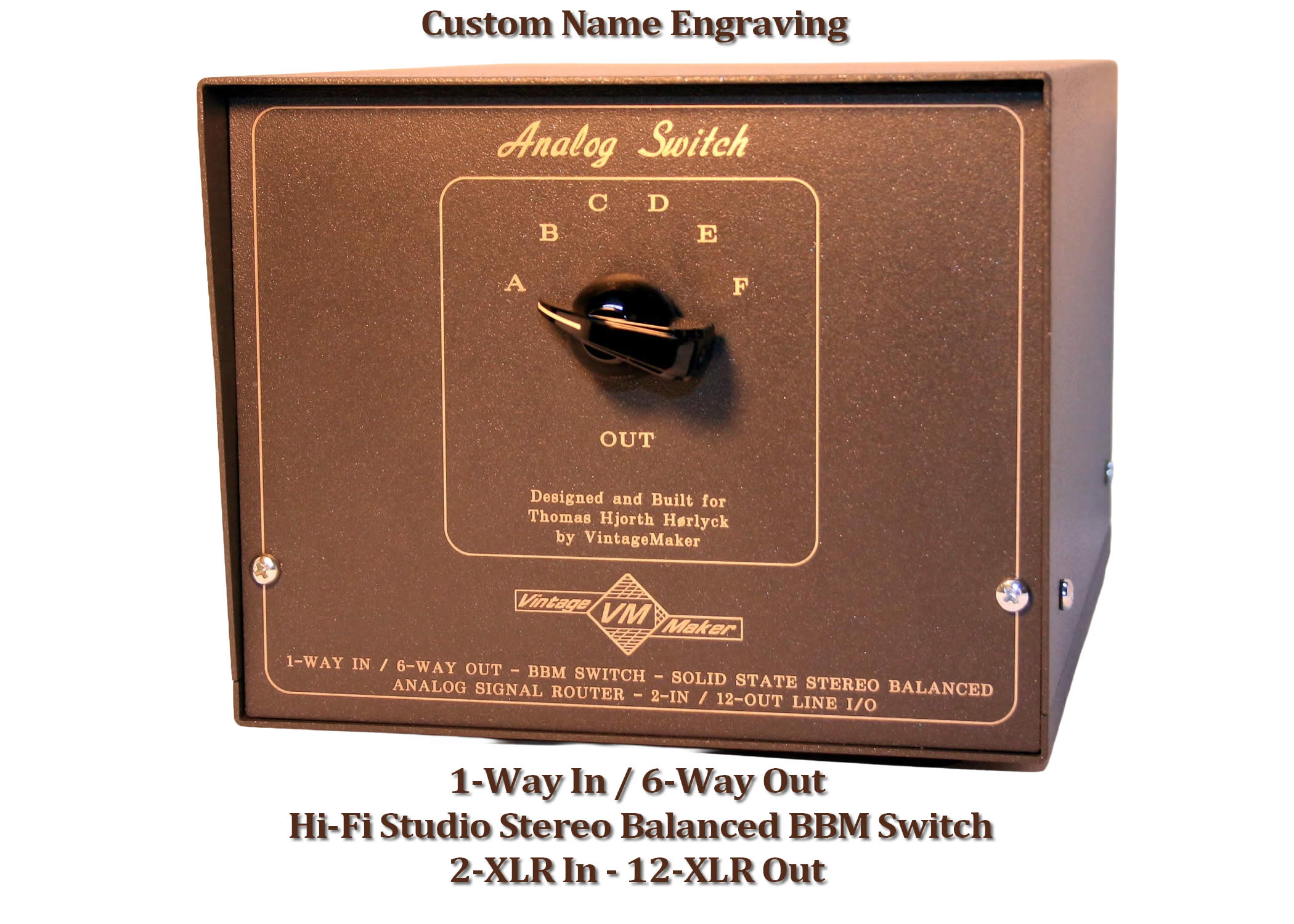

1 Stereo IN / 6 Stereo OUT – Passive Balanced XLR Signal Router

Break-Before-Make (BBM) Architecture – 2×12 Contact Switching

A custom-built passive balanced audio routing system designed for audiophile and professional Hi-Fi applications where signal purity and maximum output isolation are paramount.

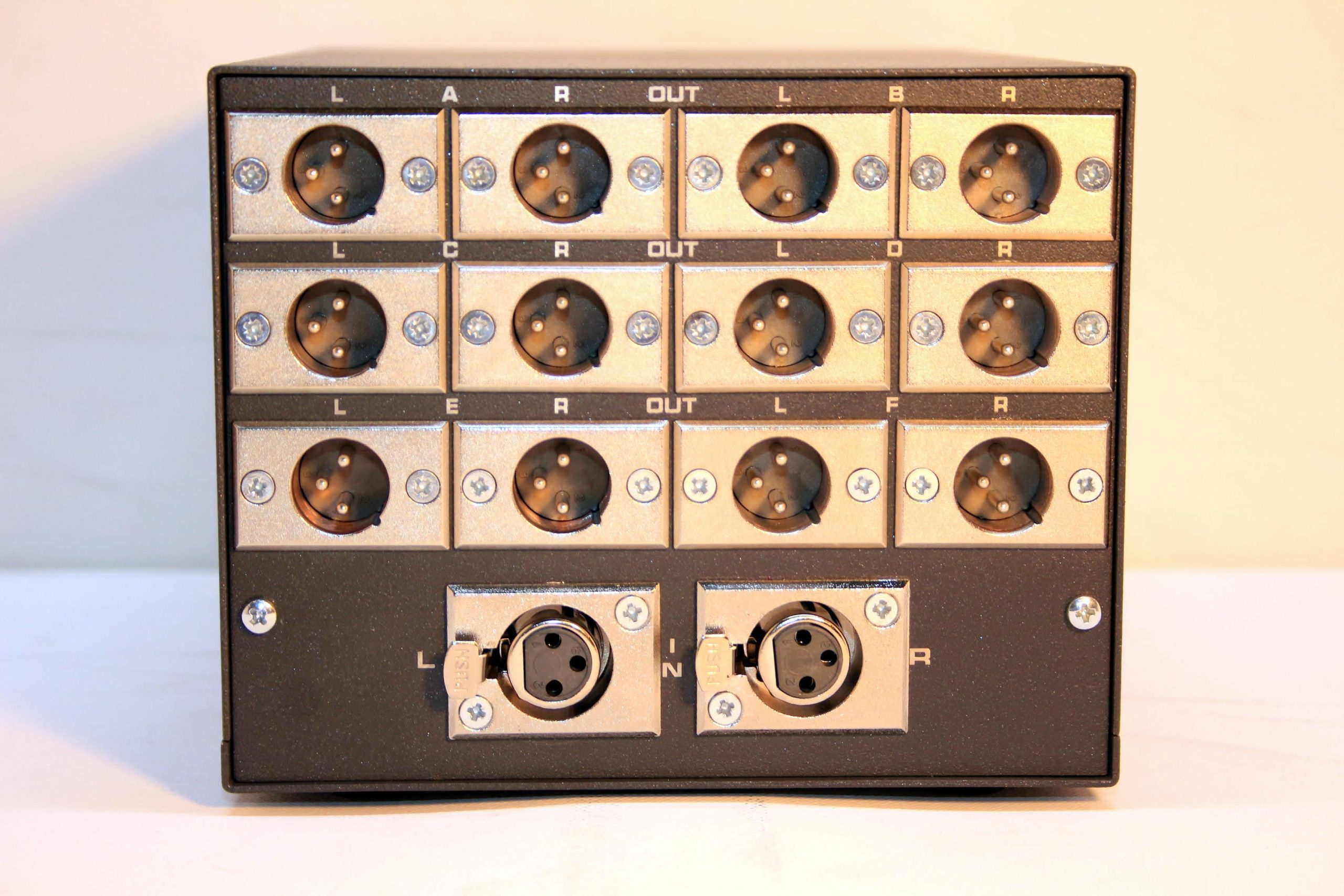

The unit provides 1 stereo (2-channel) balanced input and 6 independent stereo (12-channel) balanced outputs, using a Break-Before-Make (BBM) switching architecture.

1-Way IN / 6-Way OUT Balanced XLR Switch – Key Features

• True passive balanced signal routing
• Break-Before-Make (BBM) switching
• 1 stereo input / 6 independent stereo outputs
• No relays or active electronics
• No power supply required
• Gold-plated switch contacts
• Fully balanced XLR signal path
• Excellent common-mode noise rejection
• Ultra-low insertion loss
• Transparent signal routing
• Instant A/B comparison capability
• Hand-built, studio-grade construction

Maximum Output Isolation

The switching architecture is designed so that only the selected stereo output pair has electrical continuity to the input.

• Only the selected stereo output pair is connected to the input
• XLR pins 2 and 3 of every inactive output are completely disconnected
• No inactive output can load or short the active signal path
• No electrical connection exists between unselected output signal paths
• Left and right channels use closely matched contact resistance
• Identical wiring and contact paths are maintained for left and right channels
• The shortest practical point-to-point internal wiring is used
• Maximum isolation is maintained between the individual outputs

This means the inactive outputs are not simply left connected in parallel to the signal path. The unselected outputs are electrically isolated from the active output path.

Premium Construction

• Premium-quality XLR connectors
• Properly shielded metal enclosure
• Short, direct point-to-point internal wiring
• Very low contact resistance
• Excellent left/right channel matching
• High isolation between output channels
• Carefully matched signal paths for consistent stereo performance

Applications

• Pro Studio signal routing
• DAW Interface switching
• Outboard switching-routing
• DAC comparison systems
• High-end Hi-Fi installations
• Tube amplifier vs. direct amplifier
• Balanced analog source comparison
• Audiophile listening rooms
• Reference monitoring
• Studio monitor selection
• Mastering and monitoring systems
• Audio interface output switching
• Multiple amplifier / power amplifier comparison
• Instant A/B listening tests

Enclosure

Extra-Wide Desktop Enclosure

Width: 200 mm
Height: 60 mm
Depth: 100 mm

7.87 × 2.36 × 3.94 inches (W × H × D)

The extra-wide desktop enclosure provides sufficient internal space for short, symmetrical signal wiring while maintaining a compact footprint suitable for Hi-Fi systems, studios, and desktop monitoring setups.

Customization

Custom name engraving available.

Different knob styles can also be selected upon request. Please contact me before ordering to discuss your preferred configuration.

You can get as many channels and options as you want, so let’s build your gear!

Build time: 12 Working Weekdays after cleared payment

Do not find your controller or switcher? Tell me what you need and I build for you!
