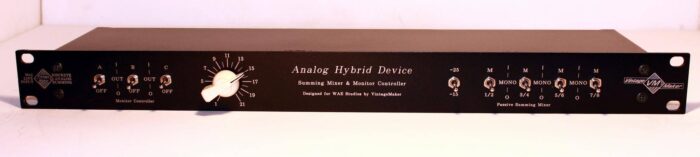

16×2 Summing and 2×6 Monitor Controller Hybrid 2-in-1

Hybrid Mixer: 16 Channels for Summing and 6 Channels for Monitor Control (16×2 Summing, 2×6 Monitor Controller) 16×2 Summing and 2×6 Monitor Controller Hybrid

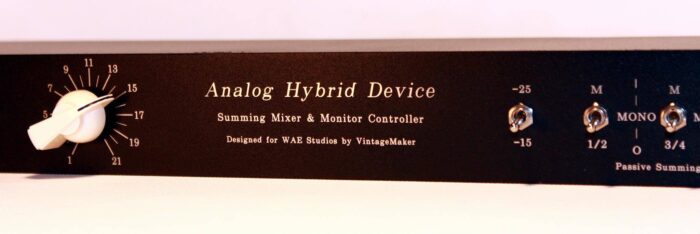

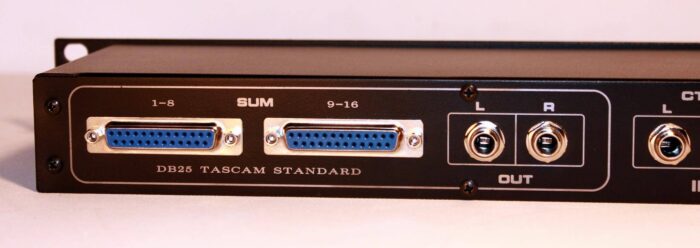

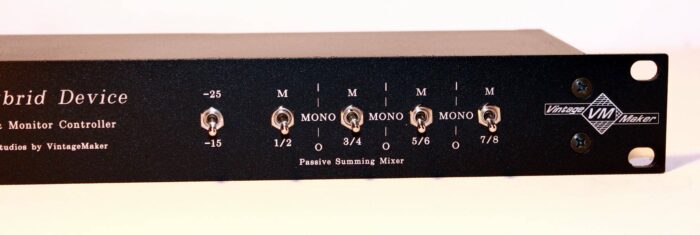

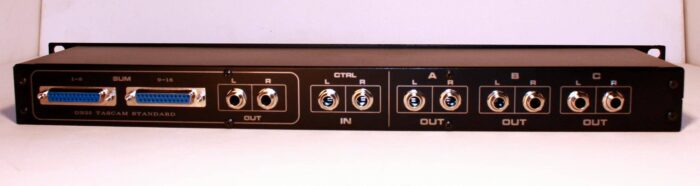

Summing Side: 16 in DSUB Tascam balanced summing mixer with, L/R TRS output, -15/-25dB variable master gain switch, 4 x Stereo to 8 Mono conversion switch

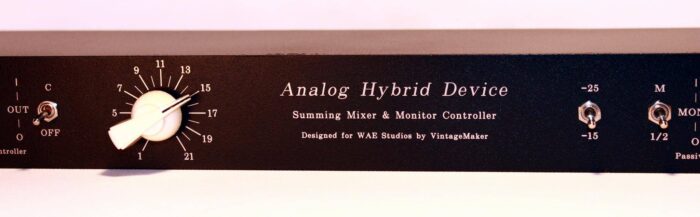

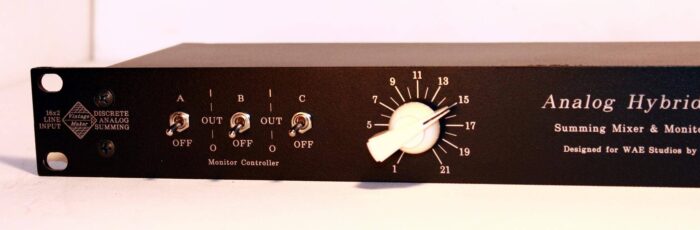

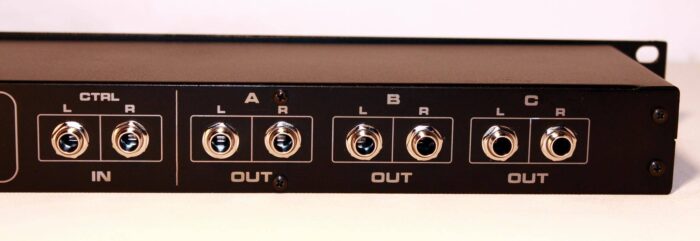

Controller side: 1 x Stereo L/R TRS balanced input 3 x Stereo L/R TRS balanced out A/B/C, 3 x 2 position routing switch A/B/C, 21 Step Precision attenuator -6 to -58dB.

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box
