Balanced Stereo DB25 (DSUB) Bi-Directional 16-Channel Relay Switch

The 2-Way 16-Channel to 2 × 16-Channel Analog Studio Relay Switch is a professional bidirectional analog routing solution featuring industry-standard DB25 (DSUB / Tascam analog balanced pinout) connectivity.

Designed for professional studios, this unit allows convenient switching between two independent 16-channel paths using a single front-panel control switch that operates an internal relay switching circuit.

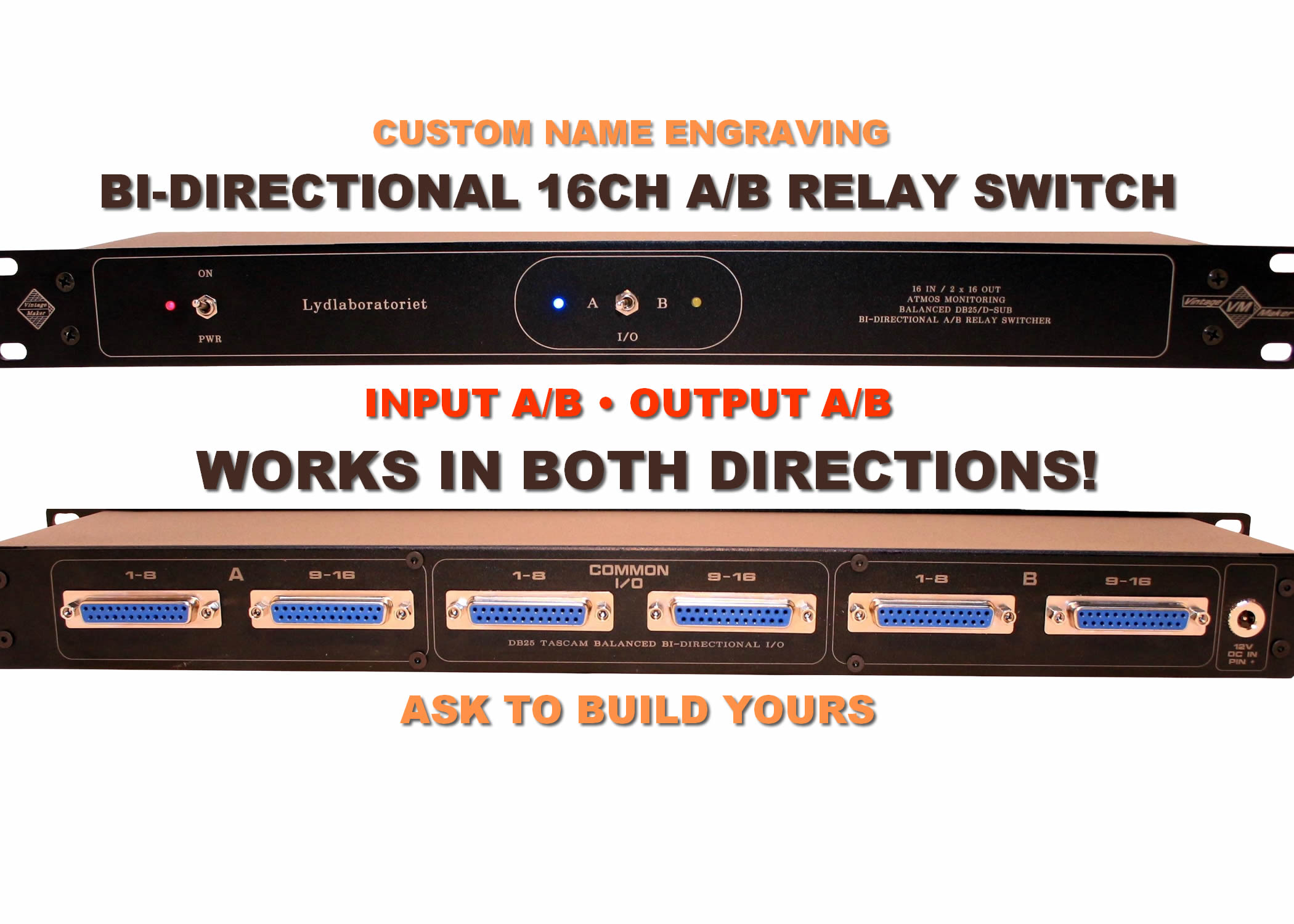

Bi-Directional Routing

• 2 × 16-Channel Inputs → 1 × 16-Channel Output
• 1 × 16-Channel Input → 2 × 16-Channel Outputs

One unit supports both routing configurations, providing flexible signal distribution and source selection without repatching cables.

Relay-Controlled Switching

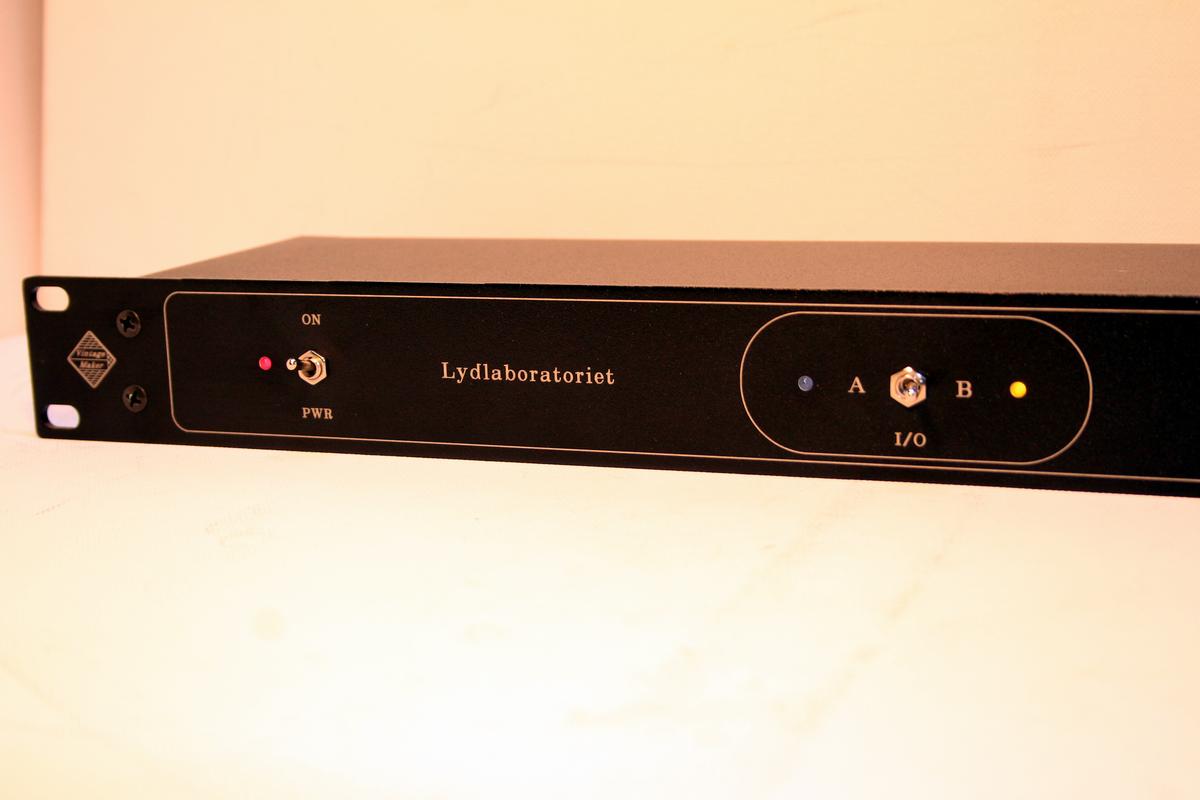

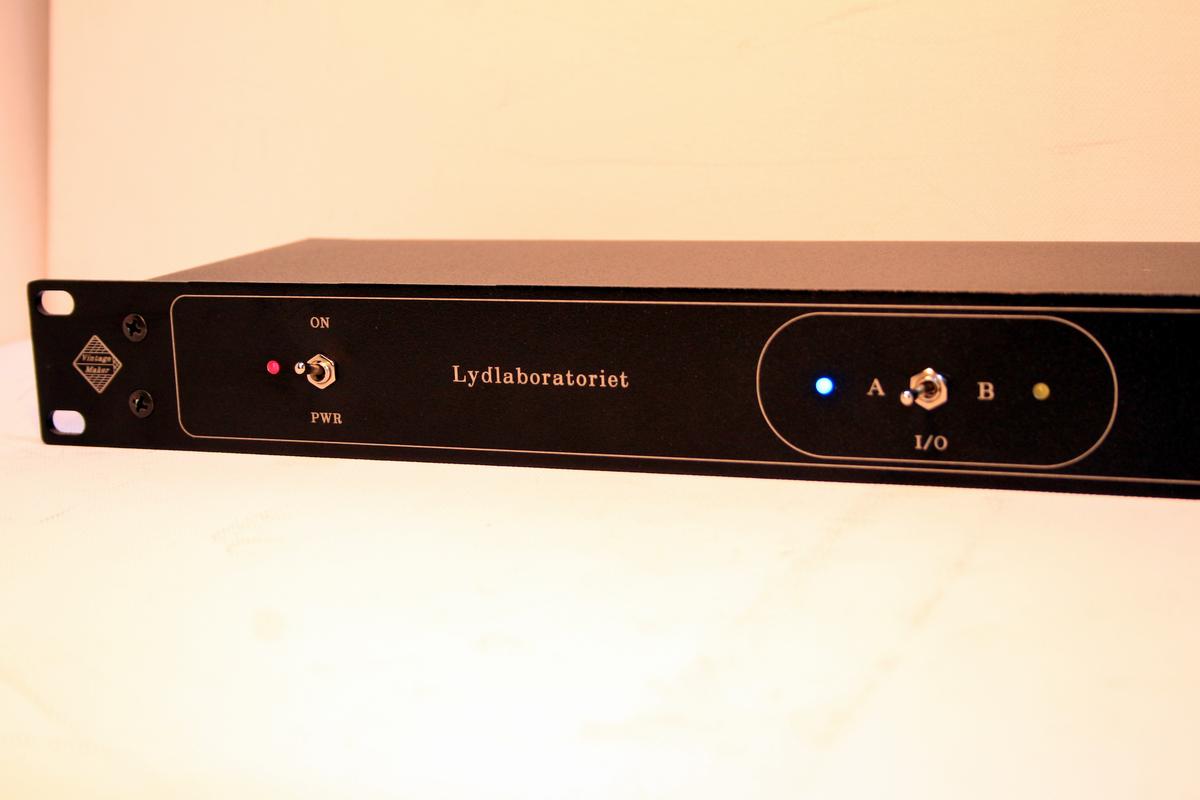

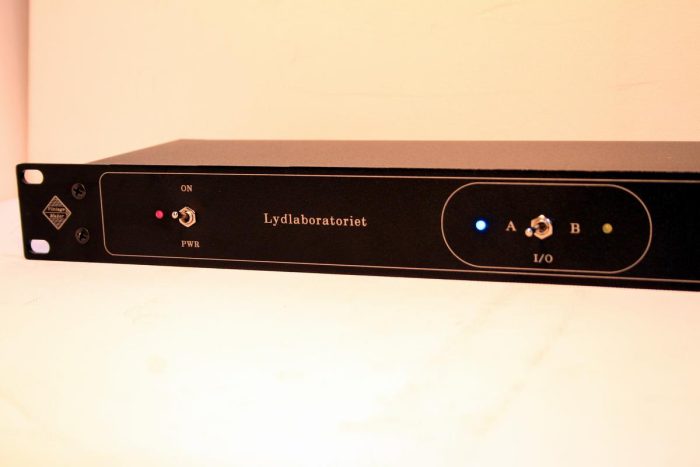

• Single front-panel control switch
• Internal relay switching circuit

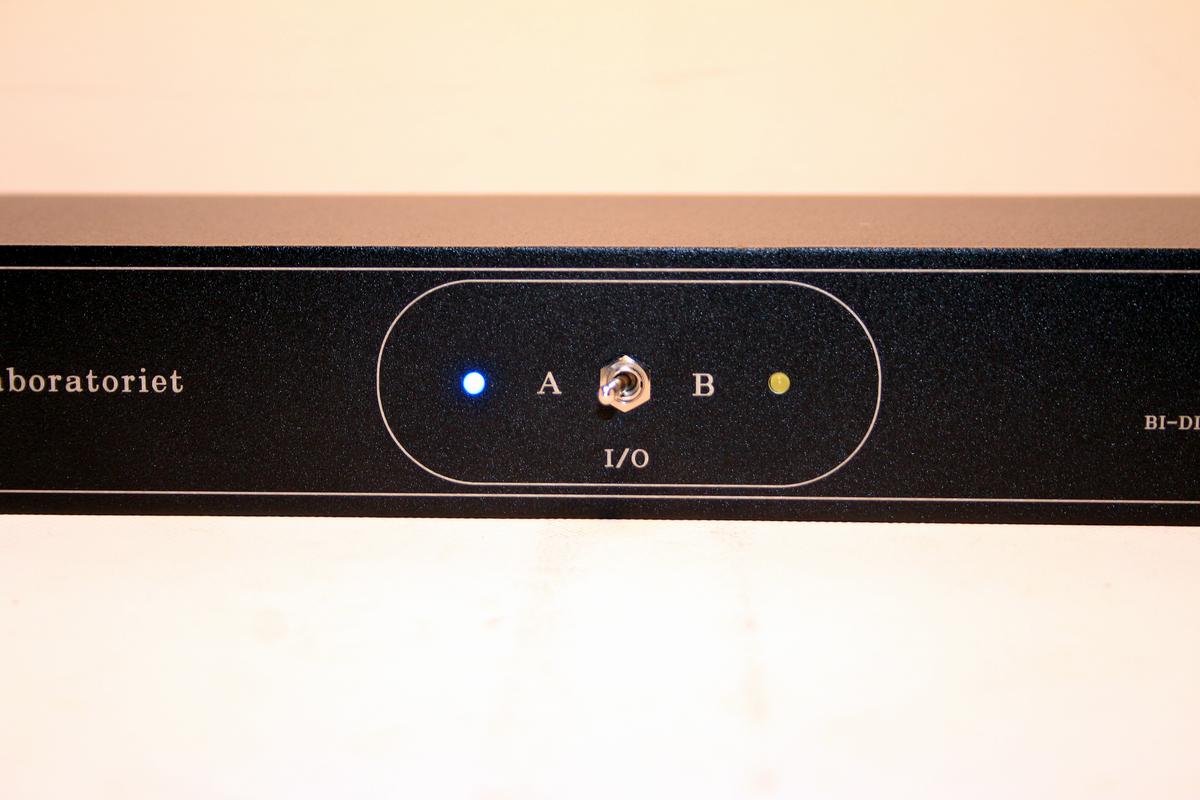

• Front-panel LED status indication
• Selectable LED colours to suit your studio setup
• DB25 connectors with standard Tascam analog pinout
• Passive analog signal path with no active audio circuitry

Technical Specifications

Key Features

• True Bi-Directional Operation — supports both 2-to-1 and 1-to-2 routing configurations.
• Relay-Controlled Signal Switching — a single front-panel switch controls the internal relay circuit.
• Selectable LED Colours — customise the status indication to match your studio preferences.
• 16-Channel DB25 Connectivity — standard Tascam analog pinout for professional studio integration.
• Passive Analog Signal Path — no active audio processing or gain stages in the signal path.
• Custom Front-Panel Labelling — personalised engraving available on request.
• Handbuilt in the EU — individually assembled and tested.
• External Power Supply – World Wide PSU 12VDC 0.5Amp
• 19-Inch Rackmount Format — compact 1U design for professional studio installations.

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 16 Working Weekdays after cleared payment

Professional 16-channel bi-directional DB25 relay switch for analog studios. Routes 2 × 16-channel paths to 1 × 16-channel path, or 1 × 16-channel path to 2 × 16-channel paths. Single control switch, relay-based signal switching, selectable LED colours and custom front-panel labelling available.
