2 Way 16 Channel to 2 × 16 Channel Analog Studio Switch – Bidirectional DB25 DSUB Patchbay

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 16 Working Weekdays after cleared payment

Balanced Stereo DB25 (DSUB) Bidirectional 2 × 16 Channel Studio Switch

The 2-Way 16 Channel to 2 × 16 Channel Analog Studio Switch is a professional-grade, fully passive bidirectional routing solution built around the industry-standard DB25 (DSUB / Tascam Analog balanced pinout) format.

Designed for studios that demand transparent, no-compromise signal routing, this unit allows seamless switching between two independent 16-channel paths—without repatching, signal degradation, or workflow interruption.

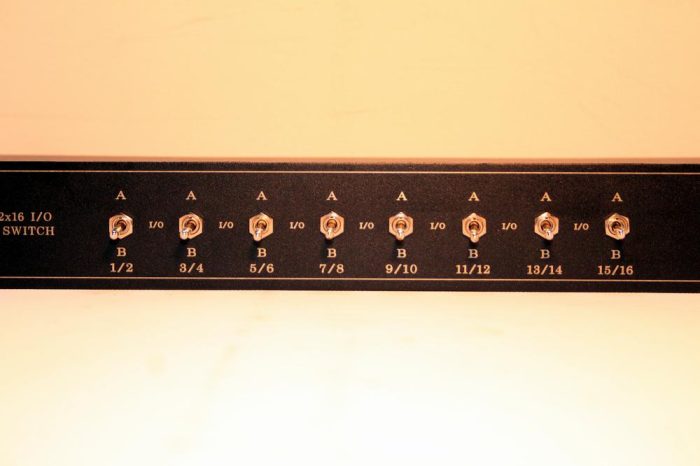

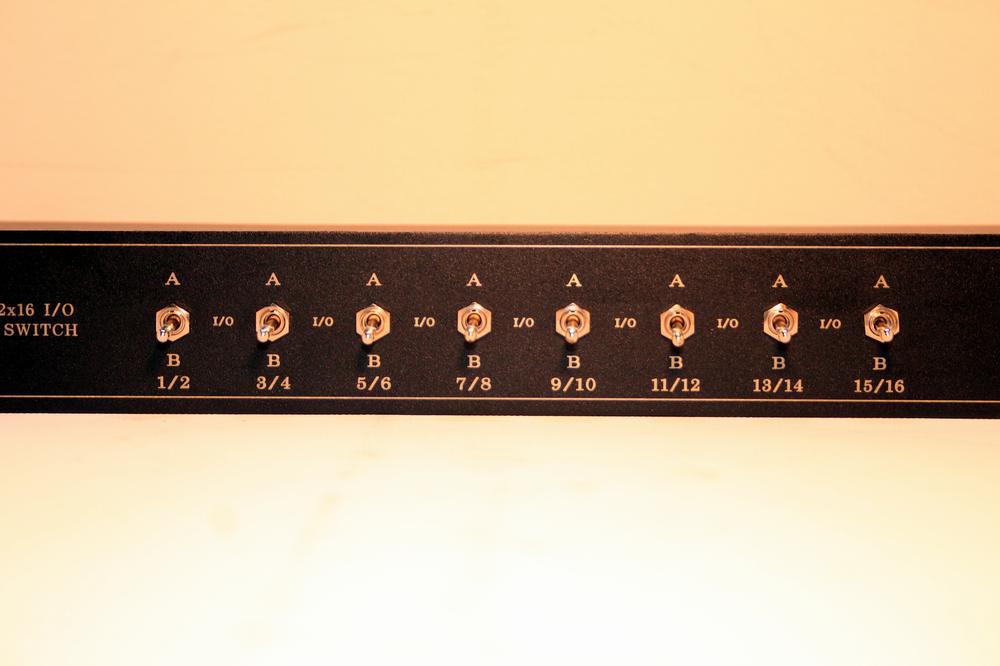

With a single front-panel switch, you can:

• Combine two 16-channel sources into one output, or
• Split one 16-channel source into two independent destinations

Thanks to its fully bidirectional design, one unit covers both routing scenarios—making it an efficient, space-saving solution for any professional studio environment.

---

Pure Analog Integrity — No Compromise

Built on a discrete passive architecture, this switch introduces:

• Zero coloration
• Zero noise
• No active circuitry in the signal path

There are no op-amps, no power supply, and no gain stages—just a clean, direct signal path that preserves your audio exactly as it enters.

The dual stereo balanced topology ensures complete isolation between left and right channels:

• No crosstalk
• No stereo image degradation
• No shared electrical interference

---

Seamless Integration

Equipped with DB25 (Tascam-standard) connectors, the unit is fully compatible with:

• Professional audio interfaces
• Analog summing mixers
• Outboard gear chains
• DAW I/O systems

Works flawlessly with both balanced and unbalanced line-level signals, making it flexible across modern and legacy studio setups.

---

Feature	Description
Routing Mode A	2 × 16 In (DSUB A or B) → 16 Out (Combined DSUB)
Routing Mode B	16 In (Combined DSUB) → 2 × 16 Out (DSUB A or B)
Direction	Fully Bidirectional
Connection Type	DB25 / DSUB / Tascam Pinout
Signal Path	100% Passive Analog
Channel Count	16 Channels per Path (8 Stereo Pairs)
Topology	Fully Balanced Stereo, Dual-Mono Isolation
Crosstalk	None
Stereo Image	Fully Preserved
Compatibility	Balanced & Unbalanced Line Signals
Format	1U Rackmount (19″)
Custom Labeling	Available on Request
Build Time	16 Working Weekdays
Manufacturing	Handbuilt in the EU, Individually Tested



---

Key Features

• True Bidirectional Operation
  One unit handles both routing directions—no rewiring required.
• Zero Crosstalk Design
  Completely isolated left and right channels for perfect stereo integrity.
• Pure Passive Signal Path
  No electronics in the audio path—maximum transparency and reliability.
• 16-Channel DB25 Connectivity
  Industry-standard Tascam pinout for seamless integration.
• Balanced & Unbalanced Compatibility
  Works with a wide range of professional and legacy gear.
• Handbuilt in the EU
  Precision-assembled and individually tested for quality assurance.
• 1U Rackmount Design
  Clean integration into any professional 19” rack setup.

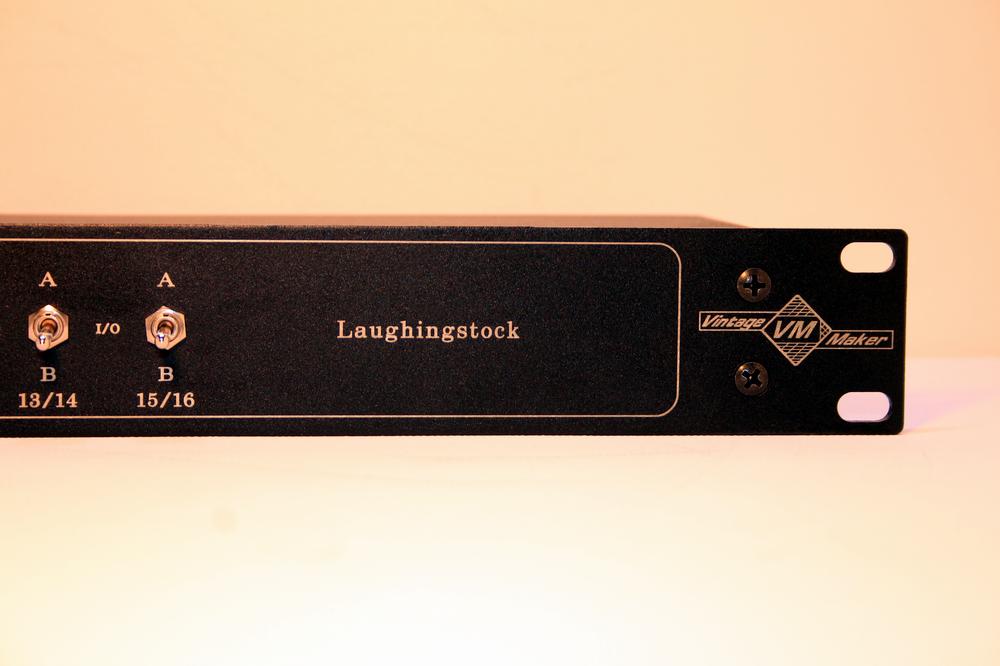

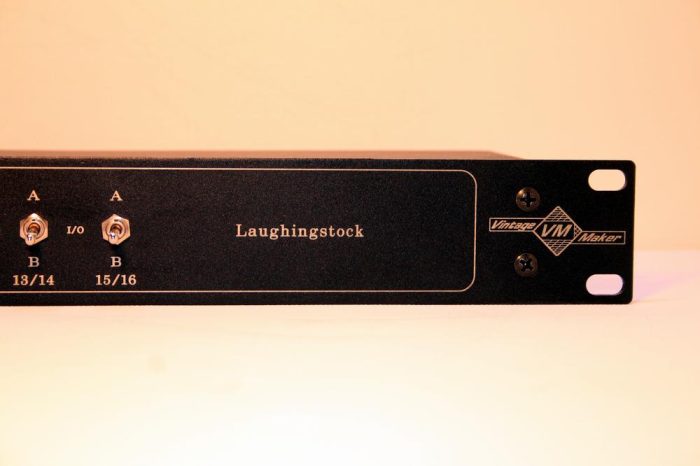

• Custom Front Panel Labeling
  Optional engraving for studio names or channel identification.
