Rackmount Passive Summing Mixer

2U Rack 10-Ch Summing Mixer For UAD Apollo x8

5.00 out of 5 based on 1 customer rating
(1 customer review)

Original price was: 650.00 €.Current price is: 545.00 €.

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

Can’t find the right product? Tell me what you need – I’ll build it for you!

Ask to Build Yours!

Category: , ,

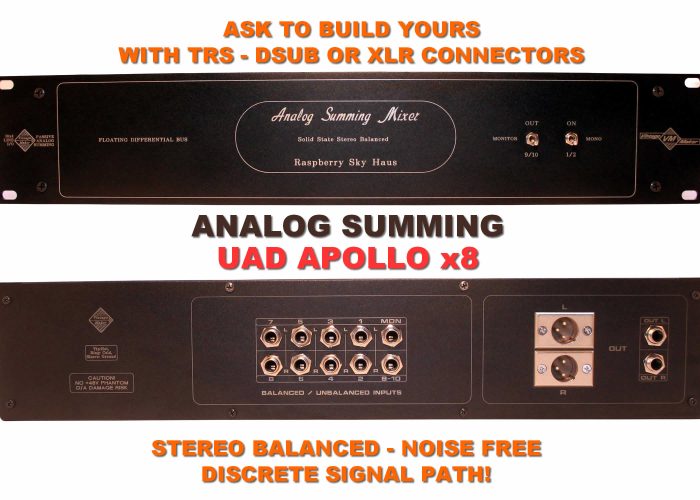

2U Rack 10-Channel Summing Mixer for UAD Apollo x8

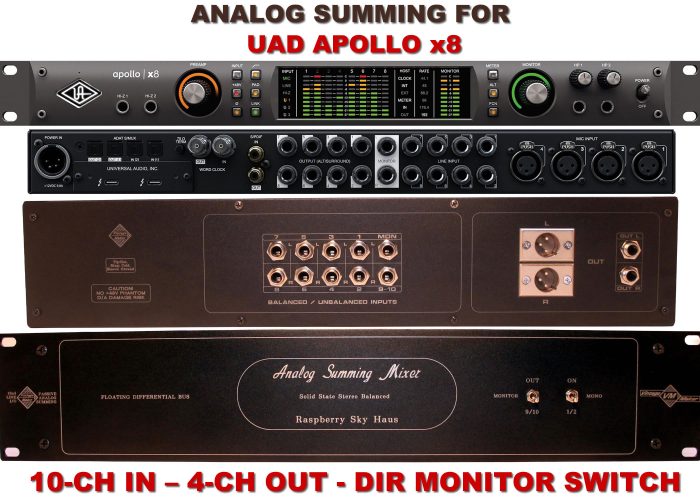

This 2U rack-mount summing mixer features 10 input channels and is specifically designed for seamless integration with the UAD Apollo x8 audio interface.

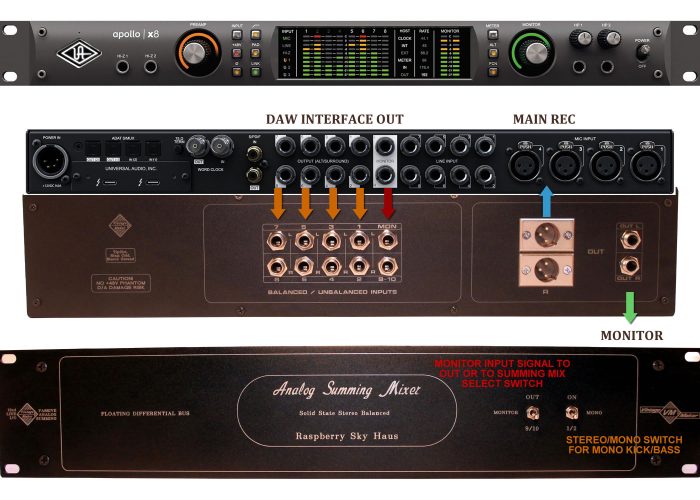

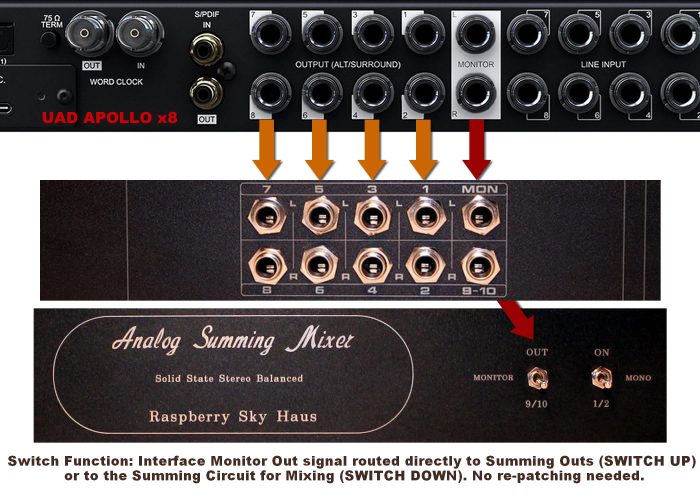

Apollo Monitor Out Switch Function

The interface Monitor Out signal can be routed:

  • Directly to the Summing Outputs (Switch UP), or

  • Through the summing circuit for analog mixing (Switch DOWN)

All other summing inputs remain active, so unused channels should be muted in the DAW. No cable re-patching is required.

Functionality

Routing the signal directly to the monitor path allows for:

  • Listening

  • Tracking

  • General playback

Routing through the summing circuit enables:

  • Analog summing

  • Hybrid mixing workflows

—all without changing your physical connections.

STM – Stereo to Mono Switch

The STM (Stereo to Mono) switch provides a stable analog mono signal for key elements such as:

  • Kick

  • Bass

  • Lead vocals

  • Snare

This allows you to save DAW output channels while maintaining proper separation and a solid center image by summing hard-panned L/R inputs.

Stereo sources can still be routed in full stereo, preserving complete stereo imaging and DAW panning flexibility.



Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box

SOUND CARD?

UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know
VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB
OUTBOARD HARDWARE INSERT

PREAMP – type?, COMPRESSOR – type?, LIMITER – type?, CHANNEL STRIP – type?, EQUALIZER – type?, EFFECT PROCESSOR – type?, OTHER – let me know
CUSTOM NAME?

YES (let me know), NO THANKS
BUILD TIME

15 WORKING DAYS
