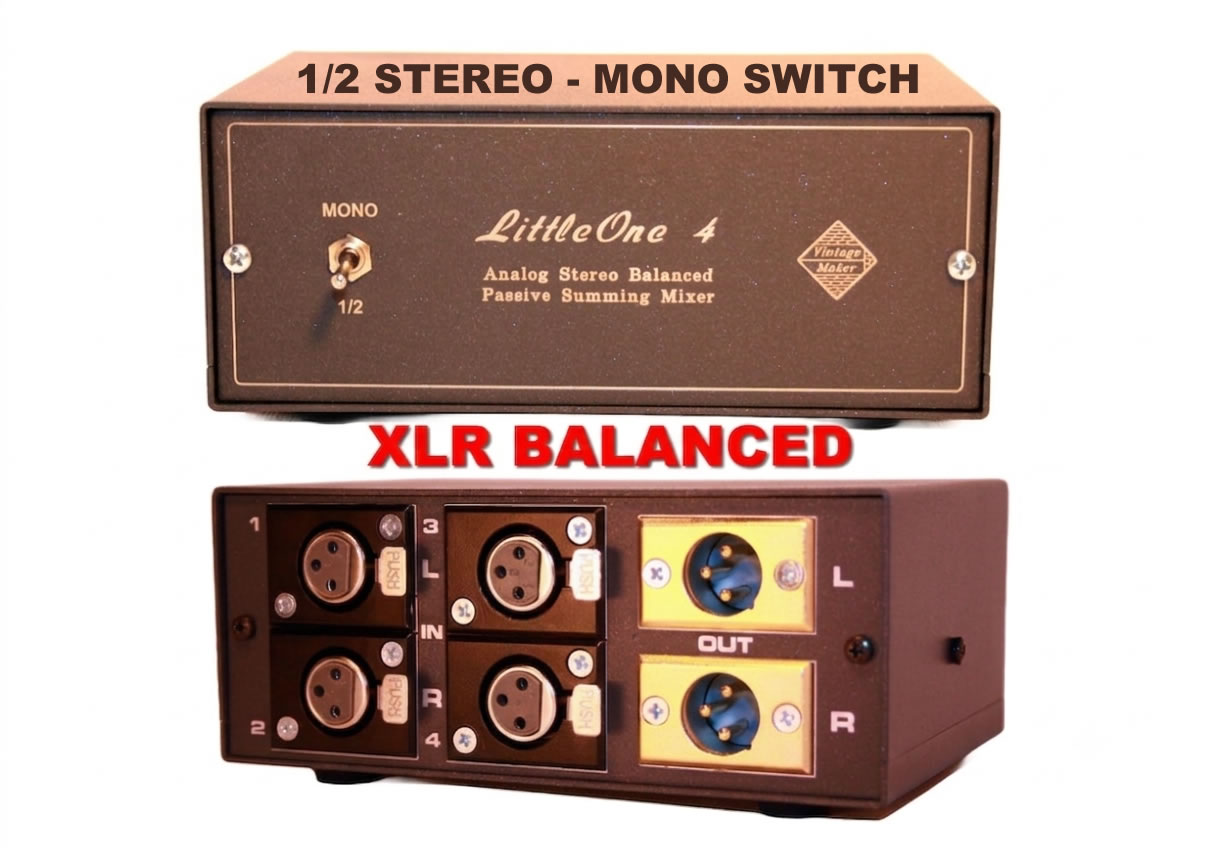

LittleOne 4-Ch XLR Desktop Analog Studio Summing Mixer

Upgrade your DAW interface with the LittleOne 4-Channel XLR Analog Summing Mixer
and experience the depth, warmth, and musical character of a true analog console summing workflow.

Designed for professional recording studios, home studios, producers, and mixing engineers,
the LittleOne provides a stereo balanced, studio-grade analog signal path
with exceptional clarity, separation, and ultra-low noise performance.

Bring your digital mixes into the analog domain and achieve a more natural stereo image,
improved depth, and the rich character associated with classic analog mixing consoles.

Build time: 10 working weekdays after cleared payment

---

Analog Summing With Professional XLR Connectivity

The LittleOne features a 4-channel XLR balanced analog summing architecture,
allowing you to route multiple DAW outputs through a high-quality analog signal path
before returning the summed stereo mix back into your audio interface.

Perfect for:

• Analog mix bus processing
• Hybrid mixing setups
• DAW summing workflows
• Outboard processing chains
• Professional and project studios

---

STM – Stereo To Mono Sum Switch

The integrated Stereo-to-Mono Sum Switch (STM) provides an ultra-stable
analog mono reference point for important mono elements such as:

• Kick
• Bass
• Main vocals
• Snare
• Lead instruments

Instead of wasting a stereo L/R pair for a mono source, STM allows you to combine
left and right channels into a perfectly centered mono signal.

Benefits:

• Improved mono compatibility
• Better stereo separation
• Enhanced 3D depth for remaining stereo elements
• More efficient use of your DAW interface outputs

Routing Example

Stereo Configuration:

IN 1/2 → Stereo Mix
IN 3/4 → Stereo Mix

Mono + Stereo Hybrid Configuration:

IN 1 → Bass (Mono)
IN 2 → Kick (Mono)
IN 3/4 → Stereo Elements

Learn more about analog console mono conversion:

Analog Console Mono Channel Conversion

---

Hybrid Mixing Workflow

The LittleOne is designed for modern hybrid studios where digital flexibility
meets analog character.

Typical connection:

DAW → Audio Interface Outputs → LittleOne Summing Mixer → Analog Processing → Record Master Stereo on Audio Interface Mic Pre Inputs

Don’t see your interface or setup listed?
No problem — send me your DAW interface model and studio configuration,
and I can help you find the optimal routing solution.

---

Premium Studio Components

The LittleOne is built using carefully selected professional-grade components:

• Selected VISHAY DALE military-grade metal film resistors
• Fully balanced discrete analog signal path
• High-quality XLR input and output connections
• Ultra-low noise design
• Precision handmade construction

---

Technical Specifications

• Inputs: 4 × Balanced XLR Inputs
• Outputs: Balanced Stereo Output
• Signal Path: Fully balanced discrete analog design
• Insertion Input Resistance: -15dB / -20dB / -25dB (selectable by order)
• Output Impedance: 600Ω – 1kΩ balanced
• Frequency Response: 0Hz – 500kHz
• Crosstalk @ 1kHz: -95dB
• Signal-to-Noise Ratio (SNR): -110dB

---

Handmade Professional Construction

Every LittleOne summing mixer is:

• Fully handmade
• Point-to-point hand wired
• Individually tested before shipping
• Built into a rugged laser-engraved aluminum alloy enclosure

This is not a mass-produced audio device — it is a professional analog studio tool
designed for engineers who demand transparency, reliability, and the musical character
of analog console summing.

LittleOne 4-Ch XLR Desktop Analog Studio Summing Mixer

Bring the sound, depth, and workflow of analog console summing into your modern DAW studio.
