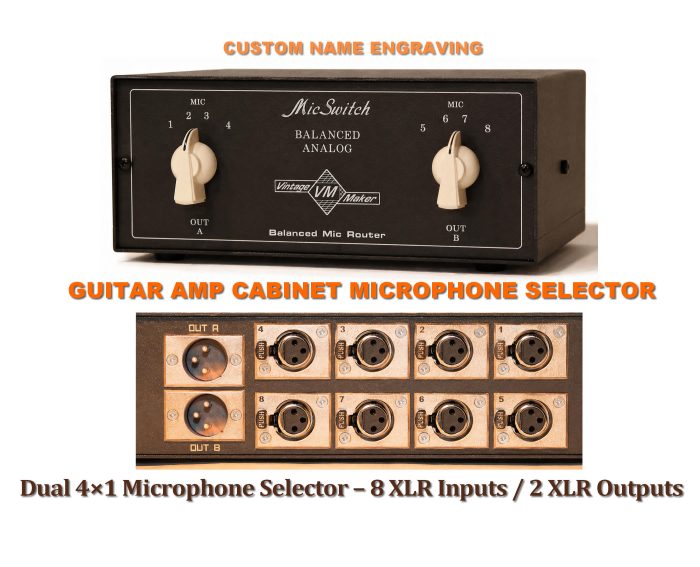

Dual 4×1 Guitar Amp Cabinet Microphone Selector – 8 XLR Inputs / 2 XLR Outputs

Easy Switch Cabinets, Not Cables – Microphone Selector – Balanced Mic Switch for Guitar Amp Cabinets

Designed specifically for professional guitar amp rooms, the Dual 4×1 Passive Microphone Selector dramatically simplifies cabinet comparisons.

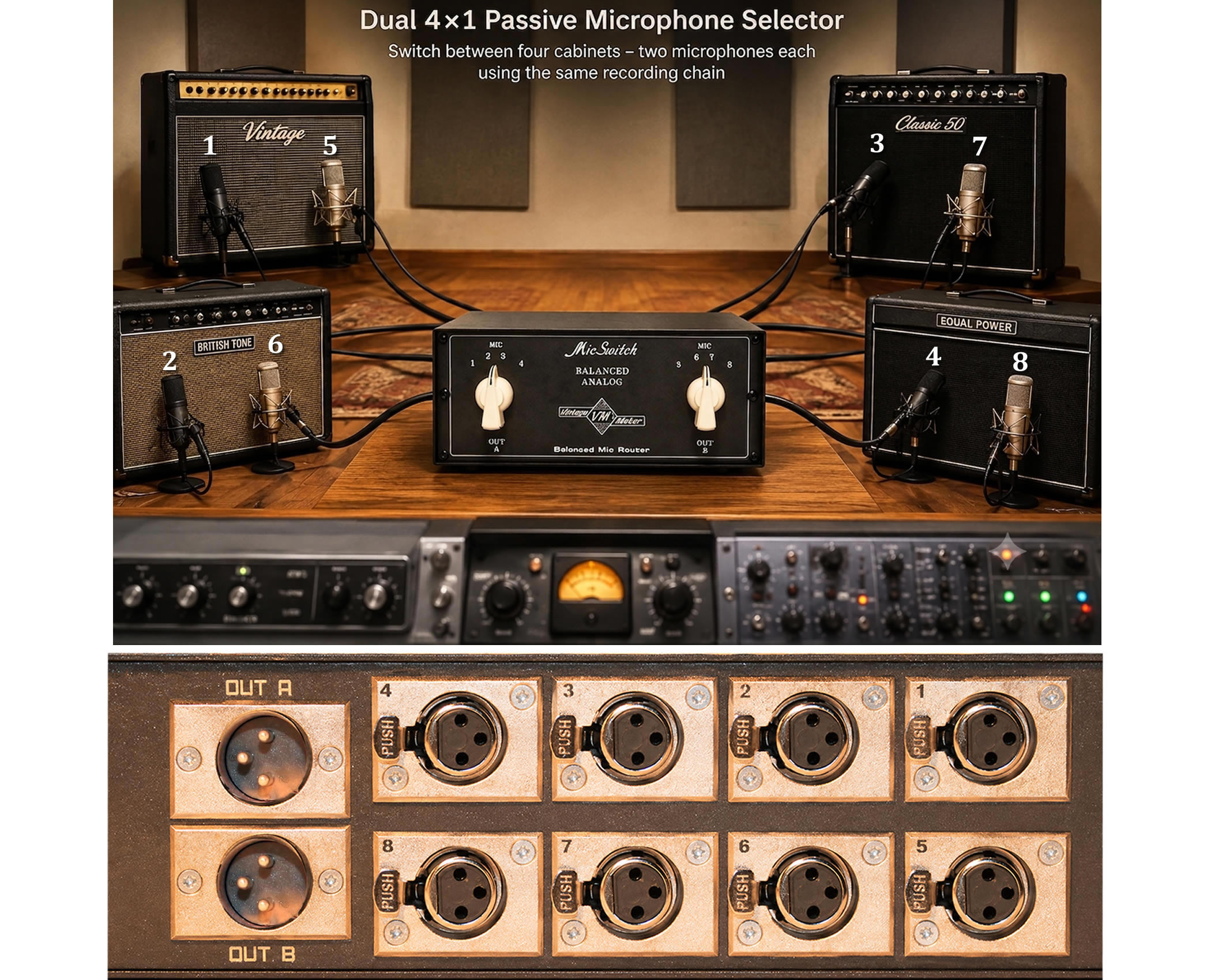

Connect up to four speaker cabinets, each fitted with two microphones, then instantly select which cabinet feeds your recording chain. Your favorite microphone preamps, EQs, compressors and audio interface remain permanently connected, eliminating cable swapping and reducing setup time.

---

Dual Independent Signal Paths

The unit contains two completely independent balanced microphone selectors.

Each selector independently routes one microphone signal, allowing stereo microphone pairs or two different microphones on every cabinet to be switched simultaneously while maintaining identical signal paths.

---

Pure Passive Audio Path

Only premium rotary switches and direct balanced wiring preserve the integrity of your microphone signals.

---

Typical Application

• Guitar Amp Rooms
• Recording Studios
• Reamping Setups
• Cabinet Shootouts
• Speaker Comparison
• Microphone Comparison
• Permanent Studio Wiring

---

Specifications

• Configuration: Dual Independent 4×1 Microphone Selector
• Inputs: 8 × Balanced XLR Female
• Outputs: 2 × Balanced XLR Male
• Passive Operation
• Balanced Audio
• No Power Required
• Heavy-duty Metal Enclosure
• Handmade in Hungary, EU
• Size: Width 200 mm × Height 60 mm × Depth 100 mm
• *7.87 × 2.36 × 3.94 inches (W × H × D)

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your controller or switcher? Tell me what you need and I build for you!
