8 Input Hybrid LittleOne Wide 8×4 SUM + LINE Router Switcher – Summing Mixer

Do not find your summing mixer? Tell me your DAW Interface Type! Ask to build Yours!

ORDER HERE

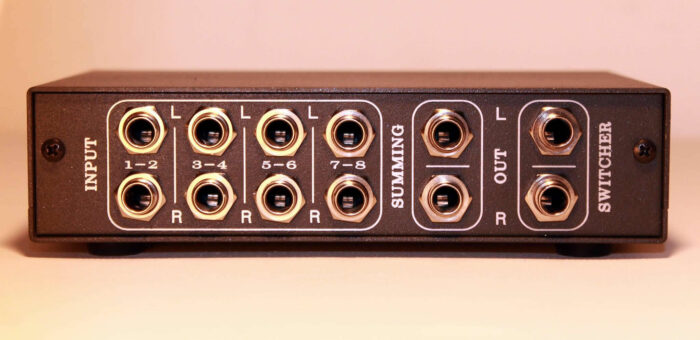

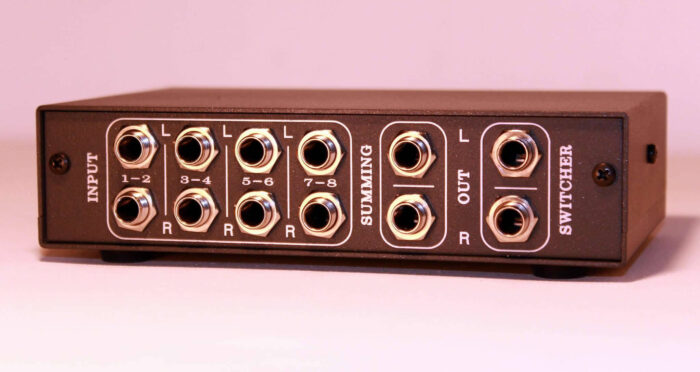

8 TRS  input / 4 TRS output summing mixer with 4 x stereo Direct to Second Line out switch (2in1 all in one signal distribution line switch and summing mixer)

• Input: 8 ch TRS 1/4″ Balanced
• Output:  2 x TRS Balanced L/R (summing)
• 1 x Stereo to 2 Mono on 7/8 input (order)
• -10dB base reduction (order)
• Line router / switcher Controller side:
• 8 TRS (common) input balanced
• 1 x Stereo L/R TRS output (switcher)

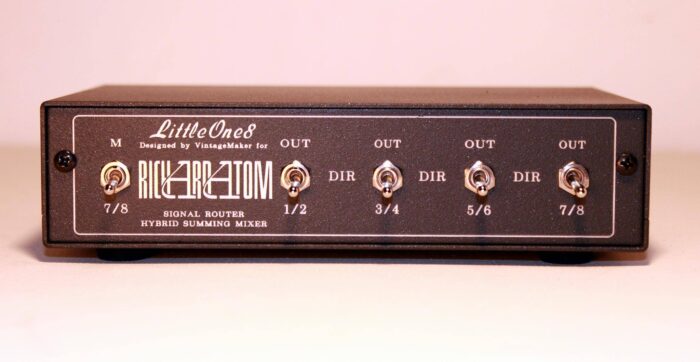

• 4 x Stereo routing switches.
• Switch Function:
• Down position = SIGNAL TO SUMMING OUT
• UP position = SIGNAL TO SWITCHER OUT
• Build time 8 working weekdays (estimated)

Build time: 10 Working Weekdays after cleared payment

Analog Studio Summing Mixer – Ideal for linking synthesizers, samplers, and rhythm boxes and routing the mix to a preamplifier for master processing. Compatible with UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, and Arturia MiniFuse or other audio studio interface sound cards (let me know yours)

You can get as many channels and options as you want, so let’s build your gear!

STM = Stereo to Mono: It give an extra stable analog mono base for your mix (Kick / Bass) then a superior separation and 3D depth for additional stereos



• Selected VISHAY DALE military metal-film resistors
• Full discrete dual stereo signal topology
• In/Out:Balanced, floating to ground
• Output impedance 600-1k ohms balanced
• Output level: -10 dB / – 30dB nominal
• Frequency response: 0-500Khz
• Crosstalk 1Khz: -95dB
• Signal/ Noise rate: -110dB
• TRS wiring: Tip: HOT –  Ring: COLD – Sleeve: GROUND
• Pure hand made! Hand wired and tested point-to-point!
• Laser engraved massive aluminium alloy box!
