8×4 Ch Studio Mixer for UAD Apollo x6 – or – Focusrite MOTU PreSonus Prism Roland RME
374.00 €
16 Channel Analog Passive Studio Summing Mixer Stereo Balanced

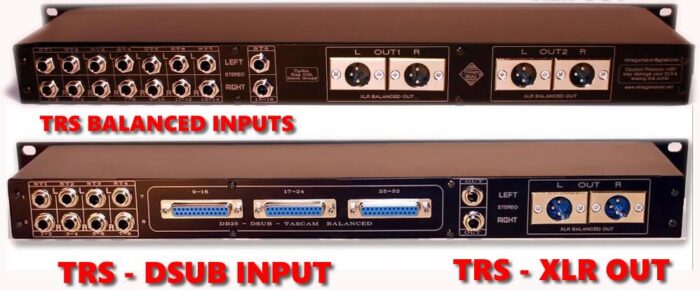

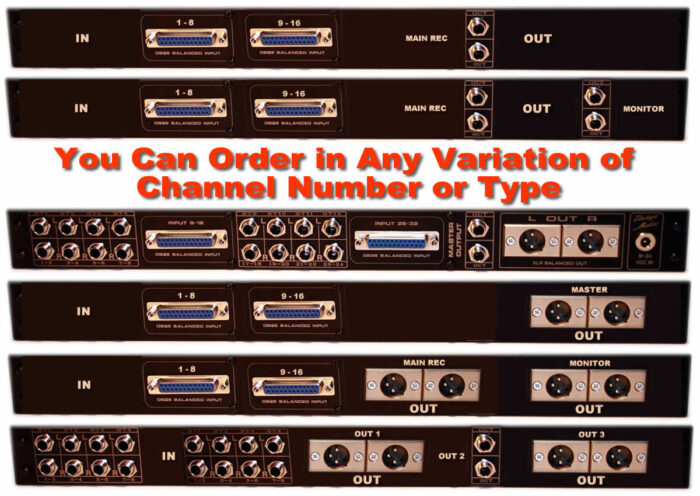

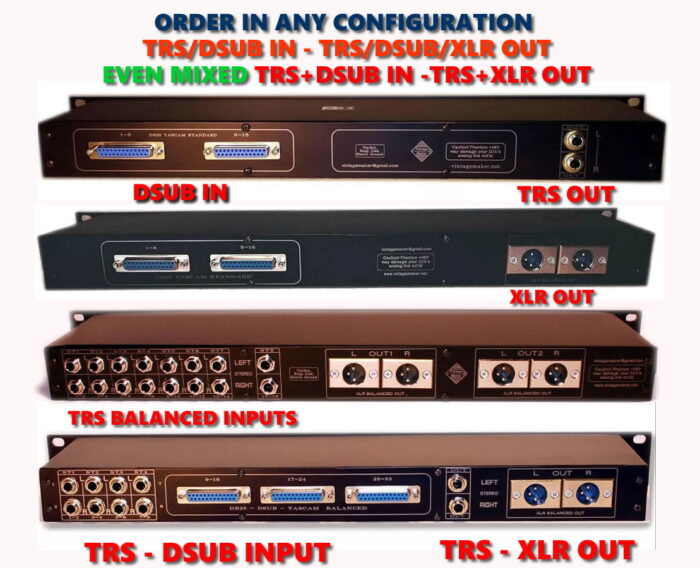

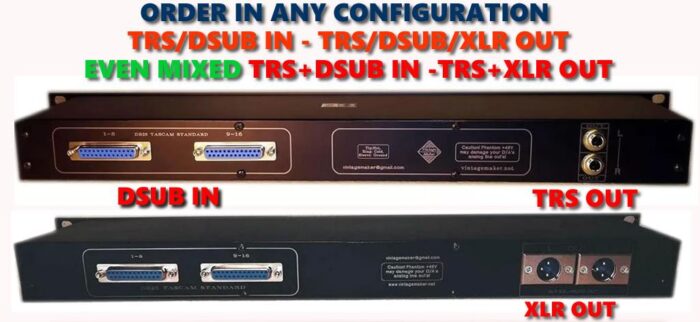

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION
Can’t find the right product? Tell me what you need – I’ll build it for you!
Please Select All Options!
Dual stereo discrete signal path, fully balanced from input to output!
Studio Mixer for UAD – Apollo x6, or Focusrite, MOTU, PreSonus, Prism, Roland, RME, or another – select interface – sound card
DIR/SUM Input: Link AUX In (line) signal or another (second slave) Passive or Active summing unit.
Switch DIR = 0dB reduction in AUX in (no gain loss).
Switch SUM = Summing mixer input (dB reduction equal to summing reduction).
STM – Stereo to Mono Switch: Gives a stable Real Analog Mono Base for key elements like Kick, Bass, Main Vox, and Snare. Save digital channels and enhance separation with a simple switch, achieving a centered mono signal for hard-panned L/R inputs. Easily toggle for stereo instruments or maintain a fully stereo mix with panning options from your DAW.
- Input: 8 ch TRS 1/4″ Balanced

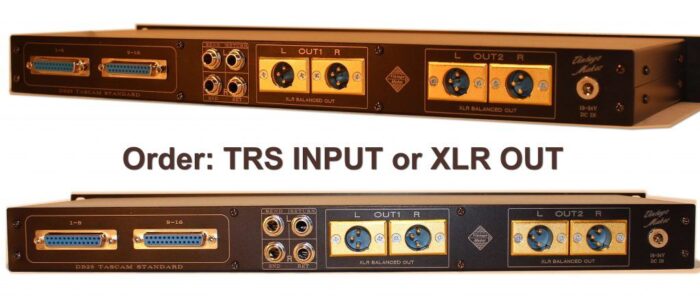

- Output: 2xStereo /4 x TRS Balanced L/R (common)
- 1 x Stereo to 2 Mono on 1/2 stereo input (you can ask for more) read more…
- DIR OUT or SUM mode select monitoring switch for 7/8 summing input
- *with +2 direct input on the summing mixer for Apollo monitor out, this you can use as regular monitor (straight through summing) or instrument input with SUM or Monitor switch

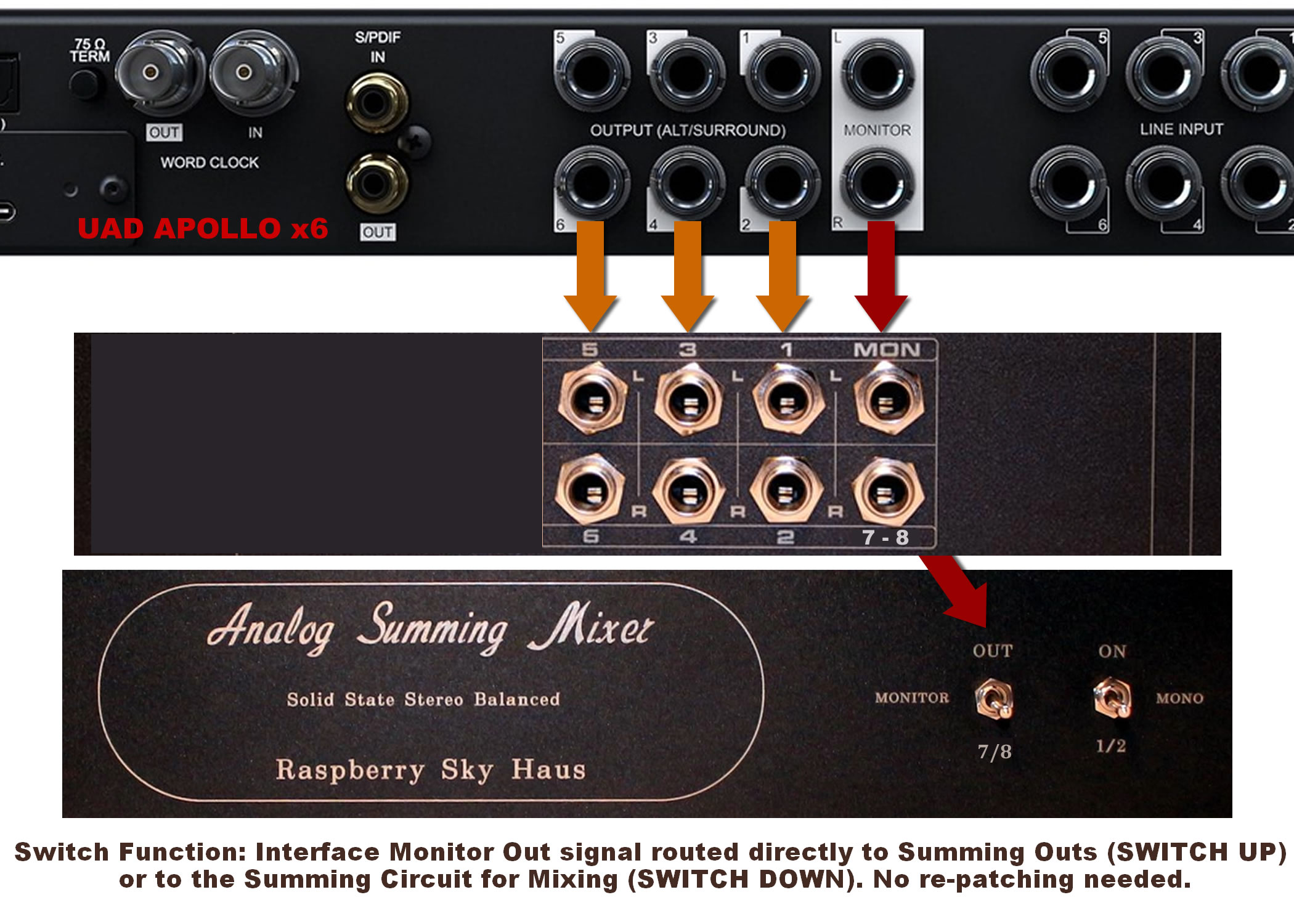

- **DIR SWITCH: You don’t have to unplug In “everyday” work DA out 1/2 (or monitor out) routed directly to the summing mixer (pre production, programming, editing etc) just switch to OUT/DIR mode and you have the straight Input to Output routing.
- *Equivalent signal on both stereo outputs, 1-8 inputs remains active, you need to mute them from the DAW.
- **If you need exclusive monitoring please ask about the Total Bypass feature…

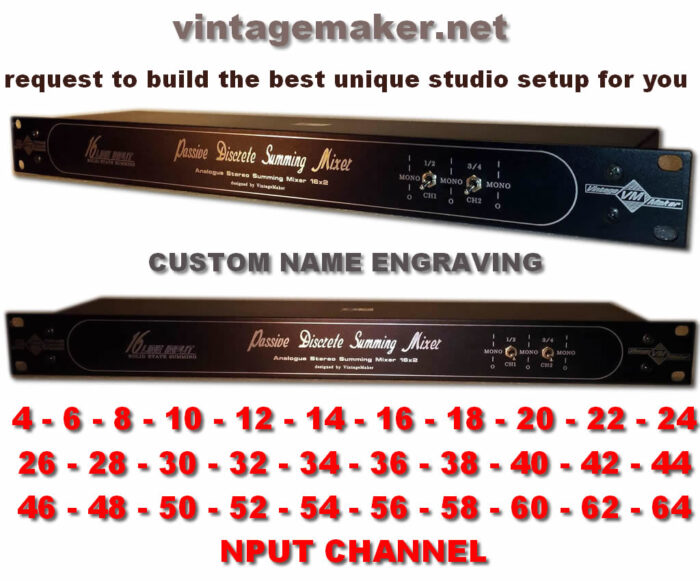

- Unique Name engrave (let me know)
- Build time 12 working weekdays (estimated)
- STM = Stereo to Mono see on Youtube
Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB
Do not find your desired gear? Ask to build Yours!
You can get as many channels and options as you want, so let’s build your gear!
Build time: 15 Working Weekdays after cleared payment
Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box
| SOUND CARD? | UAD Apollo, Apogee, Arturia, Antelope, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, External Preamp – let me know, OTHER – let me know |
|---|---|
| CUSTOM NAME? | YES (let me know), NO THANKS |
| BUILD TIME | 15 WORKING DAYS |
