Why Analog Summing mixer? Upgrade your studio with a custom designed analog gear!
summing in the studio rig

Why Analog Summing mixer? Upgrade your studio with a custom designed analog gear!

Why use an analog summing?

Simply because you want to sound like pro.
Good sound sells and make best first impression of your music. Also no digital harshness, distortion and squashed sound like with DAW ITB mixing entirely inside the computer.

The VintageMaker discrete summing mixer design is a unique developed dual stereo summing network optimized to provide sufficient headroom to accommodate the signals from a large number of channels, as well as to maintain a sufficiently low noise floor.

Neumann mixer in the studio
summing in the studio rig
TRS XLR DSUB DB-25
Neumann v475 2a 2b 2c
matrix mixer
analog summing mixer mixbus matrix

What exactly does a summing mixer box?

Beside of combining signals, It provides Headroom and buffer “safe” zone for harmonics, transients or loud sounds without risking clipping, which result a more dynamic open and wide, depth 3D sound, just like the good old analog days.

The more output from DAW interface – the more and bigger analog resolution, 3D depth, separation on summing side.

Mixing ITB (in the box) vs OTB (out of the box)

While a digital system (ITB: mixing entirely inside the computer /OTB mixing entirely outside the computer)  rounds off some values for level, pan, eq-ing and compression, the analog summing technique operates with an infinitely high resolution, causing no rounding errors or digital distortions.

What is hybrid mixing?

A hybrid system allows you to get the precision of the digital domain with the use of automation, clip gain, plug-ins and editing functions beside of absolute repeatability of mix project from DAW, while also adding the analog warmth on the analog summing side.

Mix in the analog domain offers a number of great advantages compared to the simple “DAW bounce-function”. When mixing on a computer, many prefer to sum the tracks in the analog domain, which can result in more depth of field and a wider, more defined stereo image. I hear phrases like “more depth and separation,” or “more rounded/warm low end”, bass is round and fat, middles are intensive but pleasant, trebles are nice and silky.

Analog summing advantages ?

  • In the analog world, there are no 0s and 1s, only voltages.

  • These complex sinusoidal voltages include harmonics and other elements.

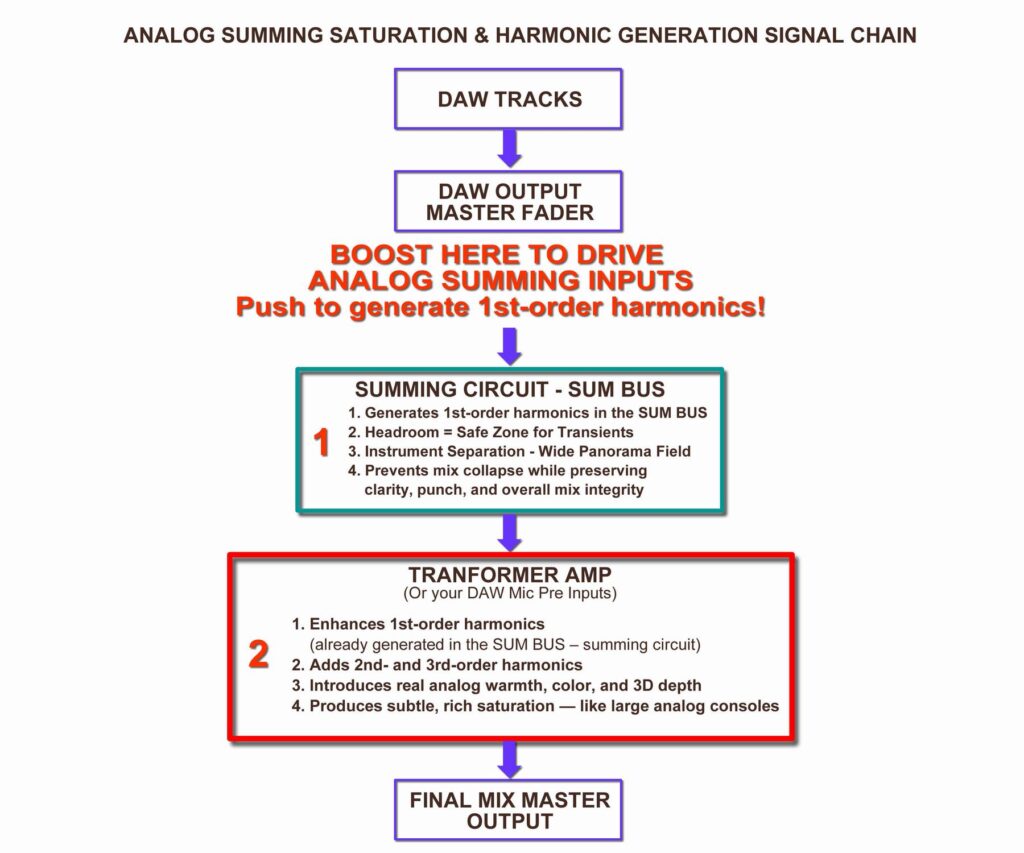

  • Analog summings are producing 1st, 2nd, 3rd etc. harmonics as well as saturation/rounding peaks which makes sound so called warmer, fatter, richer.

  • It provides headroom buffer zone for harmonics, transients or loud sounds without risking clipping, which result a more dynamic open and wide, depth 3D sound.

  • Basically, instead of having your tracks merged digitally into a stereo mix in your DAW, you run each track individually out to the analog summing mixer and do it all there, then bring it back into your DAW record the master stereo.

  • Analogue summing boxes have their uses beyond simply combining (sum) signals.

  • Features like Mono option per channel for mono instruments like kick bass and master‑bus insert send return points, for example, can be extremely useful, as they provide an easy way to incorporate outboard hardware (EQs, compressors and the like) into your rig.

32 In / 10 Out – MultiBus MixBus Matrix – “Brauerize” on Neumann Summing Mixer

mix bus compression matrix
The units are handcrafted with extreme care and are laser engraved.
“Brauerizing” is the name given to a mixing mentality honed by Grammy award winning mixing engineer Michael Brauer.
Feeding audio into compressors and equalizers in order to impart harmonic content to the input signal, as well as utilizing subtle group compression to “glue” audio together through an audio phenomena known as “counter pumping”.
MultiBus MixBus Matrix - "Brauerize" on Neumann Summing Mixer
32 In / 10 Out - MultiBus MixBus Matrix - "Brauerize" on Neumann Summing Mixer

Customer review on gearslutz:

Just in case If you are looking for something unique like a custom summing mixer designed for your needs, check  – VintageMaker. You can read plenty of positive feedbacks – reviews (gearslutz, ask audio, audiofanzine and so on since 2010) about his custom built gears.

You can get an many channels connectors like D-Sub DB25 Tascam, XLR or TRS balanced and options you want. You could get one larger or more featured. But here is the cool part.  He builds each unit to custom order, you can layout the panel as you like, and get whatever options and channel counts you want.
