16 Input – 6 Out Summing Mixer – DSUB CHANNEL + MASTER INSERT + Headroom switch

Name: 16 Input - 6 Out Summing Mixer – DSUB CHANNEL + MASTER INSERT + Headroom switch
Brand: VintageMaker
Availability: InStock
Rating: 4.56 (9 reviews)

0.00 €

PRE-ORDER HERE

Categories: Desktop Summing 16 - 24 ch, Desktop Summing Mixer Tag: 16 Input - 6 Out Summing

Analog Summing Mixer for APOGEE Ensemble Thunderbolt + Symphony I/O 16×16+8MP

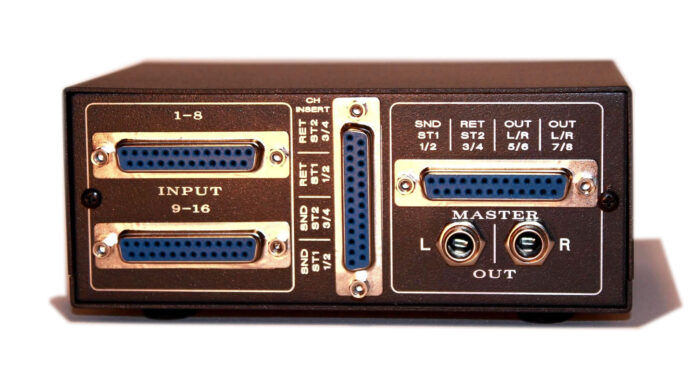

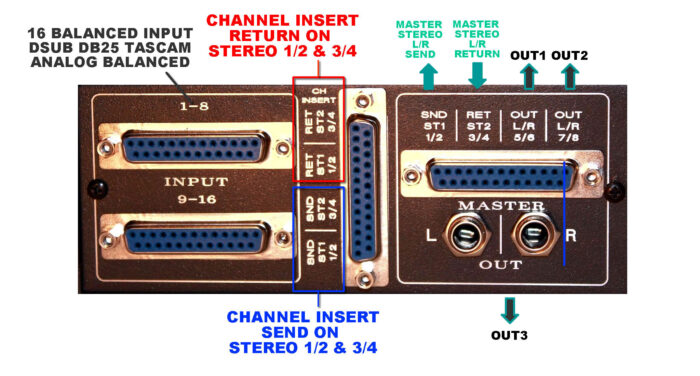

16 inputs [db25] Tascam Analog Standard balanced
3 x Stereo out (Main/Monitor/VU) DSUB/TRS

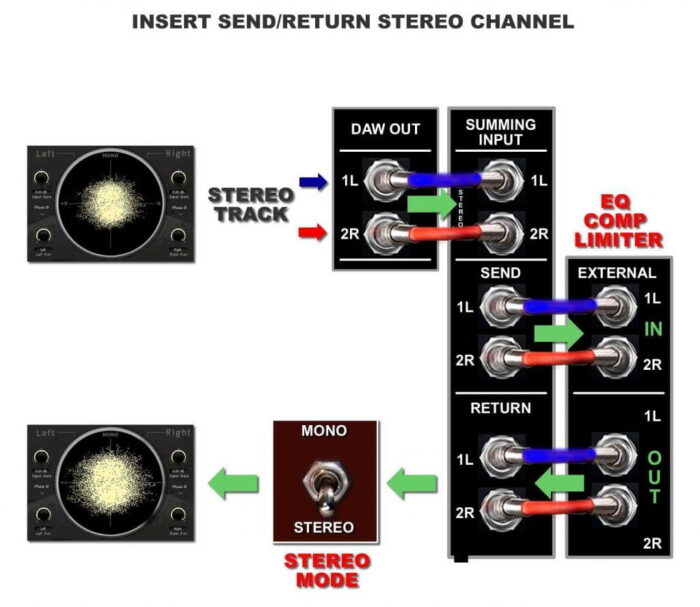

Channel (PRE) Insert Send 1/2 and 3/4 Dsub
Channel (POST) Insert Return Bypass 1/2 and 3/4 Dsub via 2 stereo switch

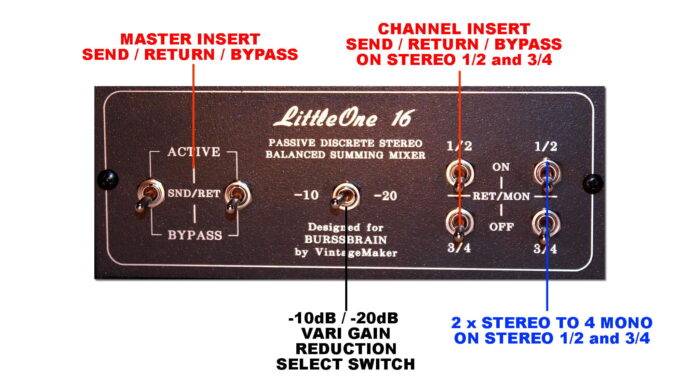

Master Insert SND/RET by TRS balanced via switch
Vari gain switch eg. -10/-20dB switch

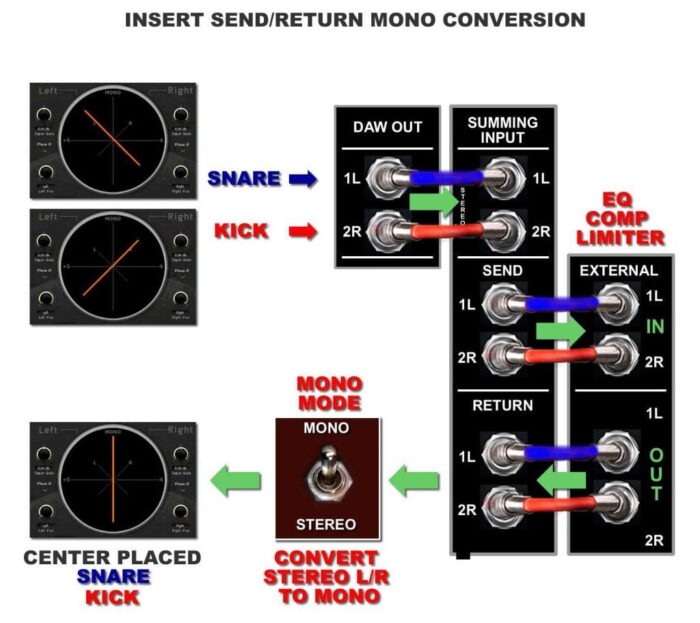

2 x Stereo to 4 Mono by switch YOUTUBE
Build time: 12 business/working weekdays (estimated)
Unique Name Engrave!

Do not find your summing mixer? Tell me your DAW Interface Type! Ask to build Yours!

PRE ORDER HERE

Build time: 10 Working Weekdays after cleared payment

Analog Studio Summing Mixer – Ideal for linking synthesizers, samplers, and rhythm boxes and routing the mix to a preamplifier for master processing. Compatible with UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, and Arturia MiniFuse or other audio studio interface sound cards (let me know yours)

You can get as many channels and options as you want, so let’s build your gear!

STM = Stereo to Mono: It give an extra stable analog mono base for your mix (Kick / Bass) then a superior separation and 3D depth for additional stereos

Selected VISHAY DALE military metal-film resistors
Full discrete dual stereo signal topology
In/Out:Balanced, floating to ground
Output impedance 600-1k ohms balanced
Output level: -10 dB / – 30dB nominal
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal/ Noise rate: -110dB
TRS wiring: Tip: HOT – Ring: COLD – Sleeve: GROUND
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box!

CONNECTION TYPE	DSUB IN – TRS OUT, DSUB IN – XLR OUT, TRS IN – TRS OUT, TRS IN – XLR OUT
SOUND CARD?	UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, OTHER – let me know
KNOB STYLE	ROUND BLACK, VINTAGE WHITE, VINTAGE BLACK
CUSTOM NAME?	YES, NO THANKS
BUILD TIME	10 DAYS
