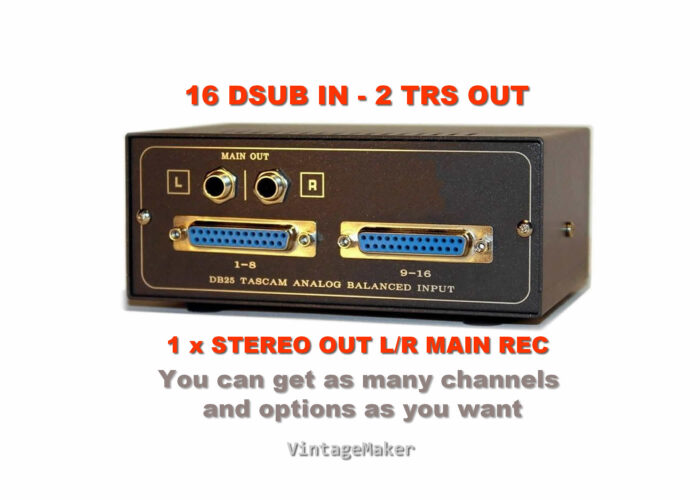

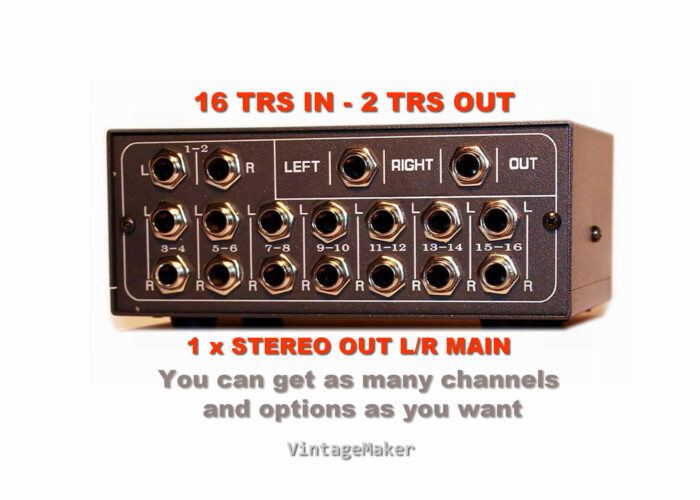

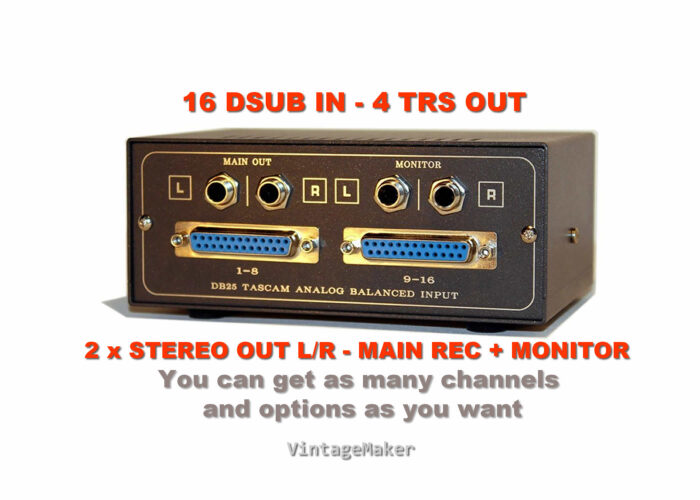

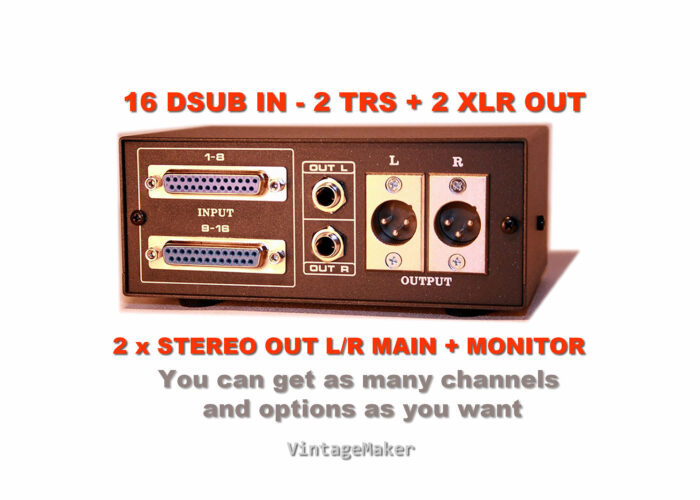

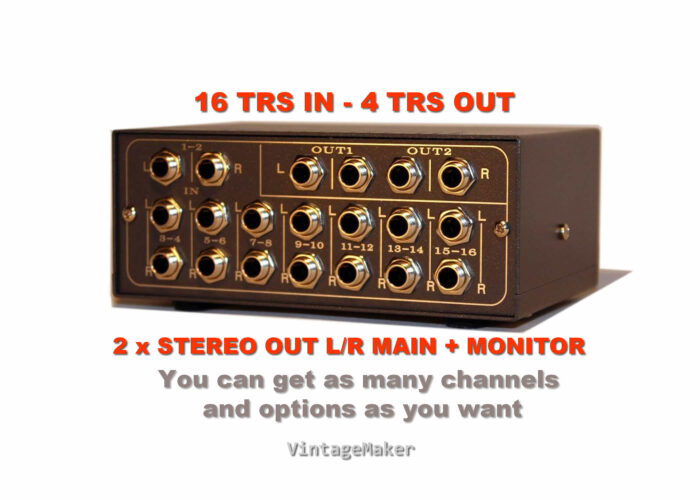

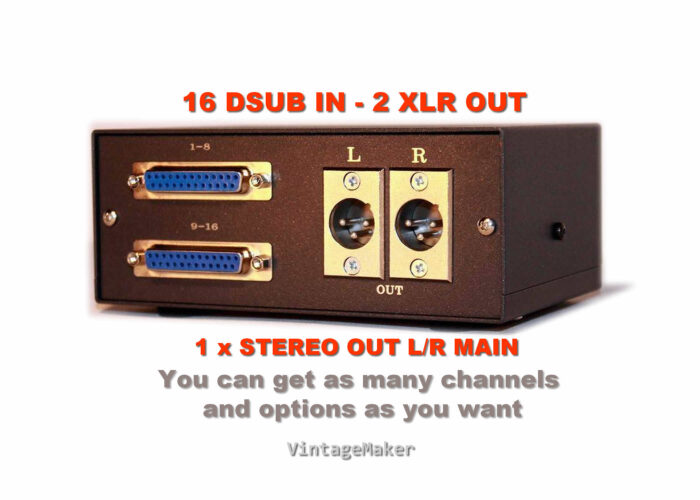

16 Input Summing Box – DSUB TRS XLR (select) with 2 x STEREO to 4 MONO + HEADROOM switch

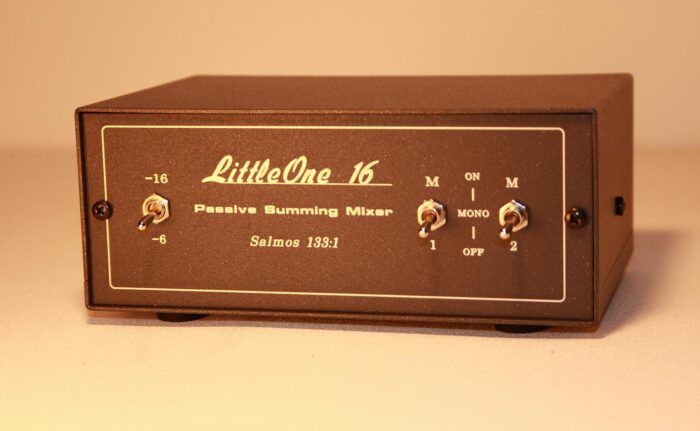

STM – Stereo to Mono Switch: It provides an extra stable real analog mono base for your mix (on monos like Kick/Bass), saving precious digital-to-analog (DA) channels (so you don’t waste stereo L/R for a mono instrument), and offers superior separation and 3D depth for the rest of your stereo instruments.

Variable Headroom Gain Switch: It provides a wide gain-volume range for different applications, offers gain stages between various microphone preamps or DAW interface inputs, and accommodates various source inputs, such as synthesizers or DAWs. Placed after passive SUM BUS (passive mixer) determines main out (total) gain reduction – for different (pre amps) applications – gain stage – volume range. You have a great opportunity to experiment with different gain reductions and determine what sounds better for your mix:

1. Whether it’s with fewer input signals and more amplification.
2. Or the other way around, with more signals and less amplification.
3. Benefits: You can overdrive the summing inputs with different gains to achieve more saturation and harmonics.

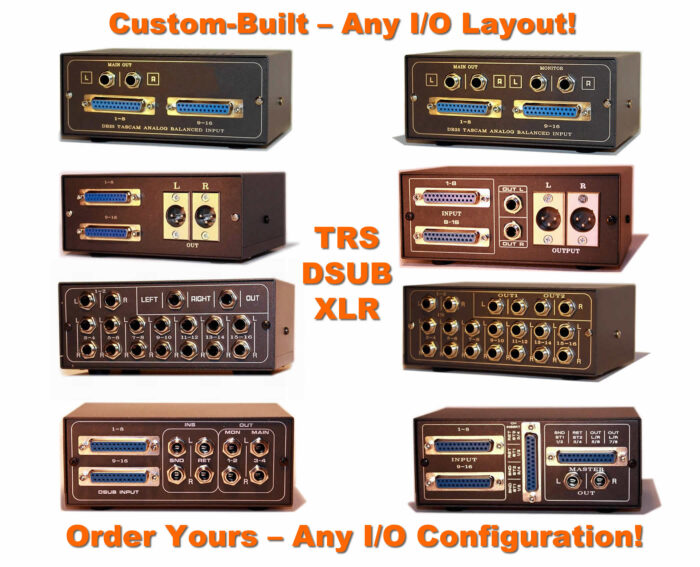

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your summing mixer? Tell me your DAW Interface Type! Do not find your Gear? Don’t worry! Just inform me about your requirements!

This summing box mixer unit is suitable for connecting synthesizers, samplers, and rhythm boxes, and then routing the combined output to a preamplifier for master processing.

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box

Portable compact studio Analog Studio Summing Mixer – Perfect for connecting synthesizers, samplers, and rhythm boxes and routing the mix to a preamplifier for master processing. Compatible with a wide range of audio studio interface sound cards, including UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, and Arturia MiniFuse. Let us know your setup Built for Behringer UMC1820 U-PHORIA – Edirol – Roland Rubix44
