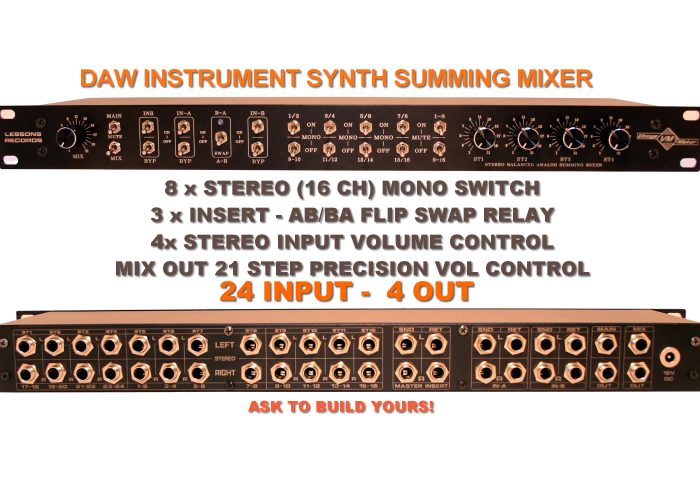

VintageMaker 24-In / 4-Out Hybrid Summing Mixer – Optimized for Overstayer M-A-S & LTL Silver Bullet MK2

Your workflow, my engineering. Custom-built for your sound.

The Analog Soul of Your Digital Audio Workstation This custom-built VintageMaker summing mixer is the ultimate bridge between your DAW and high-end analog processors. It has been specifically designed with the headroom and impedance requirements to perfectly drive the Overstayer M-A-S (Magnetic Analog Saturator) or the LTL (Louder Than Liftoff) Silver Bullet MK2 on the master insert, providing that sought-after “big console” sound and harmonic glue.

Tactile Control & Advanced Muting: Take immediate command of your mix with hardware-level controls:

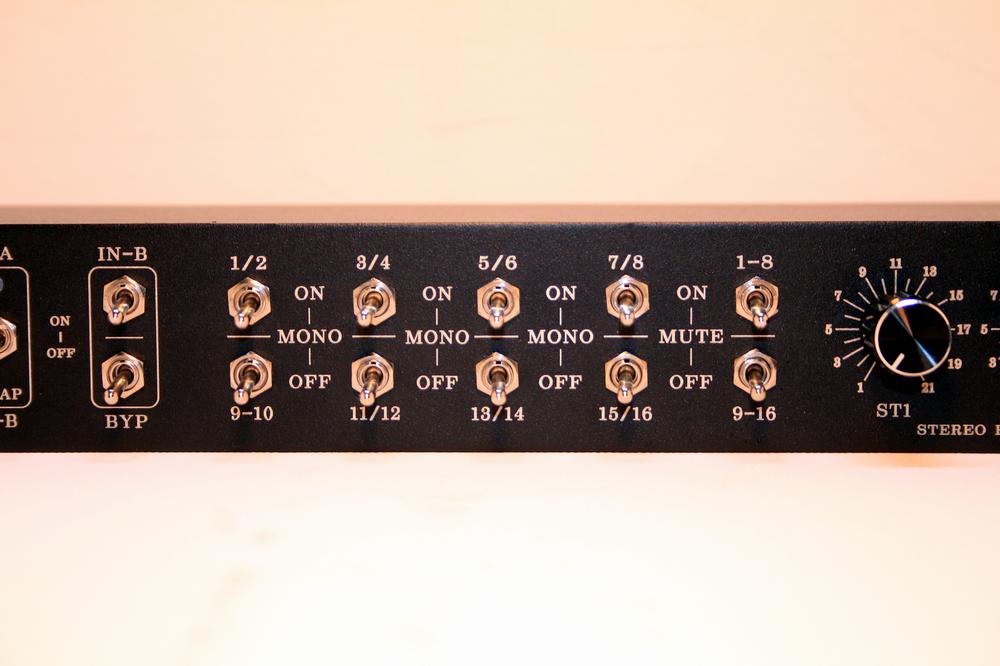

• Dual Range Mute Switches: Quickly toggle groups for A/B testing or isolating stems with dedicated Mute switches for Channels 1-8 and Channels 9-16.

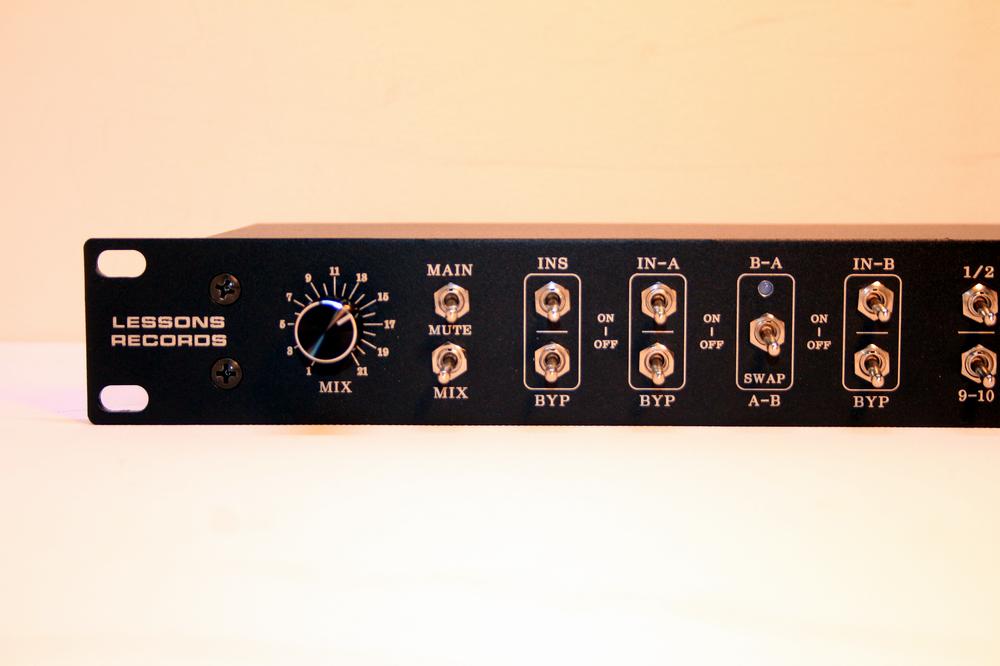

• Main/Mix Mute Switch: A dedicated toggle to mute the master output or monitor feed instantly.

• 8 x Stereo/Mono Switches: Easily collapse any of the 16 channels to mono for a rock-solid low end (Kick/Bass) or centered vocals.

Premium Routing & Recall:

• AB/BA Flip Swap Relay: A professional-grade relay system that lets you flip the order of your hardware inserts (e.g., Saturation before EQ vs. EQ before Saturation) at the flick of a switch.

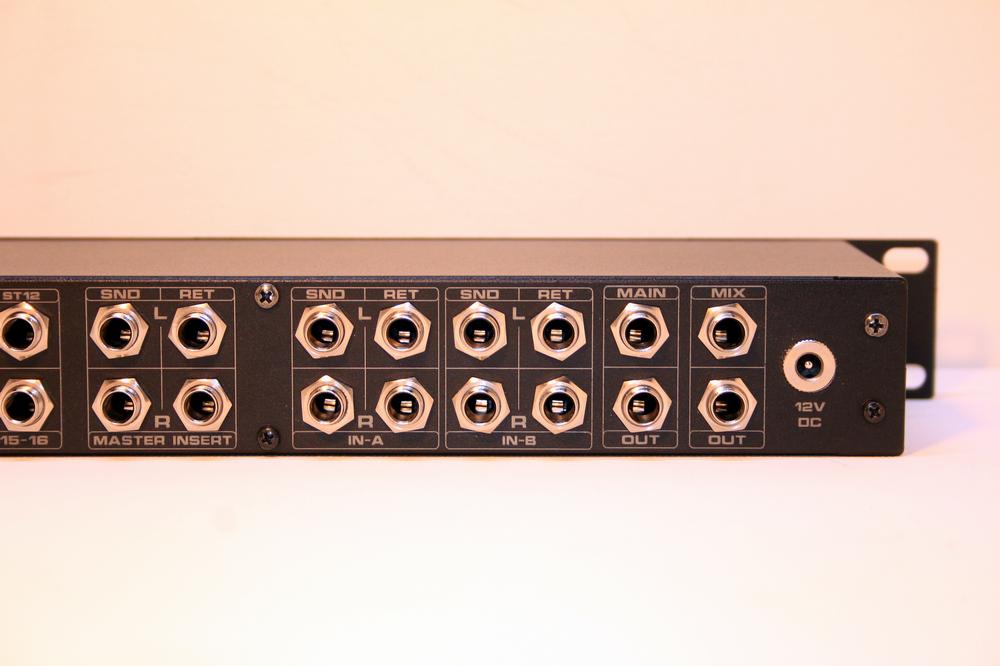

• 3 x TRS Balanced Inserts: All inserts (front-panel) bypass switches for seamless hardware integration.

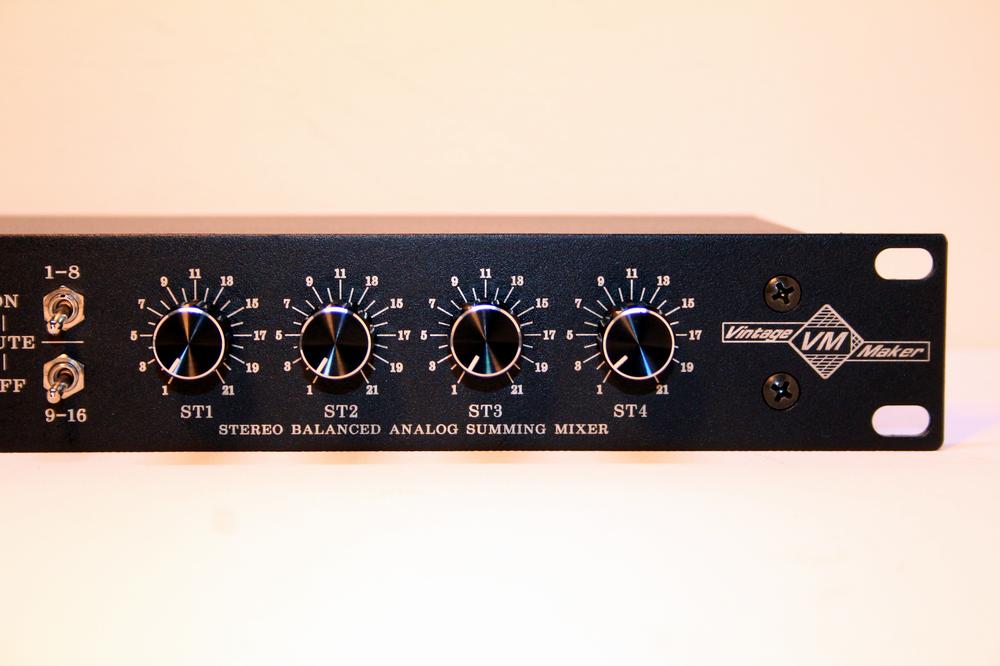

• 4 x Stereo Input (Linear) Volume Controls: Fine-tune the gain staging of your most critical stems before they hit the summing bus.

• 21-Step Precision Mix Out: A high-quality stepped attenuator ensures perfect stereo matching and 100% accurate recall for every session.

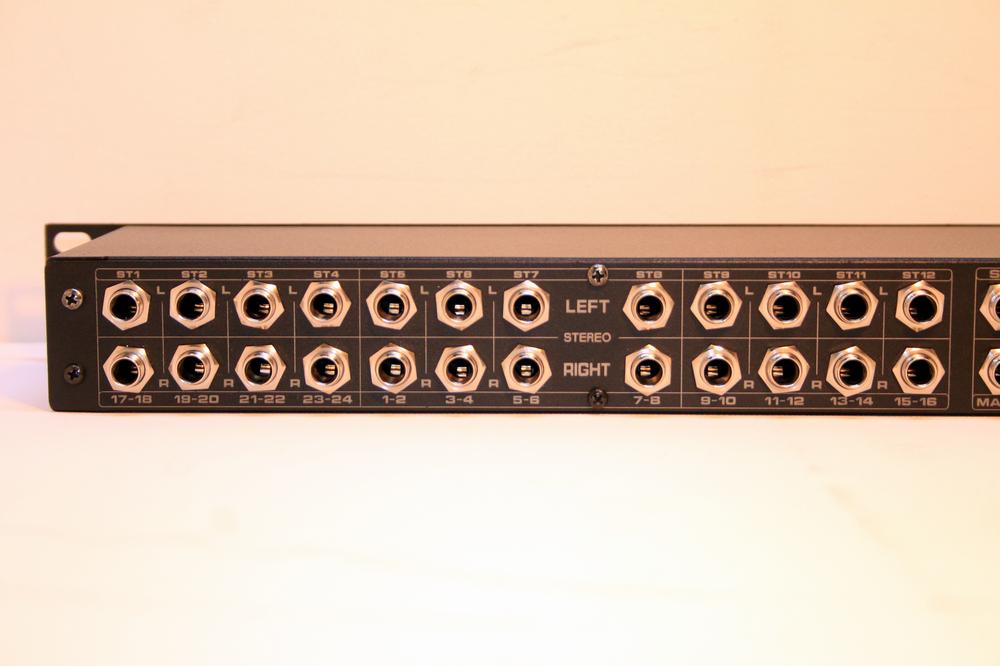

Built for the Hybrid Era: With 24 balanced TRS inputs and dual stereo outputs, this unit is built to be the high-fidelity heart of your studio, handling everything from vintage Moog synthesizers to modern high-output audio interfaces with ease.

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

Selected Studio grade VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600 -1k ohms balanced
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal to Noise rate (SNR): -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box
