2 x Stereo XLR Studio Mastering Insert Bypass
499.00 €
ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION
Can’t find the right product? Tell me what you need – I’ll build it for you!
Ask to Build Yours!

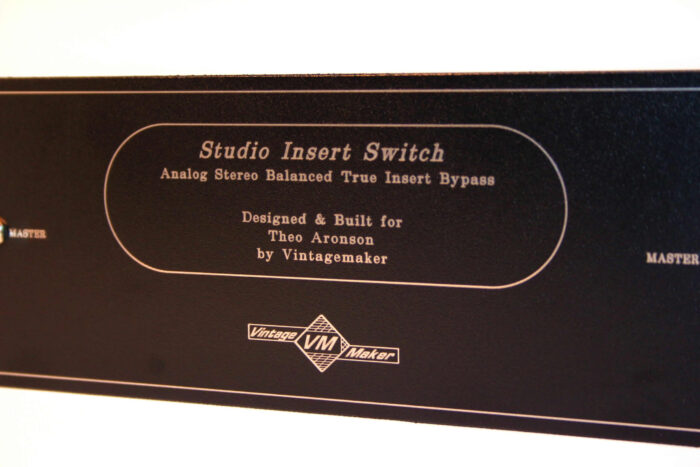

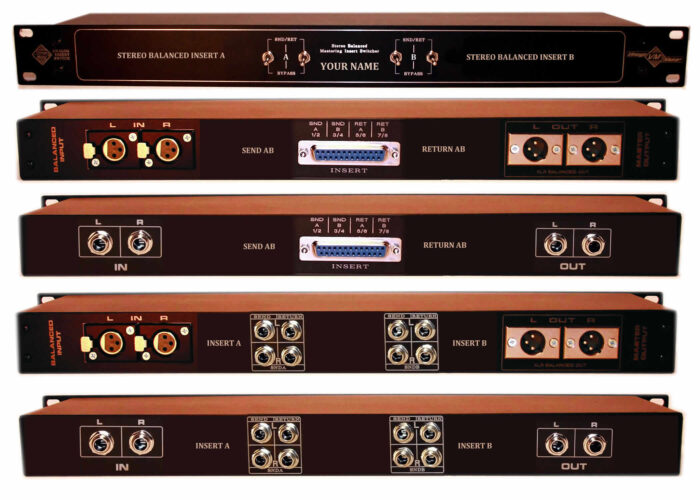

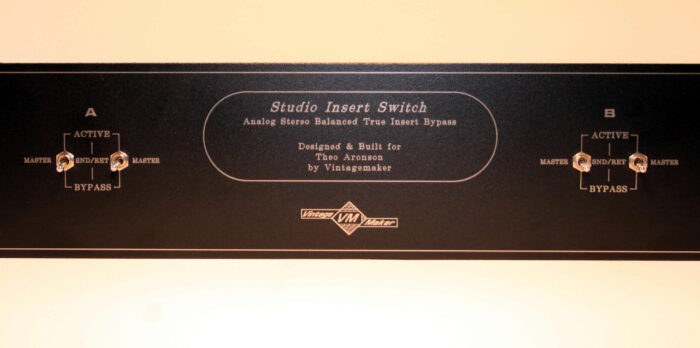

True Analog DUAL Stereo Balanced Studio Mastering Insert Bypass Switch Box for Outboard
Specs:
2U Standard Rack Unit
2 in XLR Balanced L/R
2 out XLR Balanced L/R
2 x Stereo Insert Send XLR Balanced L/R
2 x Stereo Insert Return XLR Balanced L/R

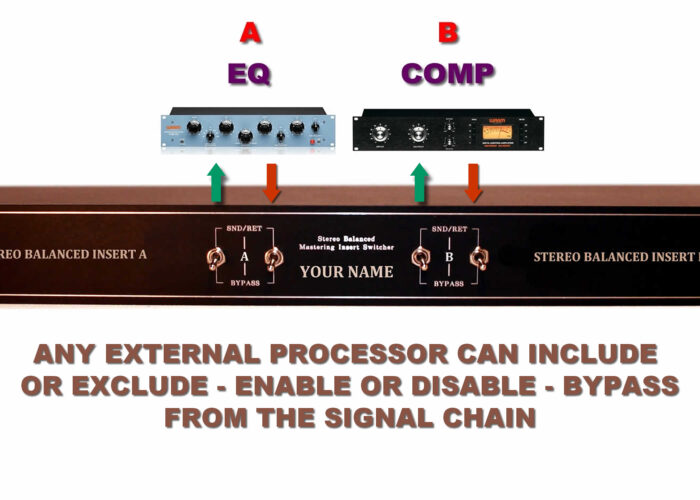

2 x SND/RET Bypass Switches total 4 stereo switches AB (solid state passive)
Custom Name Engraving: Let me know
Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB
Audio Studio insert bypass switching device switch box signal select distribution splitter swap flip relay patchbay.
Do not find your desired gear? Ask to build Yours!
You can get as many channels and options as you want, so let’s build your gear!
Build time: 12 Working Weekdays after cleared payment
| CUSTOM NAME? | YES (let me know), NO THANKS |
|---|---|
| BUILD TIME | 12 DAYS |
