Rack Mastering Insert Bypass Swap Switch

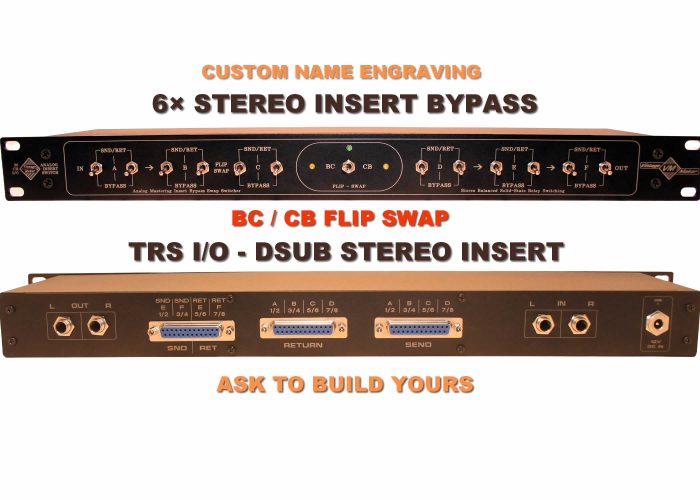

6 x Stereo Insert Bypass Studio Mastering switch Flip – Swap relay switcher box

5.00 out of 5 based on 2 customer ratings
(2 customer reviews )

775.00 € – 795.00 €

True Analog AB/BA Flip-Swap Stereo Sequence Switcher switcher box – Analog Relay Circuit Switching Device – QUAD Stereo Balanced Studio Mastering Insert Bypass Switch Box for Outboards

ANY CONNECTOR TYPE CAN BE ORDERED IN ANY SEQUENCE AND VARIATION

SELECT ALL OPTIONS!

SKU: N/A Category: Tags: ,

The order of the outboards can be swapped AB / or BA or any other variation (let me know)

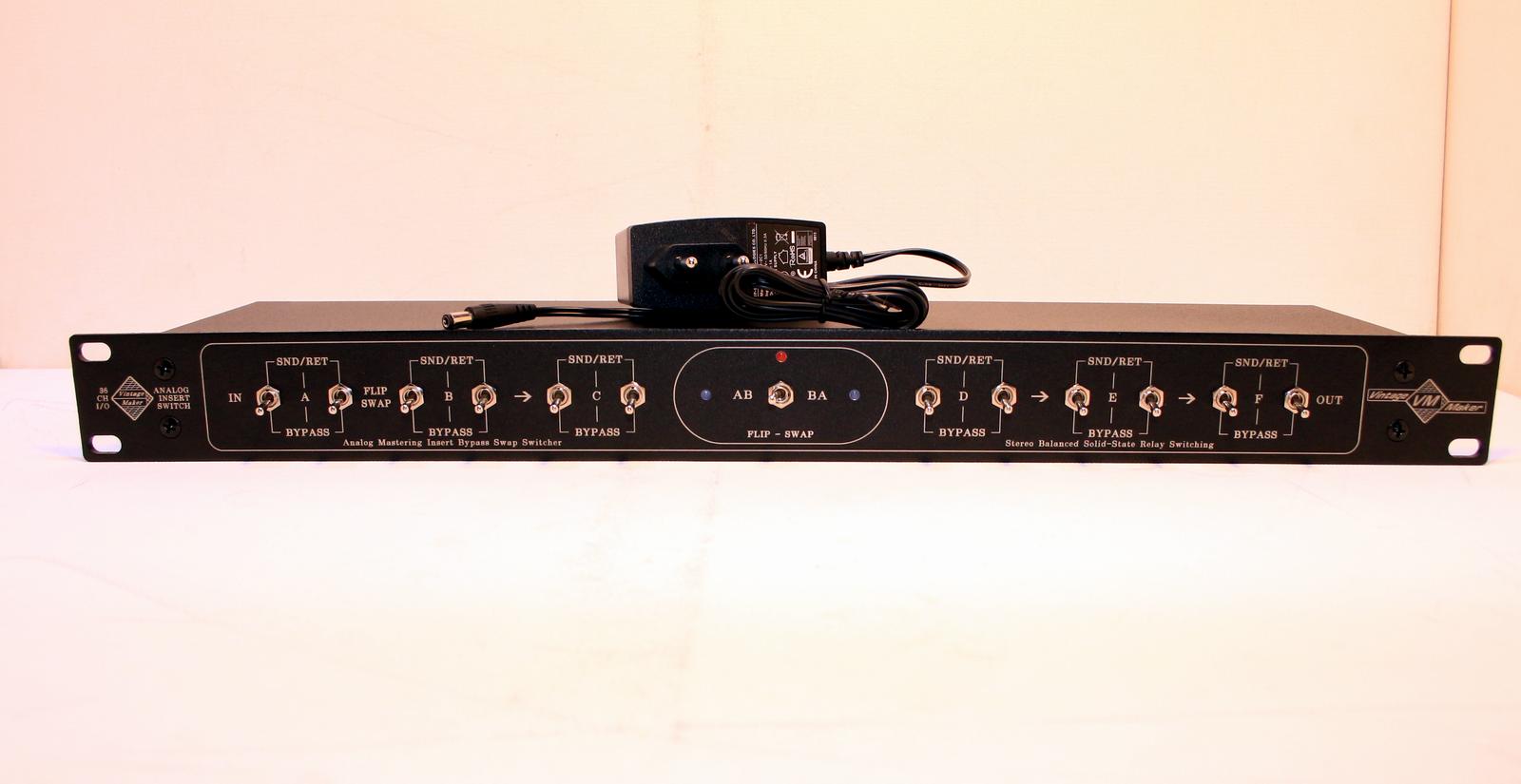

Specs: Insert Bypass Studio Mastering switch
1U Standard Rack Unit
2 in TRS or XLR Balanced L/R (select)
2 out TRS or XLR Balanced L/R (select)

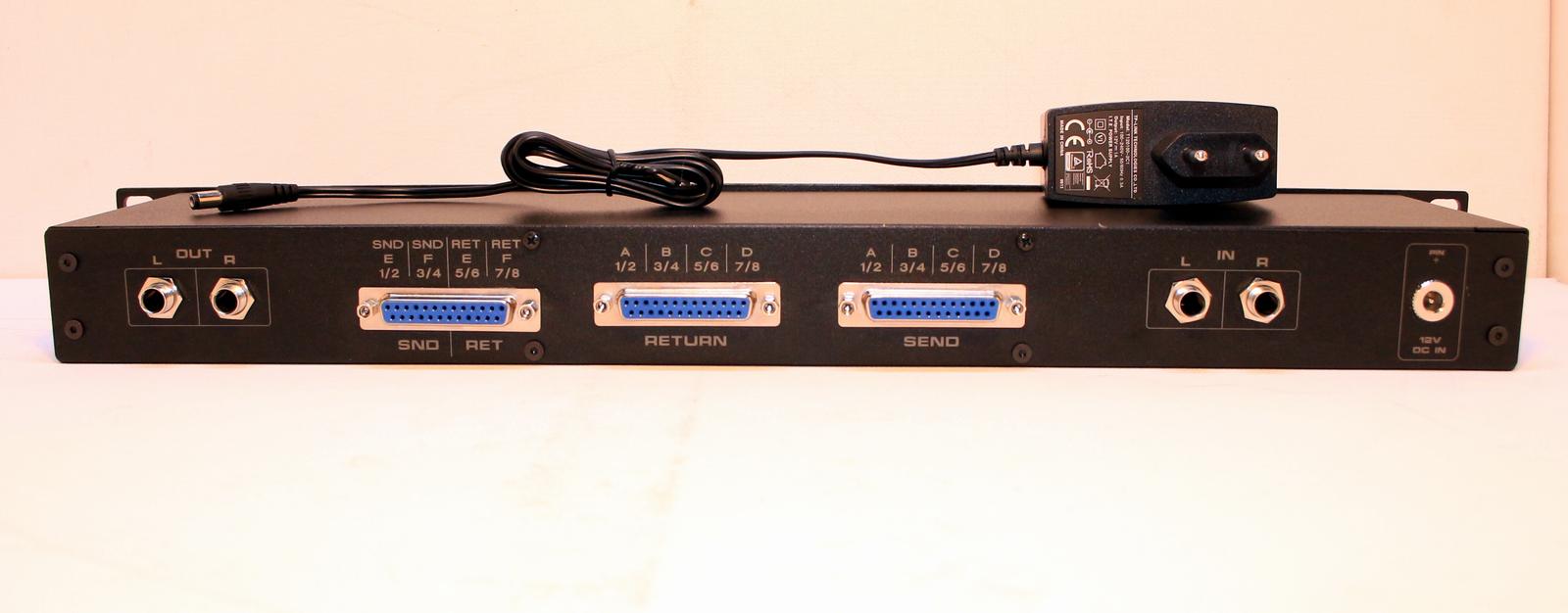

6 x Stereo Insert Send via DSUB Balanced ABCDEF
6 x Stereo Insert Return via DSUB Balanced ABCDEF
6 x SND/RET Bypass Switches total 12 stereo switches ABCDEF (solid state passive)
A and B Insert duplicated (you can use one insert or 2 inserts
Swap Sequence Switching: AB/BA-(or) BC/CB-(or)CD/DC
Select LED color for swap / power
Custom Name Engraving: Let me know

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 30kHz
Maximum level > +28dBu • Noise floor < -94.5dBu 22Hz-22kHz bandwidth
THD+N < 0.004% • IMD < 0.004%
Crosstalk rejection (Passive Section) > 110dB

Audio Studio insert bypass switching device switch box signal select distribution splitter swap flip relay patchbay.

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment

AB/BA Flip-Swap Stereo Mastering Studio Relay Circuit Switching switcher box Device Patchbay Quad 4x Stereo ABCD Insert with 4x 2 (eight) Send Return Bypass Switch sets for outboard effect processors

IN-OUT CONNECTION TYPE

TRS IN – TRS OUT, XLR IN – XLR OUT, XLR IN – TRS OUT, TRS IN – XLR OUT
SWAP SEQUENCE ORDER

AB/BA, BC/CB, CD/DC, OTHER – let me know
POWER LED COLOR

WHITE, RED, GREEN, YELLOW, BLUE
SWAP LED COLOR

WHITE, RED, GREEN, YELLOW, BLUE
CUSTOM NAME?

YES (let me know), NO THANKS
BUILD TIME

15 WORKING DAYS

2 reviews for 6 x Stereo Insert Bypass Studio Mastering switch Flip – Swap relay switcher box

5.00 out of 5 stars

5
2
4
0
3
0
2
0
1
0
  1. Reviewer profile image
    5 out of 5

    daniel.studio –

    Perfect Insert Switcher for Daisy-Chained Outboard Gear

    I needed a reliable insert switcher for my outboard gear. I’ve used various consoles before, but I prefer a clean daisy-chained setup where all my gear works together as one big chain of tubes and transformers.

    In my daily workflow with tight deadlines, simplicity is key. I didn’t need extras like monitoring or M/S options—just something straightforward and transparent. The Vintage Maker insert switcher delivers exactly that.

    Paul, the main engineer, was quick to respond and very helpful. I ordered the unit with six inserts, including A-B switching for channels 1-2 (AA) and 3-4 (BB), plus four additional channels: C, D, E, and F. https://www.tapeovermastering.com/tommi-langen-1

  2. Reviewer profile image
    5 out of 5

    john.music –

    Simple, pro and smooth workflow

    This box is a game-changer for mastering and mixing! Swap gear in and out instantly, no noise, no hassle.

    Why It’s 🔥
    6 stereo inserts – flip between comps, EQs, whatever.
    Relay switching = clean AF signal path.
    Built like a tank, no tone loss.
    Final Take
    If you’re stacking outboard gear, this keeps your workflow smooth. Simple, pro, and just works. 💯🔥
