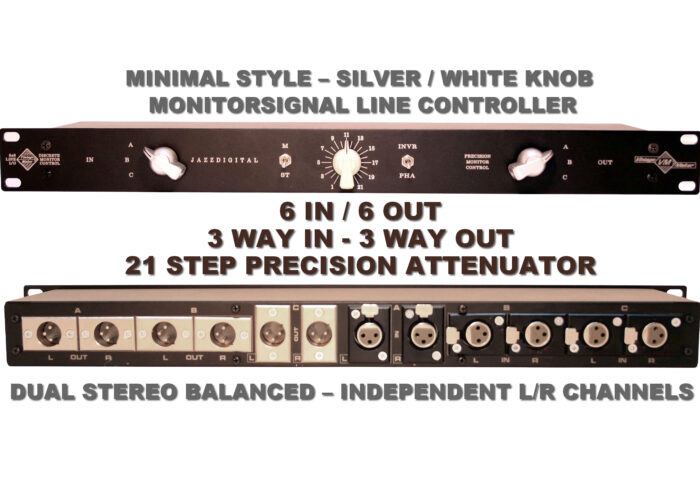

6×6 XLR Monitor Controller – Minimal Style with Phase Invert + Mono

6×6 Dual Stereo Balanced Passive Discrete Monitor Volume Controller – Speaker Selector

• 3-Way In / 3-Way Out – Stereo Line Switcher

• Phase + Mono

• Gold Plated Step Precision Volume Control

• Full XLR connectivity for Adam T5V, Drawmer 1978, Neumann KH 120 A, Kali Audio LP-8

• 6 In – 6 Out Monitor Controller – Phase InvR + Mono

Specifications:

• 6×6 XLR Balanced Inputs / Outputs

• 3×Stereo L/R Input (6-XLR balanced)

• 3×Stereo L/R Output (6-XLR balanced)

• 21-step precision stereo attenuator (-6dB to -58dB)

• Input select ABC via 3-position rotary switch

• Output select ABC via 3-position rotary switch

• Phase InvR + Mono switch (mix compatibility test over -35dB)

• 1U standard rack size

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 12 Working Weekdays after cleared payment

Phase Invert R + Master Mono Switch: Reversing the phase of the right channel and mono-ing it with the left and sending the result to both speakers is particularly useful for assessing the width content of your mix and distortion characteristic by effectively replacing the ‘centre image’ with the out-of-phase information. This provides an excellent way to check mono compatibility and to also learn spatial tricks from your favourite reference material. *they perform a test-type function (since you only use this function periodically) and because of the passive attenuator nature recommended to use at 75 -100% attenuator volume (or max the volume) *the efficiency of the phase decreases proportionally as the volume decreases.
