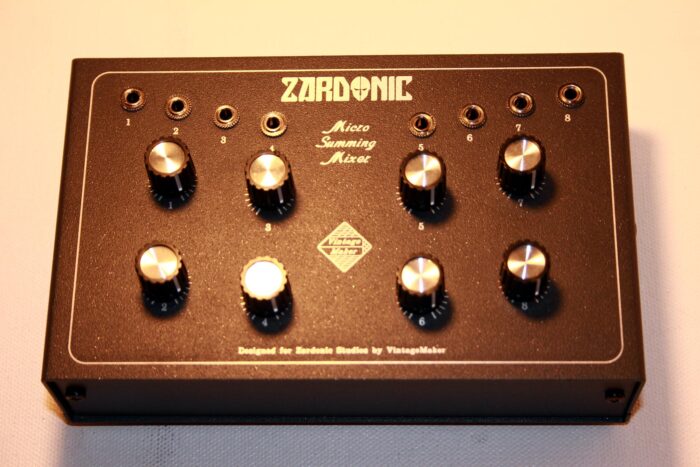

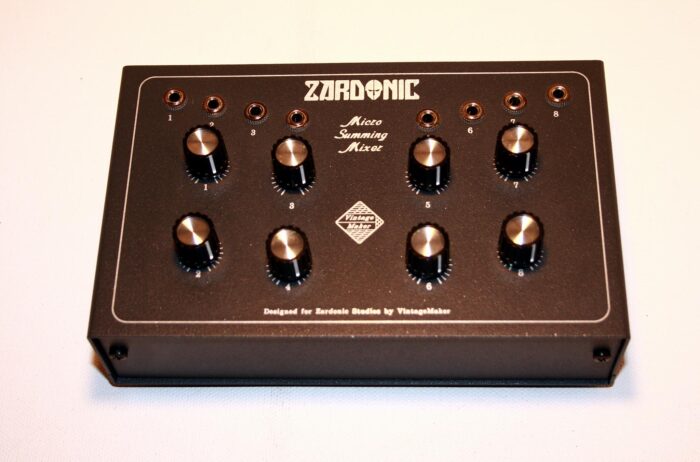

8 Input Micro Mini Mono Mixer for Error Instruments – TRS mini jack

Name: 8 Input Micro Mini Mono Mixer for Error Instruments - TRS mini jack
Brand: VintageMaker
Availability: InStock
Rating: 5.00 (1 reviews)

0.00 €

PRE-ORDER HERE

Categories: Desktop Mono Synth Keyboard Mixer, Desktop Summing 8 -16, Desktop Summing Mixer Tag: Micro Mini Mono Mixer for Error Instruments

Micro Mini Mono Mixer for Error Instruments – TELE BLENDER – Radio sputnik uvb-76 – Soundscaper eurorack GOLD – Tune In Tokyo – Space station gold TUBE LDR – Speak & Glitch
8 input TRS mini jack 3.5mm (balanced)
8 x attenuator 0 to -35dB (balanced)
*-6dB to -40dB unbalanced

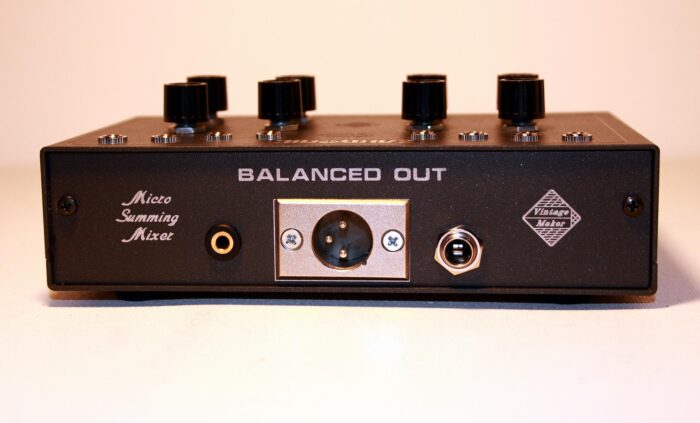

OUT1 – TRS balanced 1/4 (6.3)
OUT2 – TRS balanced 3.5mm
OUT3 – XLR balanced

Do not find your summing mixer? Tell me your DAW Interface Type! Ask to build Yours!

ORDER HERE

Boost your Digital Audio Workstation (DAW) Interface by integrating a genuine Analog Summing Mixer, getting a rich 3D analog-console-esque audio experience. Improve your studio setup with a top-tier, balanced, high-fidelity signal path for warmth and studio-grade quality.

Build time: 10 Working Weekdays after cleared payment

Analog Studio Summing Mixer – Analog mix synthesizers, samplers, and rhythm boxes and routing the mix to a preamplifier for master processing. Compatible with UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, and Arturia MiniFuse or other audio studio interface sound cards (let me know yours) designed for Native Instruments Komplete Audio 6 Mk2 USB Audio Interface + synth

You can get as many channels and options as you want, so let’s build your gear!

Select Reduction: -6,5dB / -10dB / -15dB / -20dB / -25dB (free order)
You can freely order different gain reduction mixer (let me know about your DAW micpre-amp type or gain range)

Minimal: -6,5dB -10dB reduction
LOW: -15dB gain reduction ideal for entry level preamps or DAW mic pre or instrument input
MID: -20dB gain reduction ideal for mid range preamps or DAW mic pre or instrument input
HIGH: -25dB gain reduction ideal for high range preamps like Neve, Api, Avalon or DAW mic preamp

Selected VISHAY DALE military metal-film resistors
Full discrete dual stereo signal topology
In/Out:Balanced, floating to ground
Output impedance 600-1k ohms balanced
Output level: -10 dB / – 30dB nominal
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal/ Noise rate: -110dB
TRS wiring: Tip: HOT – Ring: COLD – Sleeve: GROUND
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box!

CONNECTION TYPE	DSUB IN – TRS OUT, DSUB IN – XLR OUT, TRS IN – TRS OUT, TRS IN – XLR OUT
SOUND CARD?	UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, OTHER – let me know
KNOB STYLE	ROUND BLACK, VINTAGE WHITE, VINTAGE BLACK
CUSTOM NAME?	YES, NO THANKS
BUILD TIME	10 DAYS
