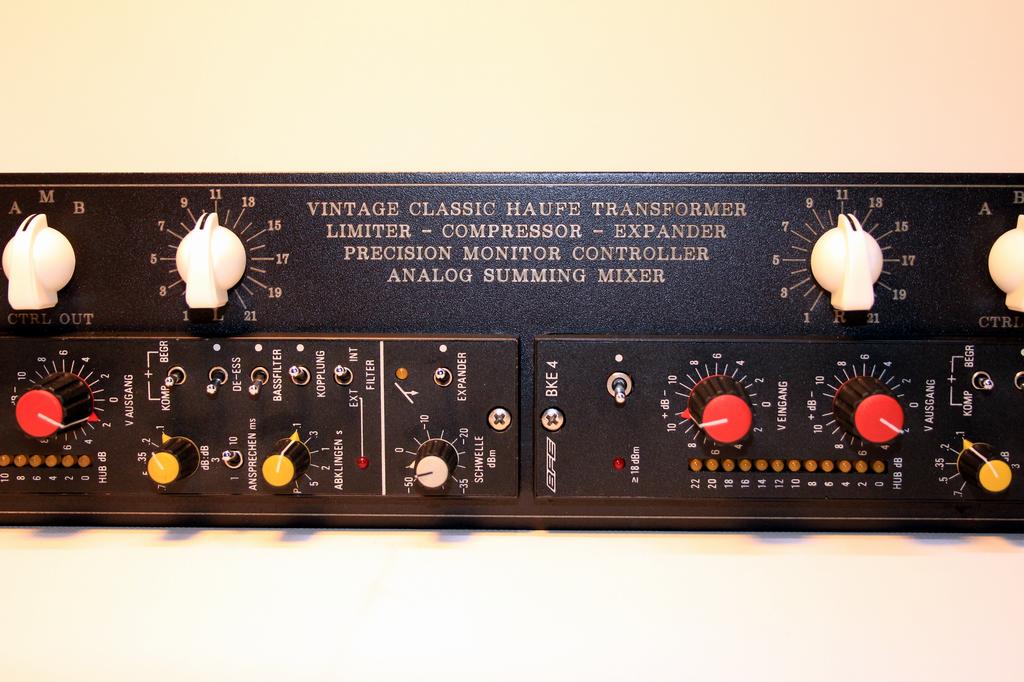

Filtek BFE BKE3 Stereo Compressor Limiter Expander – Neumann U473 Style | Vintage Classic Haufe Transformer | Precision Monitor Controller | Analog Summing Mixer Hybrid

Filtek BFE BKE4 Stereo Compressor Limiter Expander – Swiss equivalent of Neumann U473 Style – vintage compressor / peak limiter / expander module – Vintage Classic Haufe Transformer | Precision Monitor Controller | Analog Summing Mixer Hybrid

Features & Functions:

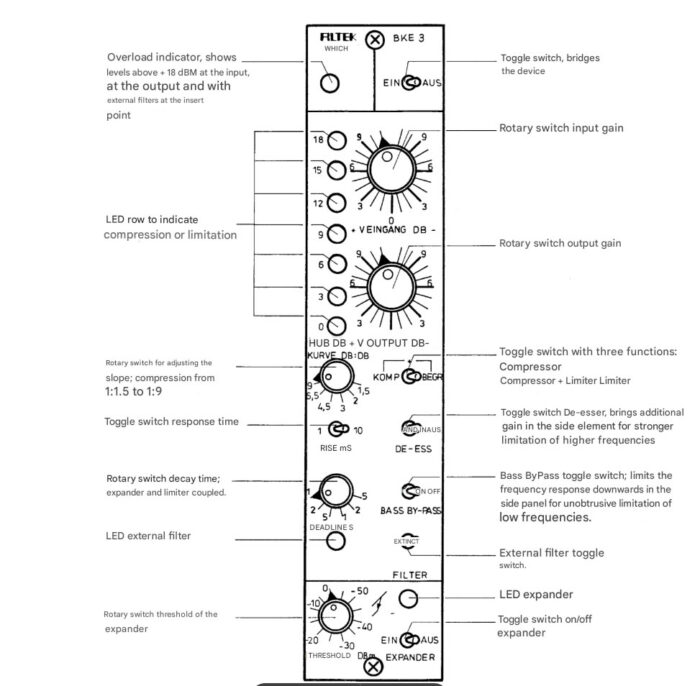

1. Stereo Compressor/Limiter/Expander

   • Inspired by the Neumann U473 design

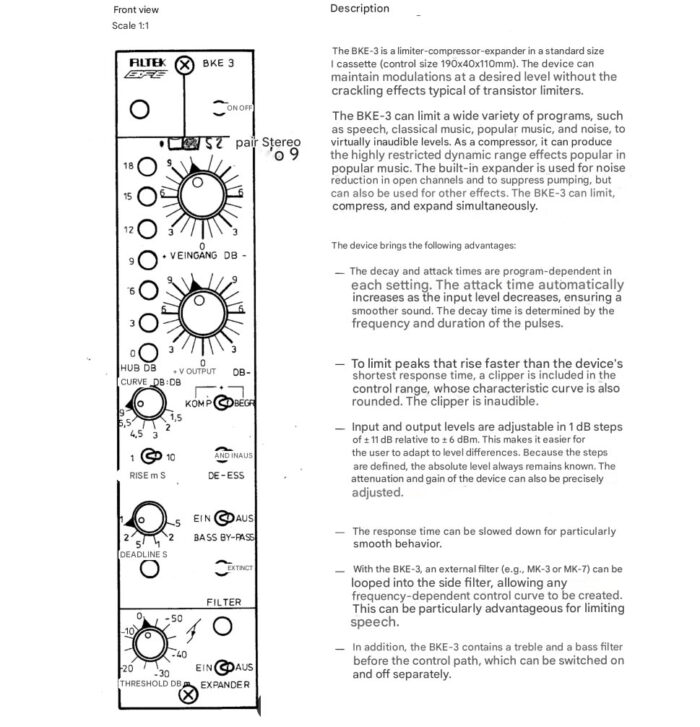

   • The BKE–3 is a limiter-compressor-expander in a standard cassette size I (control unit 190×40×110mm).
   • The device can maintain modulations at a desired level without exhibiting the known distortion effects of transistor limiters.
   • Swiss equivalent of Neumann U473 A

   • Equipped with Haufe transformers for vintage analog sound

   • Compressor Limiter Expander – Neumann U473 style

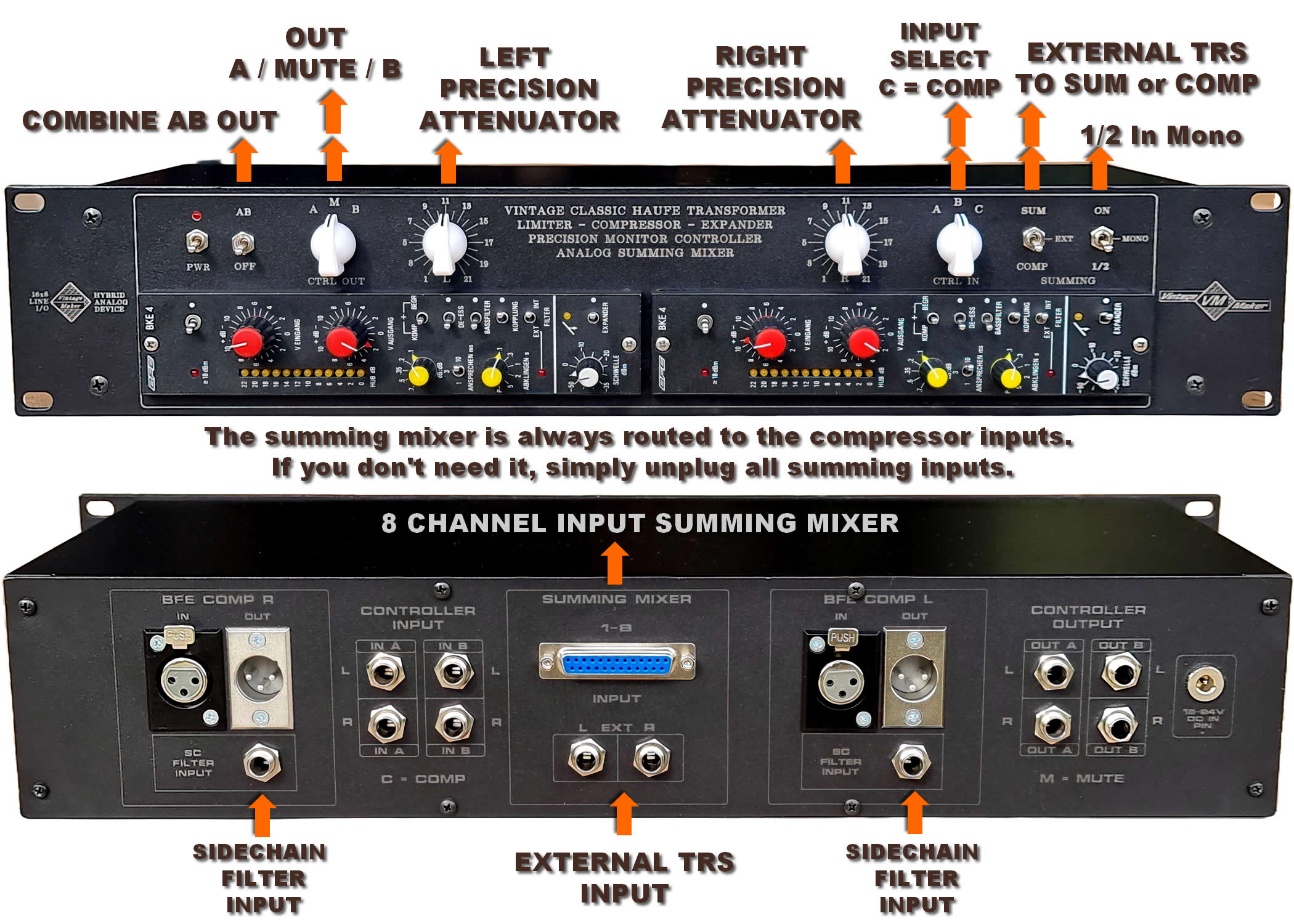

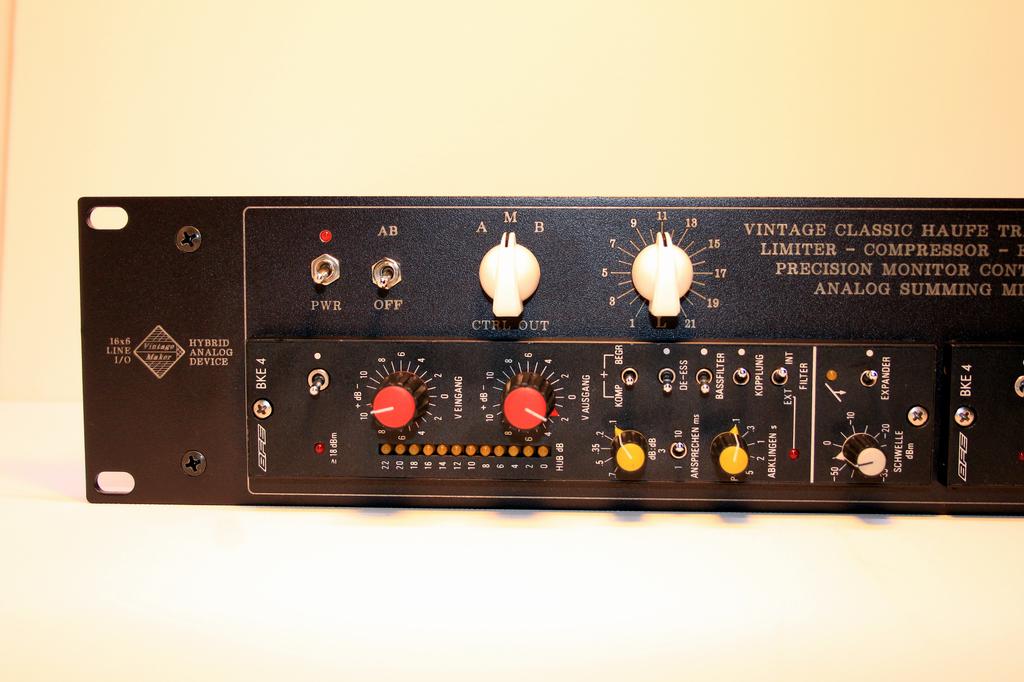

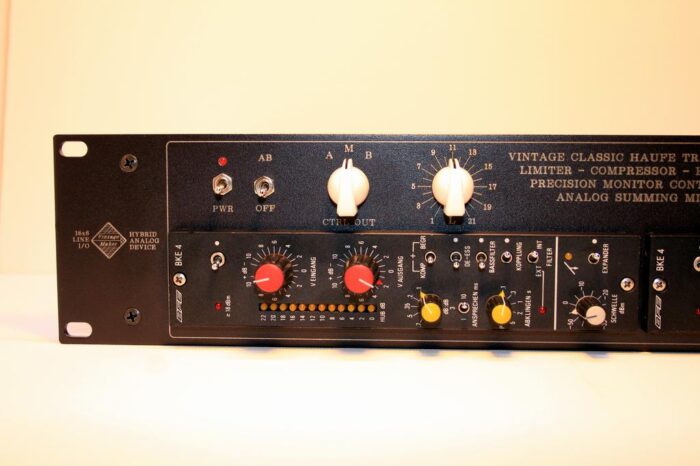

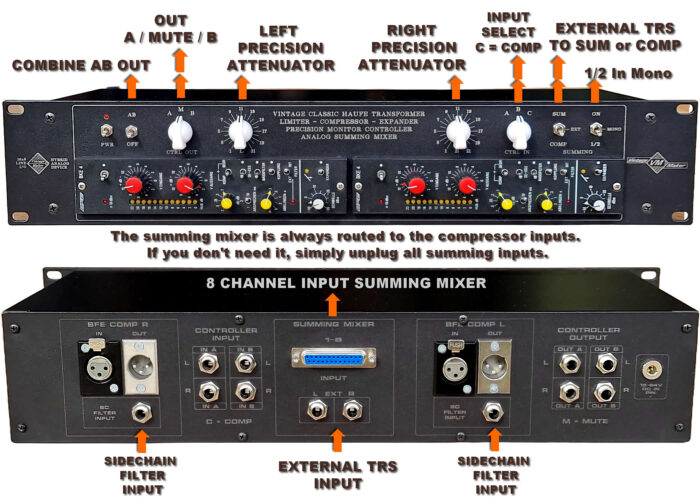

1. Precision Monitor Controller

   • Left & Right precision attenuators for accurate level control

   • AB combiner for flexible monitoring options

   • Selectable output routing (A / Mute / B)

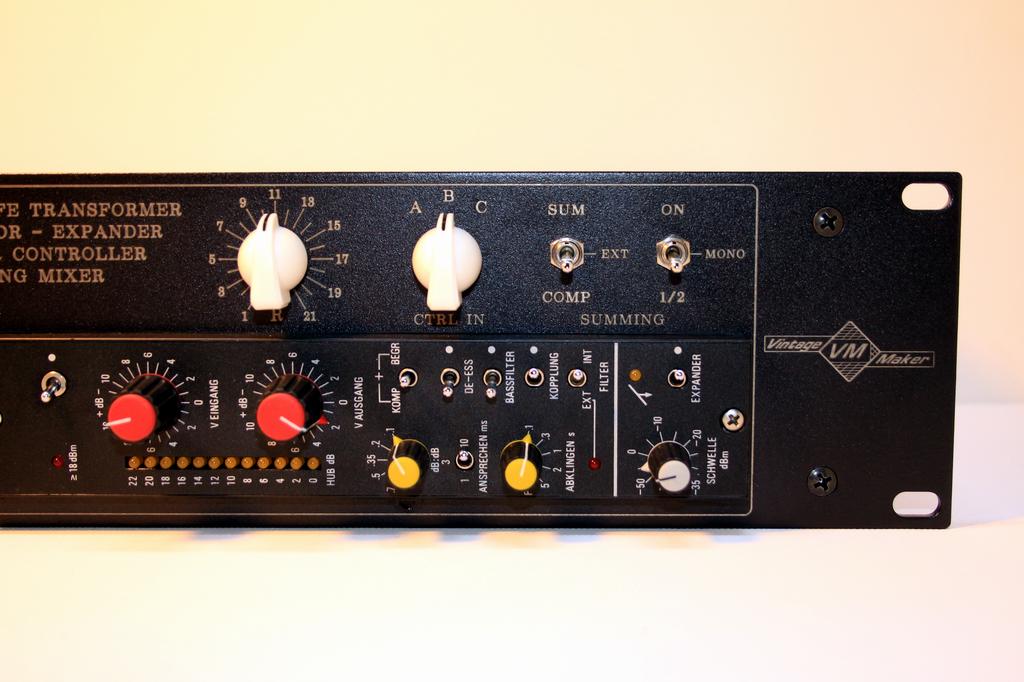

1. Analog Summing Mixer

   • 8-channel summing with balanced inputs

   • External TRS input for summing or compression integration

   • 1/2 mono switch for summing flexibility

   • The summing mixer is always routed to the compressor inputs. If you don’t need it, simply unplug all summing inputs.

1. Compressor Routing & Input Control

   • Input selection (A, B, or C = COMP)

   • External TRS input for direct compression or summing

   • Sidechain SC filterTRS  input for additional tonal shaping

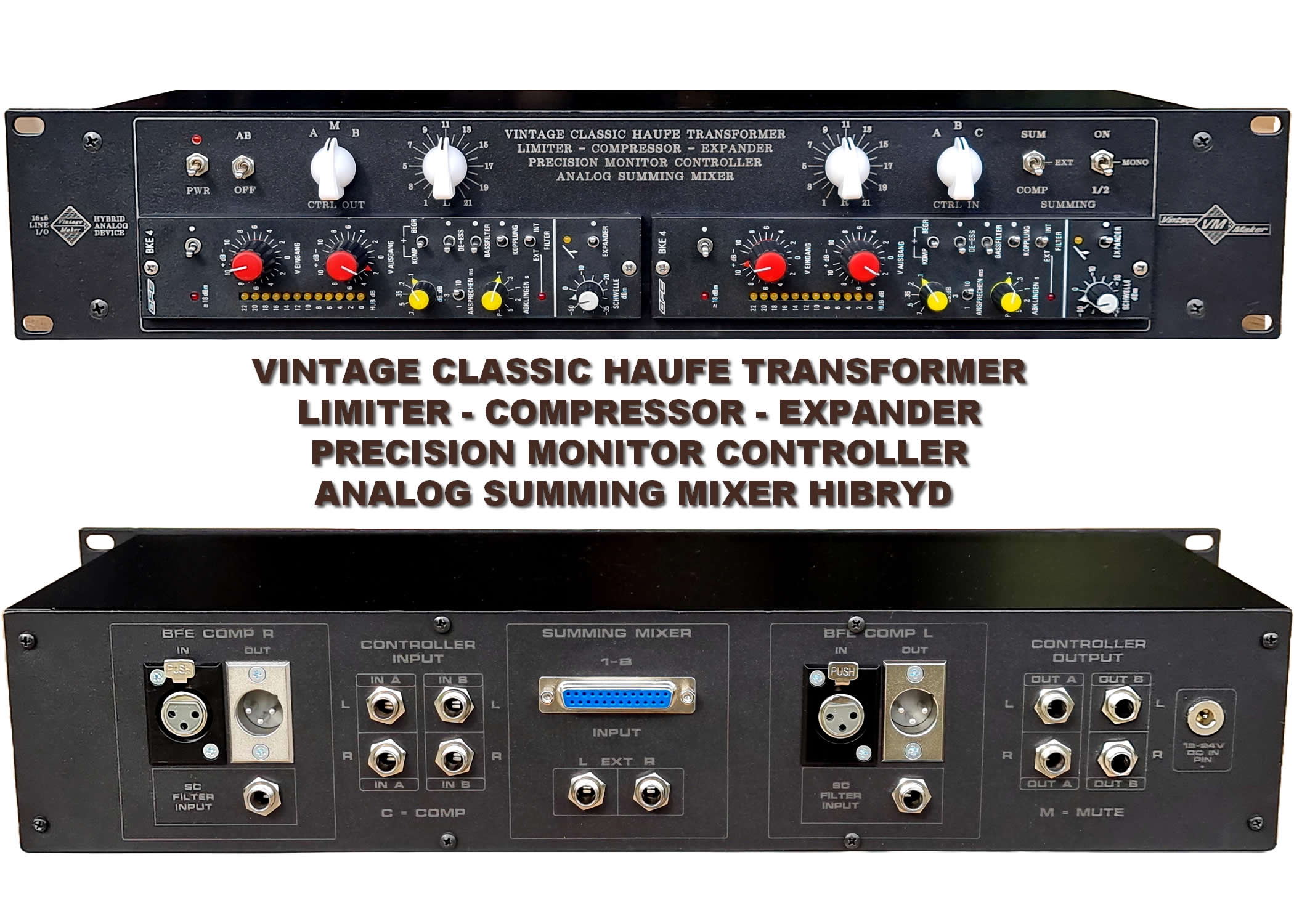

1. Rear Panel Connectivity

   • XLR inputs and outputs for BFE compression

   • TRS Filter (sidechain) BFE Input

   • Controller inputs for routing options (A, B, and COMP)

   • DB25 connector for summing mixer input (1-8)

   • External TRS inputs for summing and compression integration

   • Controller outputs for flexible monitoring setup

Ideal For:

• Hybrid mixing setups

• Analog summing and outboard compression

• Master bus processing with transformer-based color

• Precision monitoring with stepped attenuation

Do not find your desired gear?  Ask to build Yours!

You can get as many channels and options as you want, so let’s build your gear!

Build time: 15 Working Weekdays after cleared payment
