Build Your Custom Studio 16-In / 2 or 4-Out Summing Mixer – DSUB, TRS, or XLR I/O

Build Your Custom Studio Summing Mixer – Dual Stereo, Noise-Free, Fully Balanced Signal Path

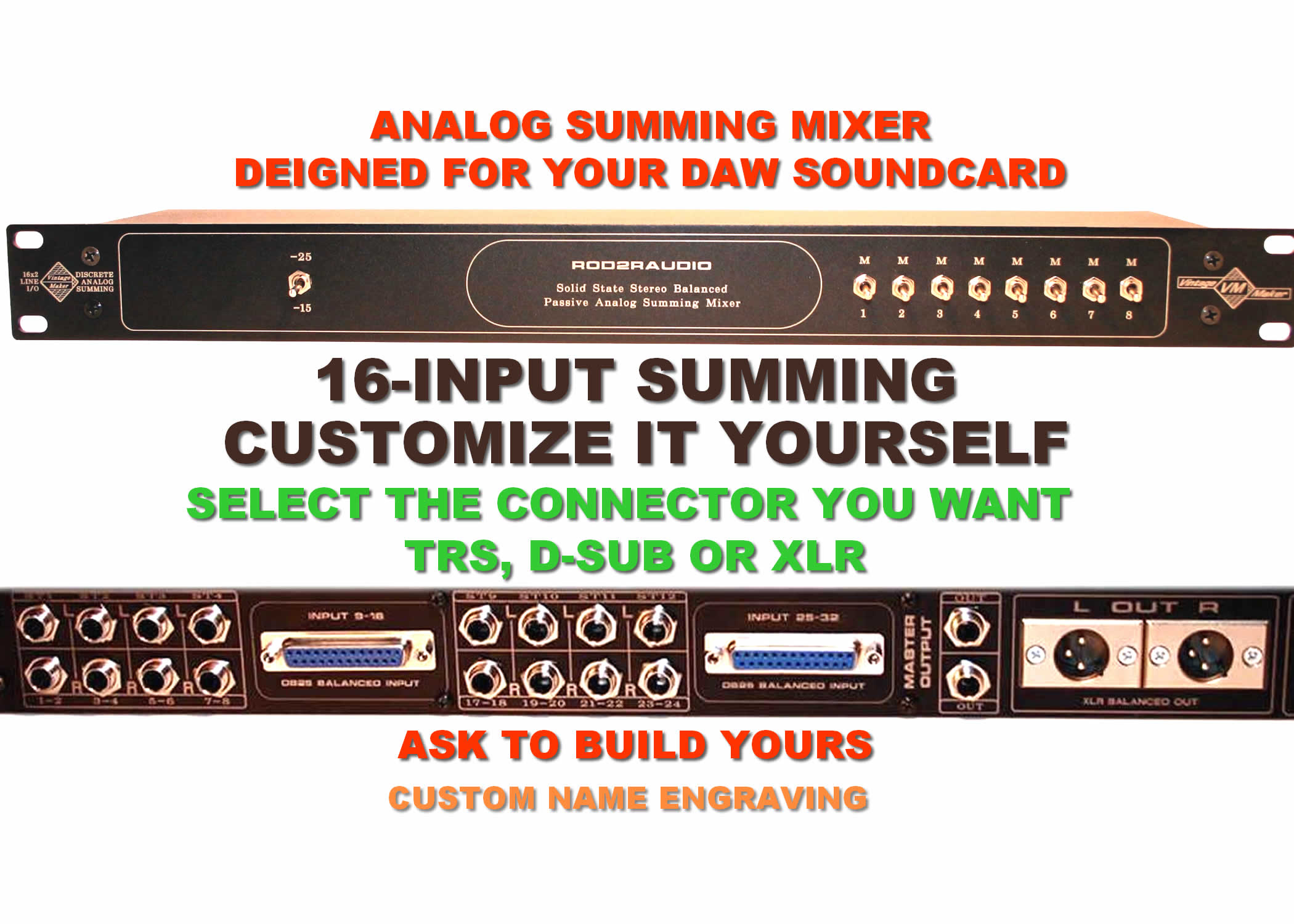

16-Input Rackmount Custom Analog Passive Studio Summing Mixer – perfect for DAW, synths, keyboards, and audio interfaces. Transform your digital mixes with analog warmth and depth.

Key Features: – Select your choice from the drop-down menu!” ✅

• 1U Standard 19″ Rackmount

• 16 Inputs: DSUB, TRS, or XLR (selectable) – balanced L/R

• Main/Monitor Outputs: 2 or 4 outputs, TRS or XLR (selectable) – balanced L/R

• Per-Channel Mono Conversion: 8 x switches for flexible mono routing

• Variable Headroom Gain Switch: adjustable gain for optimal mixing dynamics (Learn More)

• STM – Stereo to Mono Switch: Learn More

• Laser Engraved: Unique name and design on request

Technical Specs:

• Frequency Response (Passive Section): +0 / -0.1dB (10Hz – 30kHz)

• Maximum Level: > +28dBu

• Noise Floor: < -94.5dBu (22Hz–22kHz)

• THD+N: <0.004% • IMD: <0.004%

• Crosstalk Rejection (Passive Section): >110dB

• Selected Studio-Grade VISHAY DALE Military Metal-Film Resistors

• Stereo Balanced Discrete Path

• Output Impedance: 600–1kΩ balanced

• SNR: -110dB

• TRS Wiring: Tip=HOT / Ring=COLD / Sleeve=GROUND

Handcrafted Excellence:

• Fully hand-wired, point-to-point

• Tested for optimal performance

• Heavy-duty laser-engraved aluminum alloy enclosure

Build Your Custom Mixer:
Don’t find the exact configuration you want? Customize channels, outputs, and options – we’ll build it for you!

• Build Time: 15 working days after cleared payment

Why Use an Analog Summing Mixer?
Enhance your ITB mixes with subtle analog harmonic distortion, warmth, and depth. Push instruments slightly hotter into the summing mixer to add separation, clarity, and a polished, professional sound – just like a finished record. Headroom ensures transients are safe, keeping your mix clear and punchy.
