24-Channel Analog Switcher – DB25 Fully Balanced Studio A/B Line Select

This professional 24-channel analog switcher provides simple, reliable and transparent routing for demanding studio environments.

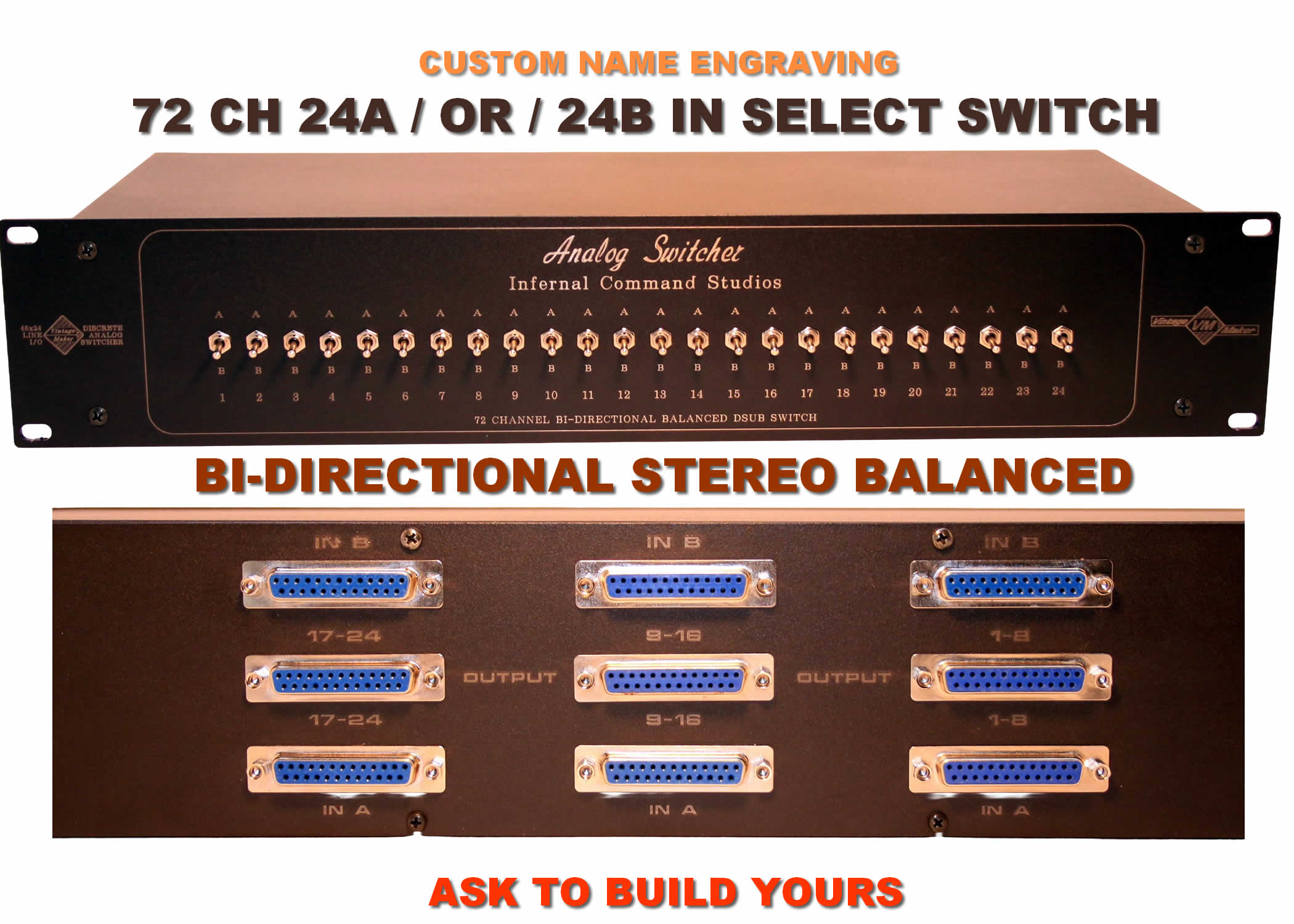

The unit features 24 balanced channels, arranged as two independent input banks, Input A and Input B, feeding a common 24-channel output bank.

Each channel can be selected individually using the front-panel toggle switches, allowing fast and intuitive A/B switching without the complexity of a digital control system.

Bi-Directional Operation

The switching system is fully bidirectional, meaning it can operate in either direction depending on how the unit is connected in your studio.

It can be used as a:

• 24-channel A/B source selector
• 24-channel destination selector
• Analog routing switch
• Studio line switcher
• A/B comparison system
• Analog patchbay alternative or expansion

Fully Balanced Analog Signal Path

All 24 channels use a fully balanced analog signal path, making the unit suitable for professional balanced studio equipment.

There are no active audio electronics in the signal path, providing a straightforward and transparent passive switching architecture.

Front-Panel Toggle Switching

Each channel has its own front-panel toggle switch, giving you immediate visual and physical control over the routing.

This is particularly useful in mastering, mixing and recording environments where quick A/B comparison and reliable manual routing are required.

DB25 / DSUB Connectivity

The rear panel uses DB25 / DSUB connectors with Tascam-standard analog pinout, making the unit easy to integrate with professional interfaces, converters, patchbays, consoles and outboard equipment.

24 Channels / 12 Stereo Pairs

The 24 balanced channels can be configured as 12 stereo pairs, making the switcher particularly suitable for stereo mastering and mix-bus applications.

The total routing capacity is:

24 × Input A + 24 × Input B → 24 Outputs

The unit can also be used in the reverse direction because of its bidirectional architecture.

Professional Applications

Ideal for:

• Mastering studios
• Mixing studios
• Recording studios
• Analog summing systems
• Outboard equipment routing
• Converter A/B switching
• Analog source comparison
• Stereo mastering chains
• Hybrid analog/digital studios
• Professional patchbay systems

Technical Overview

• Channels: 24
• Operation: 2-way / bidirectional
• Inputs: 2 × 24-channel banks
• Outputs: 24 channels
• Total routing: 48 inputs / 24 outputs
• Signal path: Fully balanced analog
• Stereo configuration: 12 stereo pairs
• Switching: Individual front-panel toggle switches
• Audio path: Passive
• Connectors: DB25 / DSUB
• Pinout: Tascam standard analog
• Chassis: 2U rackmount
• Customization: ustom name engraving

Key Features

• 24-channel fully balanced analog switcher
• 2-way bidirectional operation – works in both directions
• Switch between 24 × A and 24 × B channels
• Individual front-panel toggle switches for direct channel-by-channel control
• Fully balanced stereo signal path
• 12 stereo pairs
• 48 inputs / 24 outputs total routing capacity
• DB25 / DSUB connectors with Tascam-standard analog pinout
• Passive analog signal path – no active audio electronics
• Reliable mechanical toggle switching
• Rugged 2U rackmount chassis
• Ideal for professional studio A/B routing and analog patchbay applications
• Customization options available
• Custom name engraving available
