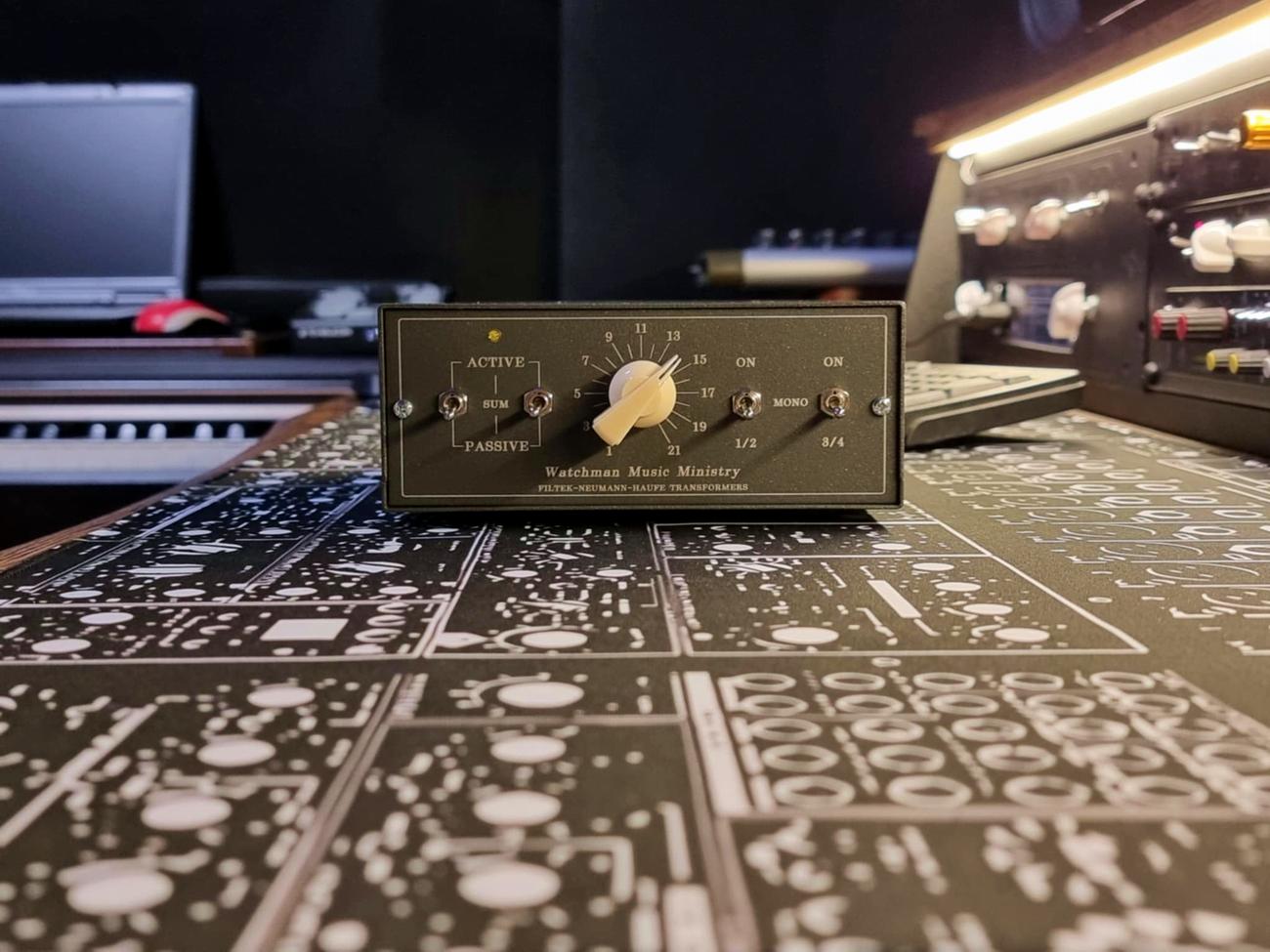

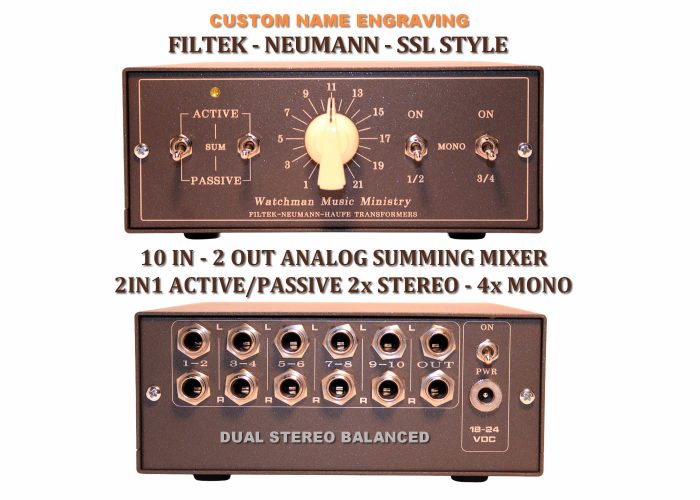

10×2 TRS SSL-Style Summing Mixer Filtek – Four (4) Transformer Amp
Original price was: 835.00 €.745.00 €Current price is: 745.00 €.
Colorize Sound with Genuine Filtek-Neumann Transformer. Add subtle color saturation and harmonics to your mix to achieve the desired analog console-like sound! Boost your DAW with the 10-channel Analog Summing Mixer. Filtek-Neumann & SSL-style Haufe transformers for a rich 3D console sound. Custom built.
SELECT ALL OPTIONS!
10-Input Channel Analog Summing Mixer – Active/Passive 2in1 Transformer modes
A 10-input analog summing mixer designed for integrating multiple DAW or line-level sources into a stereo analog output.
The unit combines a passive summing path with an active transformer amplifier stage. A master switch allows selection between Active Transformer Amp and Passive Summing operation.
Four SSL-style Haufe transformer stages are used in the active signal path. A 21-step precision attenuator provides repeatable level adjustment of the transformer amplifier.
Key Features
- 10 balanced TRS inputs
- 2 balanced 1/4″ TRS outputs (L/R)
- 4 SSL-style Haufe transformer stages
- Active Transformer Amp / Passive Summing selection
- 21-step precision transformer-amp level control
- 2 × Stereo / 4 × Mono switching
- Dual separated stereo amplifier stages
- Custom name engraving available
Active / Passive Operation
The master switch selects between two signal paths:
Active Transformer Amp
The summed signal is passed through the active transformer amplifier stage, with level adjustment via the 21-step precision attenuator.
Passive Summing
The unit operates as a passive summing stage without the active transformer amplifier path.
Stereo / Mono Switching
The input configuration can be switched between:
2 × Stereo
Two stereo input pairs.
4 × Mono
Four individual mono input channels, allowing selected mono sources to be positioned within the stereo summing configuration.
This can be useful for sources such as kick, snare, bass, vocals or other mono signals that require a defined position in the stereo mix.
Technical Details
Inputs: 10 × balanced TRS
Outputs: 2 × balanced 1/4″ TRS (L/R)
Transformer stages: 4 × SSL-style Haufe
Level control: 21-step precision stepped attenuator
Operation: Active Transformer Amp / Passive Summing
Input configuration: 2 × Stereo / 4 × Mono
Amplifier configuration: Dual separated stereo stages
Power: External power supply, EU plug
A travel plug adapter/converter may be required outside the EU.
Custom Shop – Build Your Own
VintageMaker units are individually built and can be configured for specific studio requirements.
Custom options can include:
- Number of channels
- DB25, TRS or XLR connectors
- Transformer configuration
- Signal routing
- Other circuit and mechanical options
Build Time: 12 working weekdays after cleared payment.
Shipping: Worldwide shipping available.
| KNOB STYLE | VINTAGE BLACK, VINTAGE WHITE, VINTAGE SILVER, VINTAGE BRONZE, ROUND BLACK |
|---|---|
| POWER LED COLOR | WHITE, RED, GREEN, YELLOW, BLUE |
| CUSTOM NAME? | YES, NO THANKS |
| BUILD TIME | 12 DAYS |
1 review for 10×2 TRS SSL-Style Summing Mixer Filtek – Four (4) Transformer Amp
5.00 out of 5 stars
Add a review
You must be logged in to post a review.
You may also like…
-
16×4 Lawo – Analog Summing Mixer – DSUB -TRS or XLR I/O (select connection type)
Price range: 999.00 € through 1.109.00 € -
-
16×4 Neumann 2C – Analog Summing Mixer -DSUB -TRS or XLR I/O (select connection type)
Price range: 1.219.00 € through 1.329.00 € -
-
16 In – 2 or 4 Out Analog Passive Studio Summing Mixer DSUB -TRS or XLR I/O (select connection type)
Price range: 419.00 € through 489.00 € -

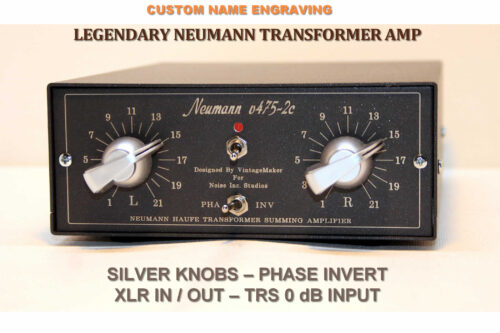

10×2 Desktop Neumann Summing mixer – V475-2C Four (4) in-out Transformer – Line Amp – Color box TRS-DSUB
Price range: 945.00 € through 965.00 € -
Related products
-
Sale!

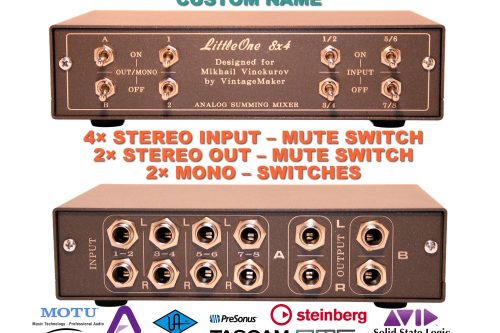

8-Channel DAW Synth Audio Summing Mixer – TRS I/O, Input Mute Switch Control, Universal Audio Interface Compatible
Original price was: 429.00 €.339.00 €Current price is: 339.00 €. -
Sale!
8×4 TRS SSL-Style Summing Mixer Filtek – Four (4) Transformer Color Amp
Original price was: 835.00 €.745.00 €Current price is: 745.00 €. -
Sale!
4×2 XLR – 4× LCR Pan Switch – 4× Filtek-Neumann Transformer Amp
Original price was: 1.350.00 €.995.00 €Current price is: 995.00 €. -
J Prorok –
Just wow!!!
After initial setup I have to say very impressed!
Without going to extensive testing(which will follow) already experienced such a great depth, clarity harmonic richness and 3D separation. When activating the mono switch for the kick and bass (it was already mono however) it just centred/lifted it on a way I was not expected, set the bass in the mix I was shocked. The level of depth from the low end, it’s just another game!
Also tested on vocals and a couple of instruments and I cannot wait to fully integrate it into my workflow!
Super easy to use and a very solid build quality!

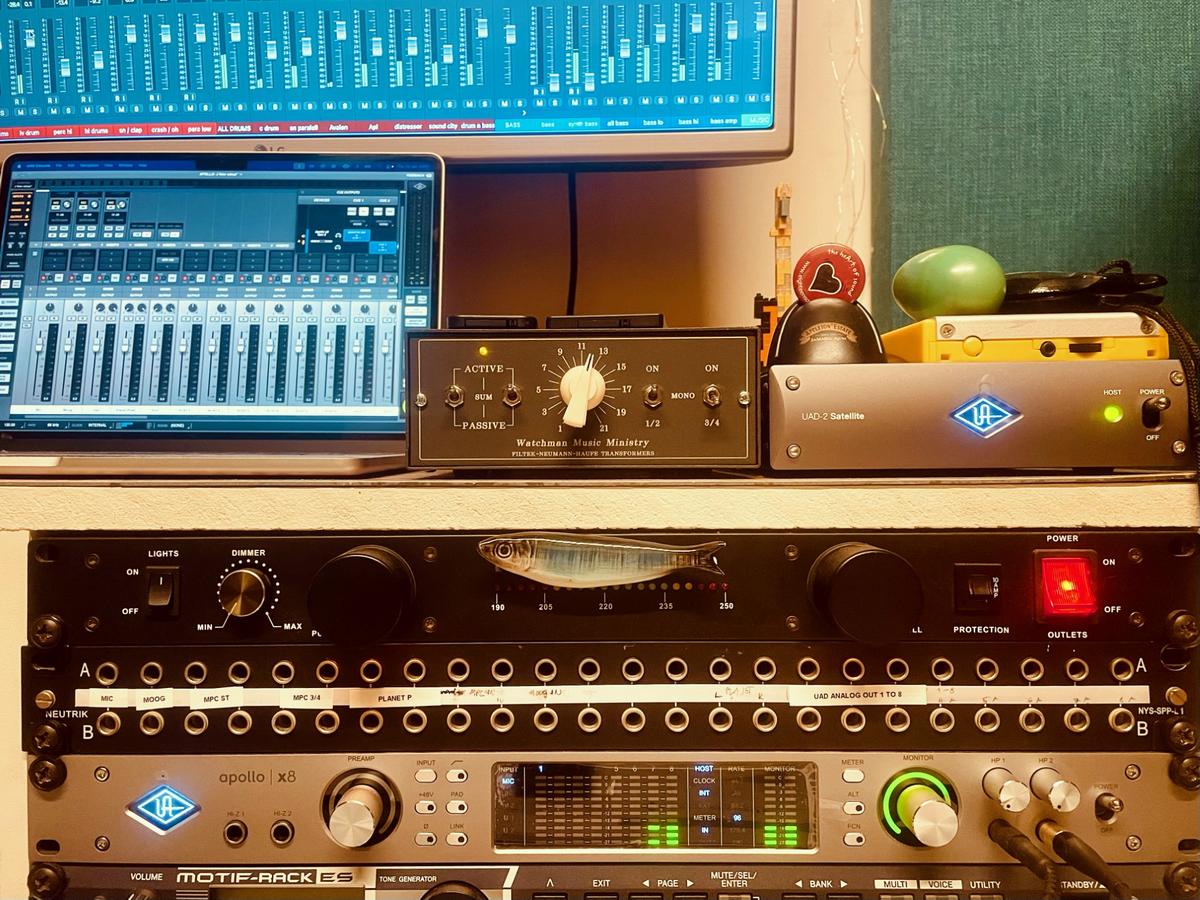

My plan is to send all my signals from UAD x8 to the Vintage Maker which will feed the SSL Fusion (bus + processor on insert) and then record it to tape, which then back to the DAW and top it with Cradle’s God Particle to achieve todays crisp and clear sound of a finished product! But I’m sure I will run all my drum machines and synths thru it when tracking.
