10 CH Input 8 DSUB + 2 TRS in / STM + Headroom sw + Insert with 4 TRS MainRec/Monitor output summing mixer
0.00 €
Do not find your summing mixer? Tell me your DAW Interface Type! Ask to build Yours!
ORDER HERE
Boost your Digital Audio Workstation (DAW) Interface by integrating a genuine Analog Summing Mixer, getting a rich 3D analog-console-esque audio experience. Improve your studio setup with a top-tier, balanced, high-fidelity signal path for warmth and studio-grade quality.
Build time: 10 Working Weekdays after cleared payment
Analog Studio Summing Mixer – Ideal for linking synthesizers, samplers, and rhythm boxes and routing the mix to a preamplifier for master processing. Compatible with UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, and Arturia MiniFuse or other audio studio interface sound cards (let me know yours)
You can get as many channels and options as you want, so let’s build your gear!
10 INPUT = 8 DSUB input + 2 TRS input / 4 TRS output summing mixer Cubase / Pro Tools/Ableton Live, Tascam Us-16×08, RME Fireface UCXThis summing box mixer unit is suitable for connecting synthesizers, samplers, and rhythm boxes, and then routing the combined output to a preamplifier for master processing.
STM = Stereo to Mono: It give an extra stable analog mono base for your mix (Kick / Bass) then a superior separation and 3D depth for additional stereos -read Documentation or see on Youtube
Dual balanced discrete stereo signal path

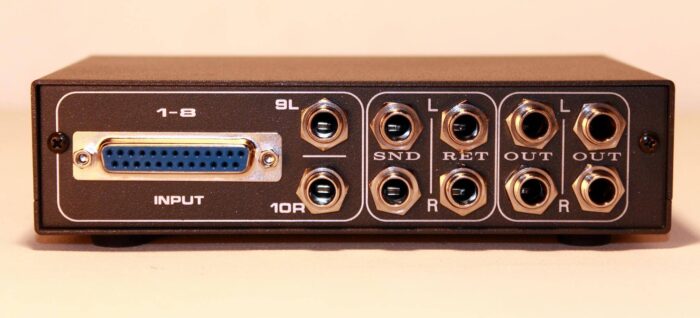

- 10 Input Mixed DSUB / TRS Input:
- 1 – 8 ch DSUB Balanced
- 9 -10 ch TRS 1/4″ Balanced
- Output: 4 x TRS Balanced L/R (main/monitor)
- 1 x Stereo to 2 Mono on 1/2 stereo input read more…

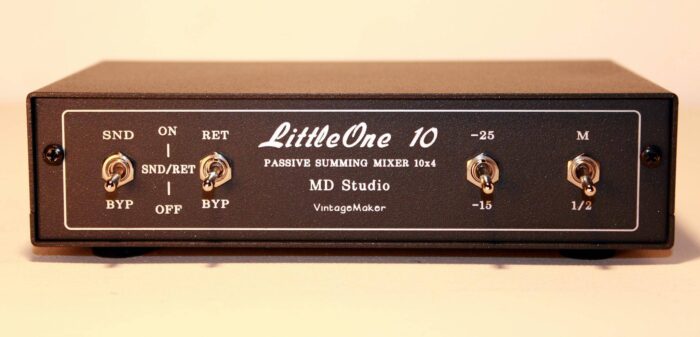

- Master Insert Send/Return TRS 2 x switch
- -15/-25dB gain switch (before insert)
- Unique Name engrave (let me know)
- Selected VISHAY DALE military metal-film resistors
- Full discrete dual stereo signal topology
- In/Out:Balanced, floating to ground
- Output impedance 600-1k ohms balanced
- Output level: -10 dB / – 30dB nominal
- Frequency response: 0-500Khz
- Crosstalk 1Khz: -95dB
- Signal/ Noise rate: -110dB
- TRS wiring: Tip: HOT – Ring: COLD – Sleeve: GROUND
- Pure hand made! Hand wired and tested point-to-point!
- Laser engraved massive aluminium alloy box!
- Knob Style: Round black or Miniature Vintage Style White / Black knob
| CONNECTION TYPE | DSUB IN – TRS OUT, DSUB IN – XLR OUT, TRS IN – TRS OUT, TRS IN – XLR OUT |
|---|---|
| SOUND CARD? | UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, OTHER – let me know |
| KNOB STYLE | ROUND BLACK, VINTAGE WHITE, VINTAGE BLACK |
| CUSTOM NAME? | YES, NO THANKS |
| BUILD TIME | 10 DAYS |
