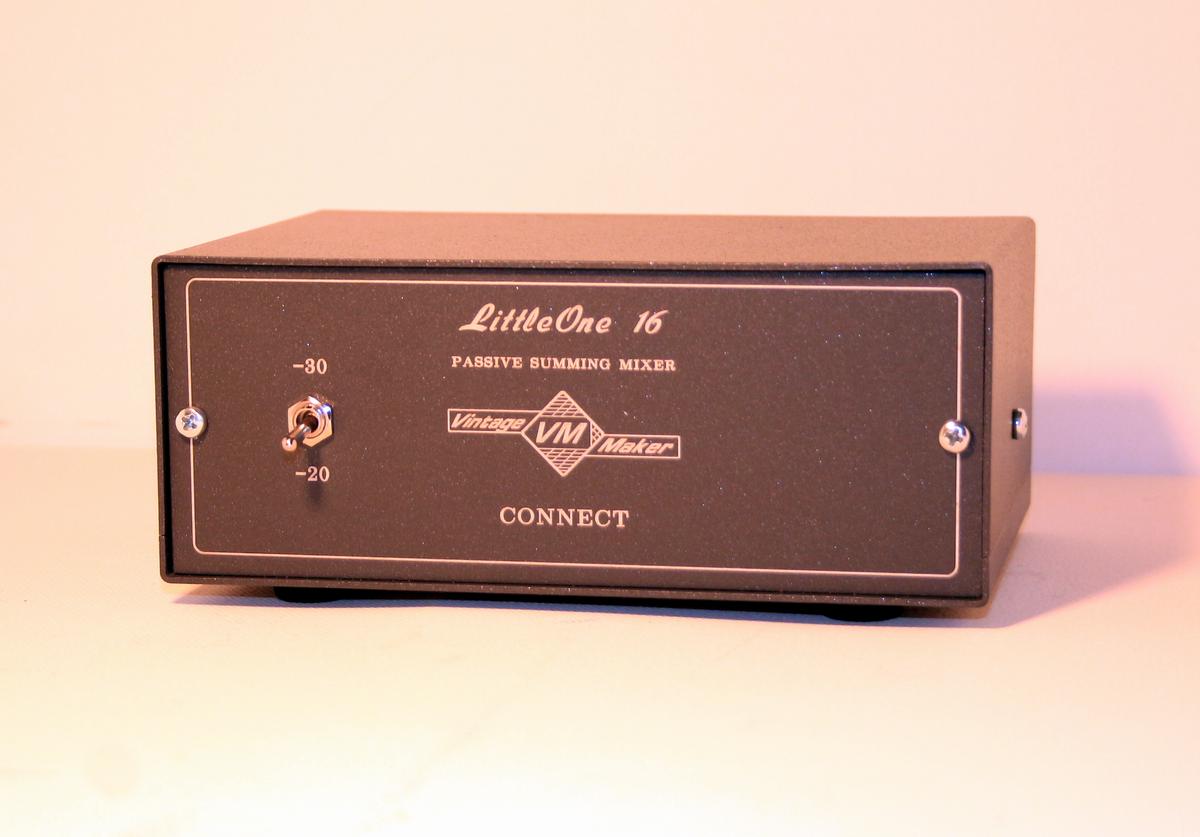

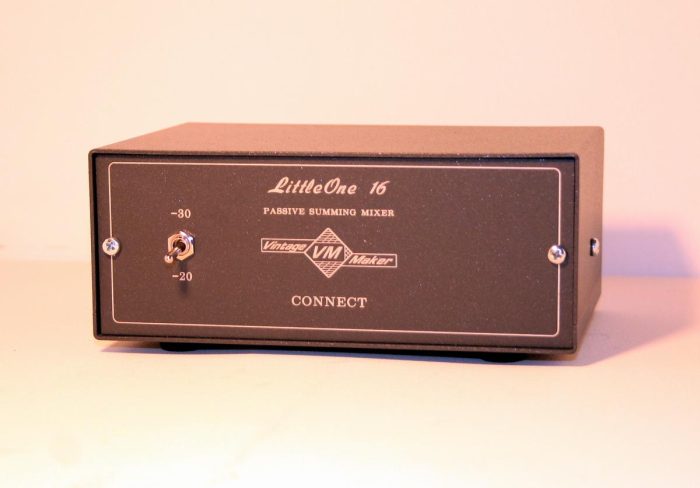

16-Input Desktop Summing Mixer – DSUB TRS XLR (Select Connection) Variable Headroom Gain Switch

229.00 279.00

Please Select All Options!

Compact Desktop Stereo Summing Mixer Daw Synth Drum machine analog mixing
16 Input Stereo balanced

Vari Gain Headroom Switch: It provides a wide gain-volume range for different applications, offers gain stages between various microphone preamps or DAW interface inputs, and accommodates various source inputs, such as synthesizers or DAWs.

Select sound card or Select dB Reduction: -6,5dB / -10dB / -15dB / -20dB / -25dB (free order) relative to 0dB
You can freely order different gain reduction mixer (let me know about your DAW micpre-amp type or gain range)

You can get as many channels and options as you want, so let’s build your gear!

Build time: 10 Working Weekdays after cleared payment

Do not find your summing mixer? Tell me your DAW Interface Type! Do not find your Gear? Don’t worry! Just inform me about your requirements!

Selected VISHAY DALE military metal-film resistors
In/Out: Stereo Balanced Discrete path
Insertion input resistance: -15dB / -20dB / -25dB (order)
Output impedance 600-1k ohms balanced
Output level: -15 dB nominal (basic setup)
Frequency response: 0-500Khz
Crosstalk 1Khz: -95dB
Signal/ Noise rate: -110dB
TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
Pure hand made! Hand wired and tested point-to-point!
Laser engraved massive aluminium alloy box

16 channel Summing box mixer unit for connecting synthesizers, samplers, drum rhythm machine boxes, and then routing the combined output to a preamplifier for master processing UAD Apollo, Focusrite, Motu, M-Audio, Presonus, Behringer, Roland, Tascam, RME, SSL, Apogee, Arturia MiniFuse sound card

CONNECTION TYPE

DSUB IN – 2 TRS OUT, DSUB IN – 4 TRS OUT, DSUB IN – 2 XLR OUT, DSUB IN – 2 TRS + 2 XLR OUT, TRS IN – 2 TRS OUT, TRS IN – 4 TRS OUT

SOUND CARD?

UAD Apollo, Apogee, Arturia, Behringer, Focusrite, M-Audio, Motu, PreSonus, Prism, RME, Roland, SSL, Steinberg, Tascam, OTHER let me know

VARIABLE HEADROOM GAIN SWITCH

-6/-16dB, -10/-20dB, -15/-25dB, -20/-30dB

CUSTOM NAME?

YES, NO THANKS

BUILD TIME

10 DAYS
